Memory Seat/Mirror Module Connector End View (C2)

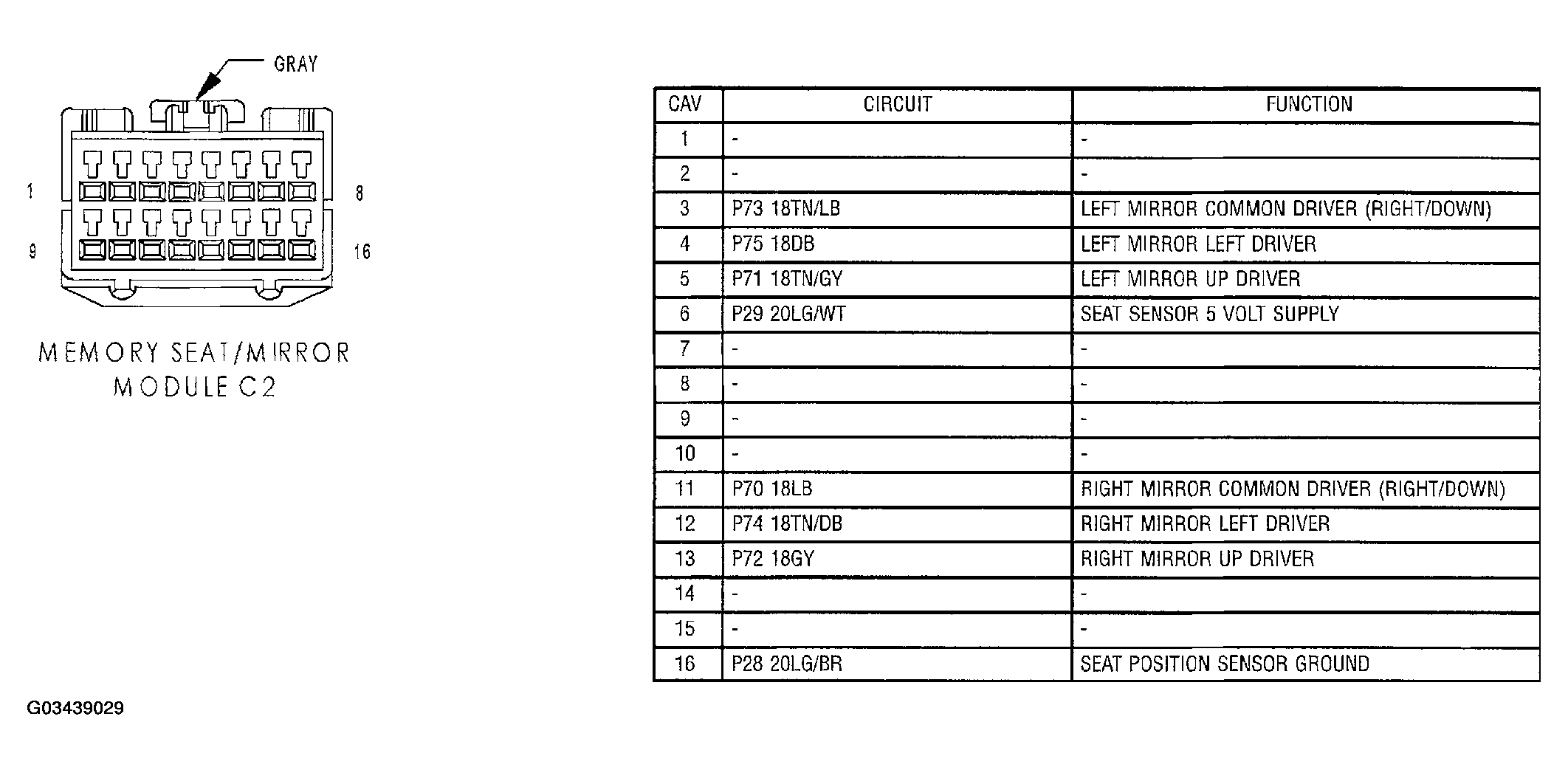

Fig 1: Memory Seat/Mirror Module Connector End View (C2)
G03439029Courtesy of DAIMLERCHRYSLER CORP.
