Component Locations

NOTE: See Fig 1-Fig 25 for component locations. There are some duplicate component views.

Fig 1: Locating A/C Pressure Sensor

G00012059

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Locating Body Control Module

G00030191

Courtesy of DAIMLERCHRYSLER CORPORATION

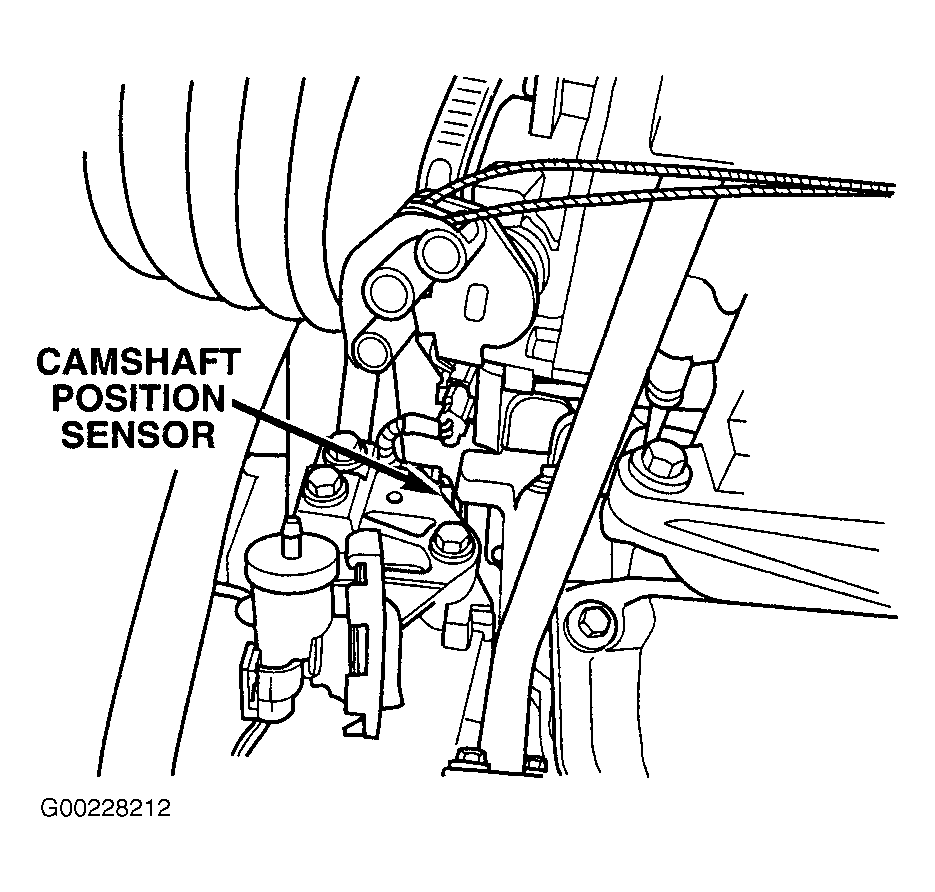

Fig 3: Locating Camshaft Position Sensor

G00228212

Courtesy of CHRYSLER CORP.

Fig 4: Locating Crankshaft Position Sensor

G00094493

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Locating Data Link Connector

G98I00156

Courtesy of CHRYSLER CORP.

Fig 6: Locating ECT Sensor, Fuel Rail Test Port & Ignition Coil

G00012048

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: Locating EGR Valve & EGR Solenoid

G00012065

Courtesy of DAIMLRCHRYSLER CORPORATION

Fig 8: Locating EVAP Canisters

G00012051

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 9: Locating EVAP Purge Solenoid

G00012053

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 10: Locating Front Control Module

G00114659

Courtesy of DAIMLERCHRYSLER CORPORATION

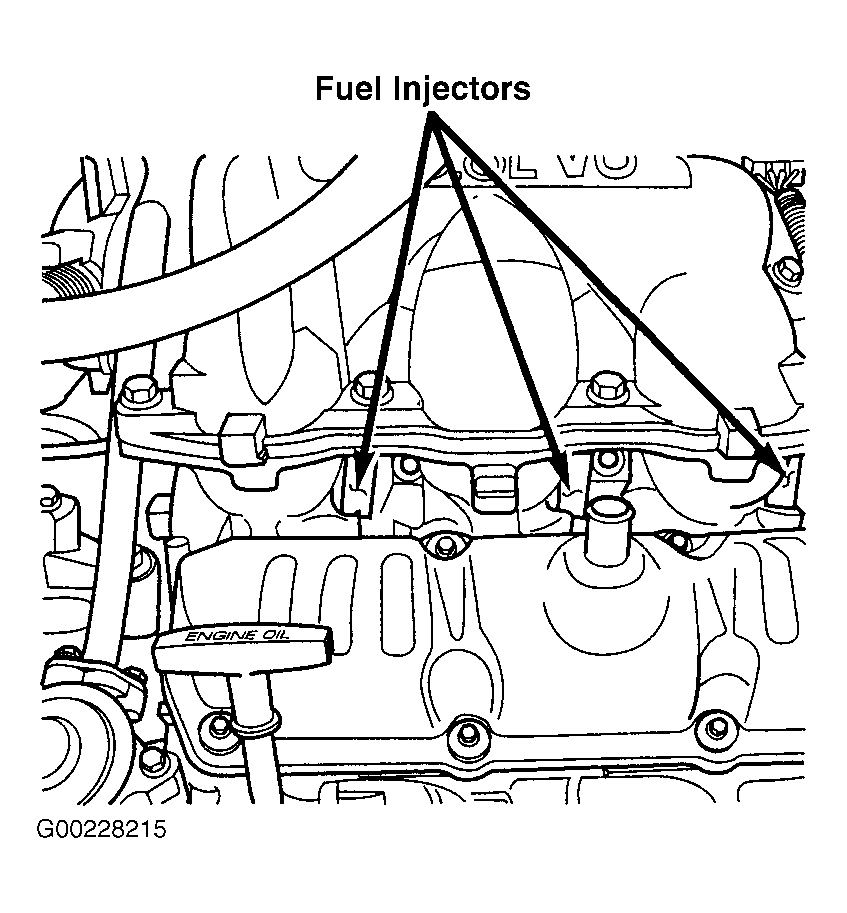

Fig 11: Locating Fuel Injectors

G00228215

Courtesy of CHRYSLER CORP.

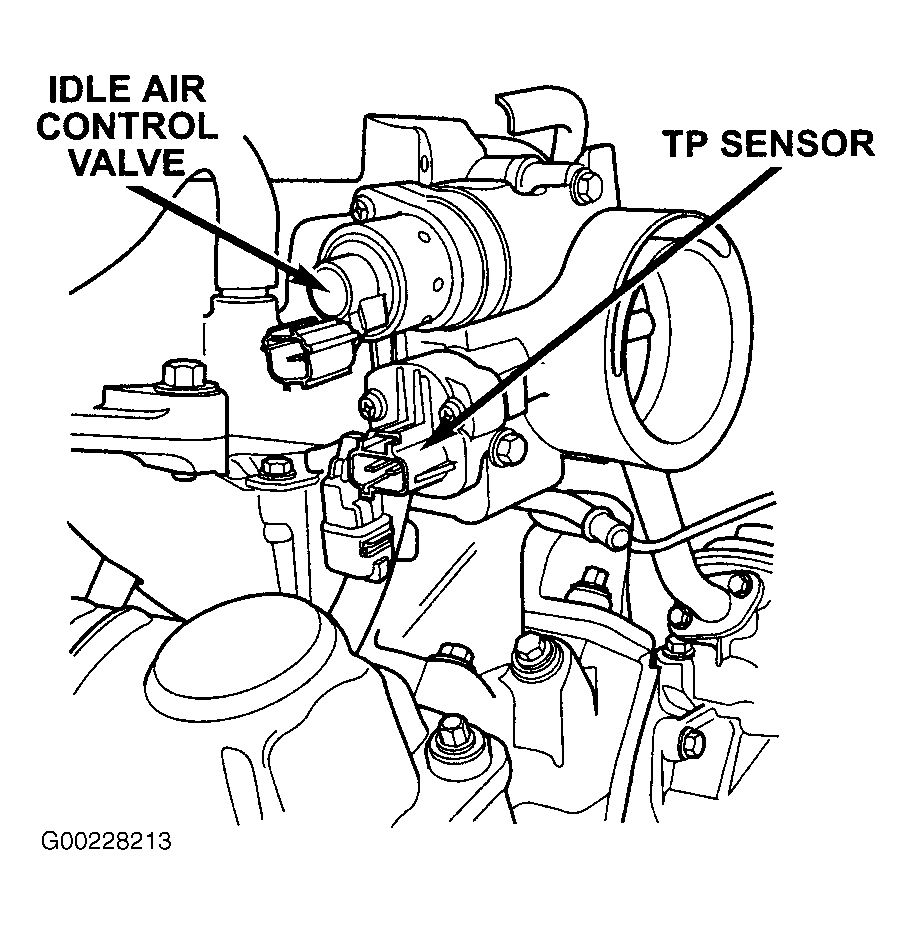

Fig 12: Locating Idle Air Control Valve & TP Sensor

G00228213

Courtesy of CHRYSLER CORP.

Fig 13: Locating Inlet Air Temperature Sensor

G00012050

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 14: Locating Integrated Power Module & Powertrain Control Module

G00030187

Courtesy of DAIMLERCHRYSLER CORPORATION

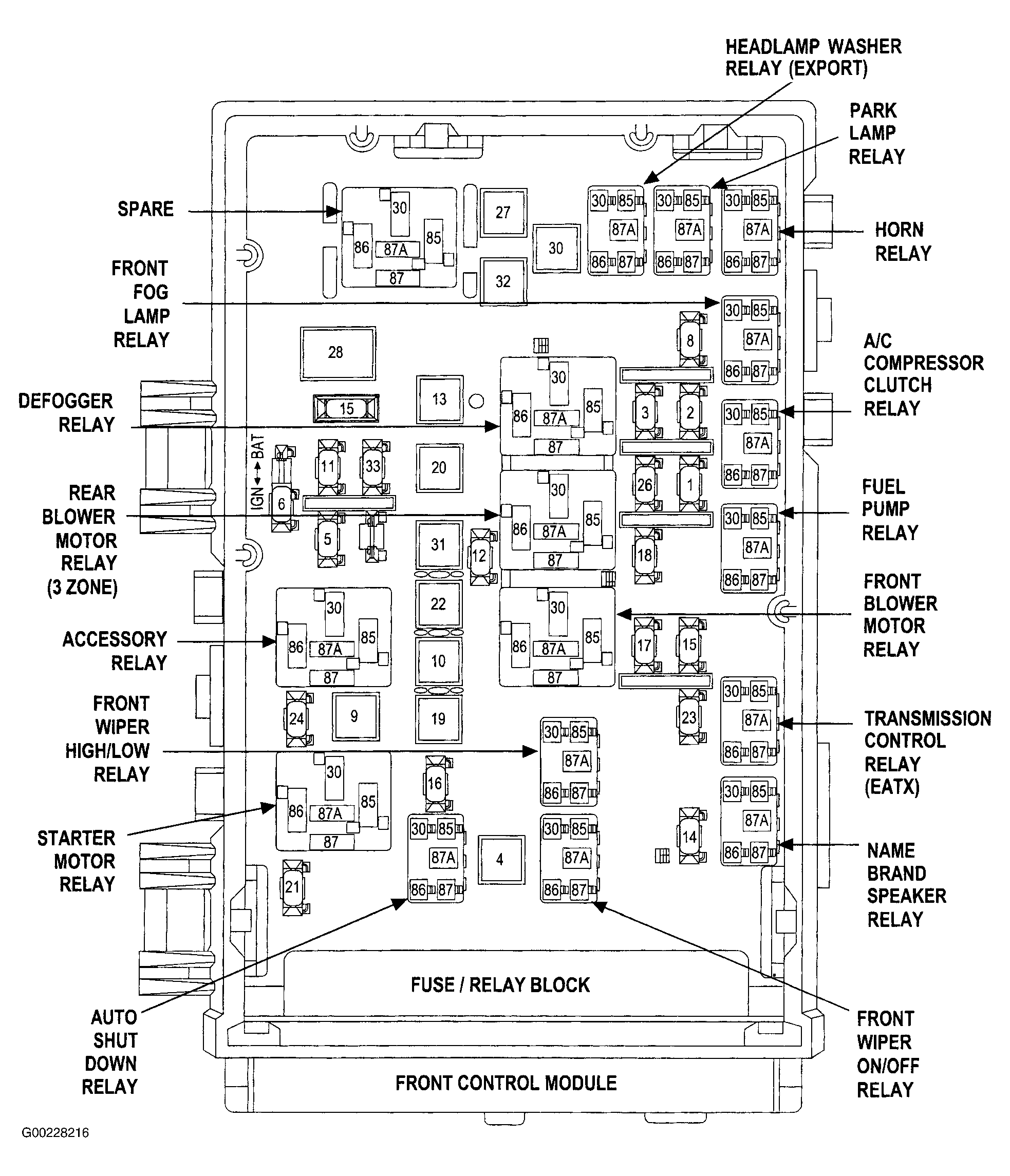

Fig 15: Locating Integrated Power Module - Fuse View

G00228216

Courtesy of CHRYSLER CORP.

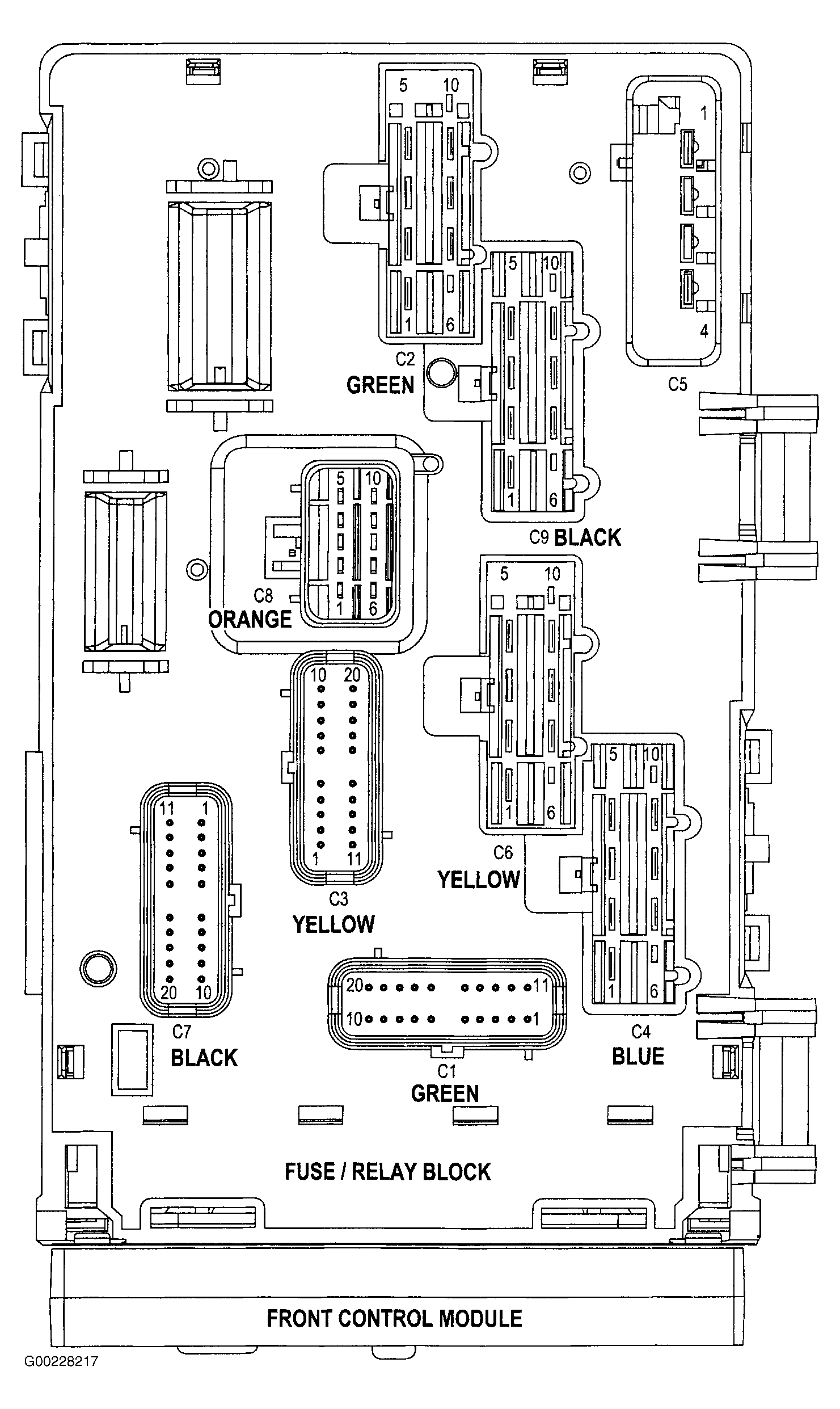

Fig 16: Locating Integrated Power Module - Connector View

G00228217

Courtesy of CHRYSLER CORP.

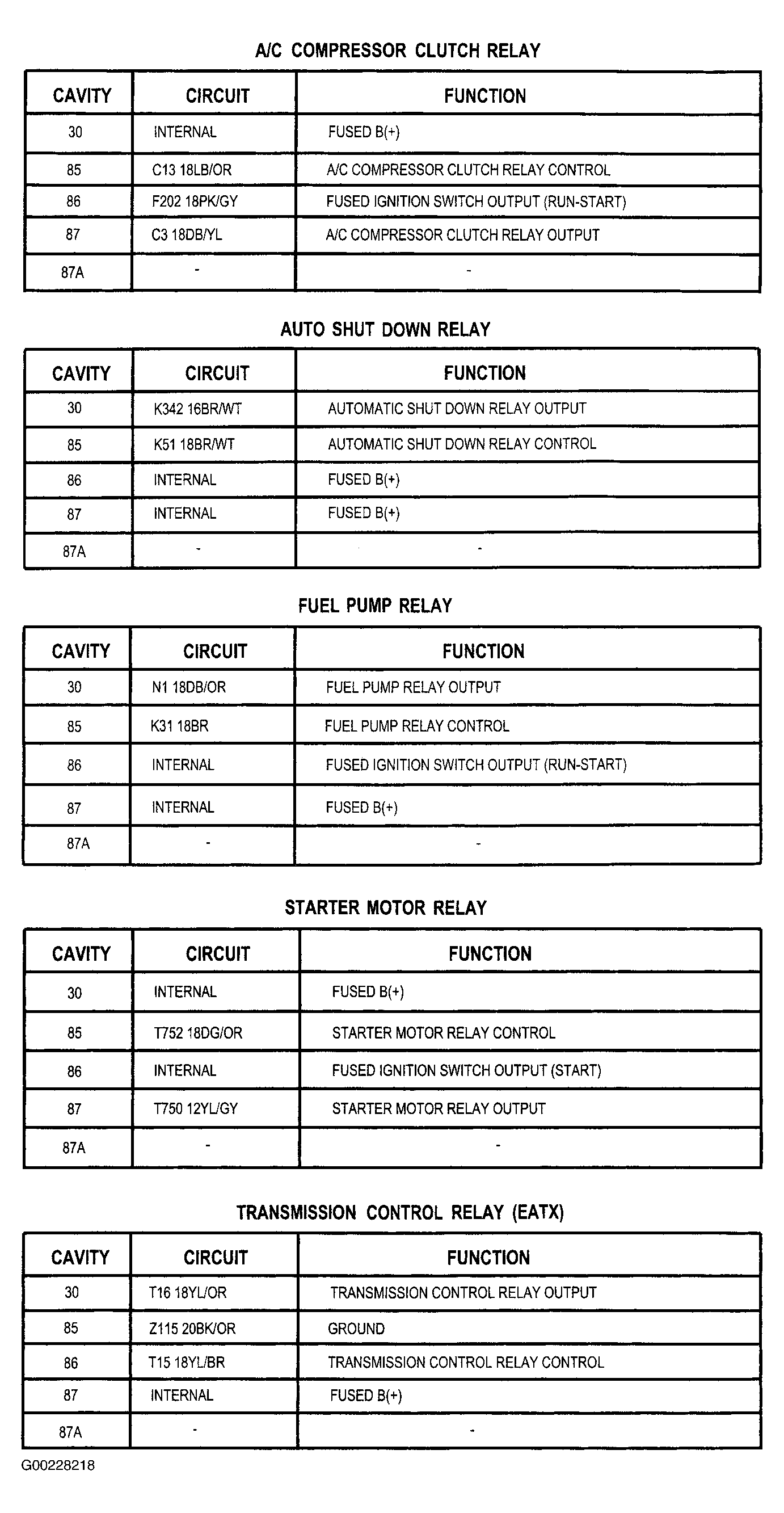

Fig 17: Locating Integrated Power Module - Relay Circuits

G00228218

Courtesy of CHRYSLER CORP.

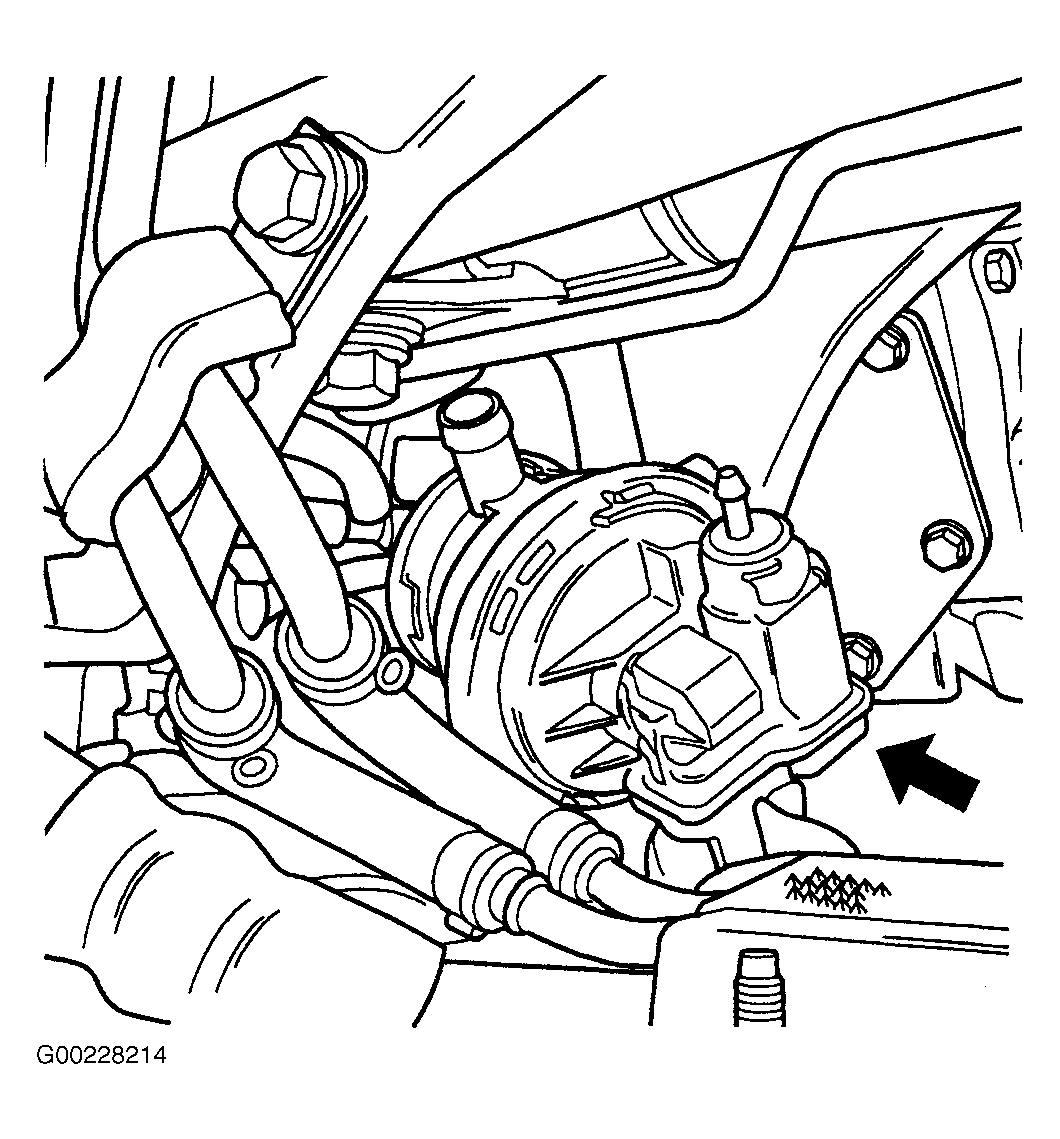

Fig 18: Locating Leak Detection Pump

G00228214

Courtesy of CHRYSLER CORPORATION

Fig 19: Locating Manifold Absolute Pressure Sensor

G00012045

Courtesy of DAIMLERCHRYSLER CORPORATION

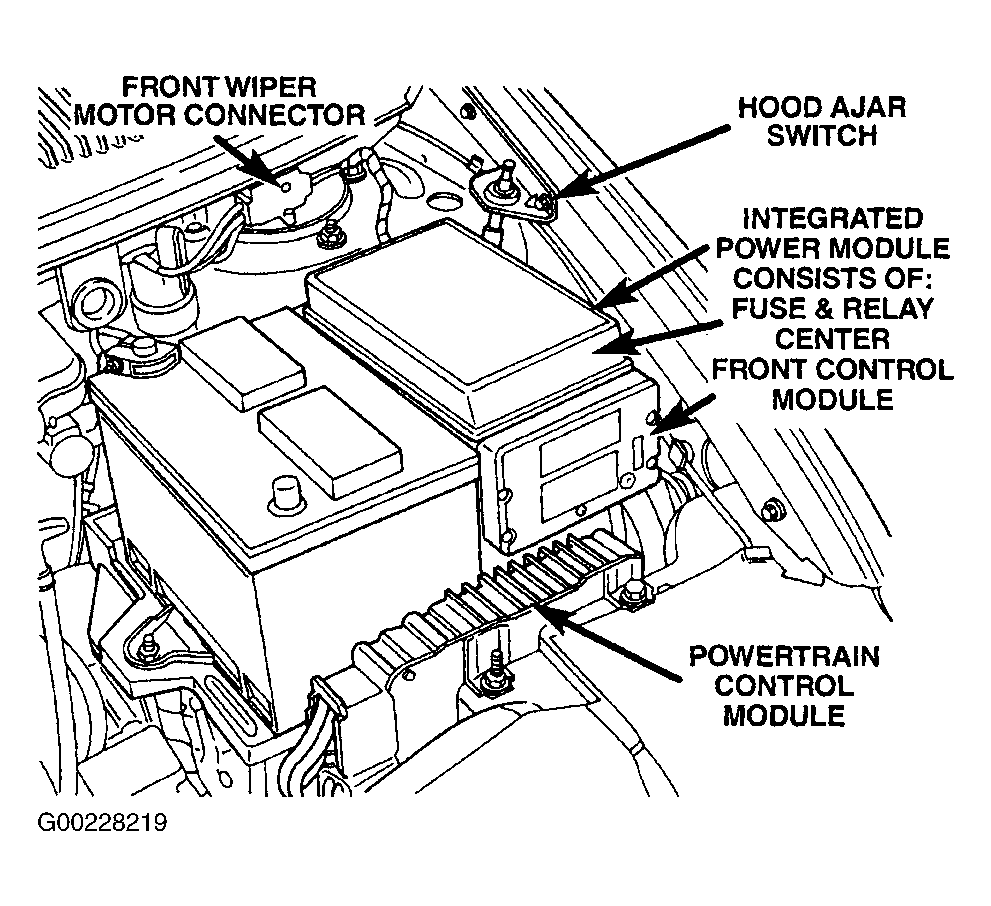

Fig 20: Locating Powertrain Control Module & Integrated Power Module

G00228219

Courtesy of CHRYSLER CORP.

Fig 21: Locating Sentry Key Immobilizer Module

G00085463

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 22: Locating Transmission Control Module

G00030207

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 23: Locating Transmission Range Sensor

G00182651

Courtesy of CHRYSLER CORP.

Fig 24: Locating 1/1 O2 Sensor

G00094496

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 25: Locating 1/2 O2 Sensor

G00094495

Courtesy of DAIMLERCHRYSLER CORPORATION
