Powertrain Control Module C2 (NGC)

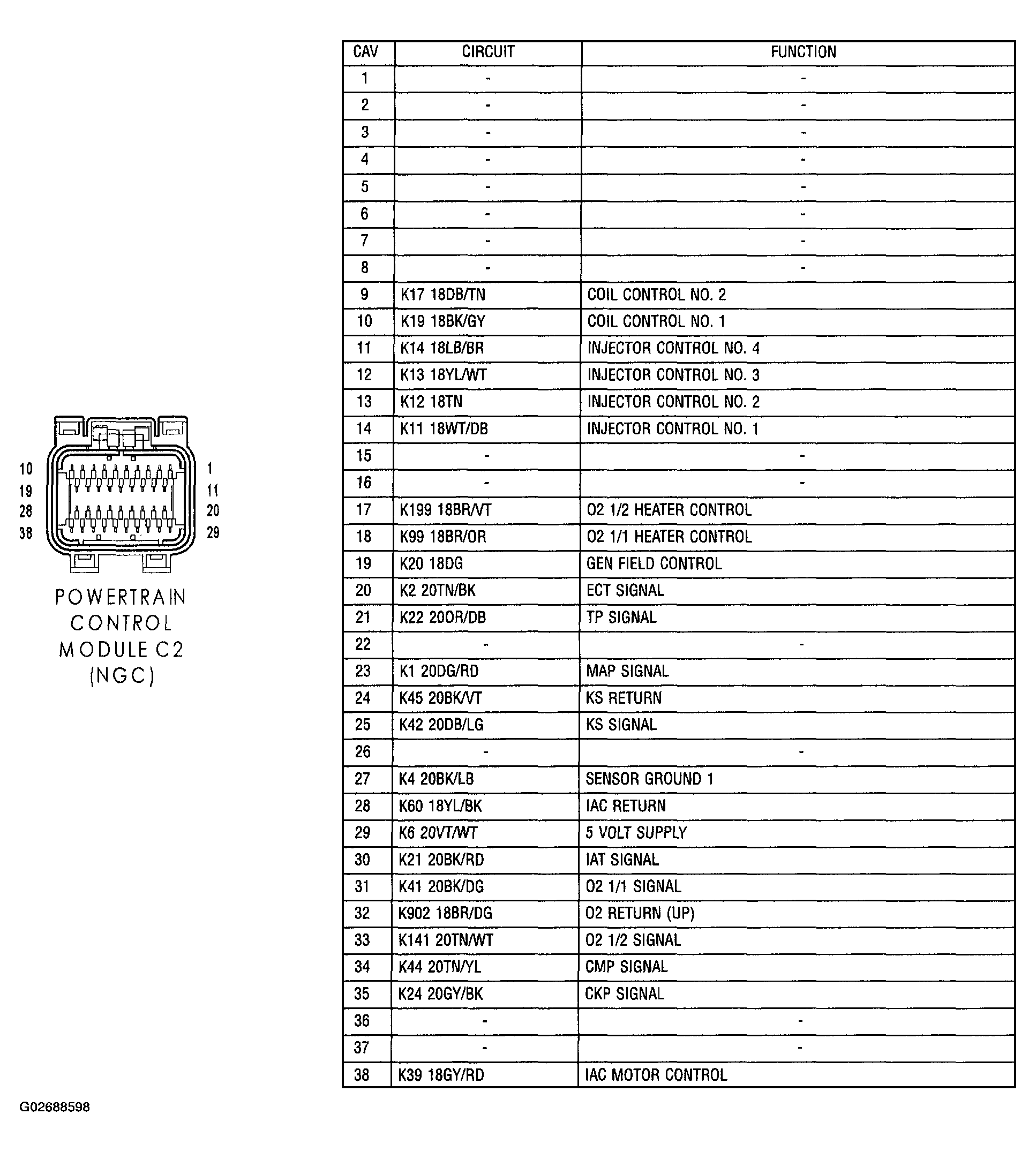

Fig 1: Identifying Powertrain Control Module C2 (NGC) Connector Pinouts
G02688598Courtesy of DAIMLERCHRYSLER CORP.
