Powertrain Control Module C1 (SBEC)

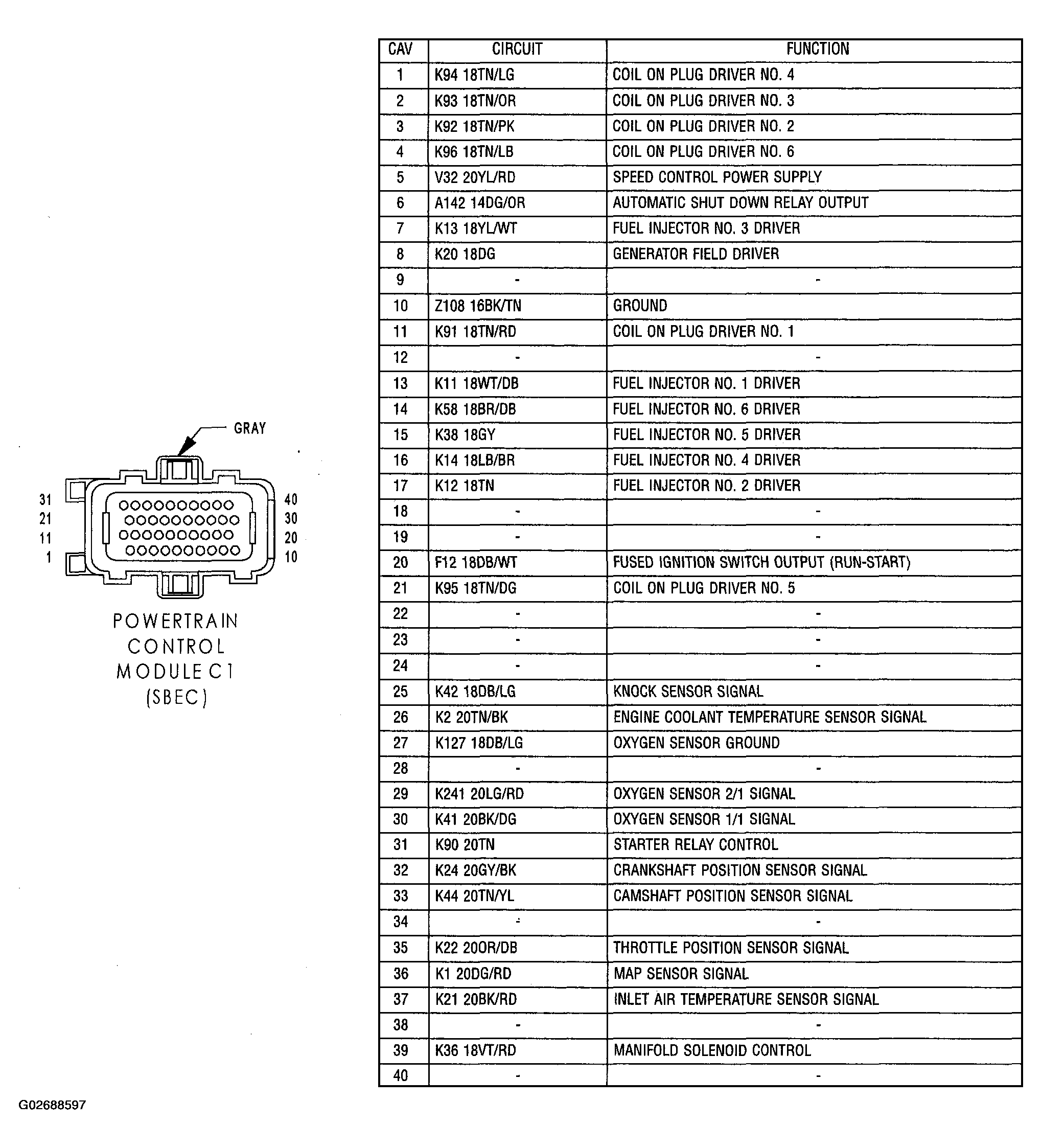

Fig 1: Identifying Powertrain Control Module C1 (SBEC) Connector Pinouts
G02688597Courtesy of DAIMLERCHRYSLER CORP.
