Powertrain Control Module C1 (NGC)

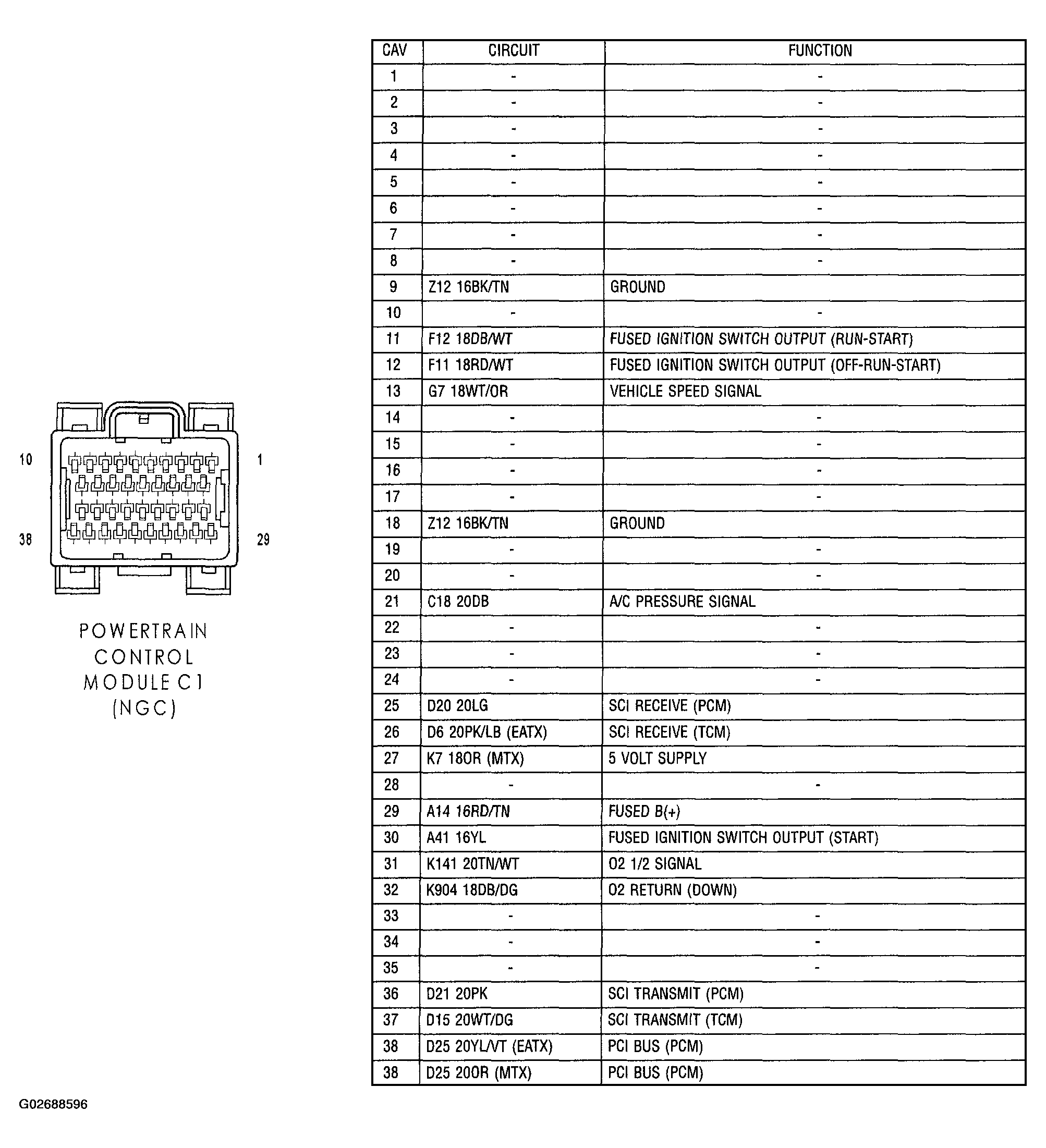

Fig 1: Identifying Powertrain Control Module C1 (NGC) Connector Pinouts
G02688596Courtesy of DAIMLERCHRYSLER CORP.
