Transmission Temperature Sensor

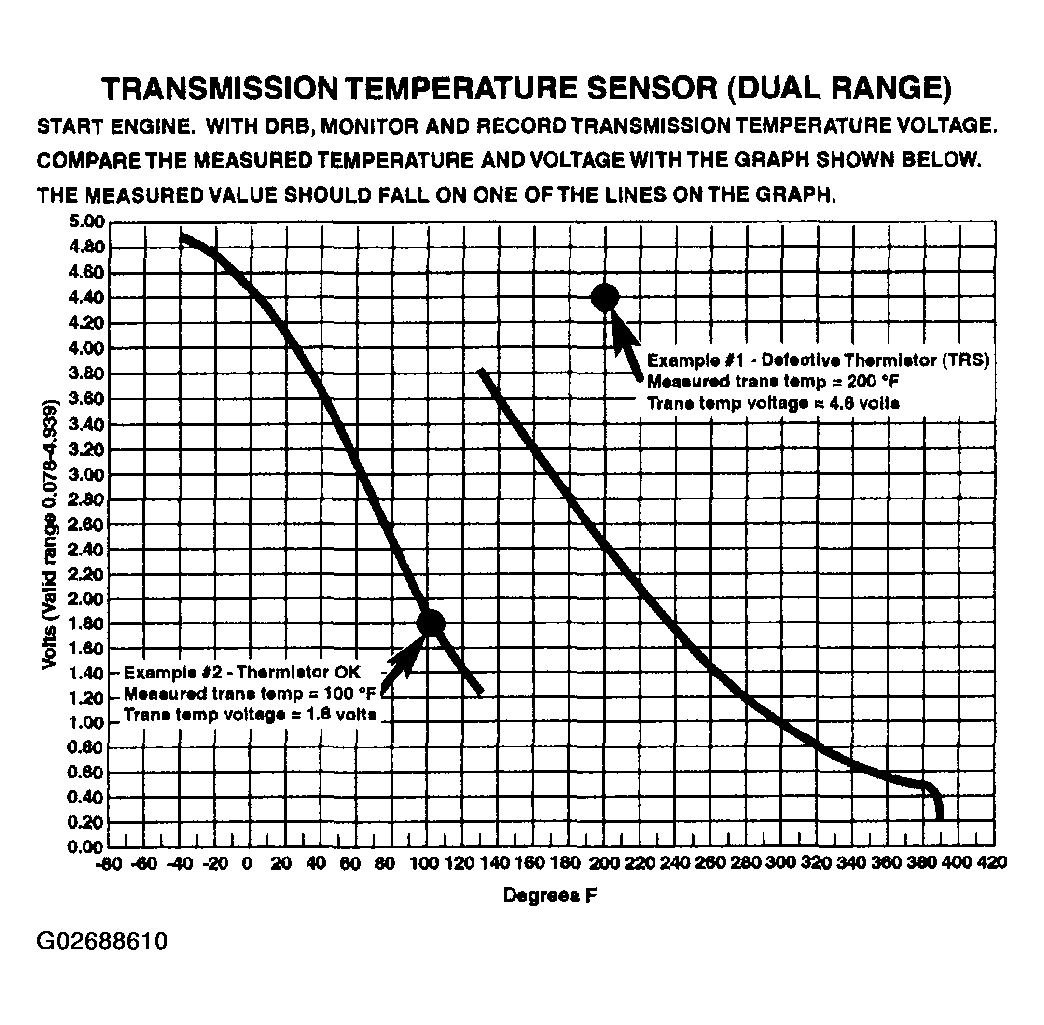

Fig 1: Transmission Temperature Sensor (Dual Range) Graph
G02688610Courtesy of DAIMLERCHRYSLER CORP.
