Checking Fuel Pressure Leak Down

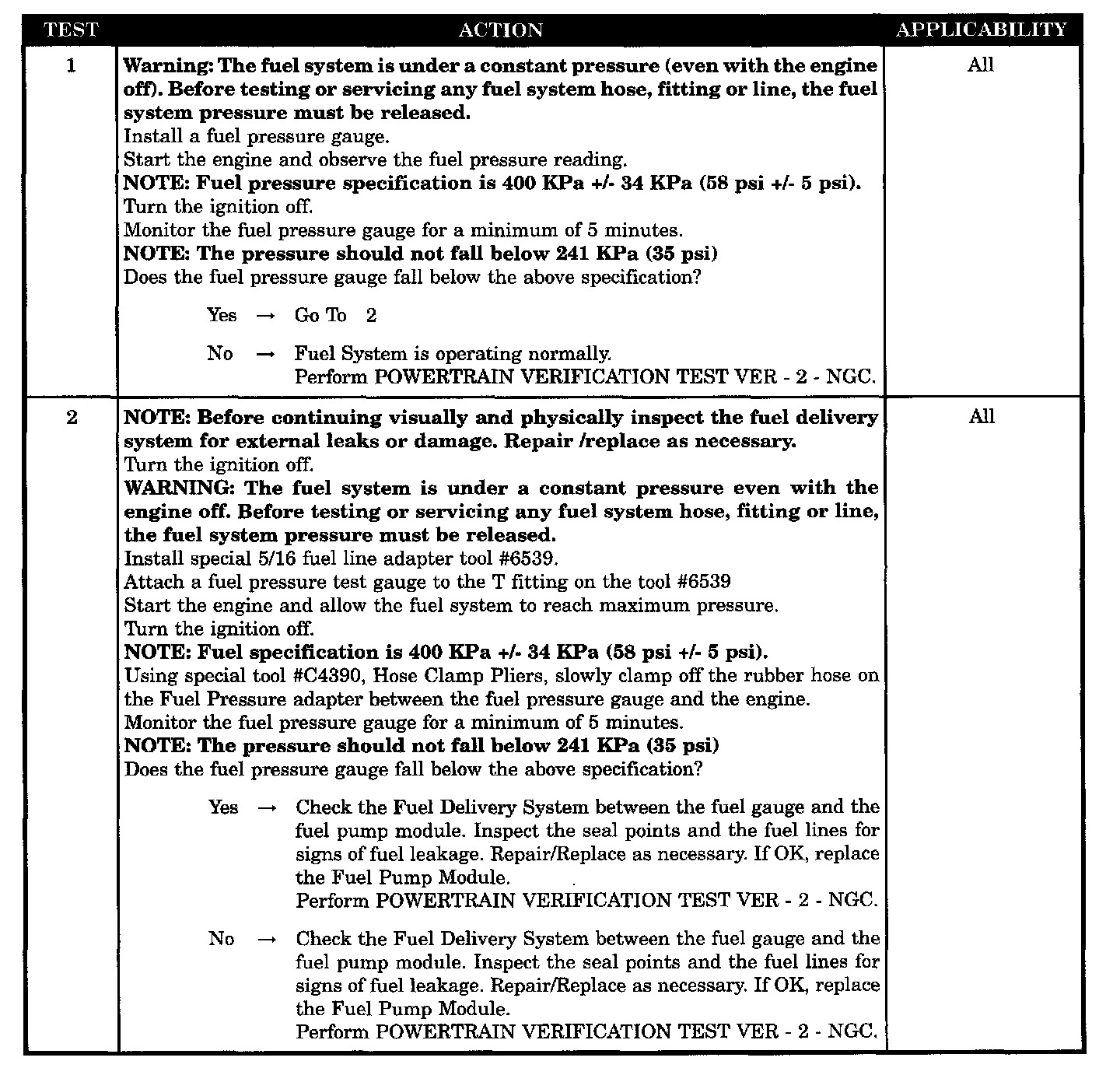

Test 1 - 2:






SYMPTOM
CHECKING FUEL PRESSURE LEAK DOWN

POSSIBLE CAUSES
- Checking fuel pressure
- Fuel pump module
- Checking fuel leak down
