Fuel Filter



Fuel Pump Module

NOTE: The fuel filter is part of the fuel pump module.

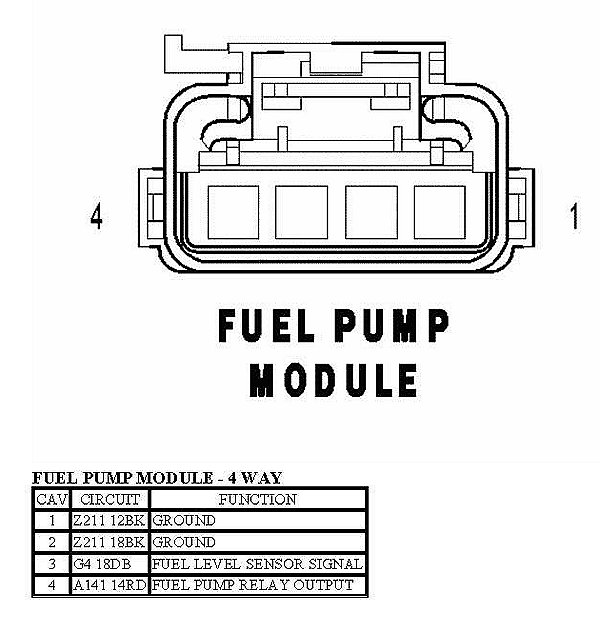

Fuel Pump Module:
