Air Temperature Sensor ( Ambient / Intake ): Service and Repair

REMOVAL
The sensor is located in the clean air duct.
1. Unlatch or unbolt the air cleaner lid.
2. Lift air cleaner lid and reposition.
3. Disconnect the negative battery cable.

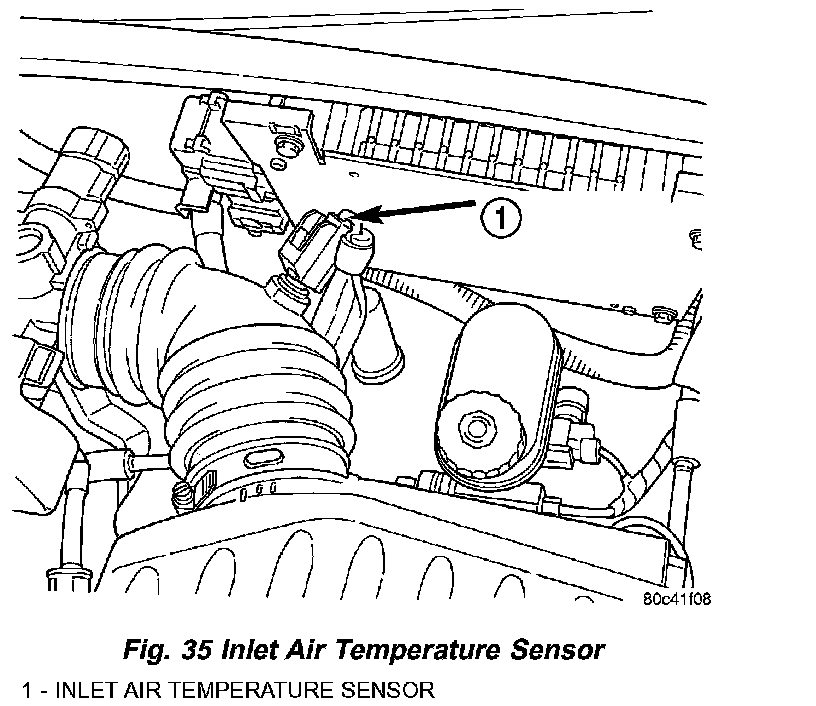

Fig. 35 Inlet Air Temperature Sensor:

4. Disconnect electrical connector from the sensor.
5. Remove the sensors.

INSTALLATION
1. Install sensor.
2. Attach electrical connector to sensor.
3. Connect the negative battery cable.
4. Install the air cleaner lid.
