Identifying Electronic Throttle Control Module (1.6L) - Black 6 Way Connector End View

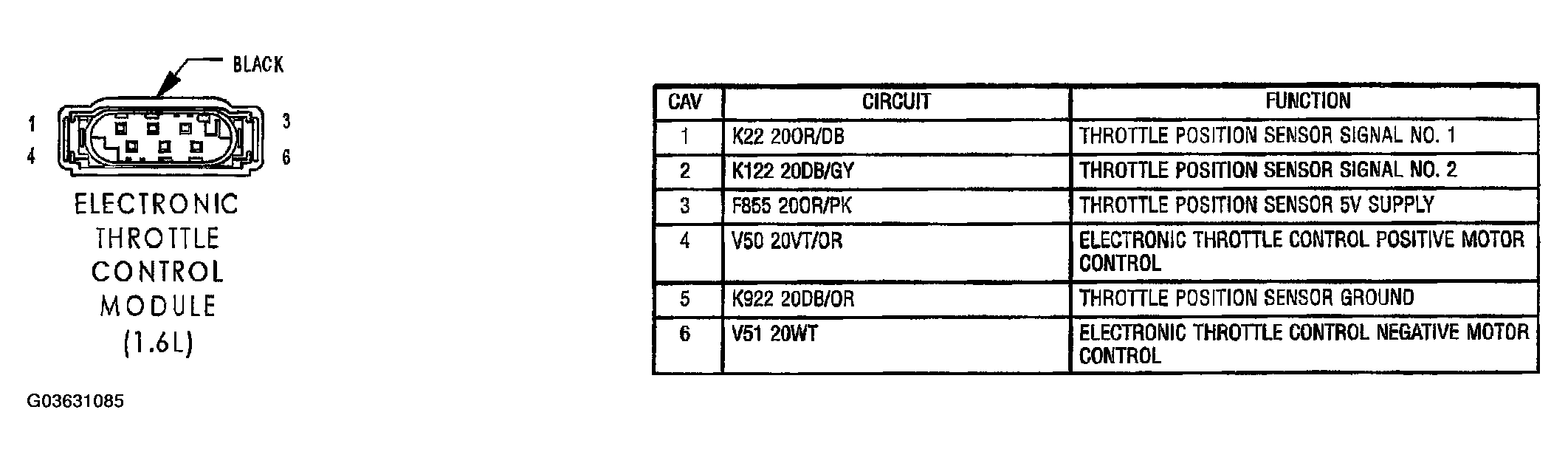

Fig 1: Identifying Electronic Throttle Control Module (1.6L) - Black 6 Way Connector End View
G03631085Courtesy of DAIMLERCHRYSLER CORP.
