Liftgate Lock Cylinder: Installation

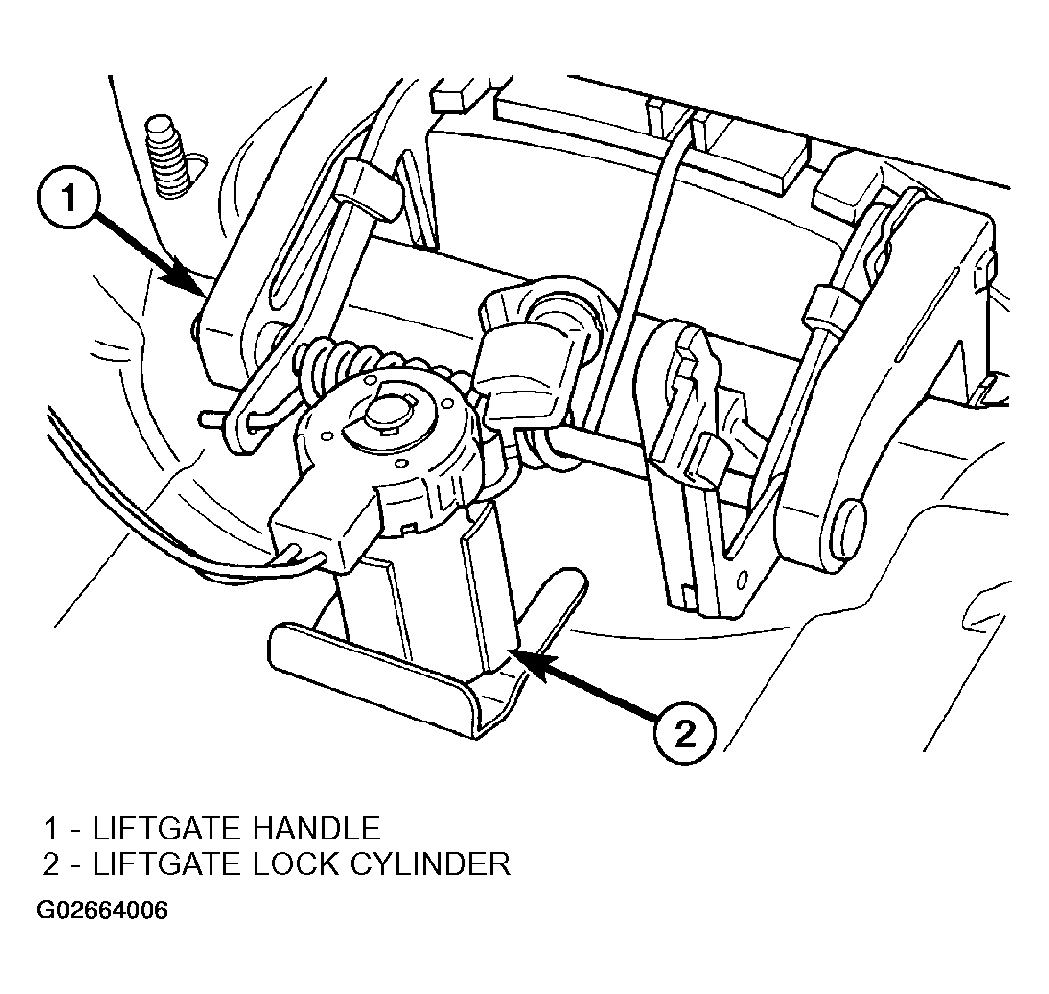

- Install lock cylinder clip into liftgate (Figure ).
- Push lock cylinder into handle until clip engages groove in lock cylinder with an audible click.
- Install outside liftgate handle.
- Verify lock cylinder operation.
