Connector PINOUTS

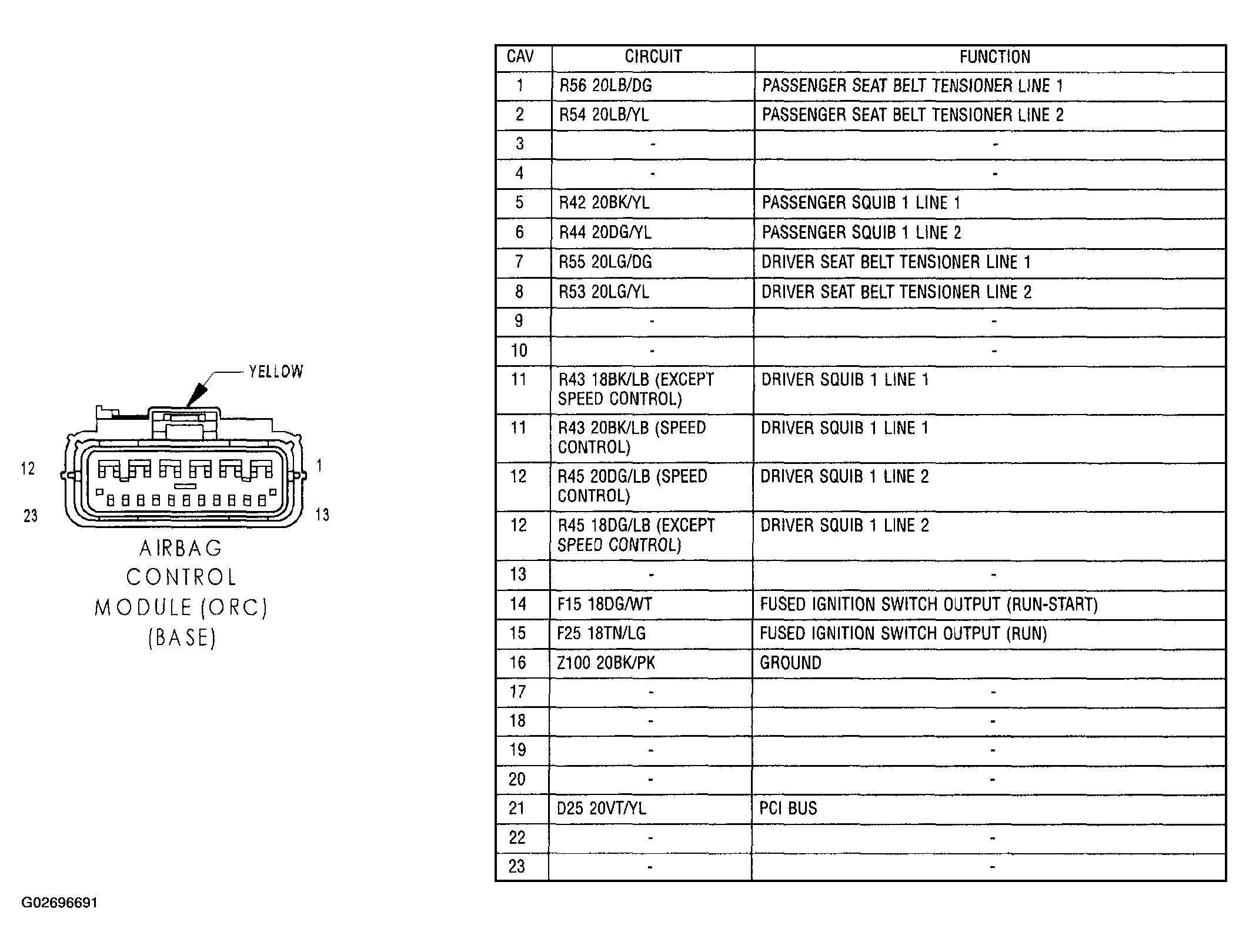

Fig 1: Identifying Airbag Control Module (ORC) (Base) Connector Pinouts
G02696691Courtesy of DAIMLERCHRYSLER CORP.

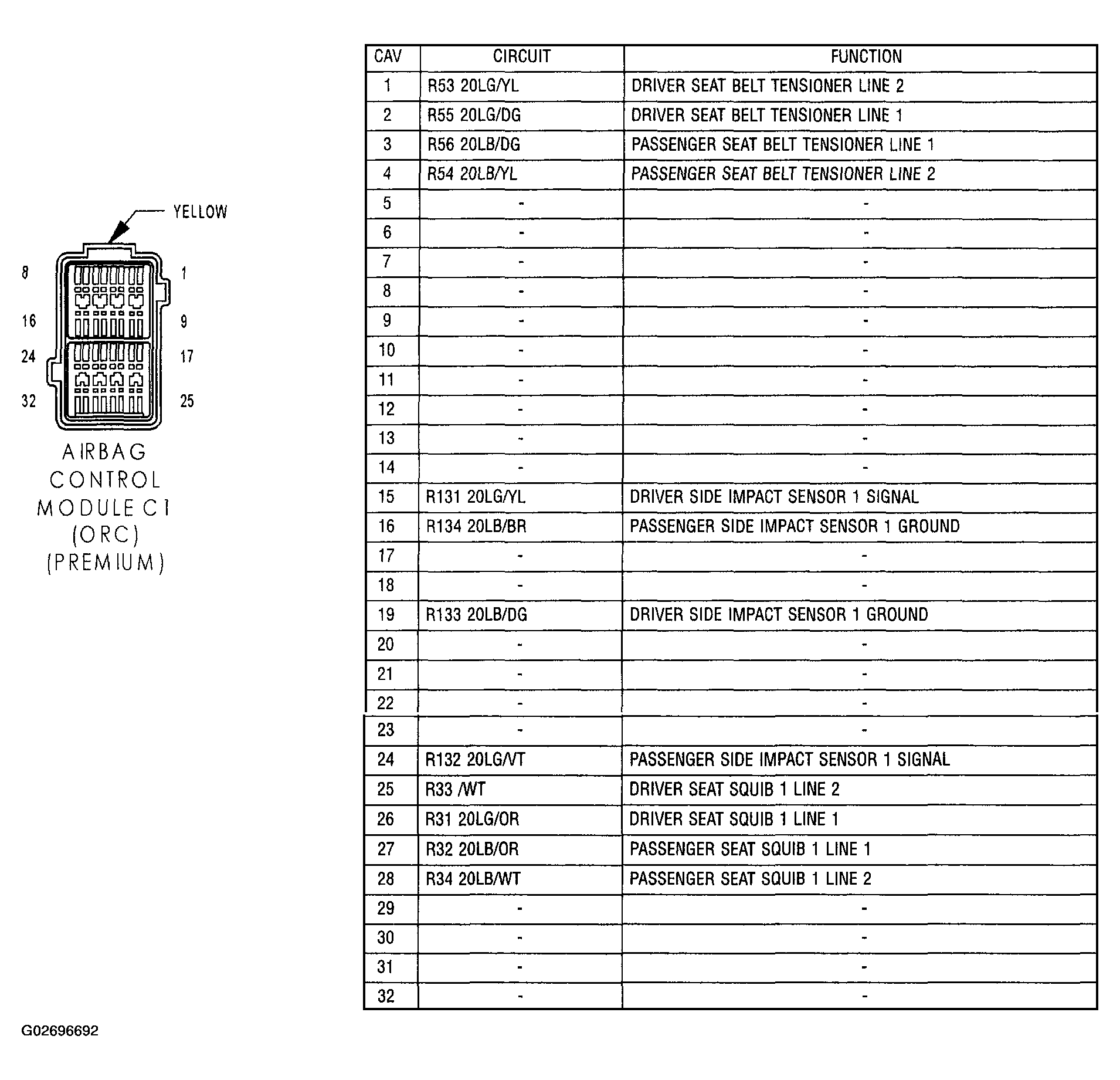

Fig 2: Identifying Airbag Control Module C1 (ORC) (PREMIUM)Connector Pinouts
G02696692Courtesy of DAIMLERCHRYSLER CORP.

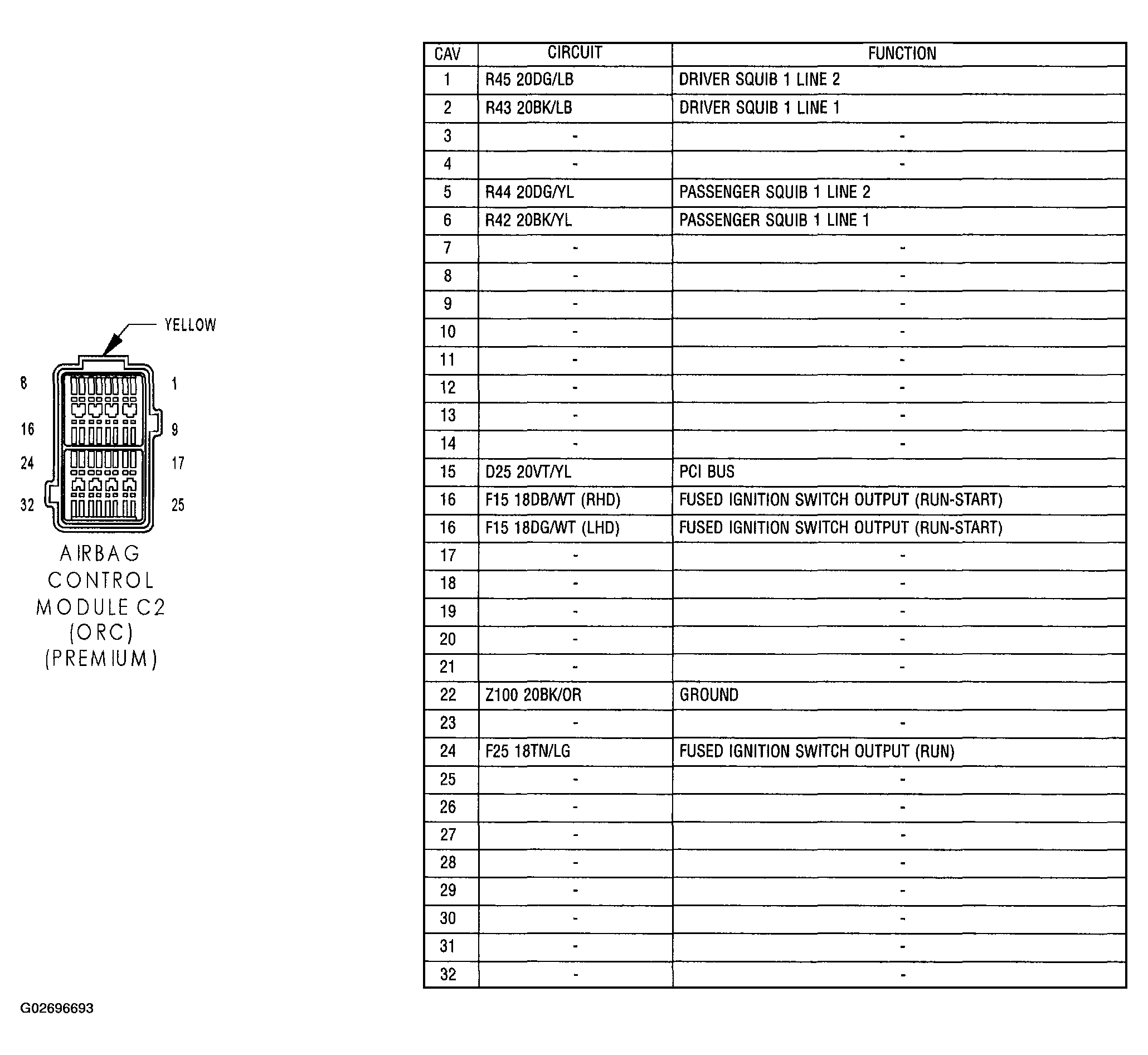

Fig 3: Identifying Airbag Control Module C2 (ORC) (Premium) Connector Pinouts
G02696693Courtesy of DAIMLERCHRYSLER CORP.

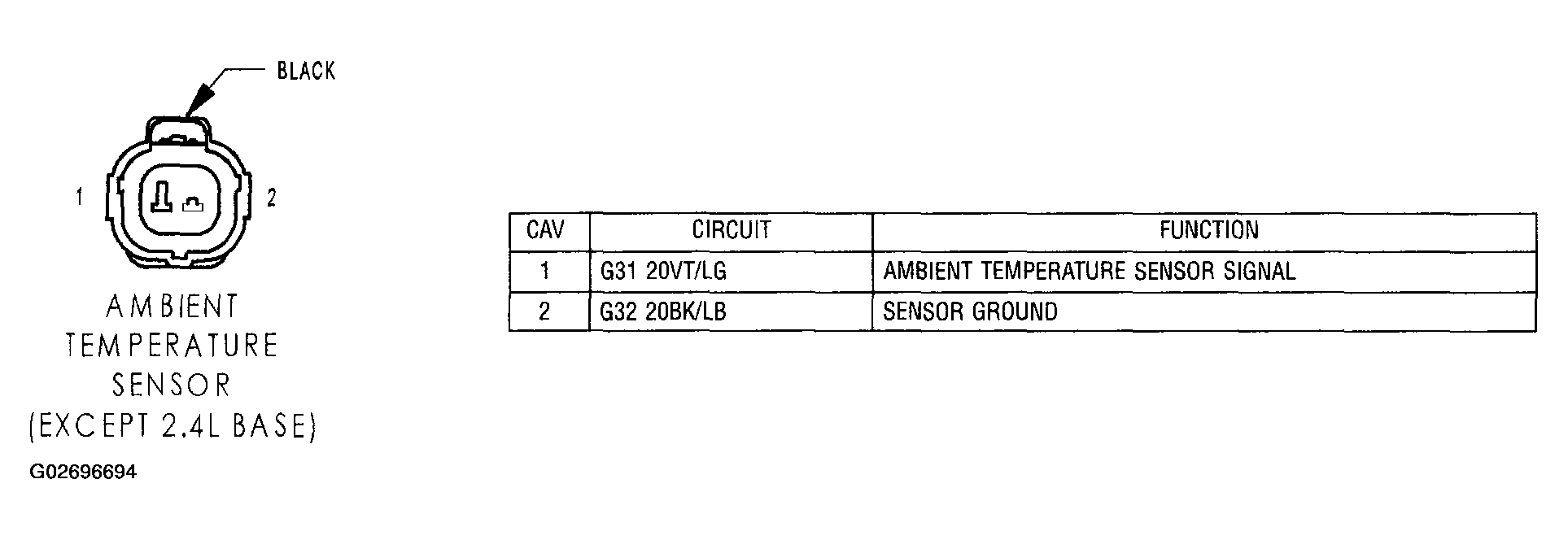

Fig 4: Identifying Ambient Temperature Sensor (Except 2.4L Base) Connector Pinouts
G02696694Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Identifying Brake Warning Indicator Switch Connector Pinouts
G02696695Courtesy of DAIMLERCHRYSLER CORP.

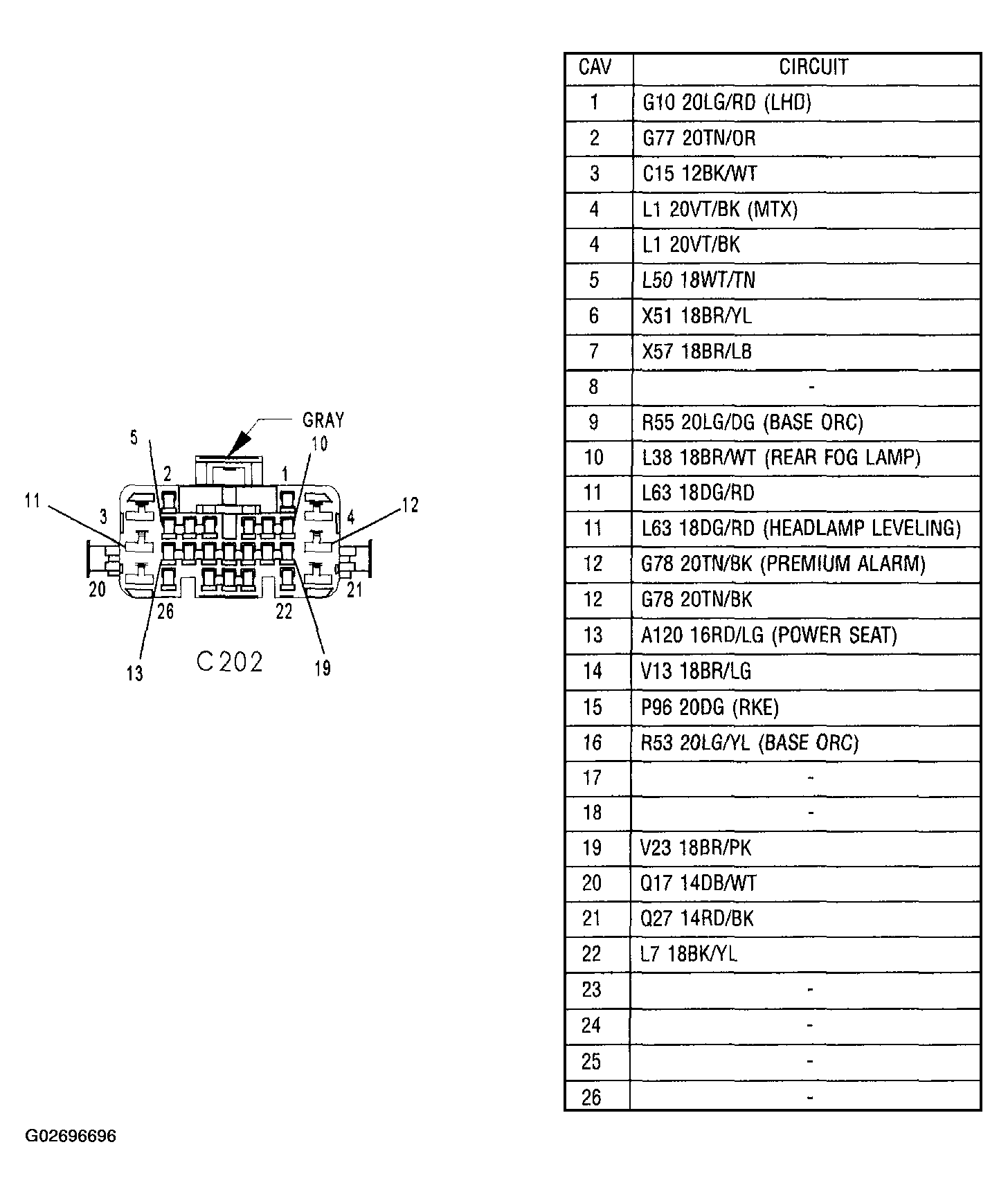

Fig 6: Identifying C202 Connector Pinouts (1 Of 2)
G02696696Courtesy of DAIMLERCHRYSLER CORP.

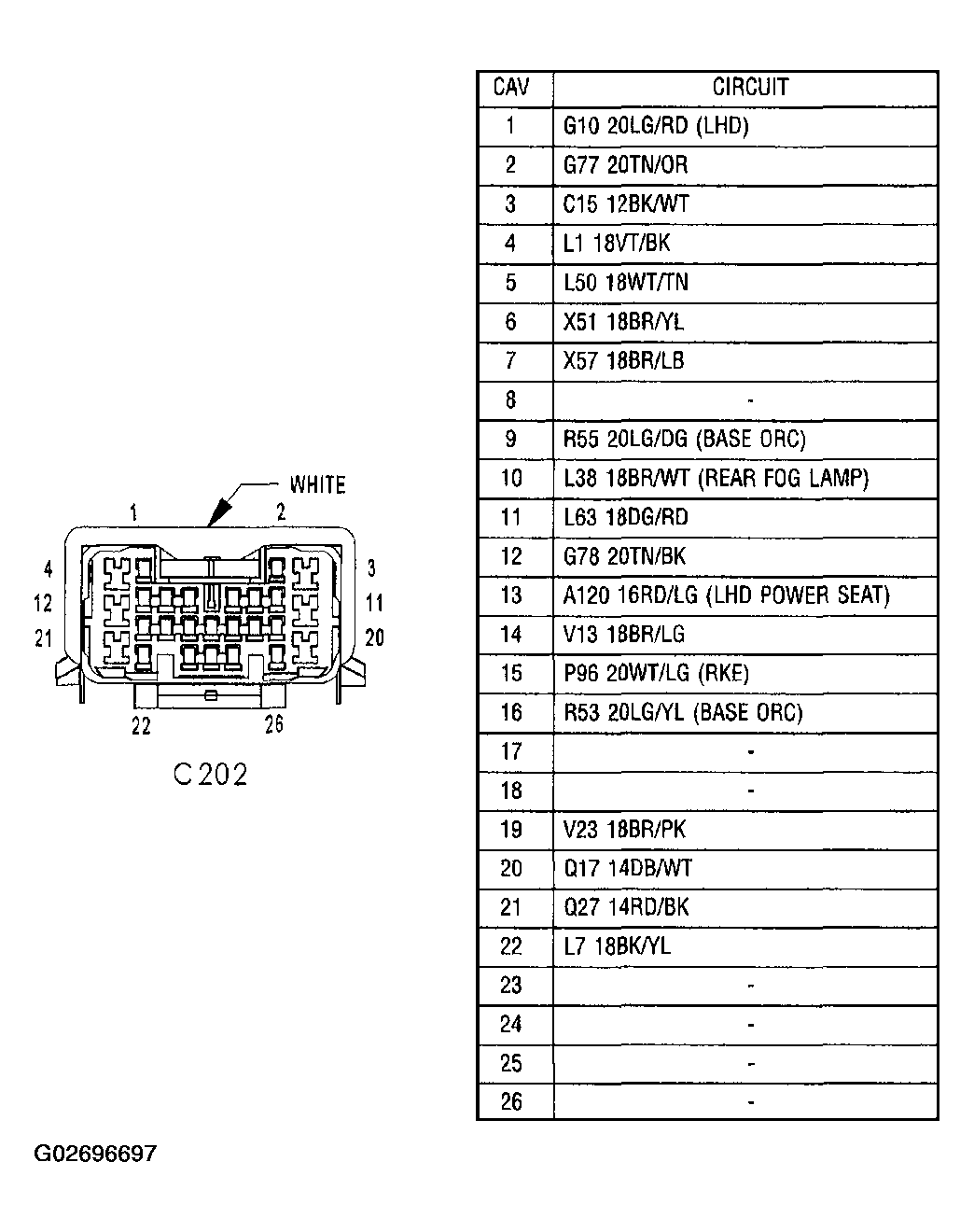

Fig 7: Identifying C202 Connector Pinouts (2 Of 2)
G02696697Courtesy of DAIMLERCHRYSLER CORP.

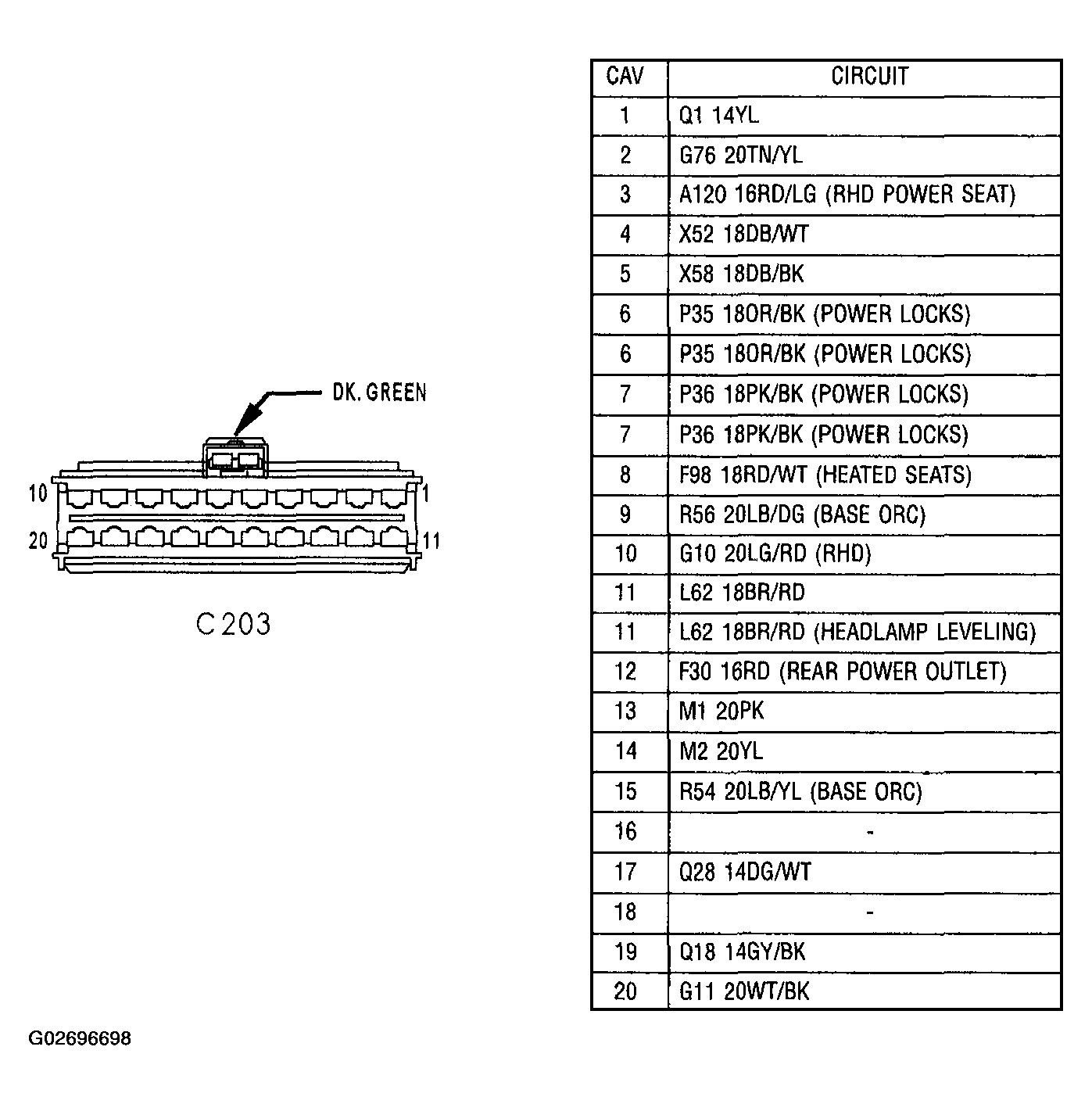

Fig 8: Identifying C203 Connector Pinouts (1 Of 2)
G02696698Courtesy of DAIMLERCHRYSLER CORP.

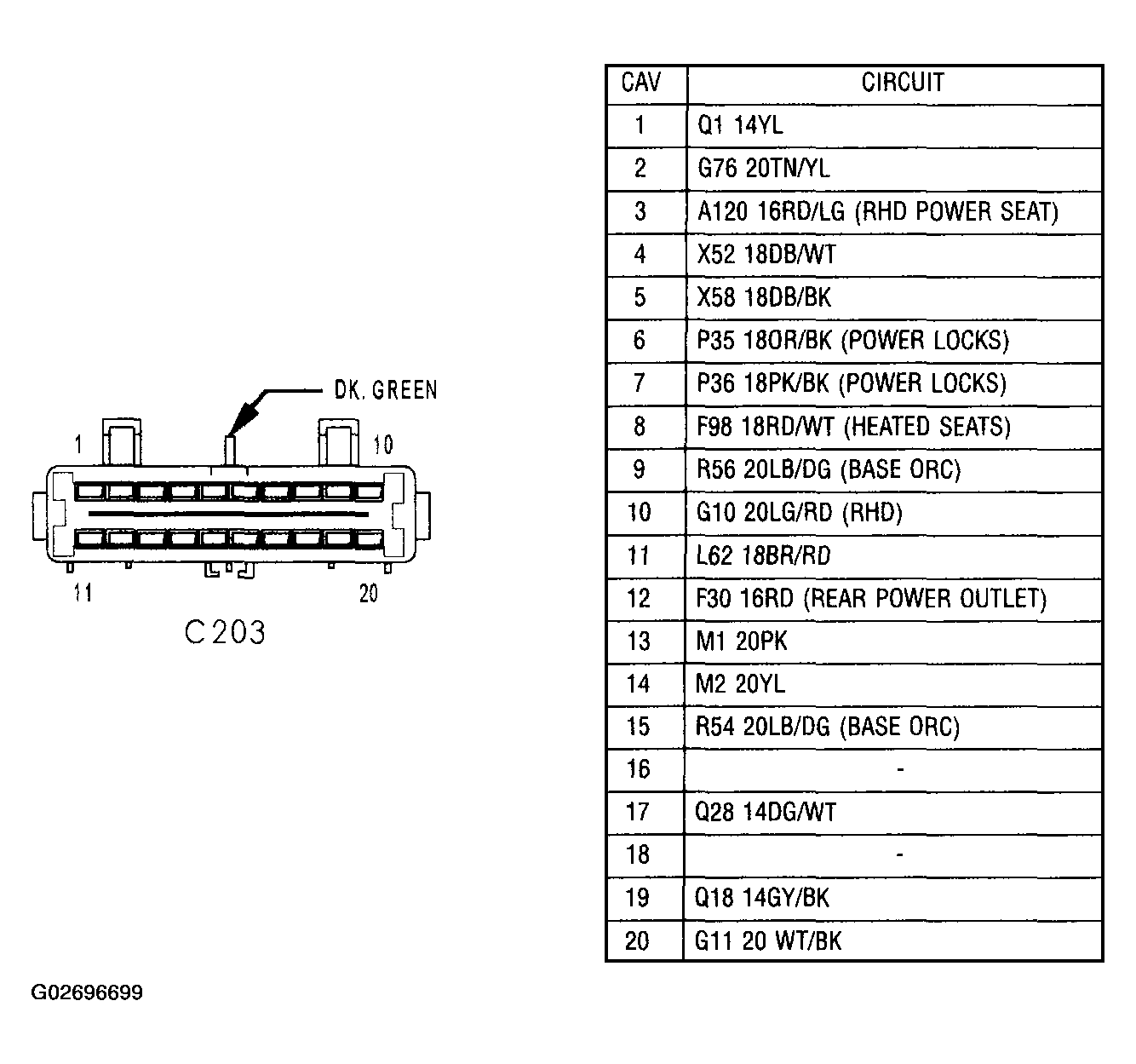

Fig 9: Identifying C203 Connector Pinouts (2 Of 2)
G02696699Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Identifying C305 (Passenger) Connector Pinouts (1 Of 2)
G02696700Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Identifying C305 (Passenger) Connector Pinouts (2 Of 2)
G02696701Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Identifying C306 (Driver) (1 Of 2)
G02696702Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Identifying C306 (Driver) Connector Pinouts (2 Of 2)
G02696703Courtesy of DAIMLERCHRYSLER CORP.

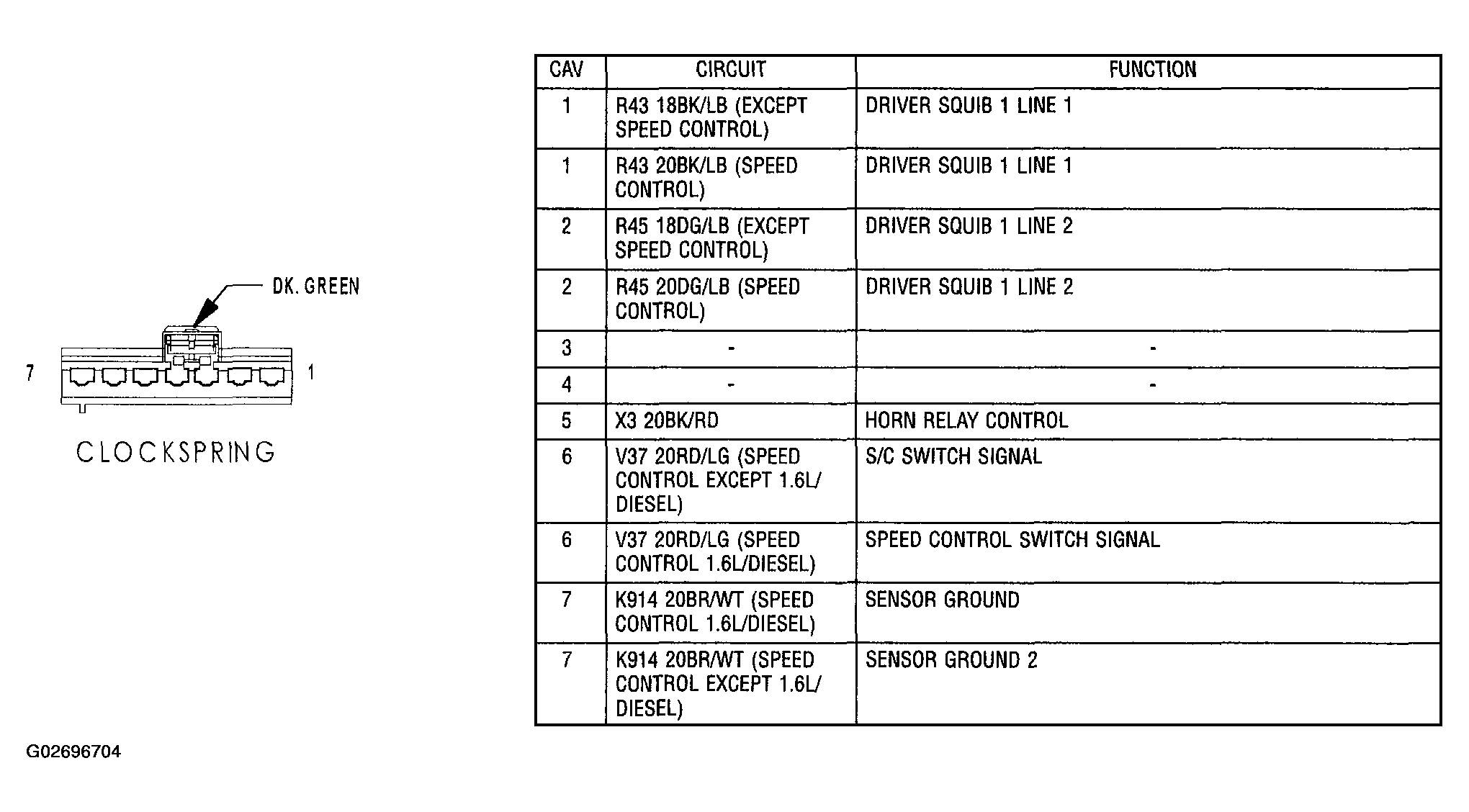

Fig 14: Identifying Clockspring Connector Pinouts
G02696704Courtesy of DAIMLERCHRYSLER CORP.

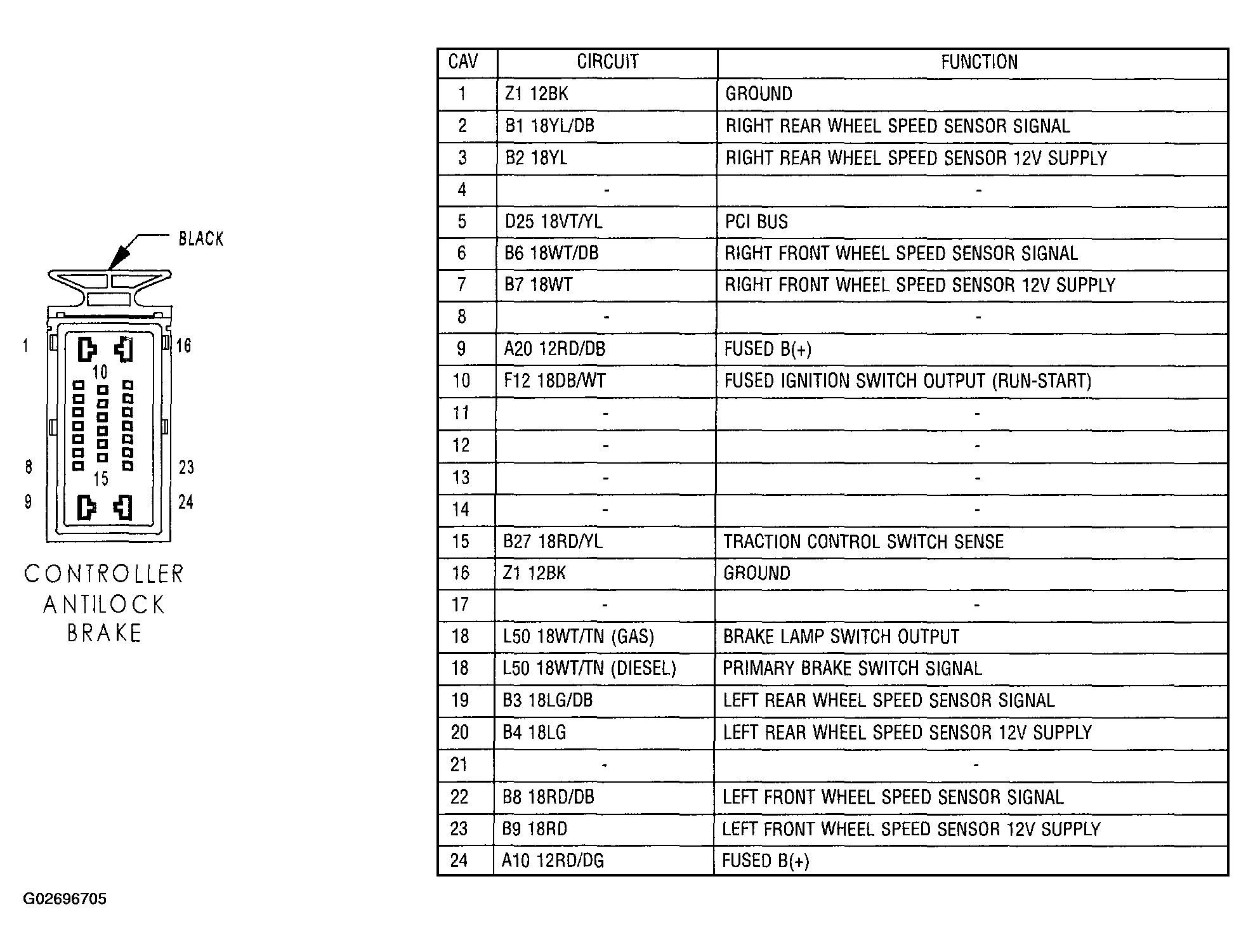

Fig 15: Identifying Controller Antilock Brake Connector Pinouts
G02696705Courtesy of DAIMLERCHRYSLER CORP.

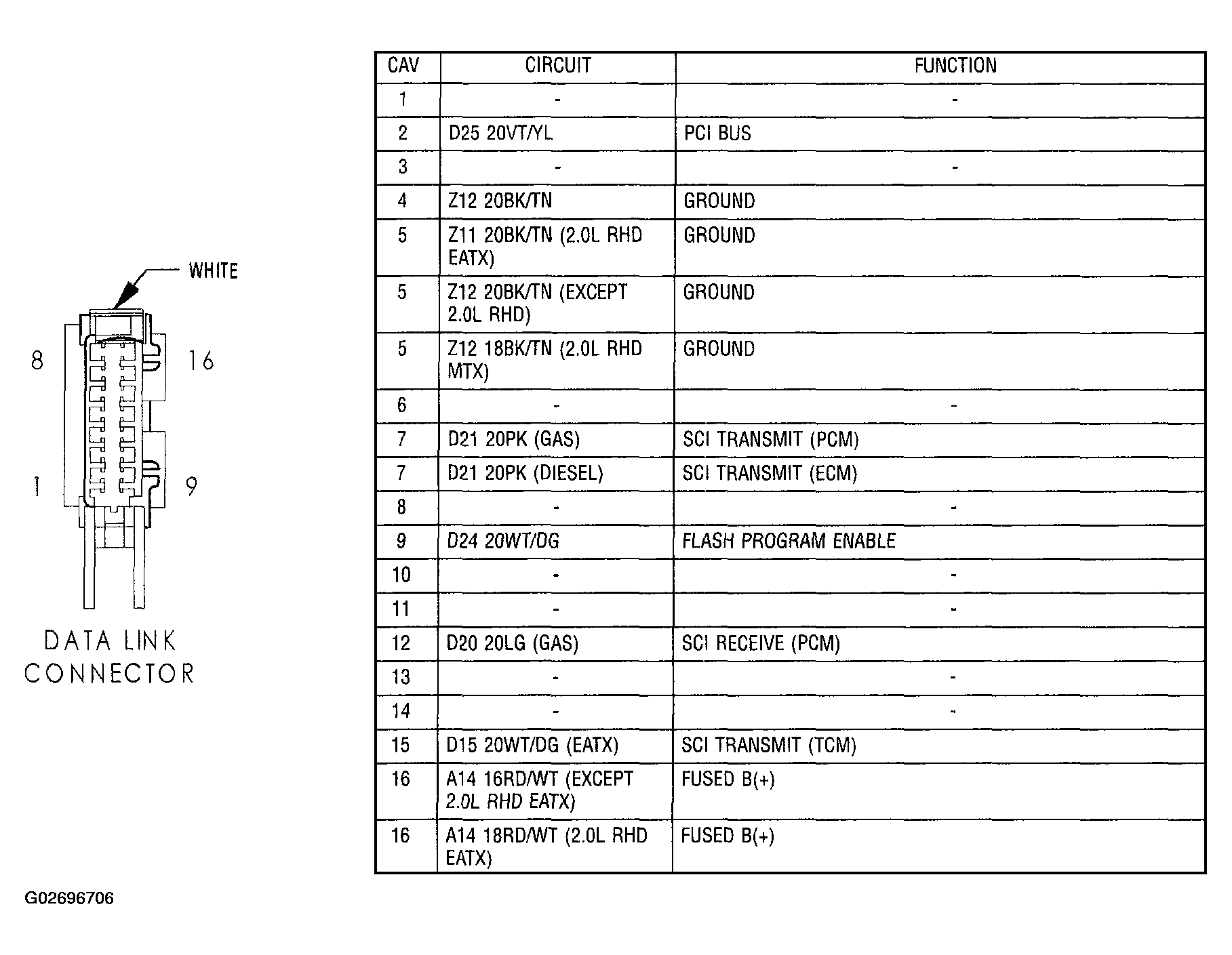

Fig 16: Identifying Data Link Connector Pinouts
G02696706Courtesy of DAIMLERCHRYSLER CORP.

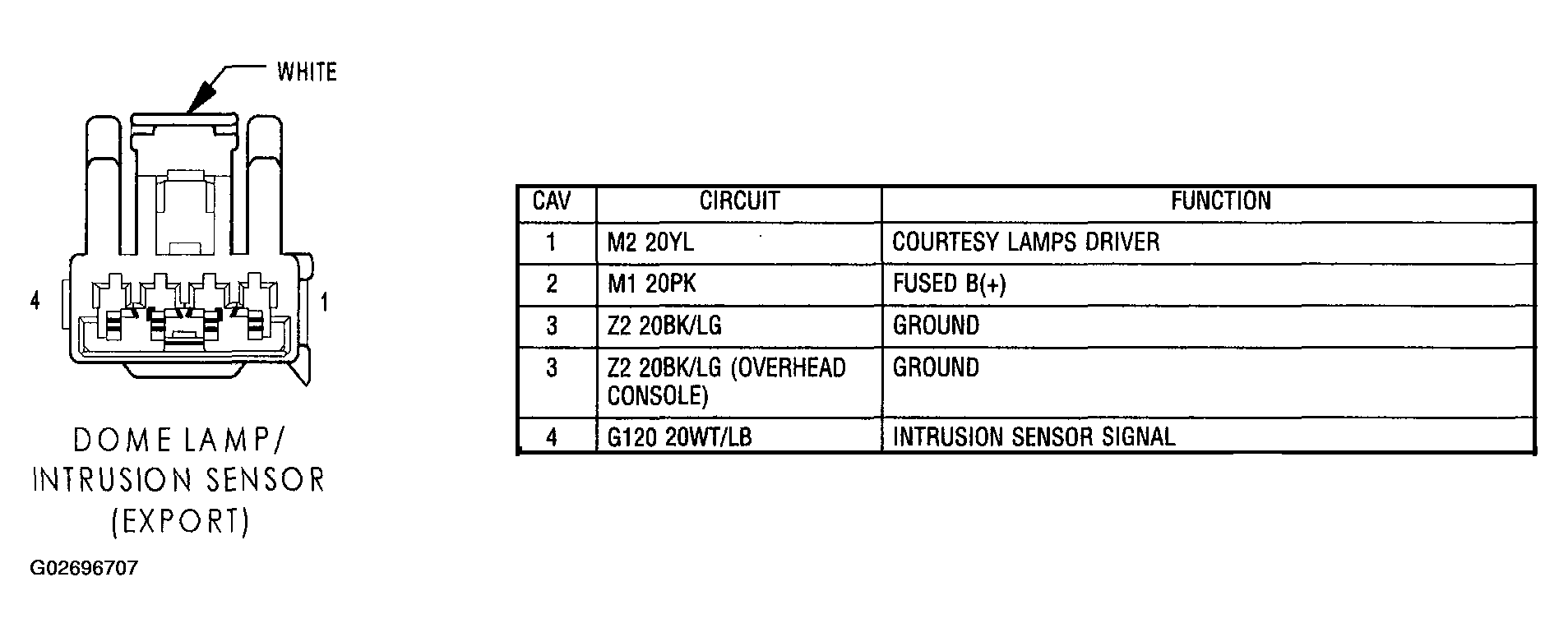

Fig 17: Identifying Dome Lamp/Intrusion Sensor (Export) Connector Pinouts
G02696707Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Identifying Driver Airbag Squib 1 Connector Pinouts
G02696708Courtesy of DAIMLERCHRYSLER CORP.

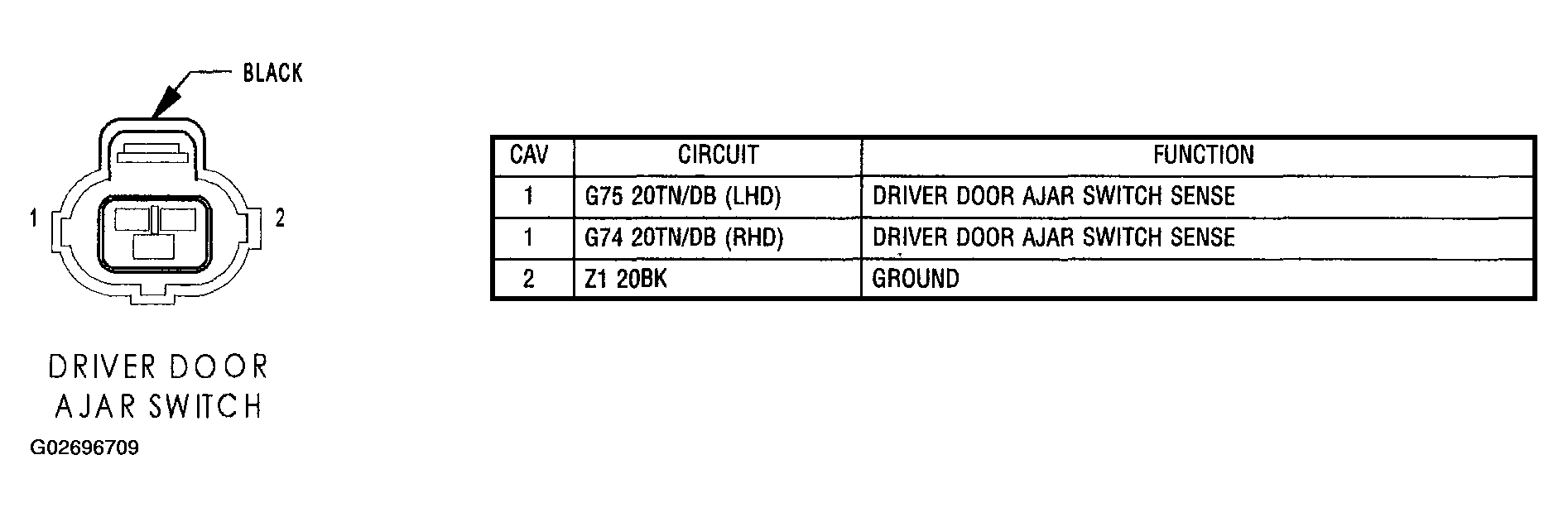

Fig 19: Identifying Driver Door Ajar Switch Connector Pinouts
G02696709Courtesy of DAIMLERCHRYSLER CORP.

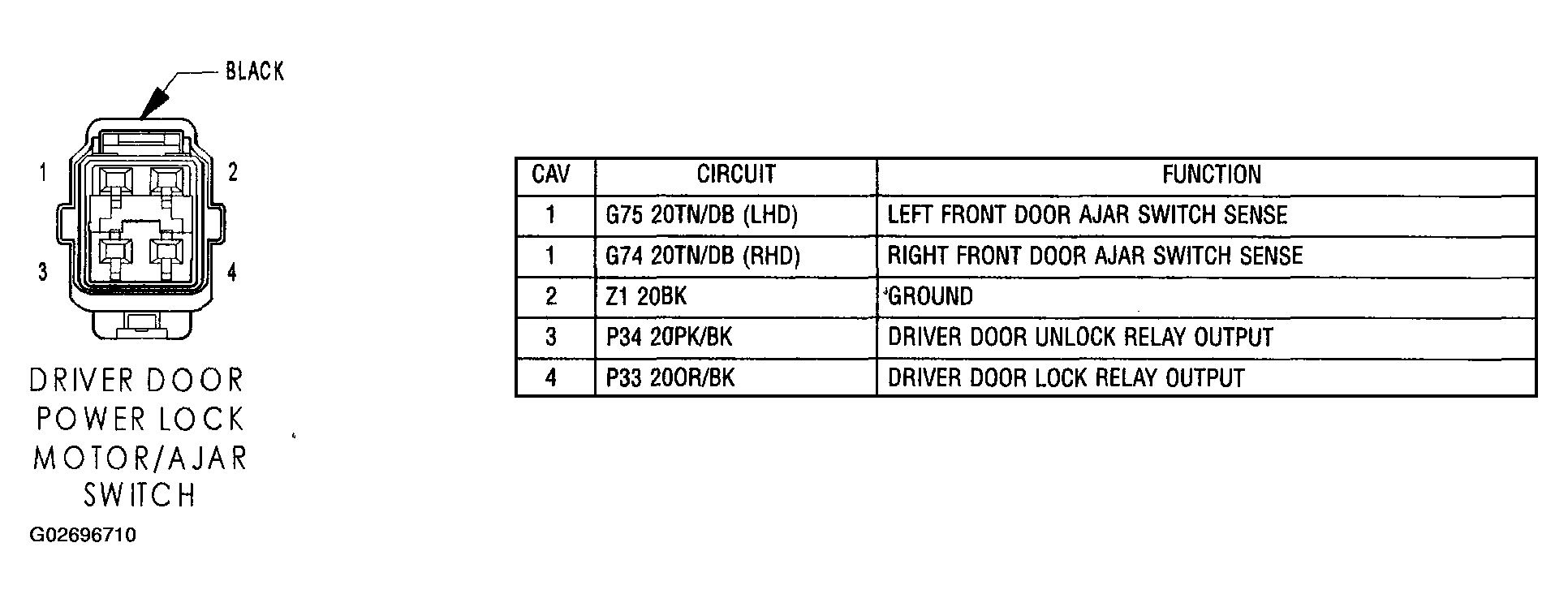

Fig 20: Identifying Driver Door Power Lock Motor/Ajar Switch Connector Pinouts
G02696710Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Identifying Driver Seat Airbag Squib Connector Pinouts
G02696711Courtesy of DAIMLERCHRYSLER CORP.
Fig 22: Identifying Driver Seat Belt Switch Connector Pinouts
G02696712Courtesy of DAIMLERCHRYSLER CORP.

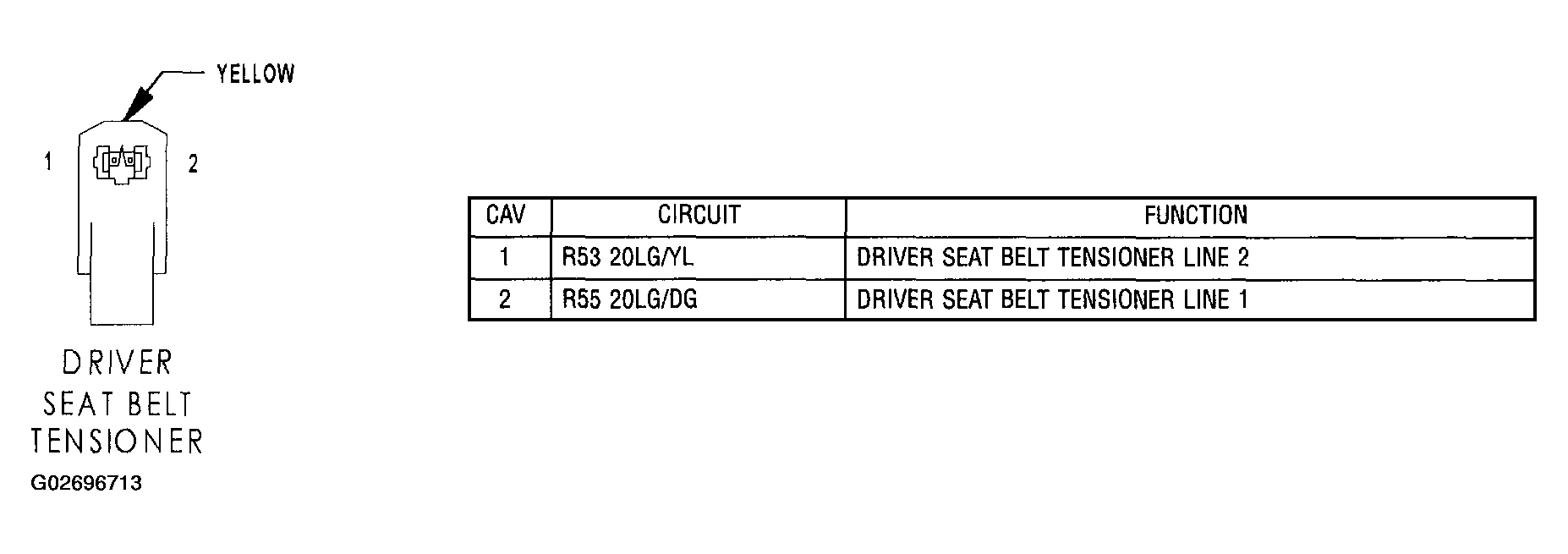

Fig 23: Identifying Driver Seat Belt Tensioner Connector Pinouts
G02696713Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Identifying Driver Side Impact Sensor 1 Connector Pinouts
G02696714Courtesy of DAIMLERCHRYSLER CORP.

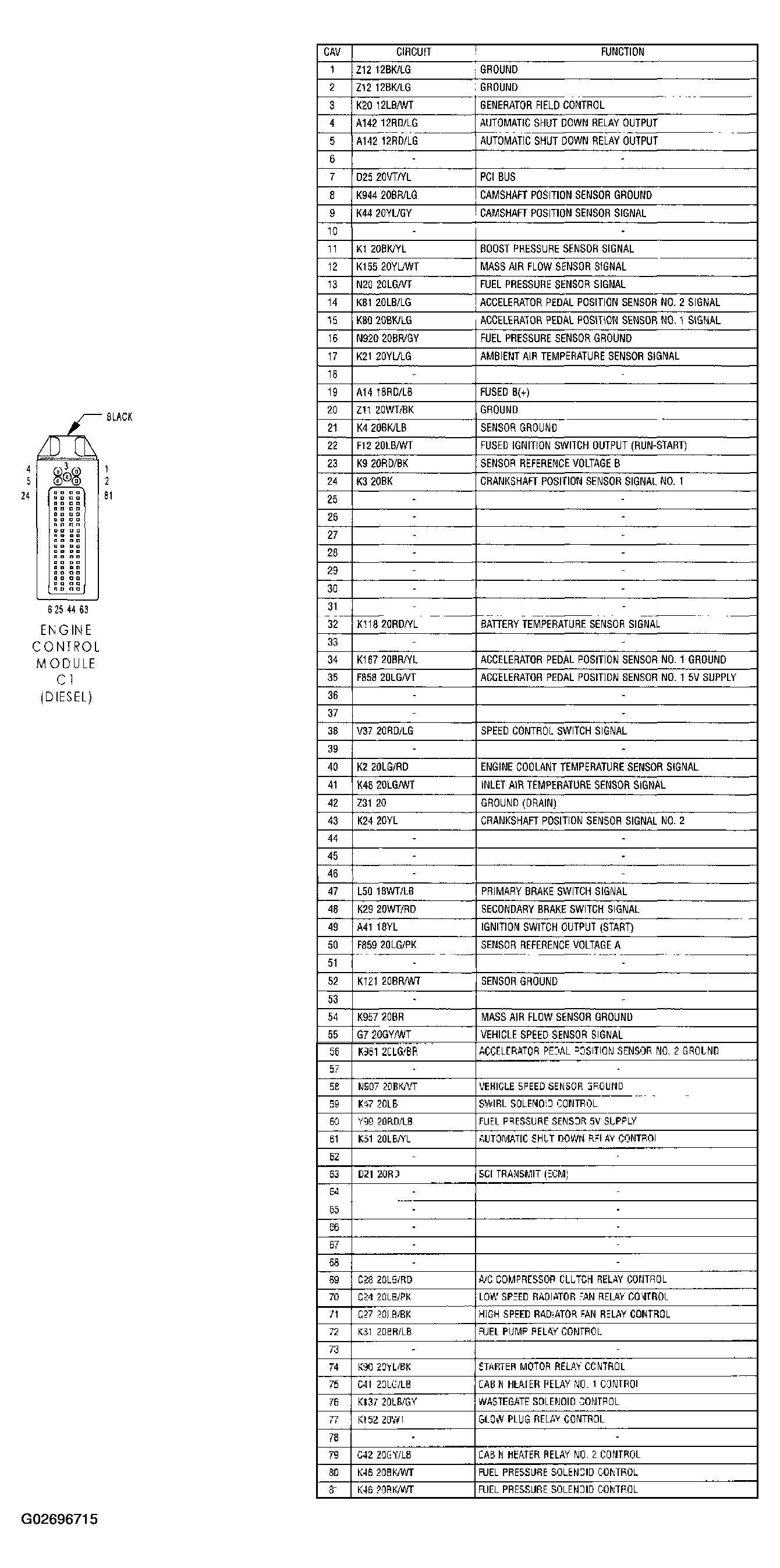

Fig 25: Identifying Engine Control Module C1 (Diesel) Connector Pinouts
G02696715Courtesy of DAIMLERCHRYSLER CORP.

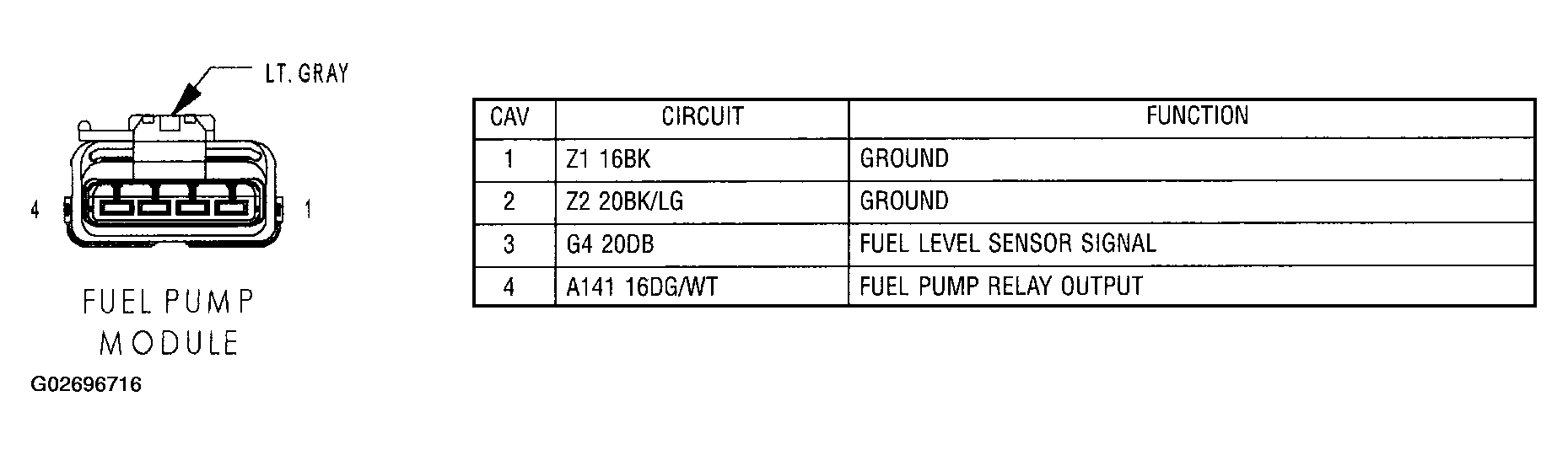

Fig 26: Identifying Fuel Pump Module Connector Pinouts
G02696716Courtesy of DAIMLERCHRYSLER CORP.

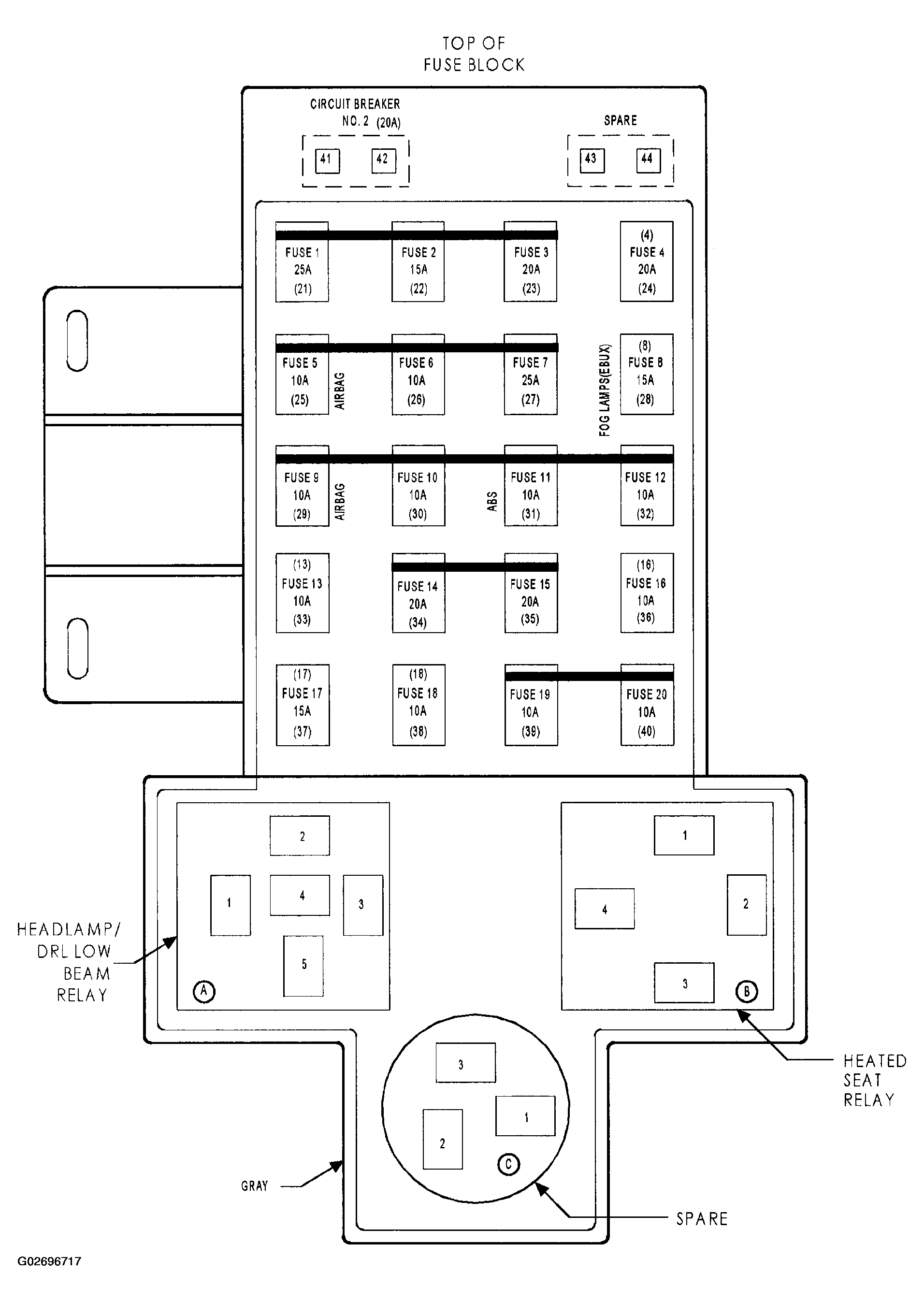

Fig 27: Identifying Top Of Fuse Block
G02696717Courtesy of DAIMLERCHRYSLER CORP.

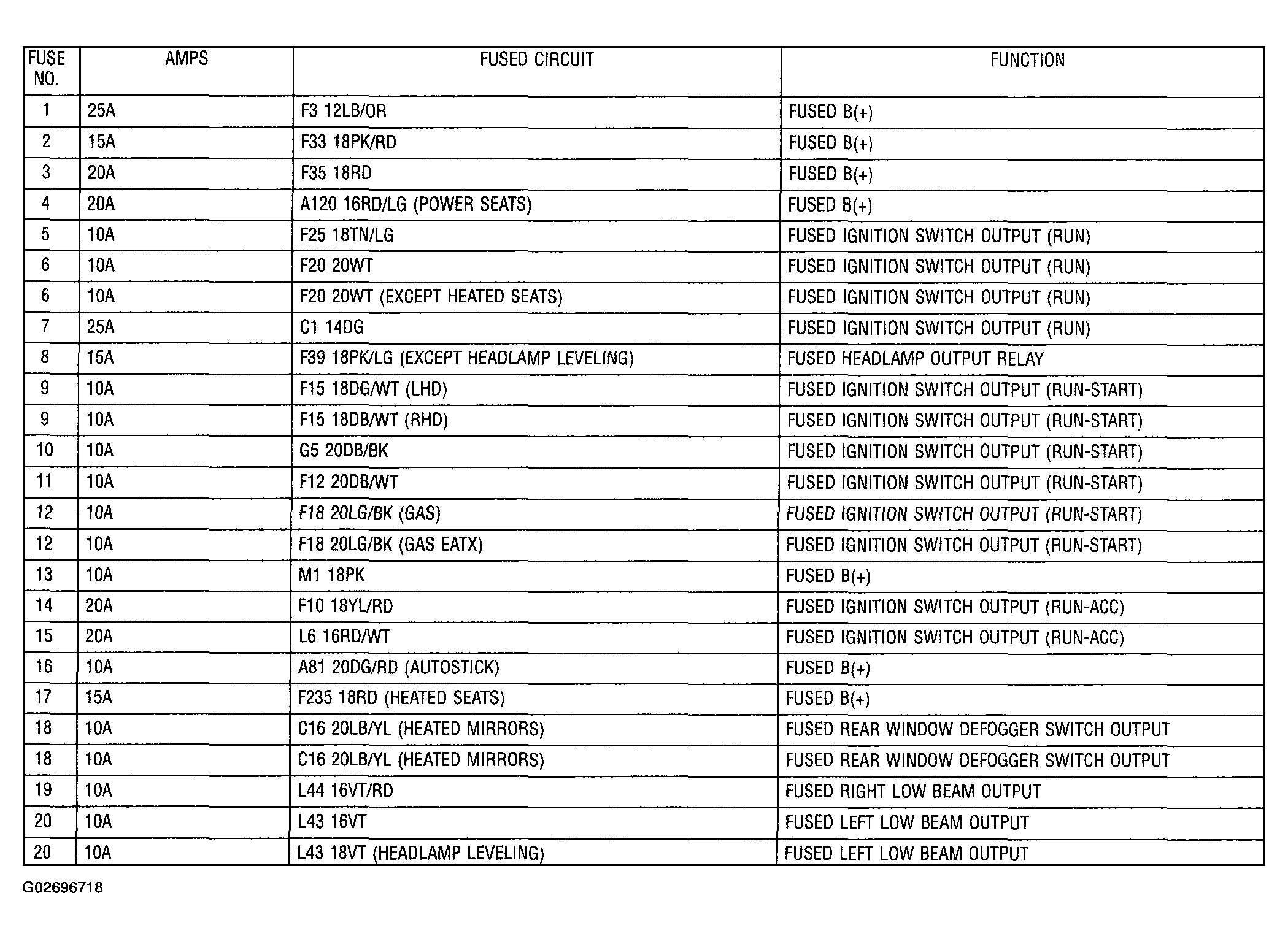

Fig 28: Fuses (FB) Circuit Function Chart
G02696718Courtesy of DAIMLERCHRYSLER CORP.

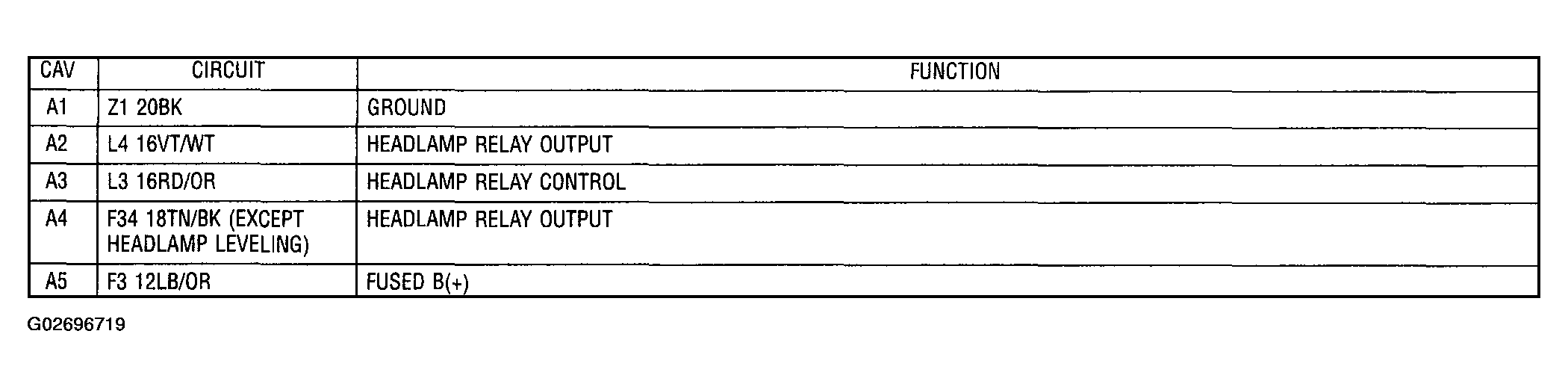

Fig 29: Headlamp Relay (LHD) Circuit Function Chart
G02696719Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: Headlamp Relay (RHD) Circuit Function Chart
G02696720Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Identifying High Note Horn Connector Pinouts
G02696721Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: Identifying Hood Ajar Switch (Export) Connector Pinouts
G02696722Courtesy of DAIMLERCHRYSLER CORP.

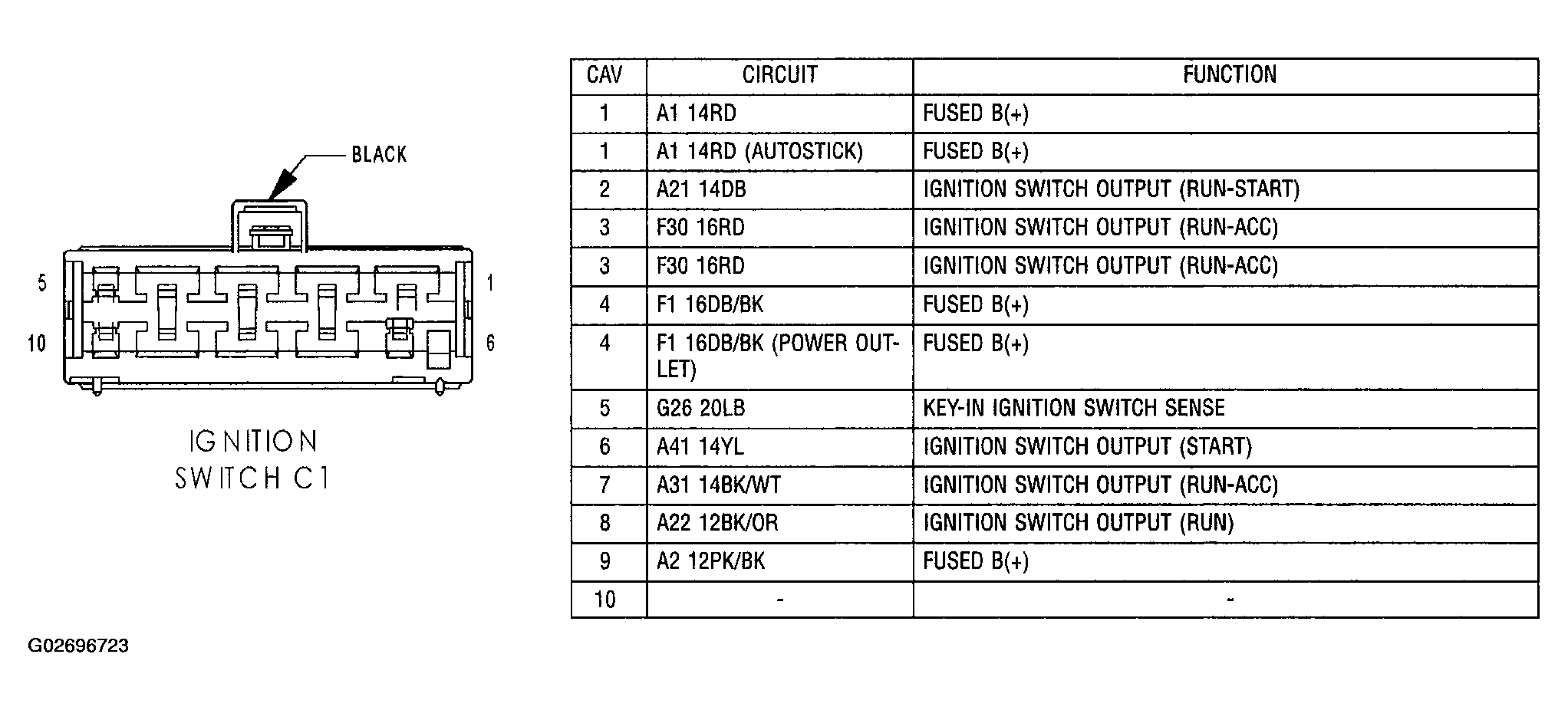

Fig 33: Identifying Ignition Switch C1 Connector Pinouts
G02696723Courtesy of DAIMLERCHRYSLER CORP.
Fig 34: Identifying Ignition Switch C2 (Autostick) Connector Pinouts
G02696724Courtesy of DAIMLERCHRYSLER CORP.

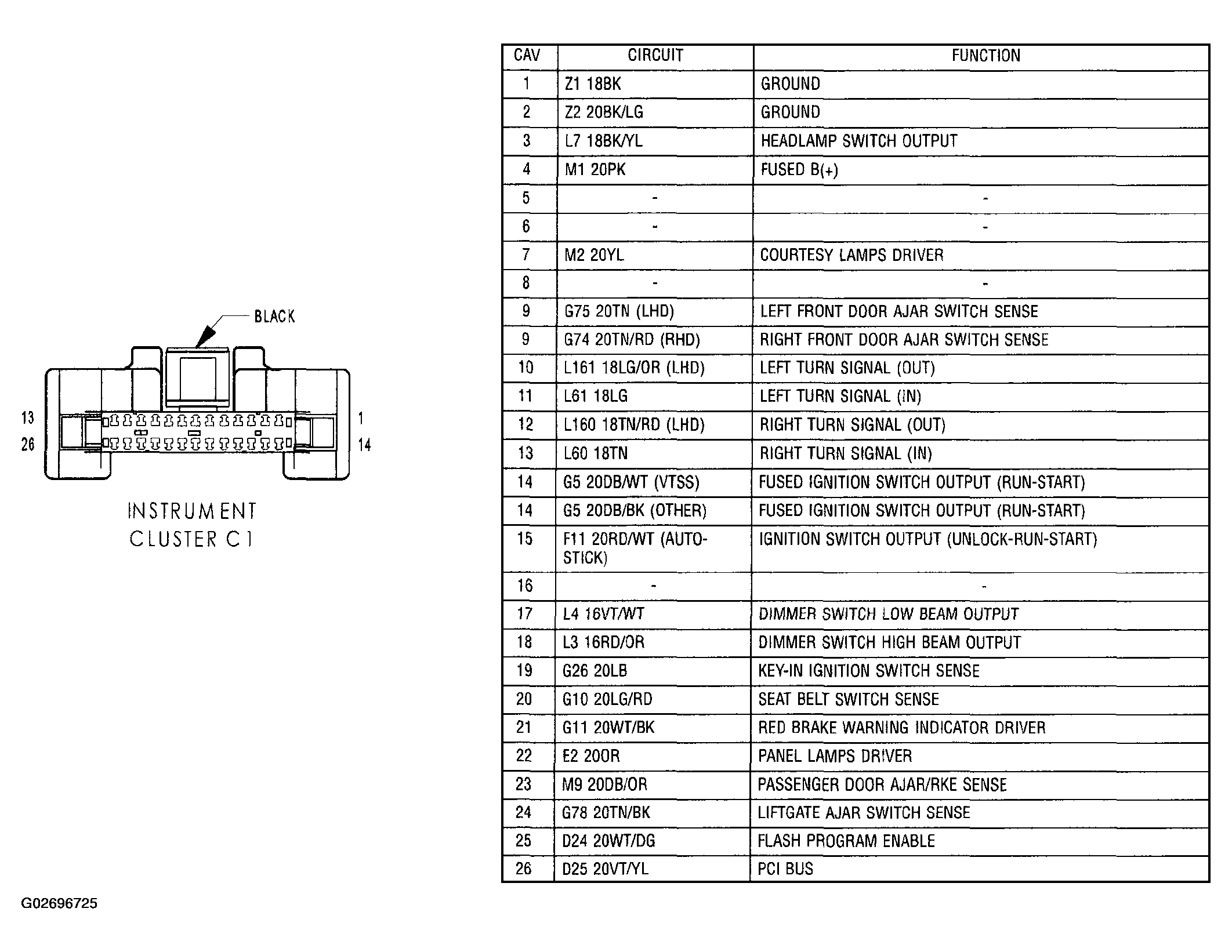

Fig 35: Identifying Instrument Cluster C1 Connector Pinouts
G02696725Courtesy of DAIMLERCHRYSLER CORP.

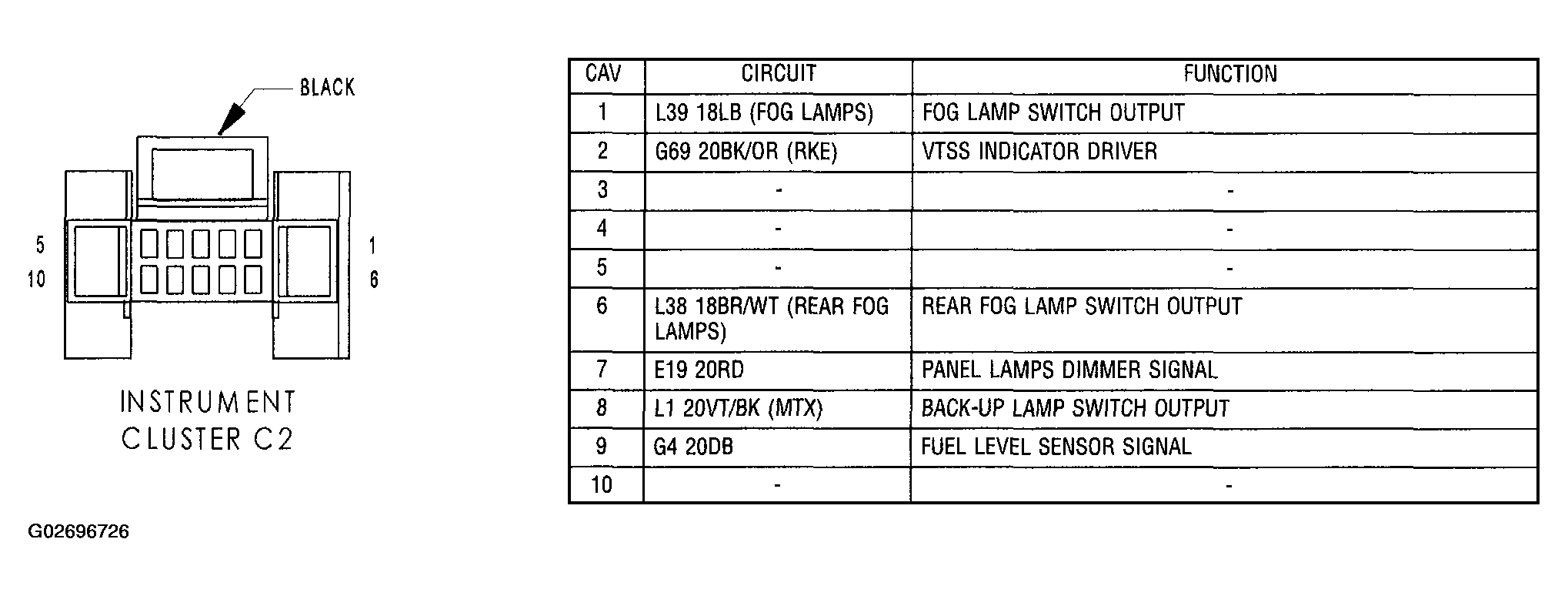

Fig 36: Identifying Instrument Cluster C2 Connector Pinouts
G02696726Courtesy of DAIMLERCHRYSLER CORP.
Fig 37: Identifying Left Cylinder Lock Switch Connector Pinouts
G02696727Courtesy of DAIMLERCHRYSLER CORP.

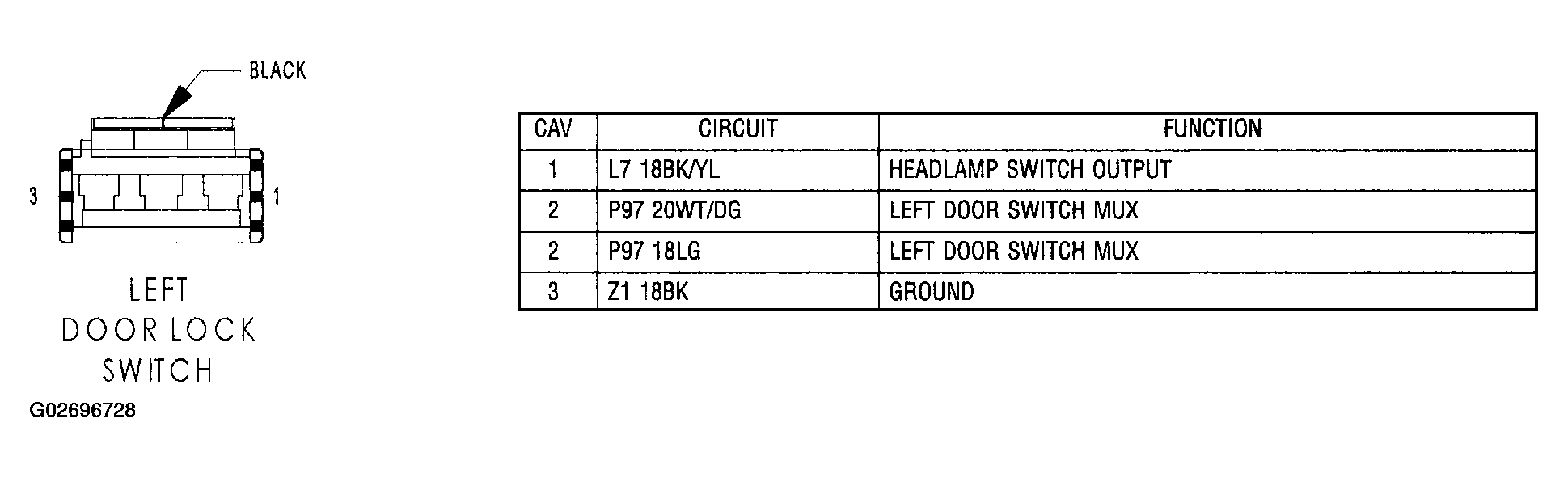

Fig 38: Identifying Left Door Lock Switch Connector Pinouts
G02696728Courtesy of DAIMLERCHRYSLER CORP.
Fig 39: Identifying Left Front Door Speaker Connector Pinouts
G02696729Courtesy of DAIMLERCHRYSLER CORP.
Fig 40: Identifying Left Instrument Panel Speaker Connector Pinouts
G02696730Courtesy of DAIMLERCHRYSLER CORP.

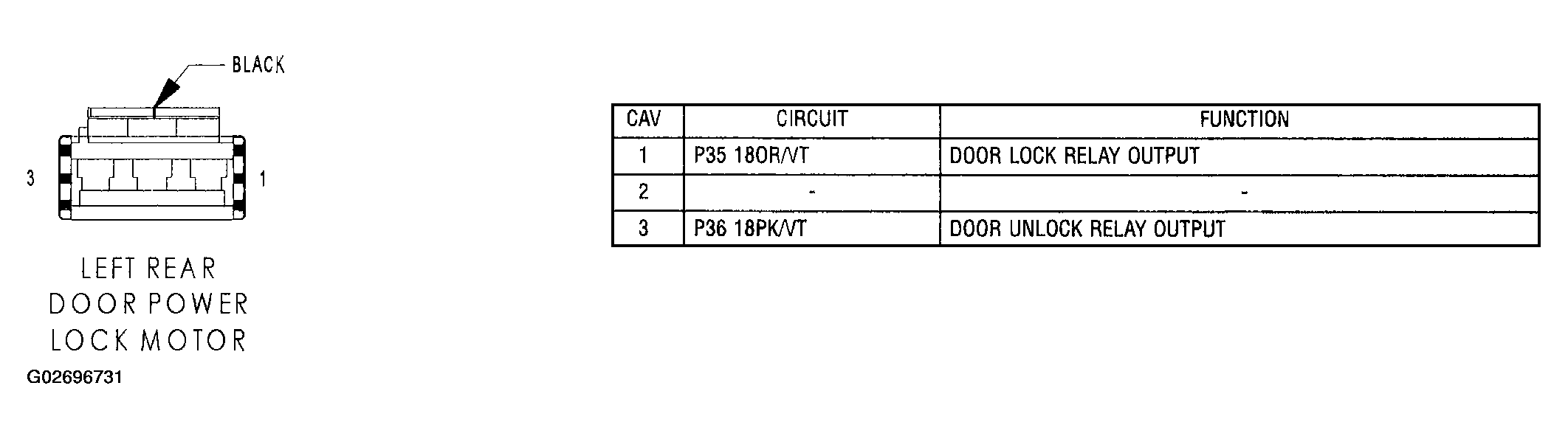

Fig 41: Identifying Left Rear Door Power Lock Motor Connector Pinouts
G02696731Courtesy of DAIMLERCHRYSLER CORP.
Fig 42: Identifying Left Rear Speaker Connector Pinouts
G02696732Courtesy of DAIMLERCHRYSLER CORP.
Fig 43: Identifying Liftgate Ajar Switch Connector Pinouts
G02696733Courtesy of DAIMLERCHRYSLER CORP.
Fig 44: Identifying Liftgate Cylinder Lock Switch Connector Pinouts
G02696734Courtesy of DAIMLERCHRYSLER CORP.
Fig 45: Identifying Liftgate Power Lock Motor Connector Pinouts
G02696735Courtesy of DAIMLERCHRYSLER CORP.
Fig 46: Identifying Low Note Horn Connector Pinouts
G02696736Courtesy of DAIMLERCHRYSLER CORP.

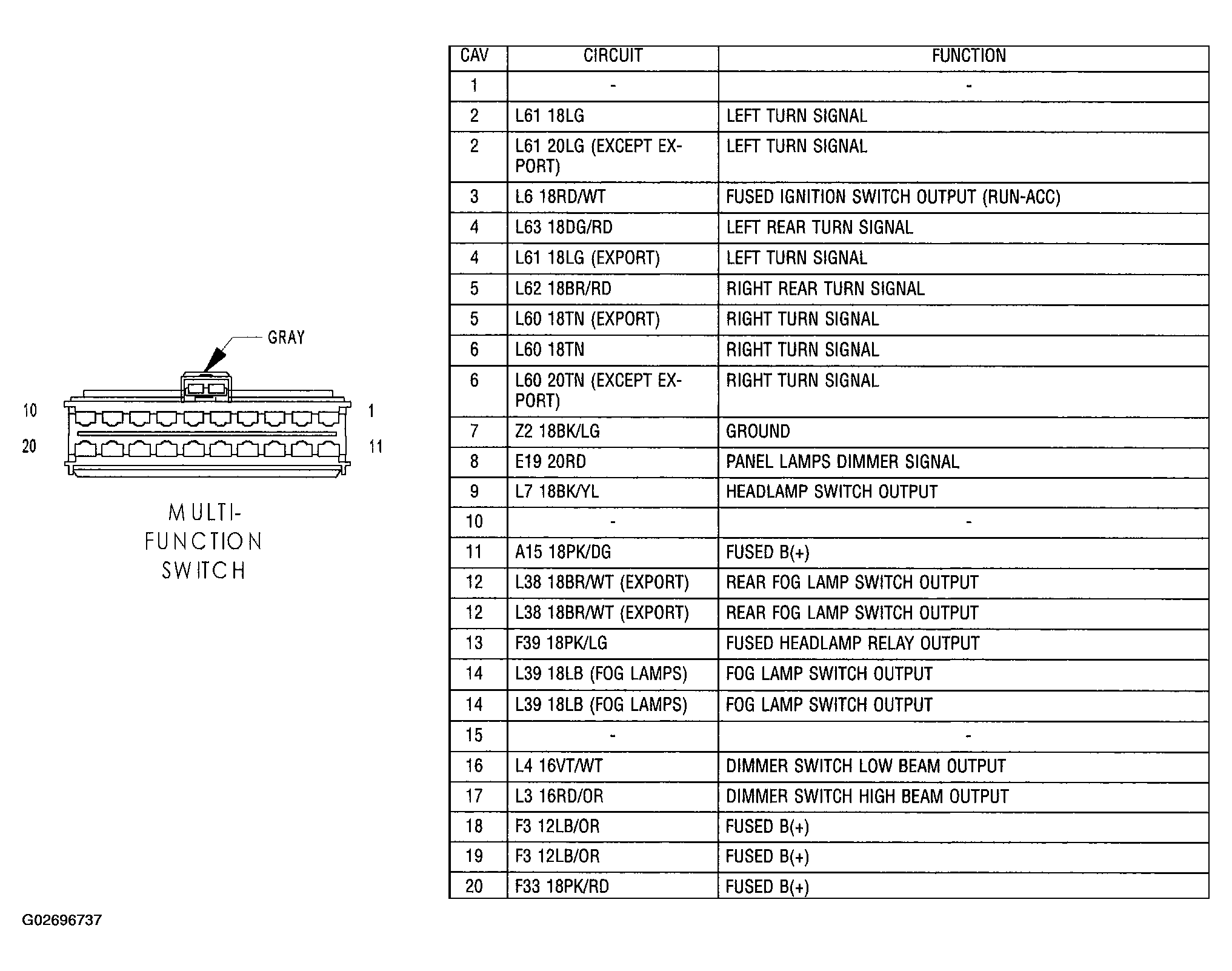

Fig 47: Identifying Multi-Function Switch Connector Pinouts
G02696737Courtesy of DAIMLERCHRYSLER CORP.
Fig 48: Identifying Overhead Console Module Connector Pinouts
G02696738Courtesy of DAIMLERCHRYSLER CORP.
Fig 49: Identifying Passenger Airbag Squib 1 Connector Pinouts
G02696739Courtesy of DAIMLERCHRYSLER CORP.

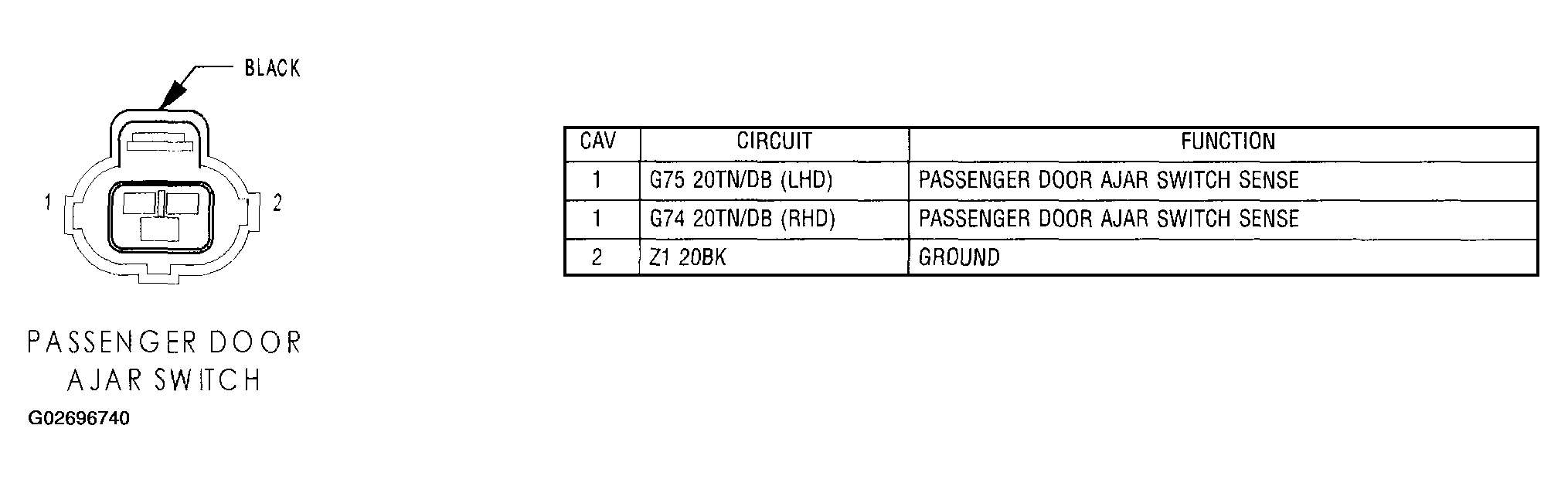

Fig 50: Identifying Passenger Door Ajar Switch Connector Pinouts
G02696740Courtesy of DAIMLERCHRYSLER CORP.

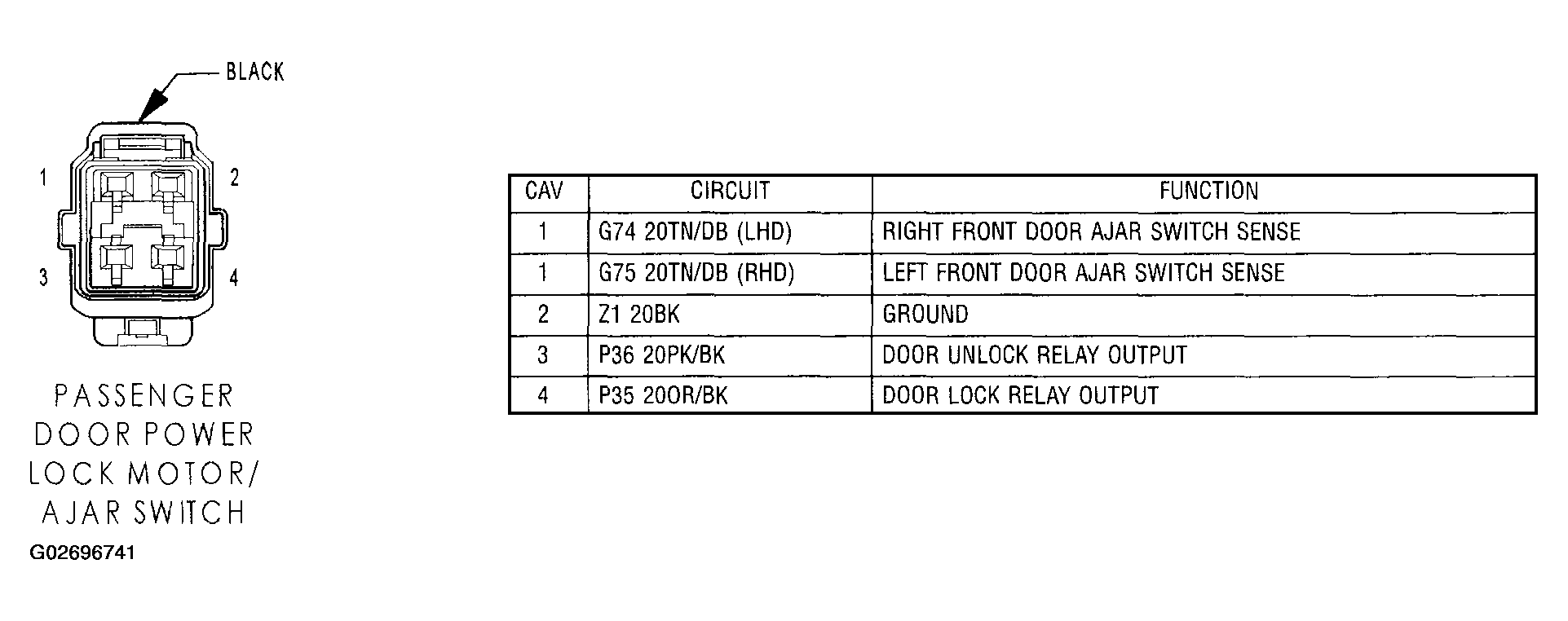

Fig 51: Identifying Passenger Door Power Lock Motor/Ajar Switch Connector Pinouts
G02696741Courtesy of DAIMLERCHRYSLER CORP.
Fig 52: Identifying Passenger Seat Airbag Squib Connector Pinouts
G02696742Courtesy of DAIMLERCHRYSLER CORP.

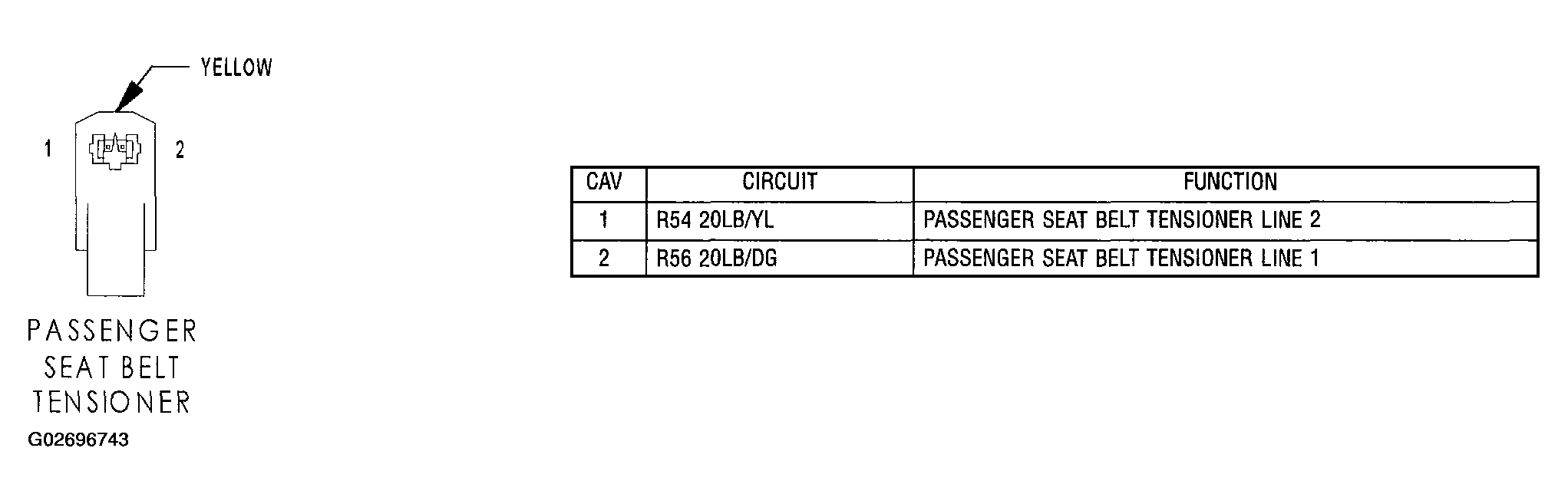

Fig 53: Identifying Passenger Seat Belt Tensioner Connector Pinouts
G02696743Courtesy of DAIMLERCHRYSLER CORP.

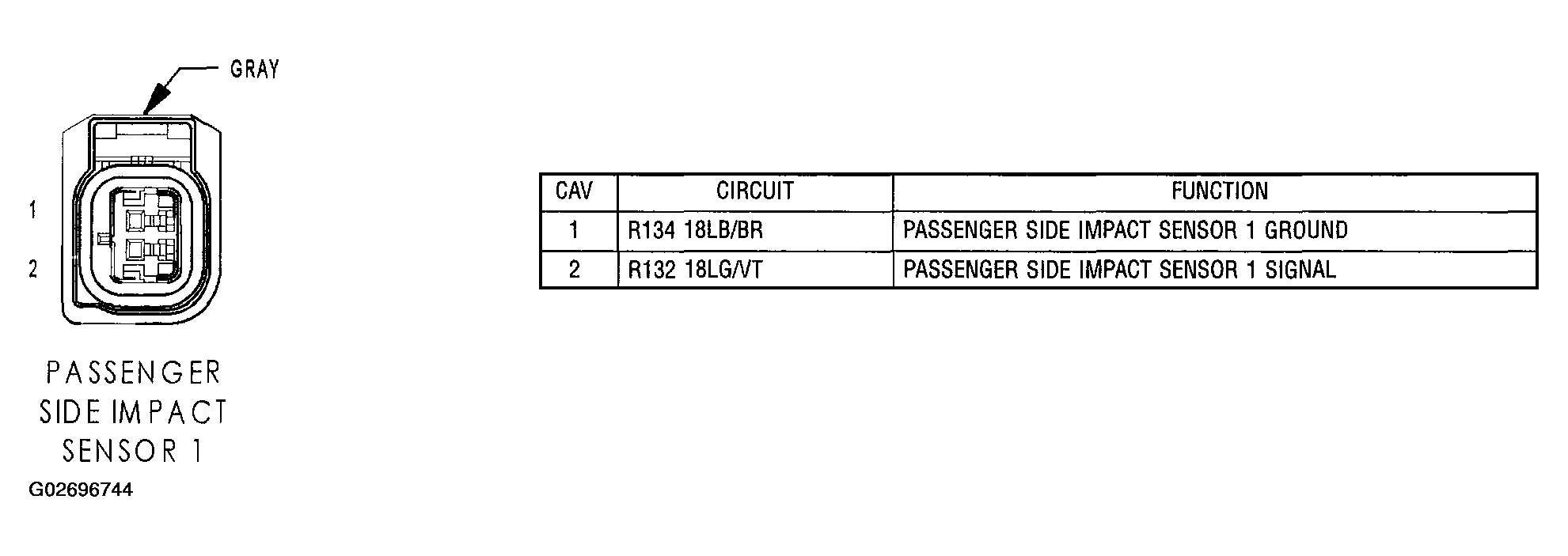

Fig 54: Identifying Passenger Side Impact Sensor 1 Connector Pinouts
G02696744Courtesy of DAIMLERCHRYSLER CORP.

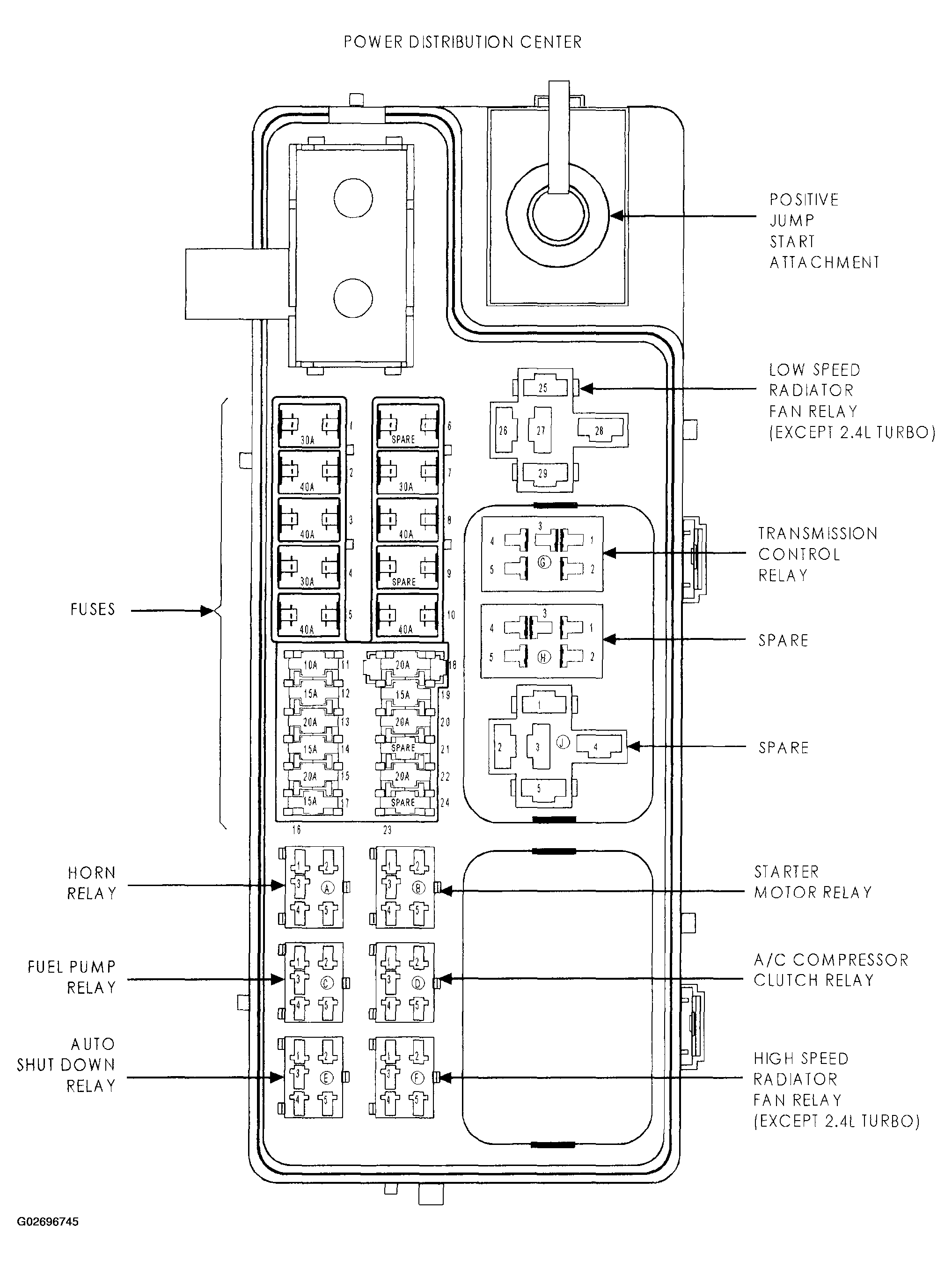

Fig 55: Identifying Power Distribution Center
G02696745Courtesy of DAIMLERCHRYSLER CORP.

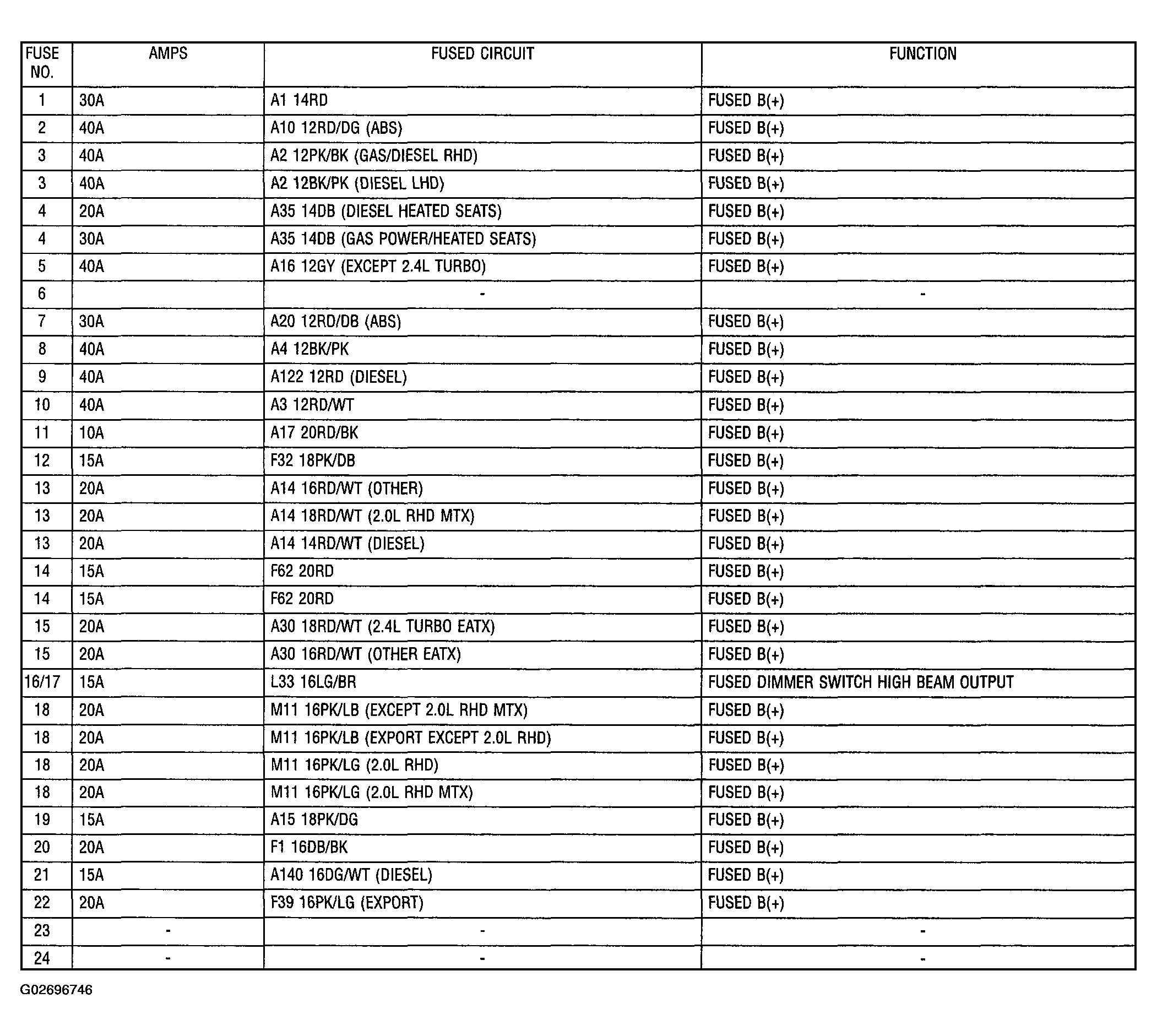

Fig 56: Fuses (PDC) Circuit Function Chart
G02696746Courtesy of DAIMLERCHRYSLER CORP.
Fig 57: Horn Relay Circuit Function Chart
G02696747Courtesy of DAIMLERCHRYSLER CORP.
Fig 58: Identifying Powertrain Control Module (1.6L) Connector Pinouts
G02696748Courtesy of DAIMLERCHRYSLER CORP.
Fig 59: Identifying Powertrain Control Module C1 (NGC) Connector Pinouts
G02696749Courtesy of DAIMLERCHRYSLER CORP.

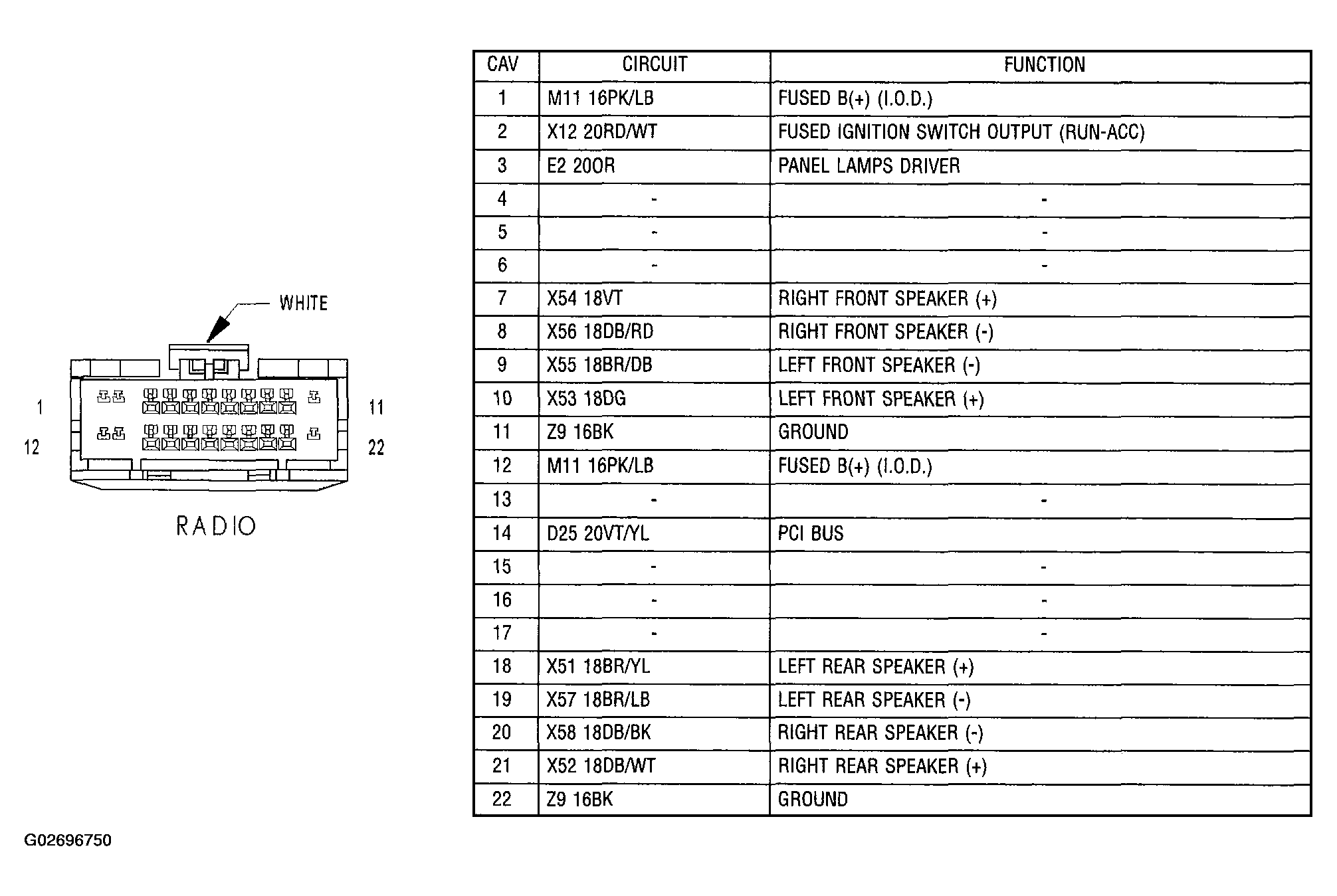

Fig 60: Identifying Radio Connector Pinouts
G02696750Courtesy of DAIMLERCHRYSLER CORP.
Fig 61: Identifying Remote Keyless Entry Antenna (JAPAN) Connector Pinouts
G02696751Courtesy of DAIMLERCHRYSLER CORP.
Fig 62: Identifying Remote Keyless Entry Module Connector Pinouts
G02696752Courtesy of DAIMLERCHRYSLER CORP.
Fig 63: Identifying Right Cylinder Lock Switch (Export) Connector Pinouts
G02696753Courtesy of DAIMLERCHRYSLER CORP.

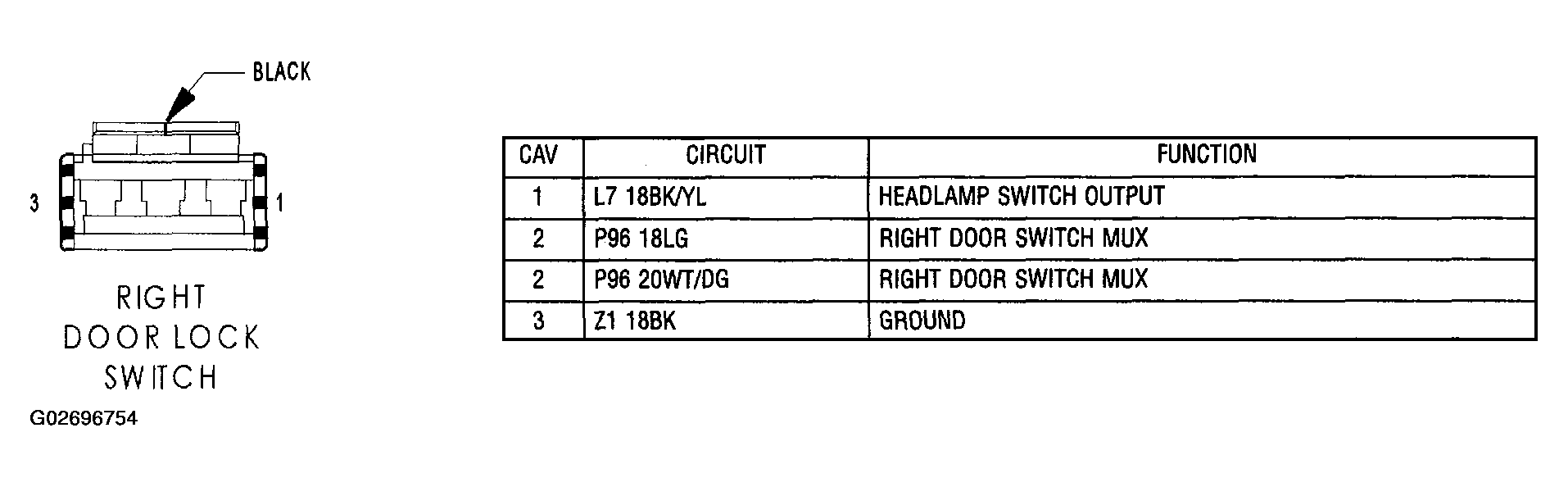

Fig 64: Identifying Right Door Lock Switch Connector Pinouts
G02696754Courtesy of DAIMLERCHRYSLER CORP.
Fig 65: Identifying Right Front Door Speaker Connector Pinouts
G02696755Courtesy of DAIMLERCHRYSLER CORP.
Fig 66: Identifying Right Instrument Panel Speaker Connector Pinouts
G02696756Courtesy of DAIMLERCHRYSLER CORP.

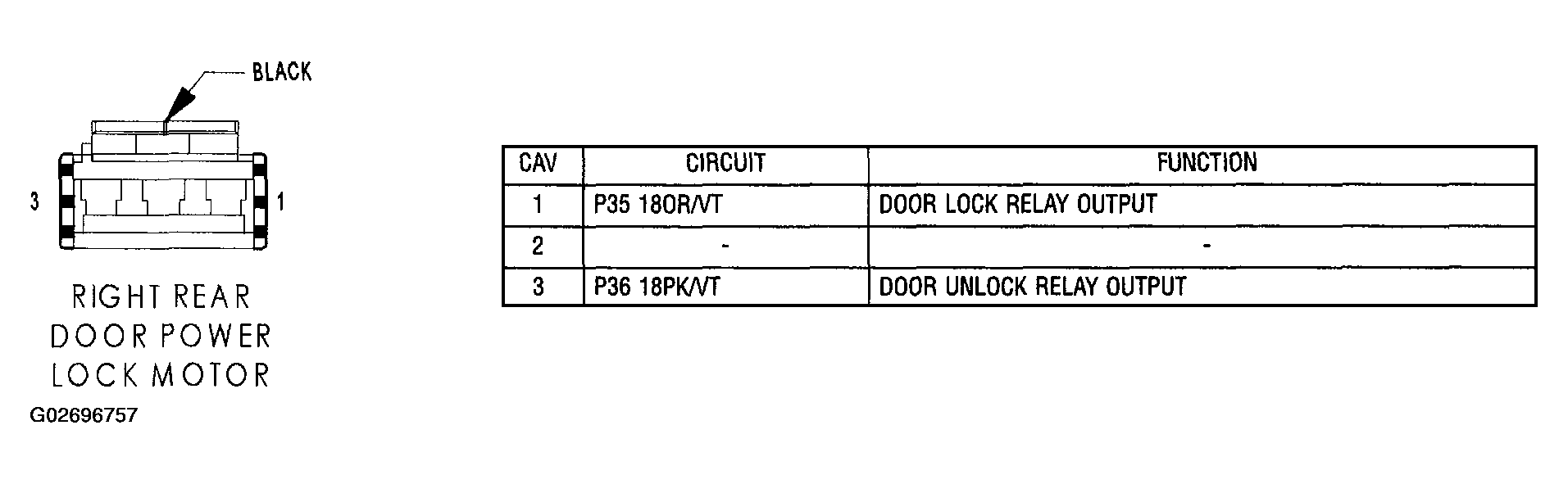

Fig 67: Identifying Right Rear Door Power Lock Motor Connector Pinouts
G02696757Courtesy of DAIMLERCHRYSLER CORP.
Fig 68: Identifying Right Rear Speaker Connector Pinouts
G02696758Courtesy of DAIMLERCHRYSLER CORP.

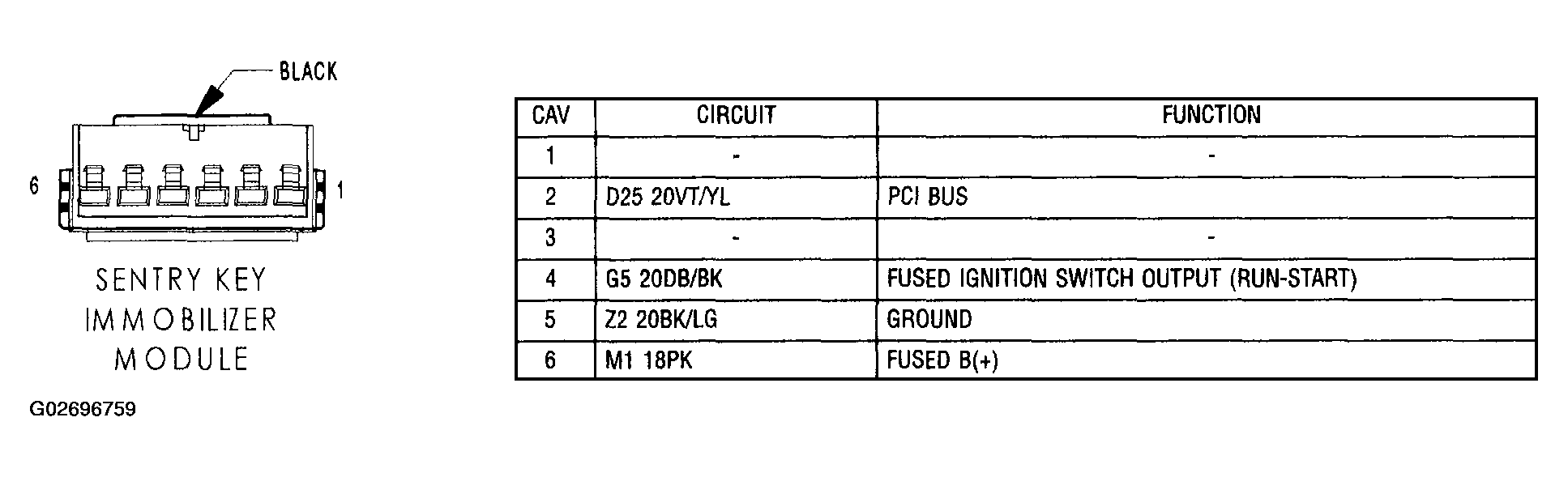

Fig 69: Identifying Sentry Key Immobilizer Module Connector Pinouts
G02696759Courtesy of DAIMLERCHRYSLER CORP.

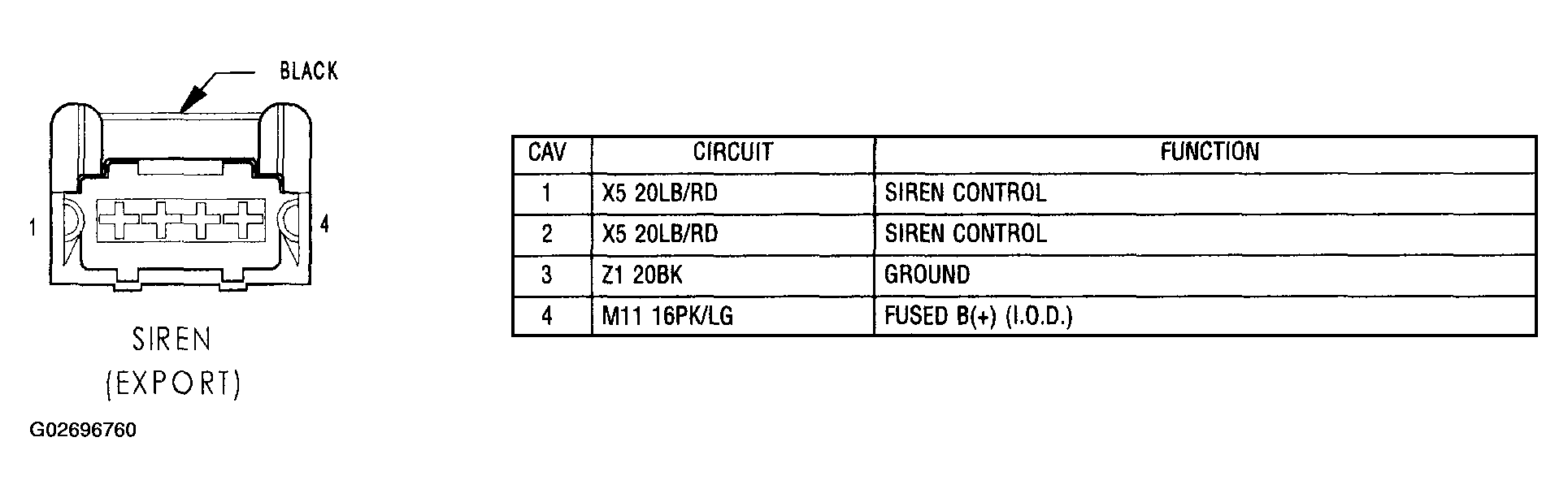

Fig 70: Identifying Siren (Export) Connector Pinouts
G02696760Courtesy of DAIMLERCHRYSLER CORP.
