Data Link Connector

The data link connector is located inside the vehicle, below instrument panel next to the center column. See Fig 1 . The data link connector (diagnostic connector) links the DRBIII(R) scan tool with the powertrain control module.

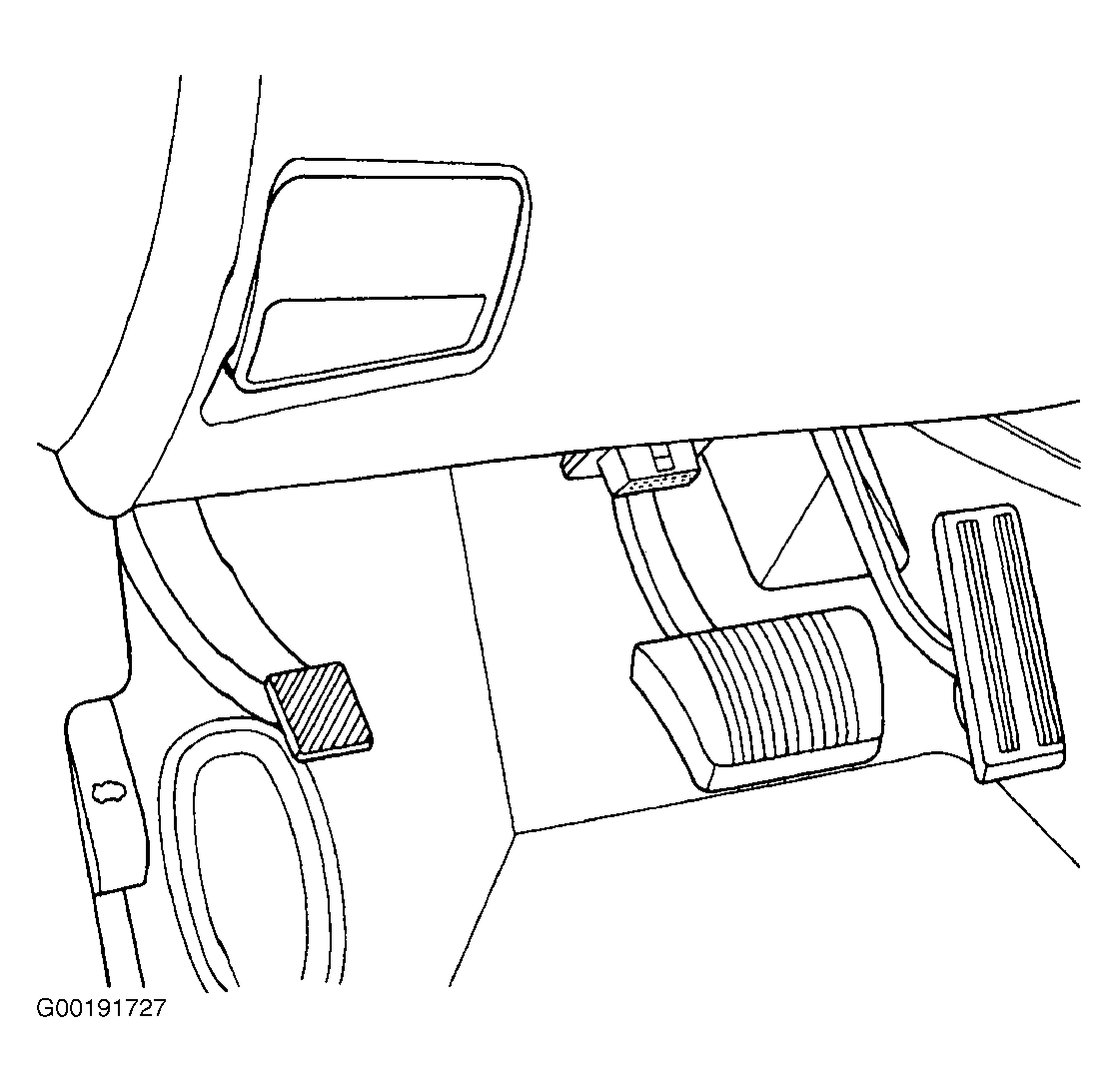

Fig 1: Locating Data Link Connector
G00191727Courtesy of CHRYSLER CORP.
