REMOVE - 2.0, 2.4, and 2.4L Turbo

Disconnect the negative battery cable.
Lift vacuum line out from behind the upper support bracket (Fig. Fig 1 ) and (Fig. Fig 2 ).

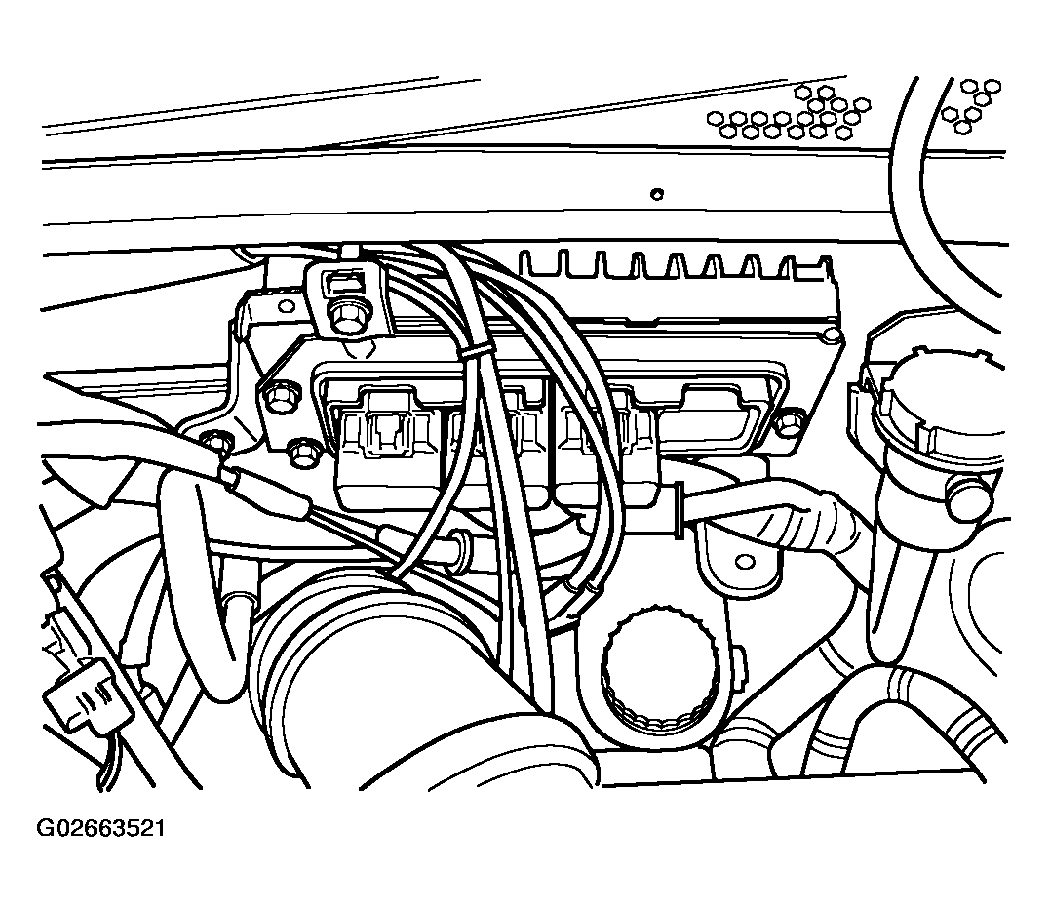

Fig 1: Identifying Powertrain Control Module
Courtesy of DAIMLERCHRYSLER CORP.

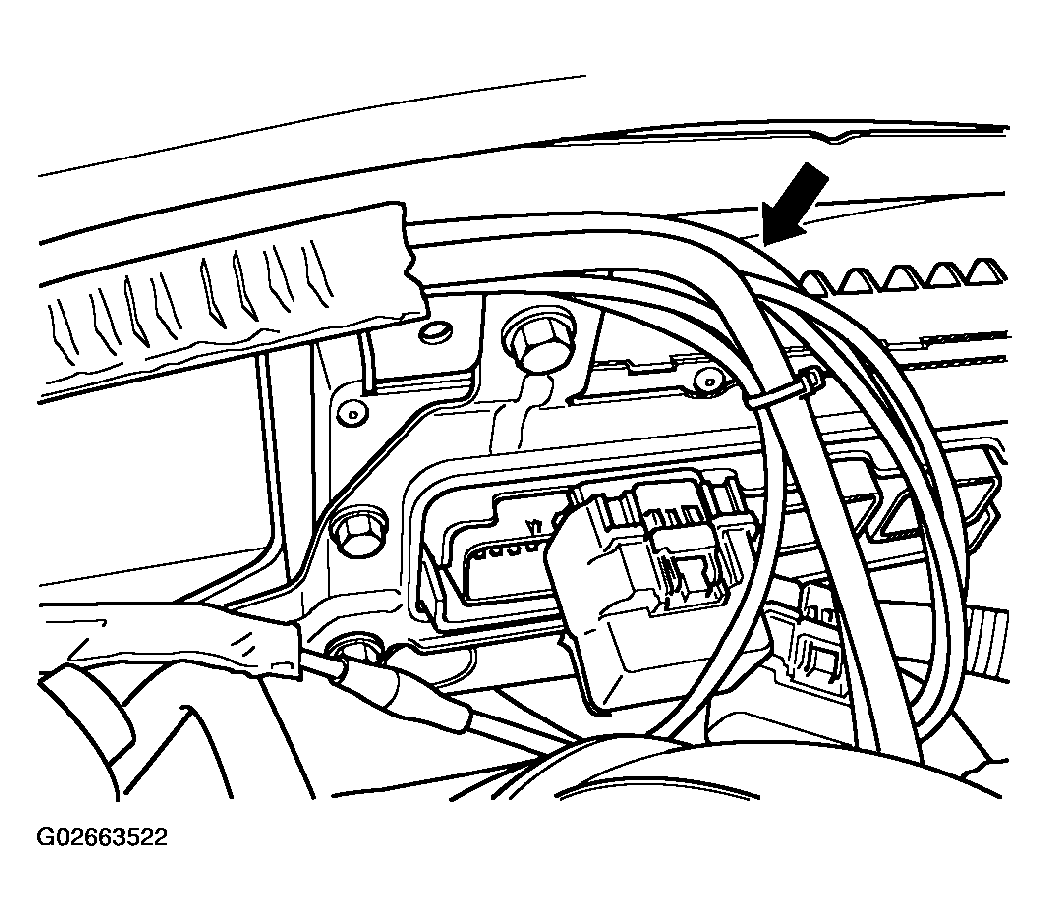

Fig 2: Identifying Vacuum Lines
Courtesy of DAIMLERCHRYSLER CORP.
Unlock and disconnect the 3 or 4 electrical connectors (Fig. Fig 3 ) from the Powertrain Control Module (PCM).

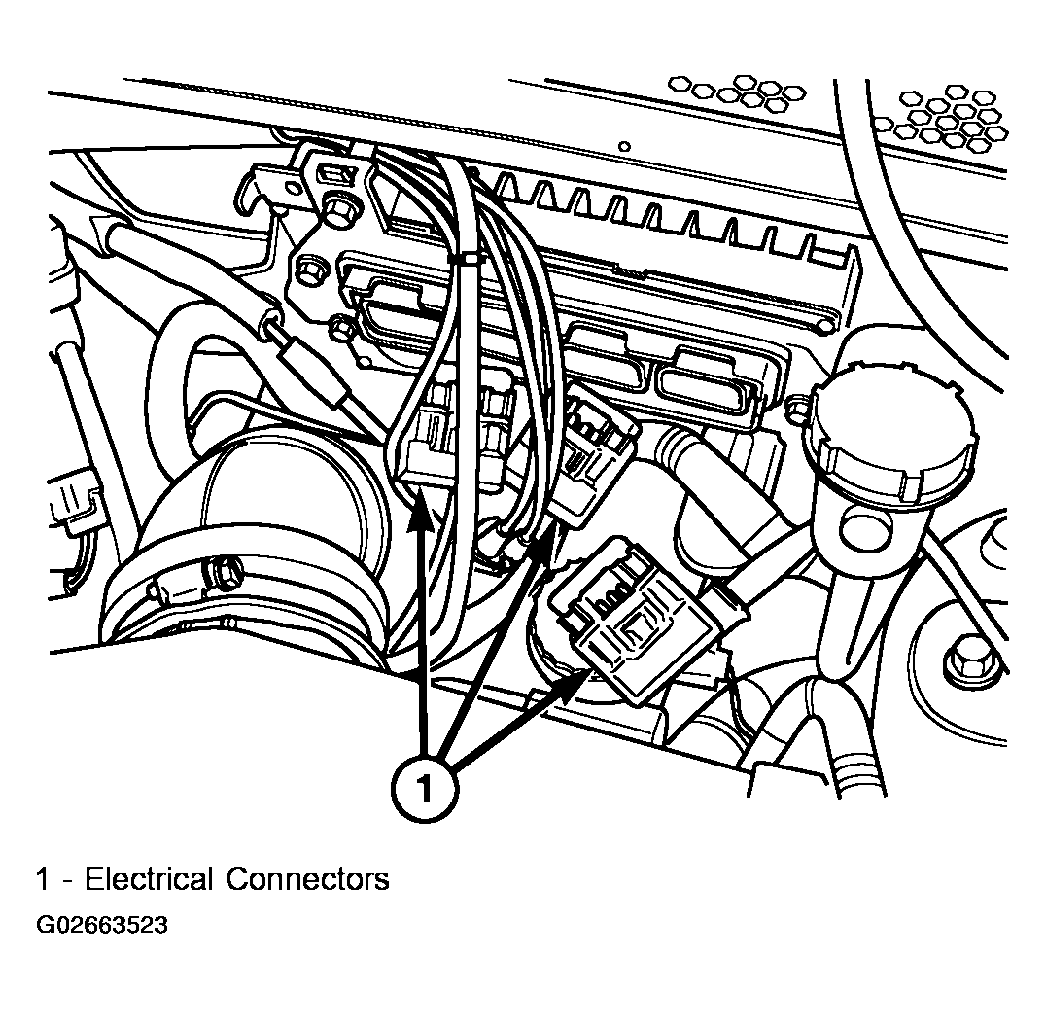

Fig 3: Identifying Electrical Connectors
Courtesy of DAIMLERCHRYSLER CORP.
Remove the clutch reservoir and relocate (Fig. Fig 4 ).

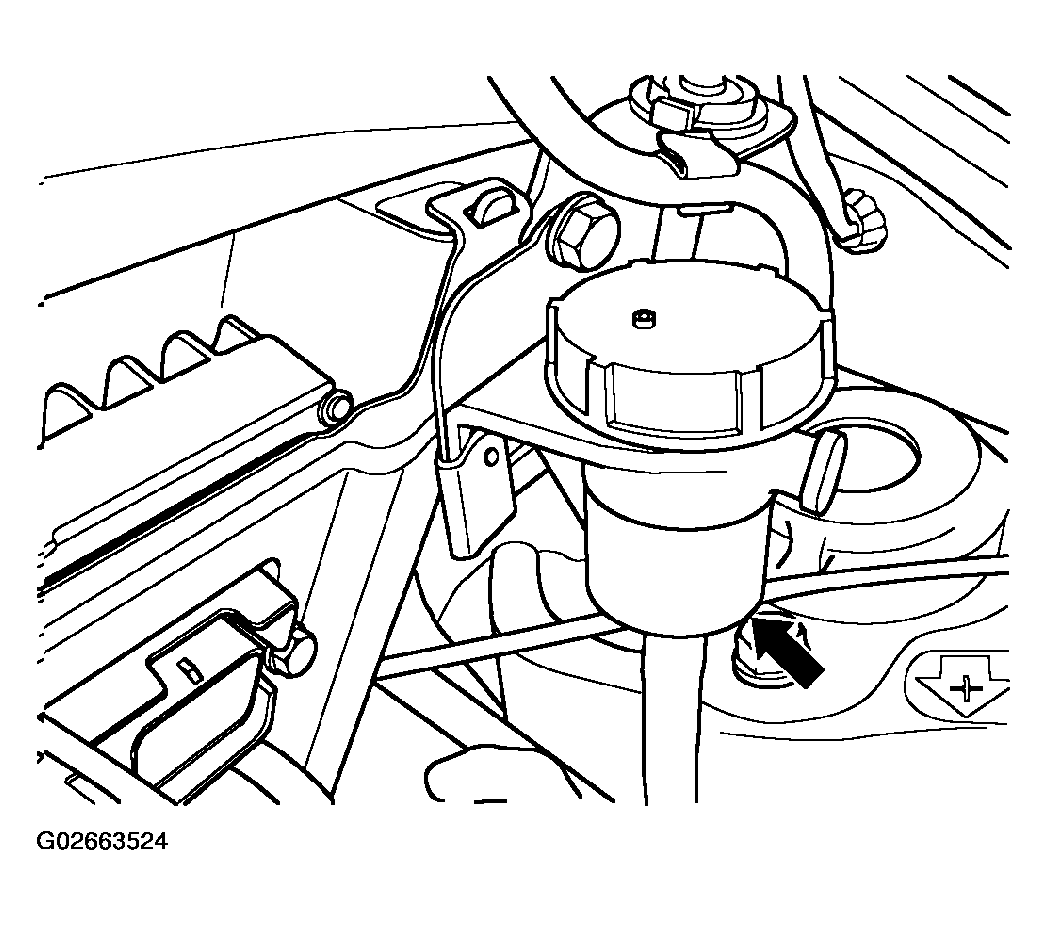

Fig 4: Locating Clutch Reservoir
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 3 mounting screws (Fig. Fig 5 ) and (Fig. Fig 6 ) from the PCM mounting bracket and remove PCM and bracket assembly (Fig. Fig 7 ).

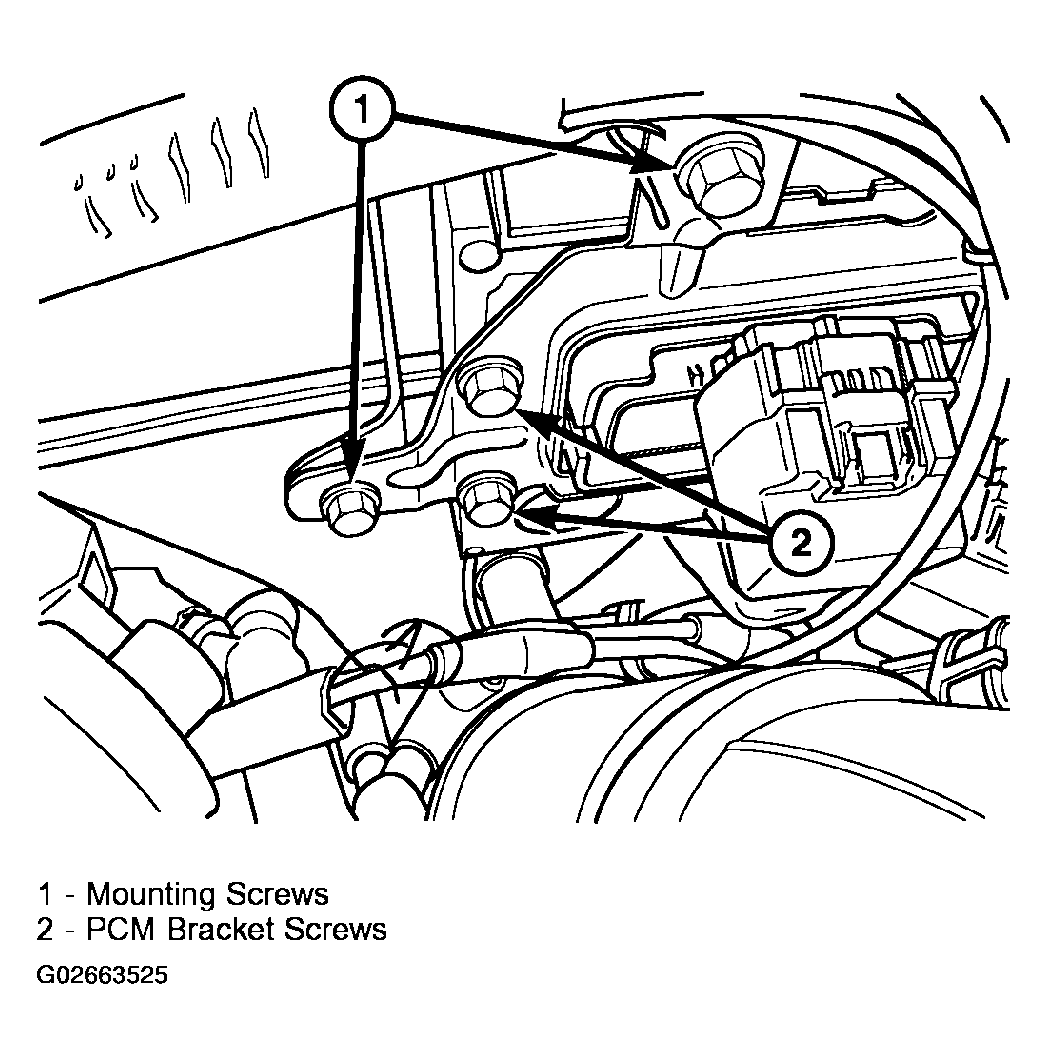

Fig 5: Locating PCM Mounting Screws
Courtesy of DAIMLERCHRYSLER CORP.

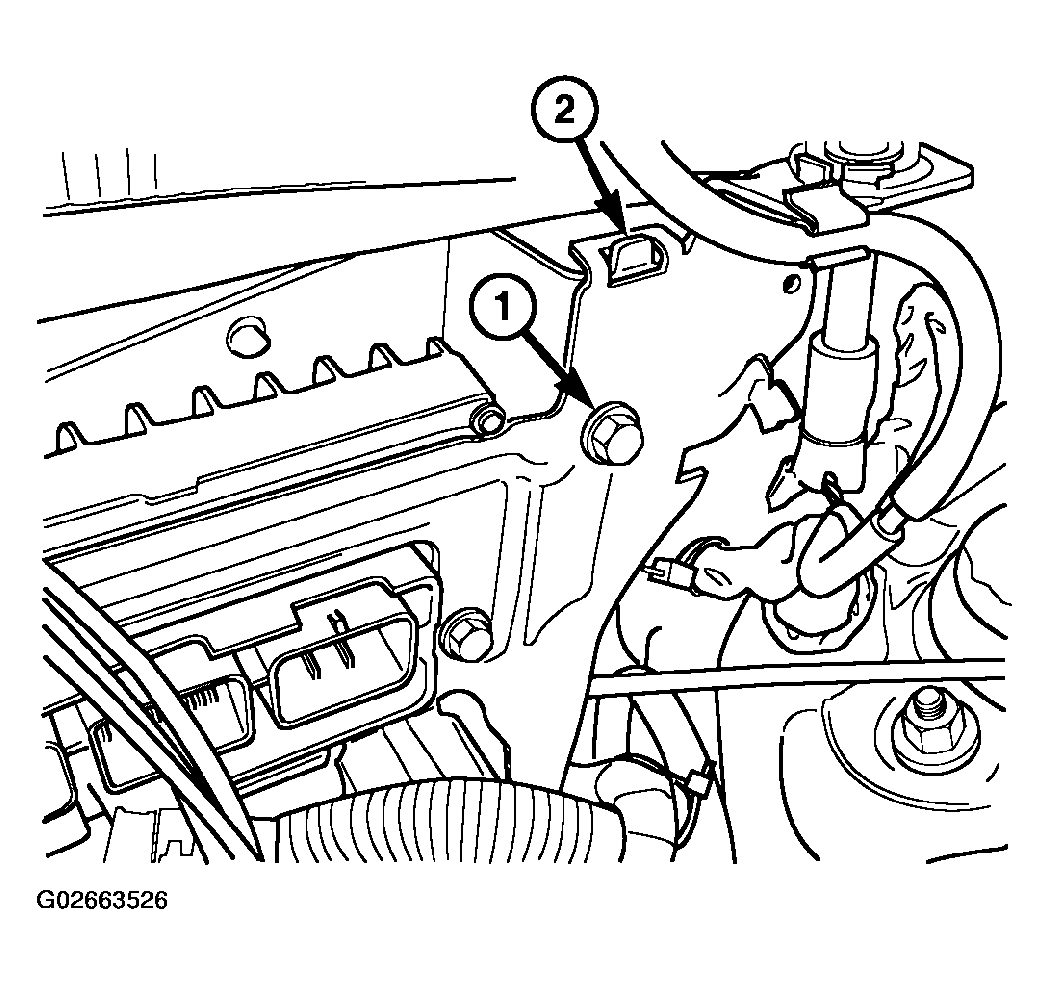

Fig 6: Locating PCM Mounting Screw And Location Tab
Courtesy of DAIMLERCHRYSLER CORP.

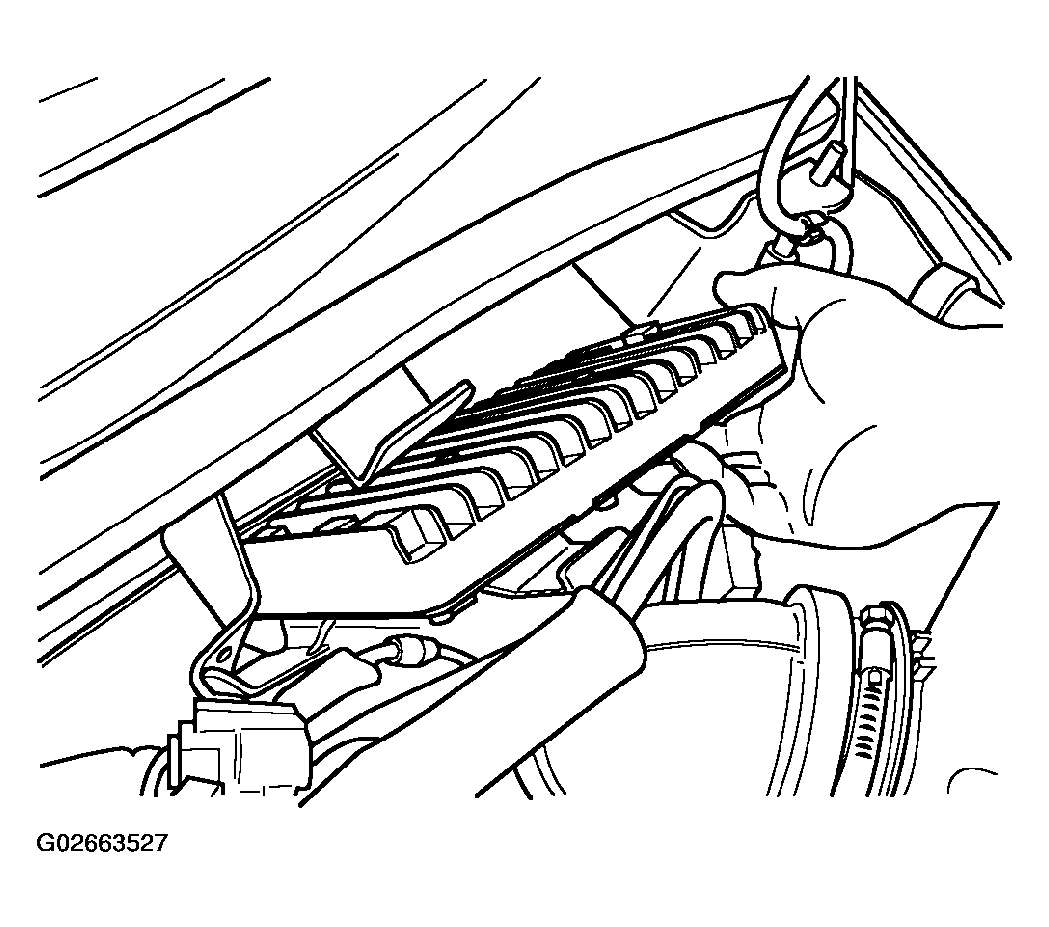

Fig 7: Removing And Installing PCM
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 3 screws from the PCM bracket to PCM (Fig. Fig 8 ).

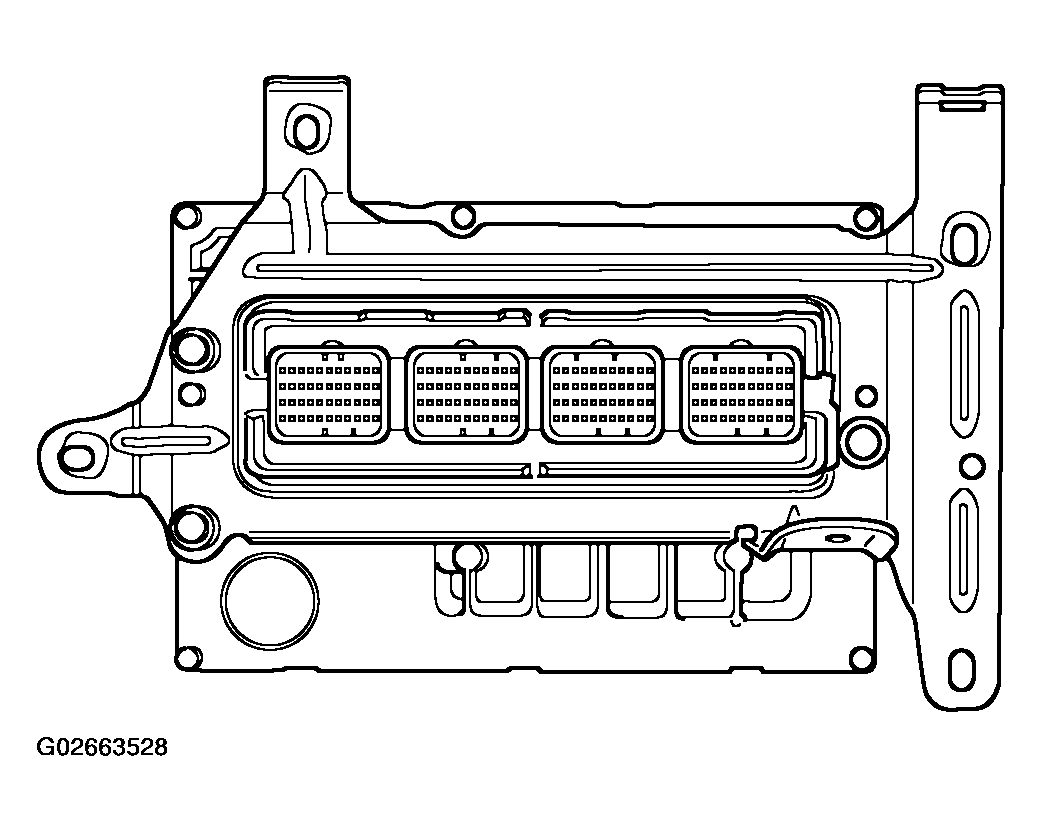

Fig 8: Identifying PCM And Mounting Bracket
Courtesy of DAIMLERCHRYSLER CORP.
