Vehicle Theft Security System

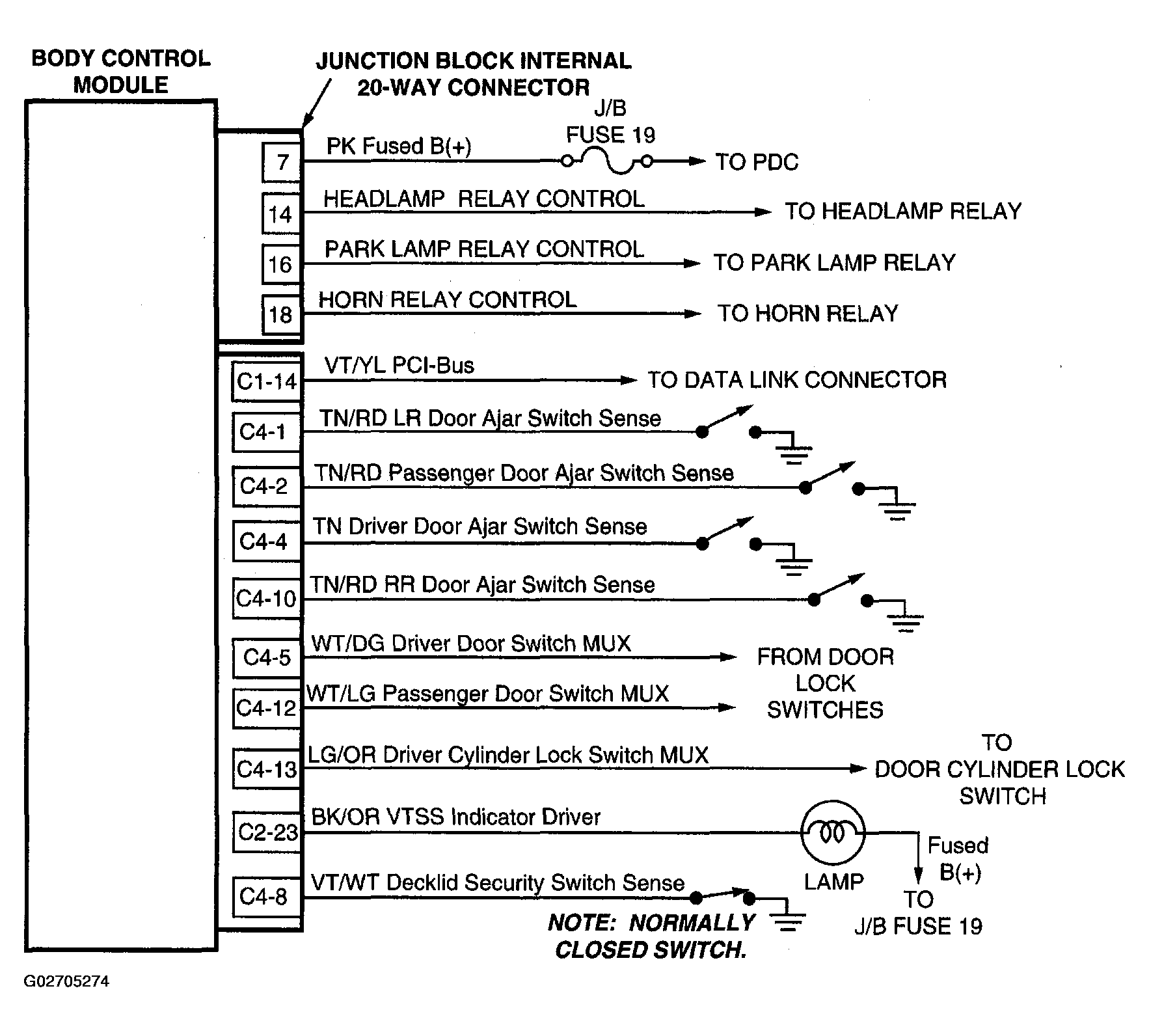

Fig 1: Schematic Diagrams - Vehicle Theft Security System
G02705274Courtesy of DAIMLERCHRYSLER CORP.
