Exterior Lighting

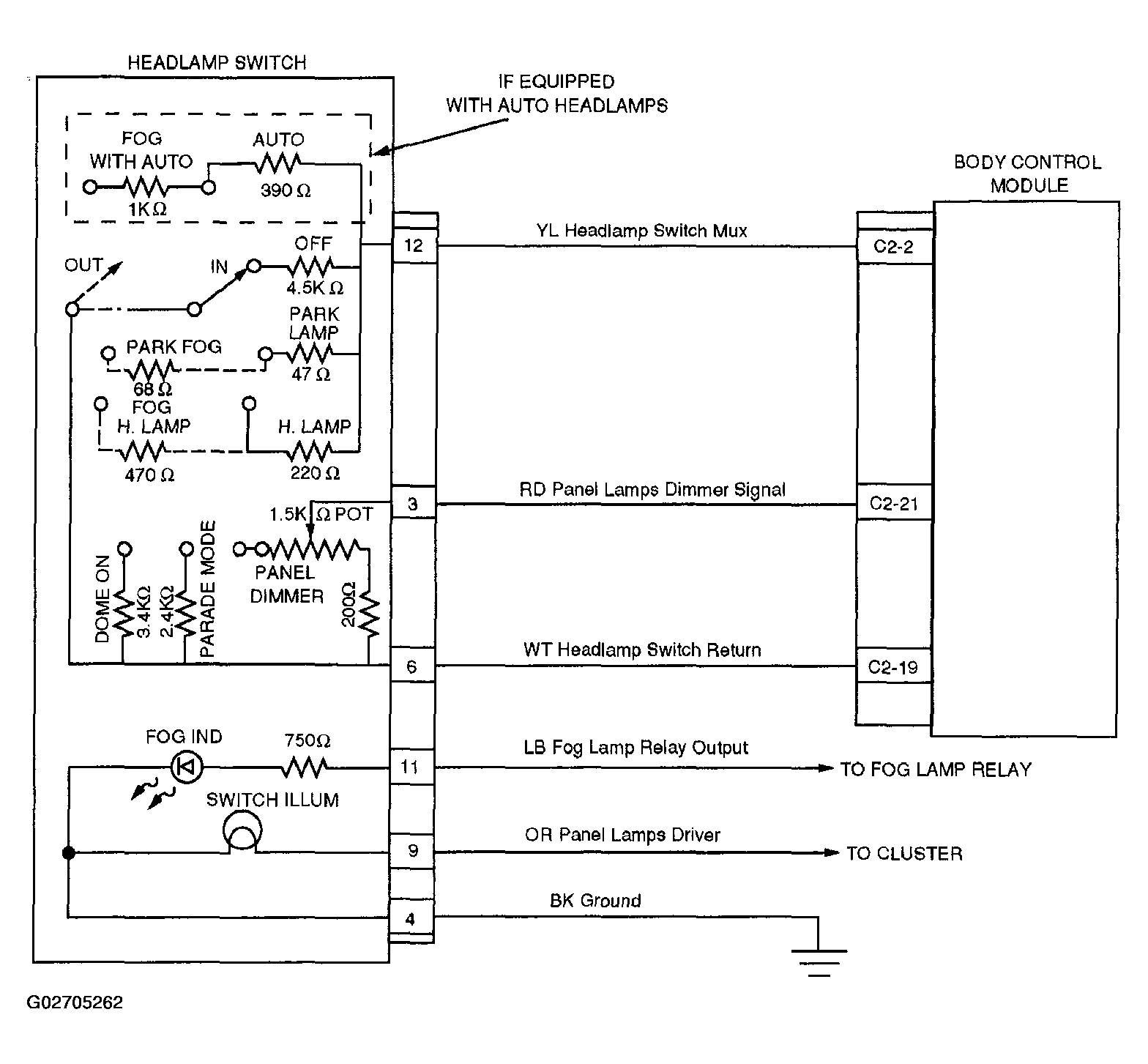

Fig 1: Schematic Diagrams - Exterior Lighting (1 Of 2)
G02705262Courtesy of DAIMLERCHRYSLER CORP.

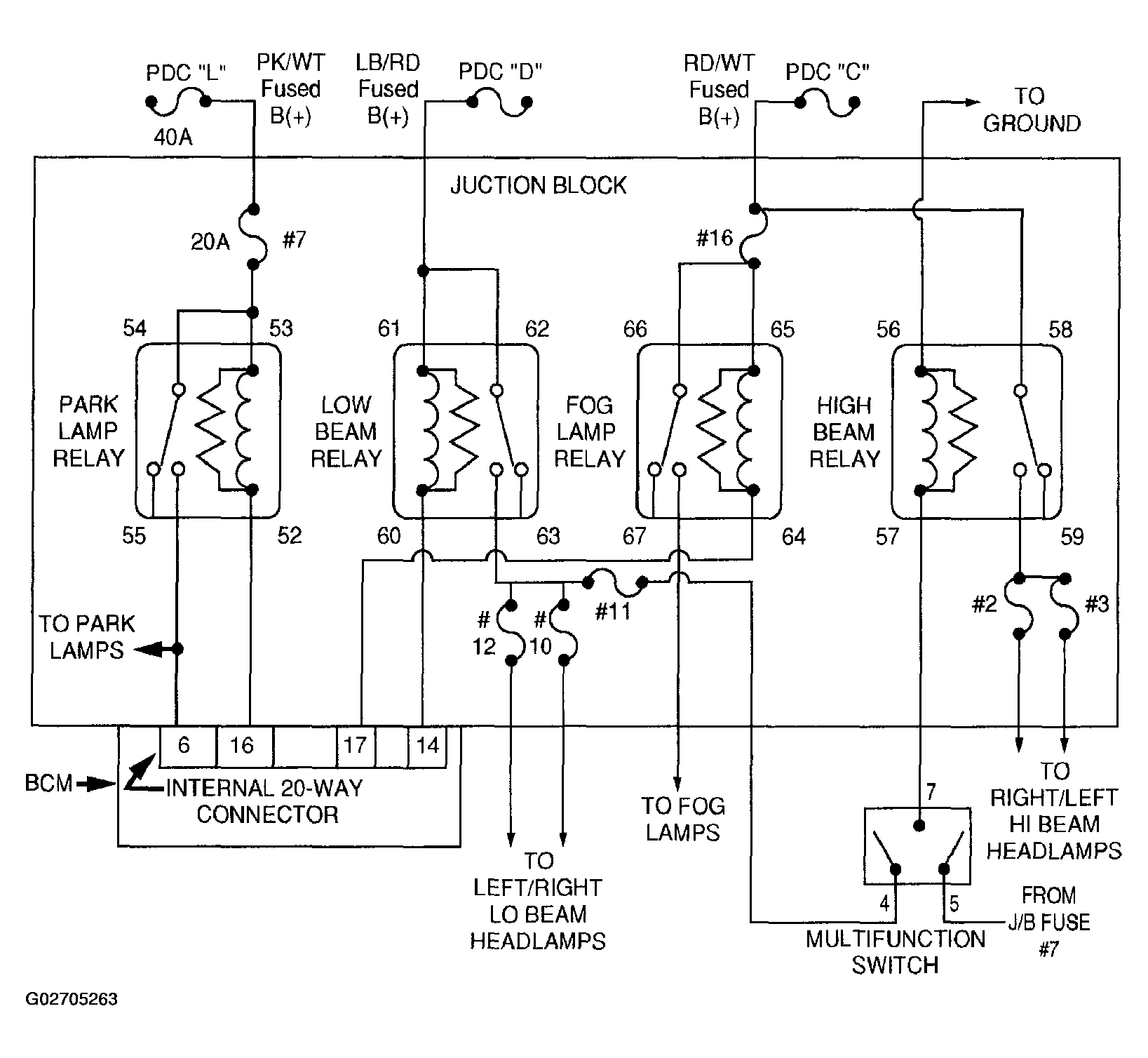

Fig 2: Schematic Diagrams - Exterior Lighting (2 Of 2)
G02705263Courtesy of DAIMLERCHRYSLER CORP.
