Audio System - Midline

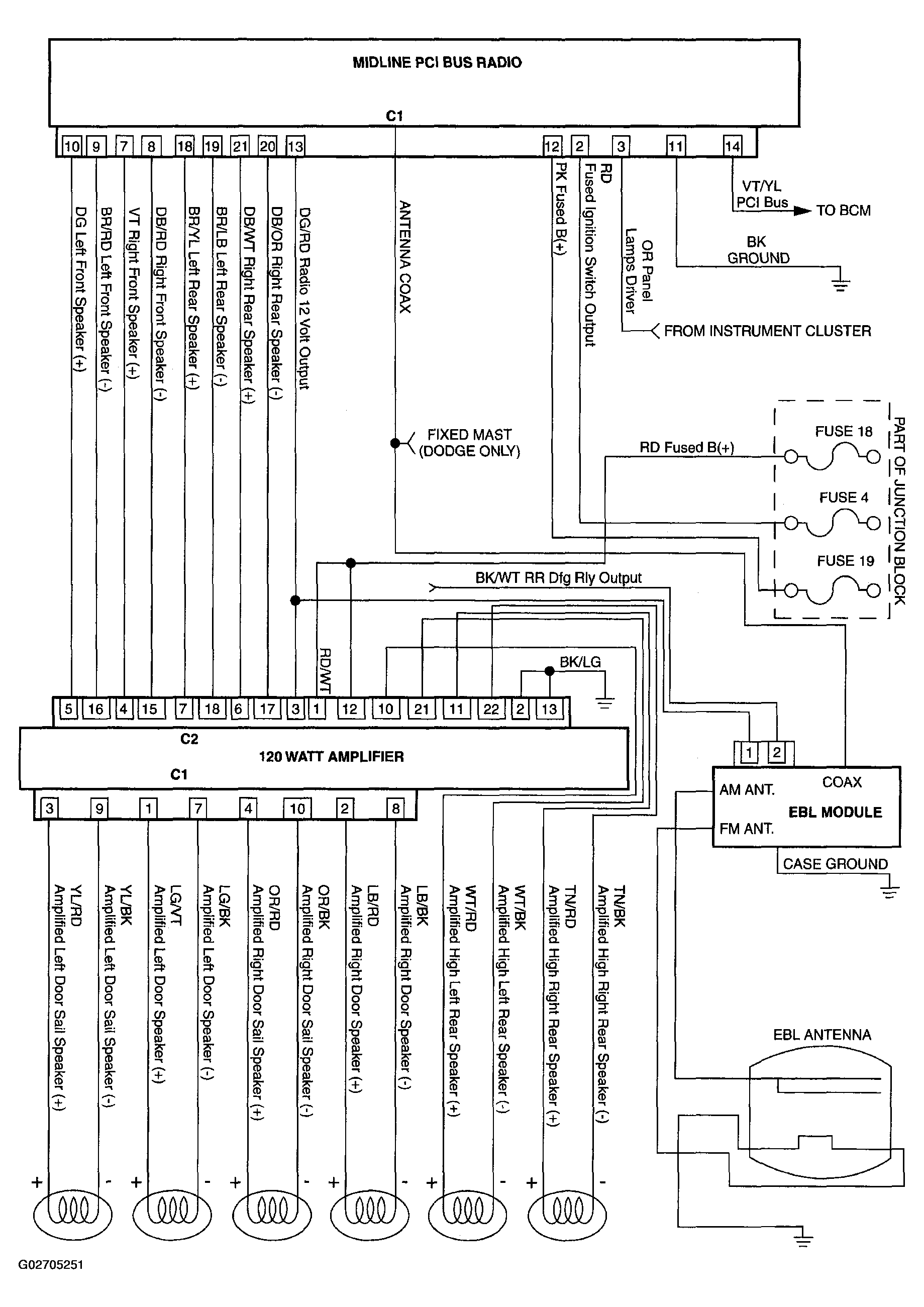

Fig 1: Schematic Diagrams - Audio System - Midline
G02705251Courtesy of DAIMLERCHRYSLER CORP.
