Heating And A/C: Actuators

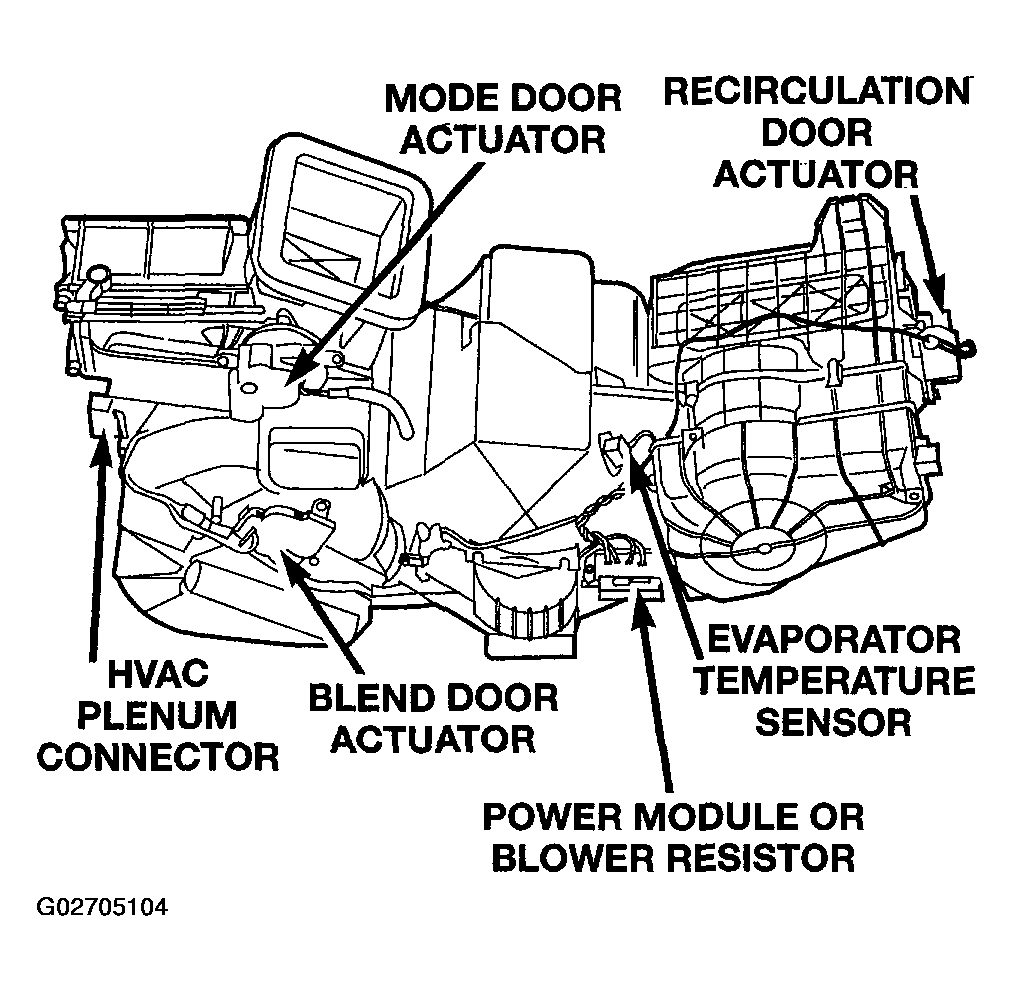

Fig 1: Identifying Heating And A/C Actuators
G02705104Courtesy of DAIMLERCHRYSLER CORP.
