Shift Schedules

The PCM has programming that allows it to select a variety of shift schedules. Shift schedule selection is dependent on the following:

As driving conditions change, the PCM appropriately adjusts the shift schedule. Refer to the following illustration to determine the appropriate operation expected, depending on driving conditions. See Fig 1 .

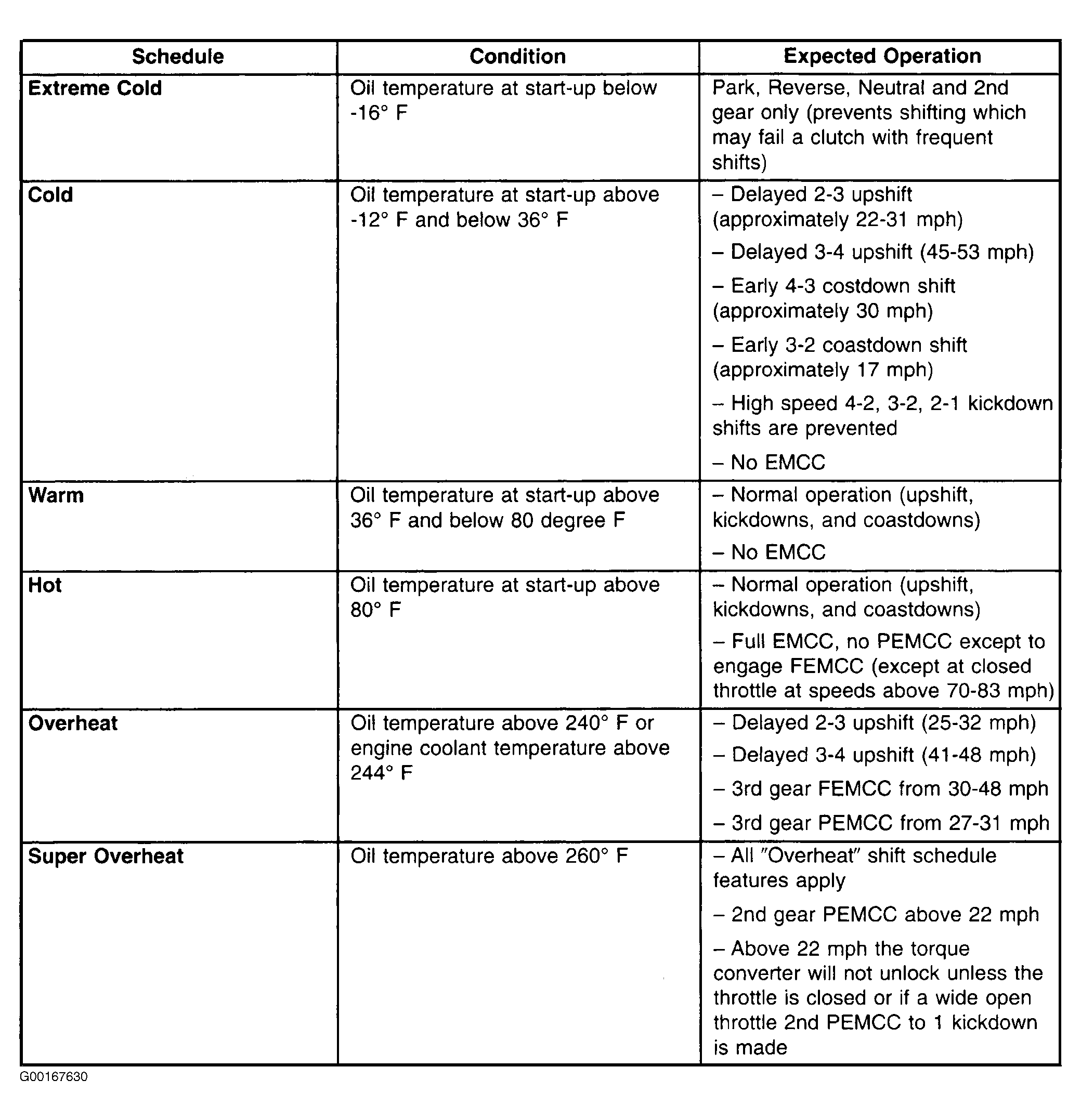

Fig 1: Identifying Appropriate Shift Schedule
G00167630Courtesy of CHRYSLER CORP.
