Power Distribution Center

For power distribution center location, see Fig 1.

Fig 1: Locating Power Distribution Center

Courtesy of CHRYSLER CORP.

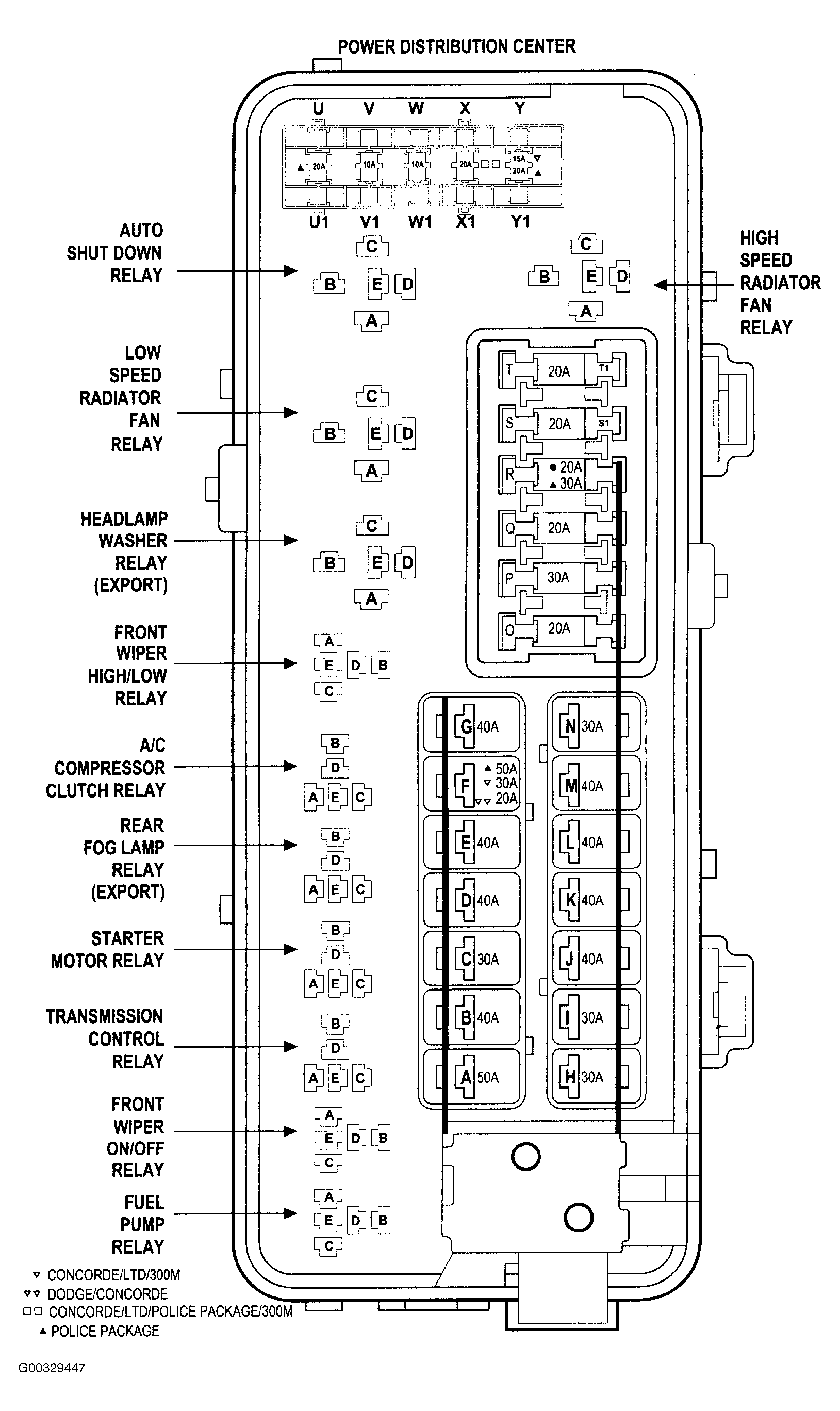

Fig 2: Identifying Power Distribution Center Components

Courtesy of CHRYSLER CORP.

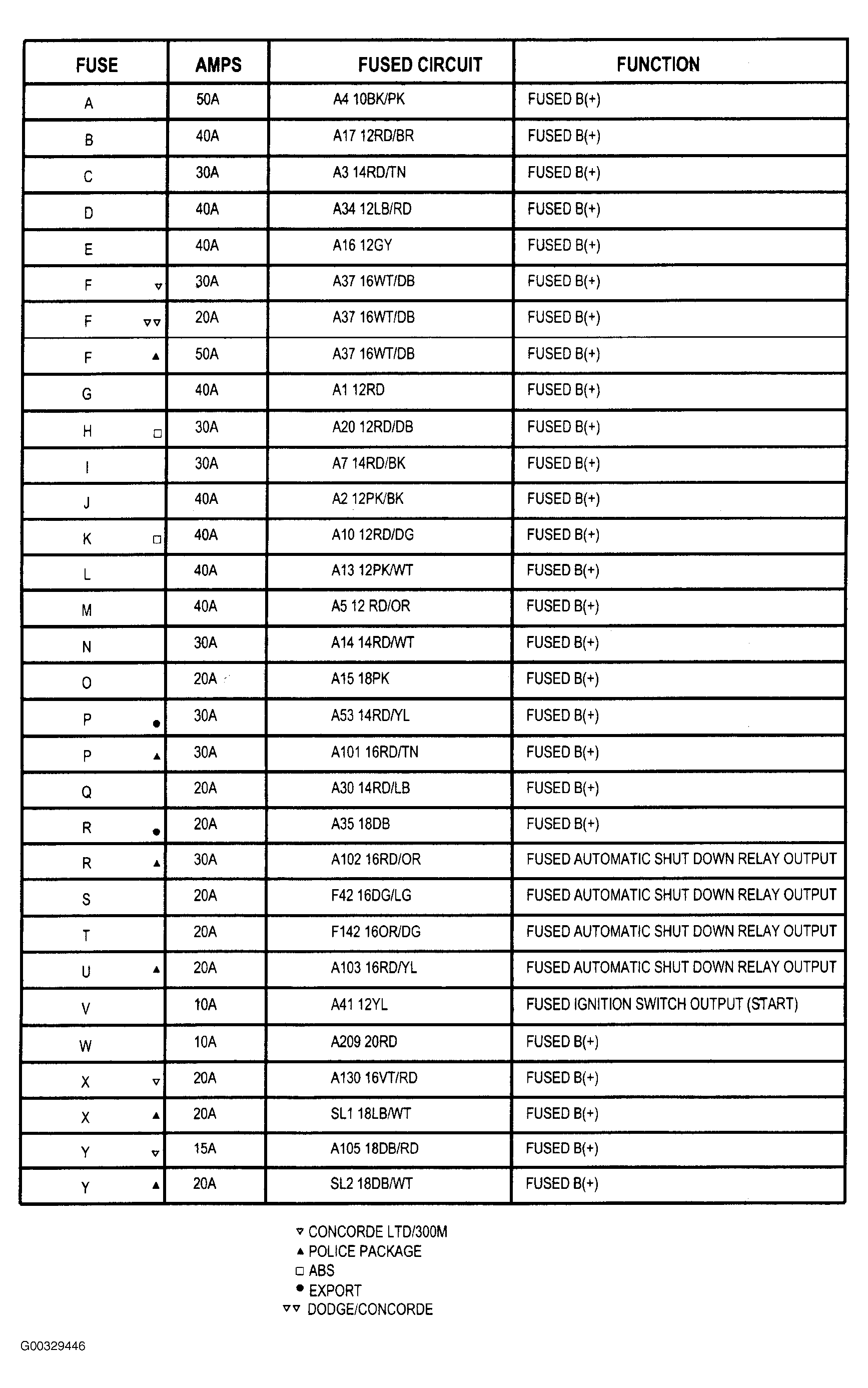

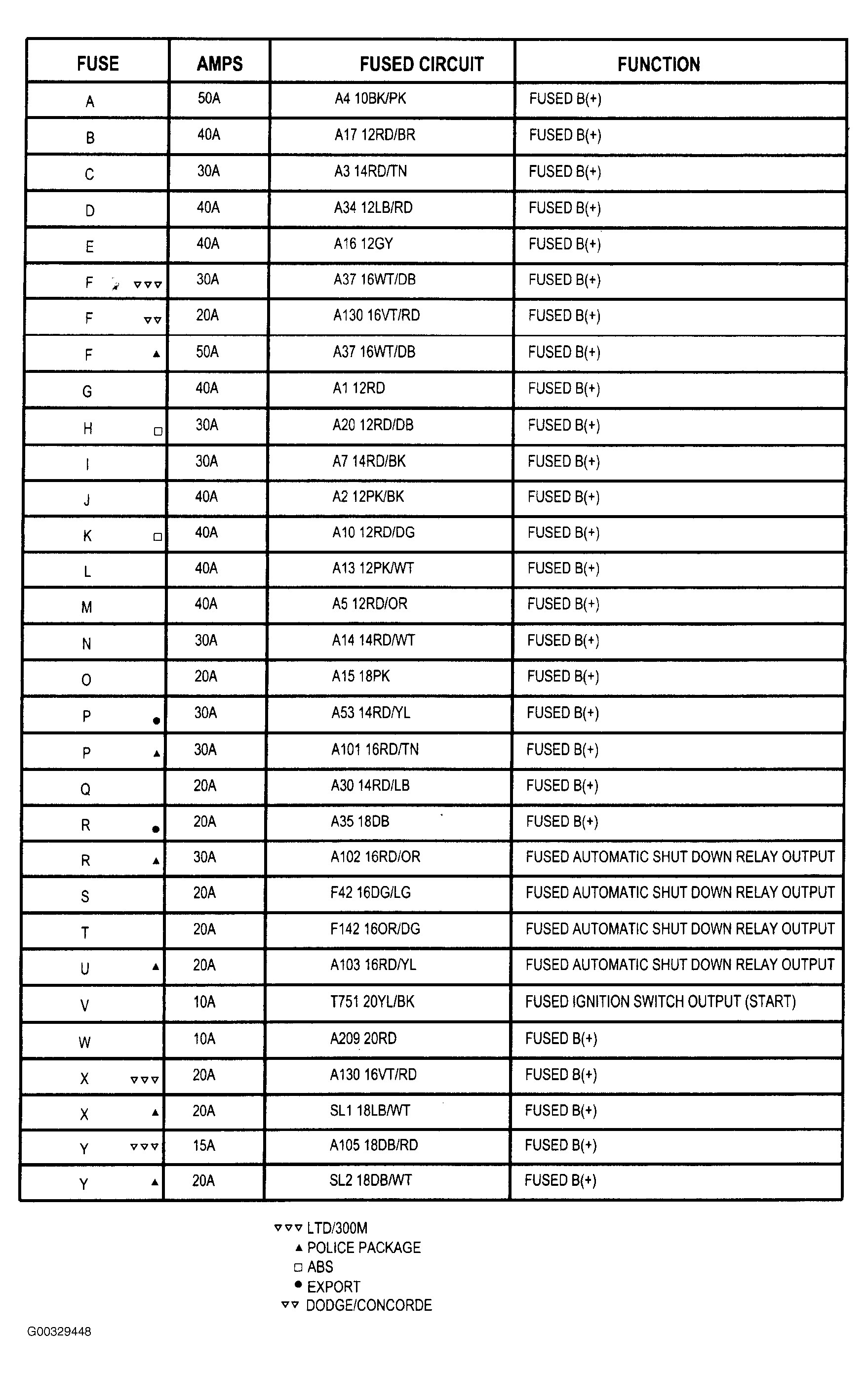

Fig 3: Power Distribution Center Legend

Courtesy of CHRYSLER CORP.
