Transmission Range Sensor Connector End View

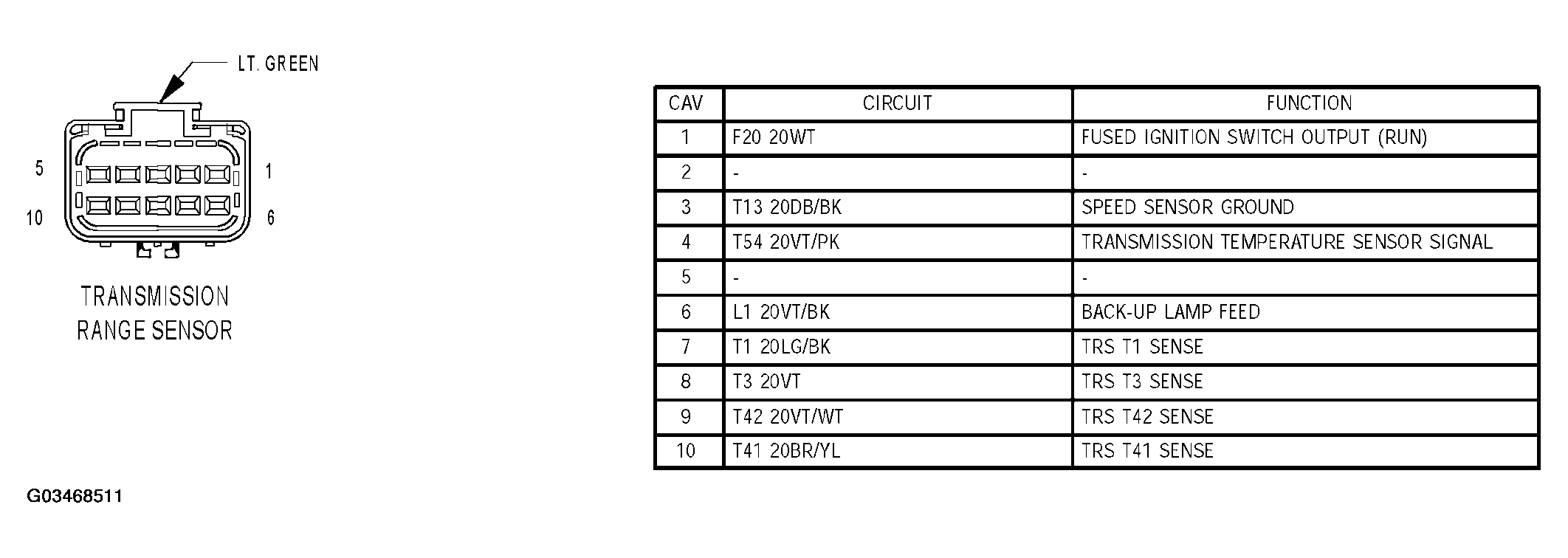

Fig 1: Transmission Range Sensor Connector End View
G03468511Courtesy of DAIMLERCHRYSLER CORP.
