Cigar Lighter Connector End View

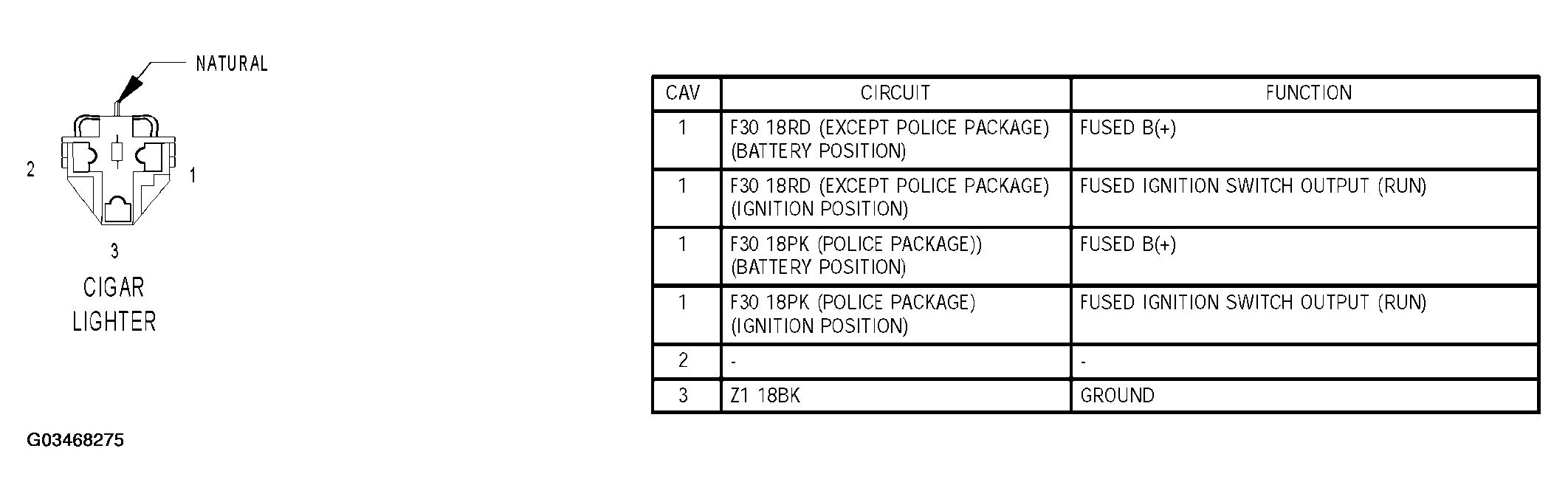

Fig 1: Cigar Lighter Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
