Chassis Diagnostic Procedures - Anti-Lock Brake System
>>
Verification Test
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
Verification Test

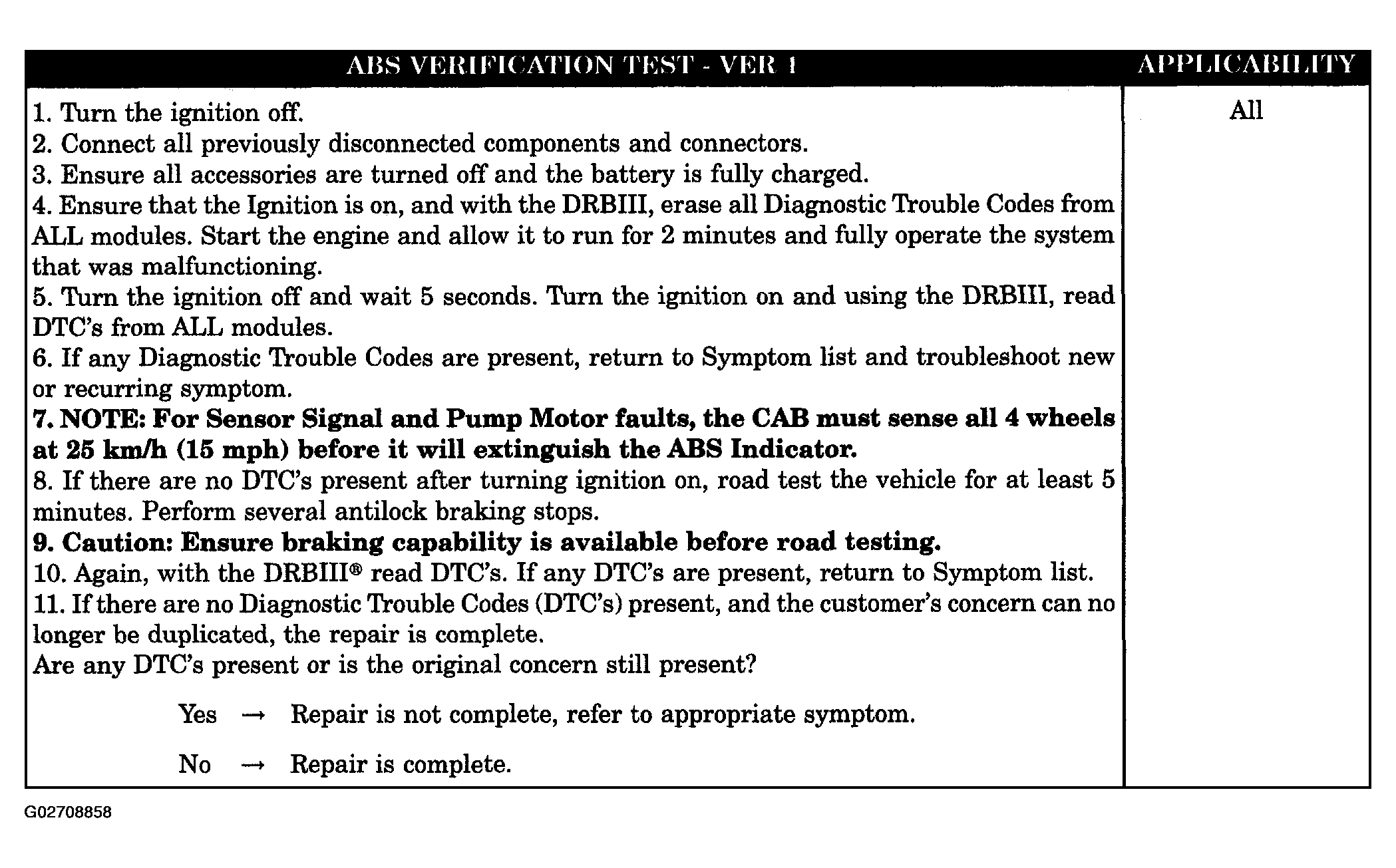

Fig 1: ABS Verification Test - VER 1
Courtesy of DAIMLERCHRYSLER CORP.
