Diagnosis And Testing-Power Mirror Switch
- Remove power mirror switch.
- Disconnect wire harness connector from back of power mirror switch.

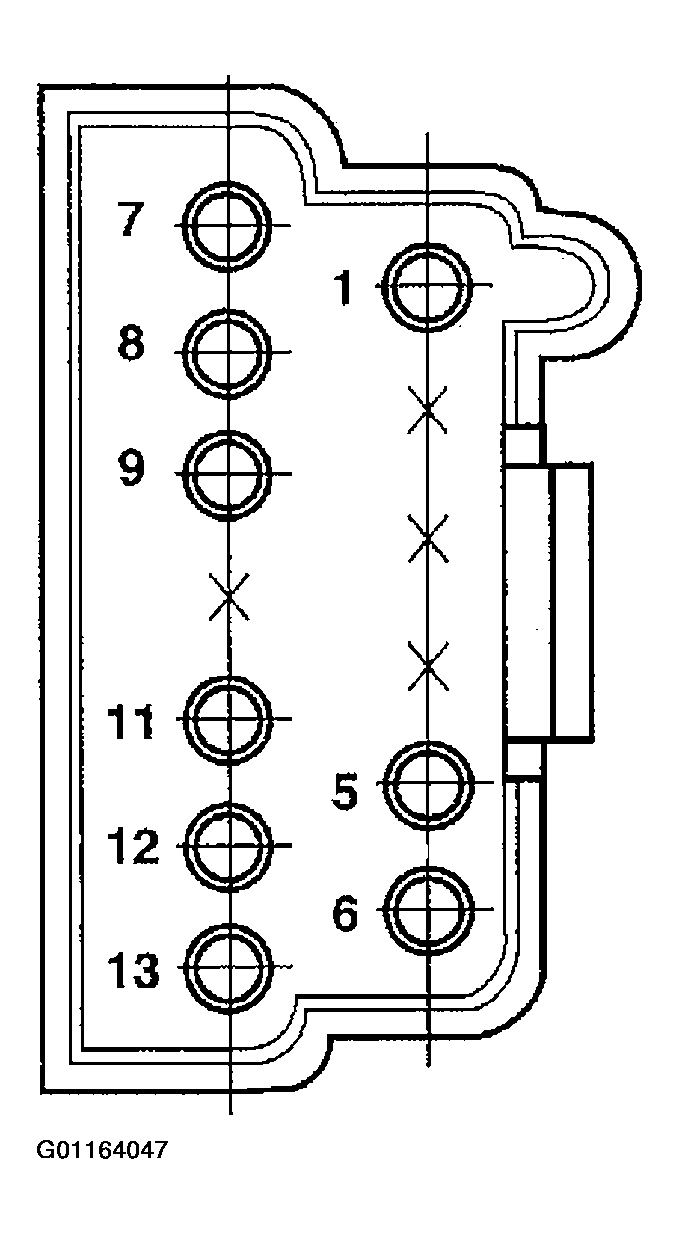

- Using an ohmmeter, test for continuity between the terminals of the switch (Fig 1
) as shown in the Mirror Switch Testing tables.
Courtesy of DAIMLERCHRYSLER CORP.

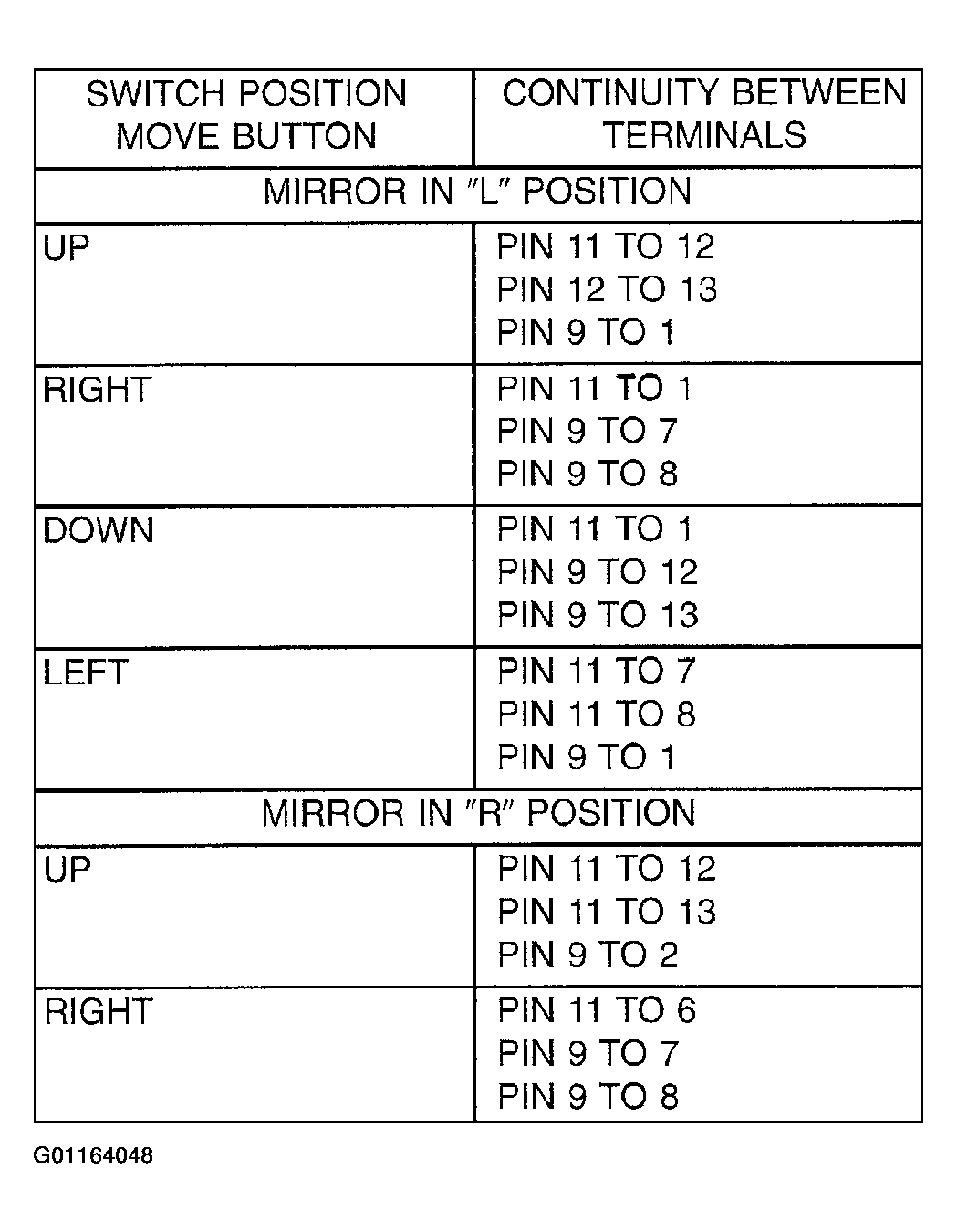

- If test results are not obtained as shown in the Mirror Switch Testing Tables, (Fig 2
and Fig 3
) replace the switch.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
