Audio System: Multiplexer: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the radio (Refer to REMOVAL  ).
  3. Remove mounting fasteners (Fig 1 ).

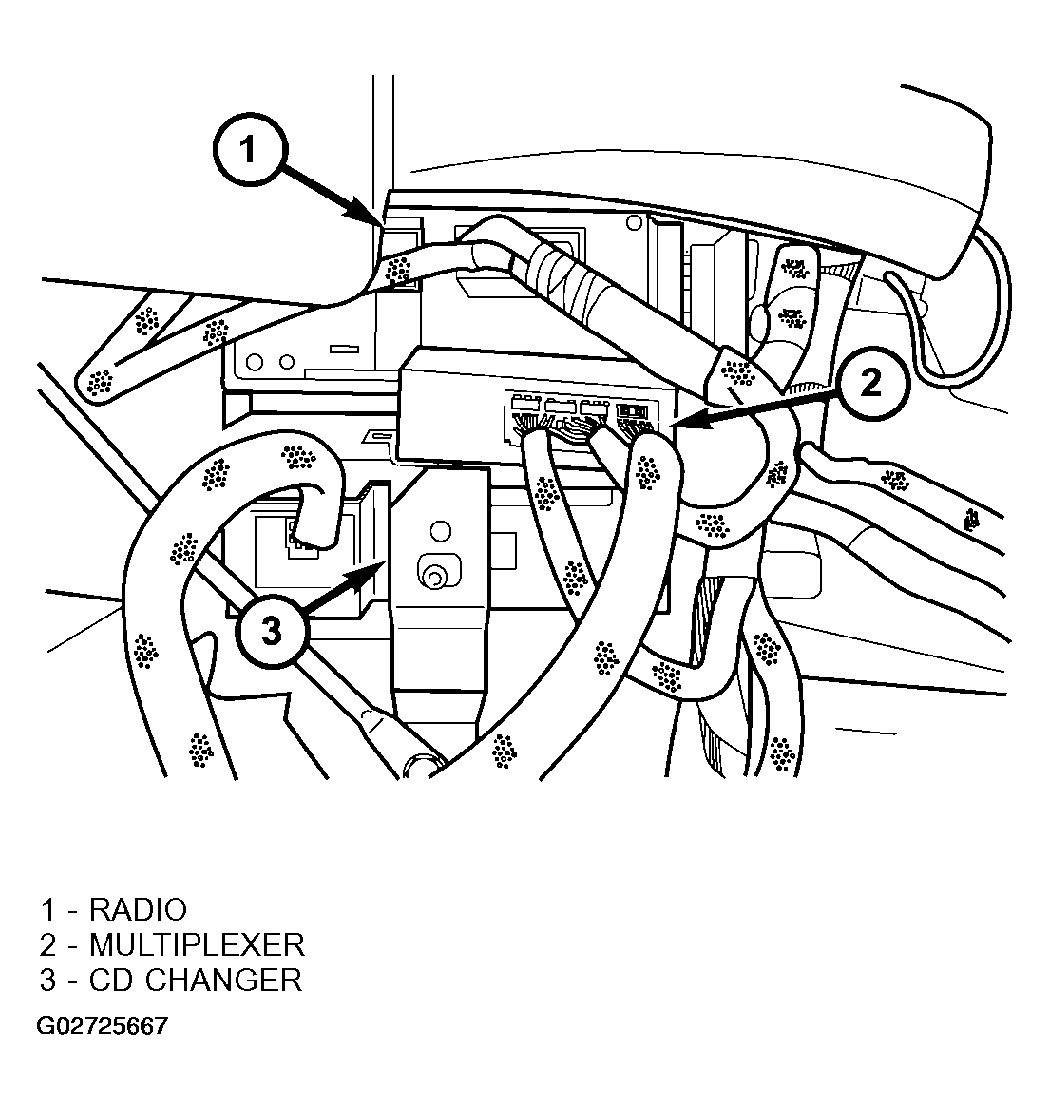

    Fig 1: Identifying Multiplexer
    G02725667Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect wire harness connectors and remove multiplexer.
