Installation

42LE - Automatic Transmission

INSTALLATION

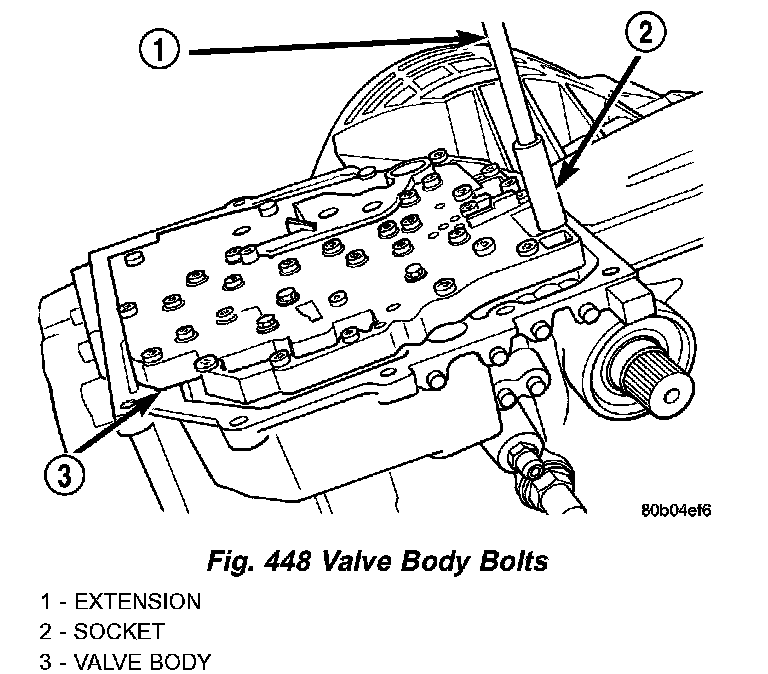

1. Install valve body into position and start bolts. Torque valve body to transaxle case bolts (Fig. 448) to 12 Nm (105 inch lbs.) torque.

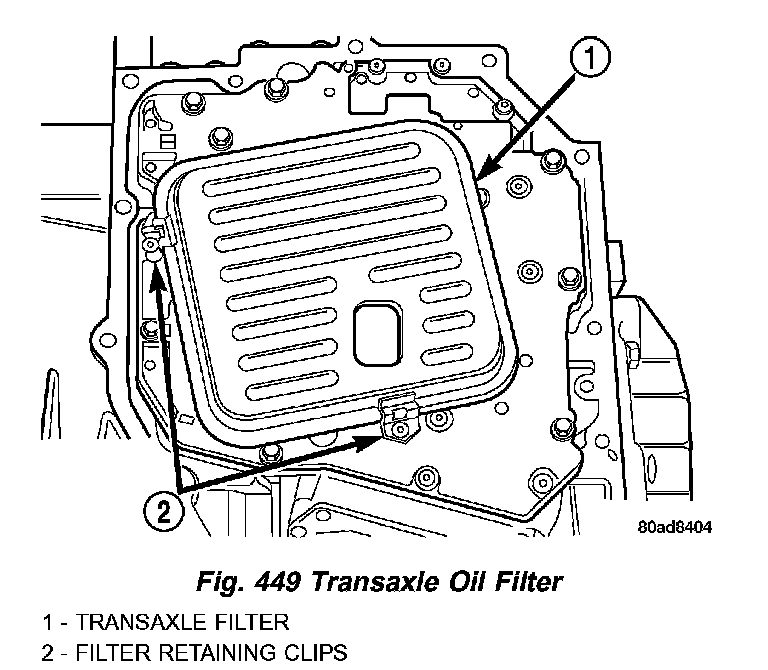

2. Install transaxle oil filter (Fig. 449).

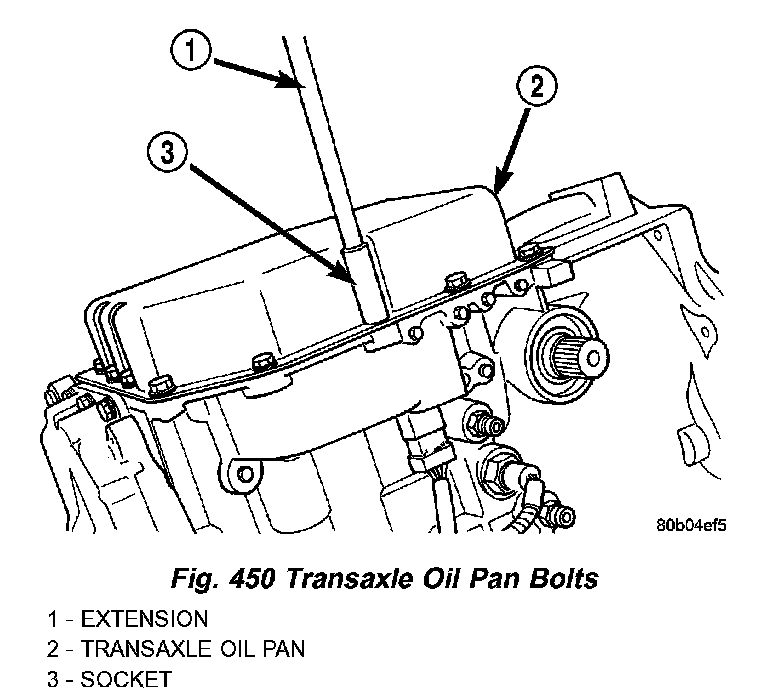

3. Make sure oil pan and case rail are clean and dry. Install an 1/8" bead of RTV to the transaxle oil pan and install to case. Tighten bolts (Fig. 450) to 23 Nm (17 ft. lbs.).
4. Lower vehicle and connect the TRS connector.
5. Connect solenoid/pressure switch assembly connector.
6. Lower vehicle.
7. Fill transaxle with ATF +4 (Automatic Transmission Fluid Type MS-9602). Verify proper fluid level.

NOTE: If the valve body has been reconditioned or replaced, it is necessary to perform the Quick Learn Procedure.
