Engine Cranks But Does Not Start

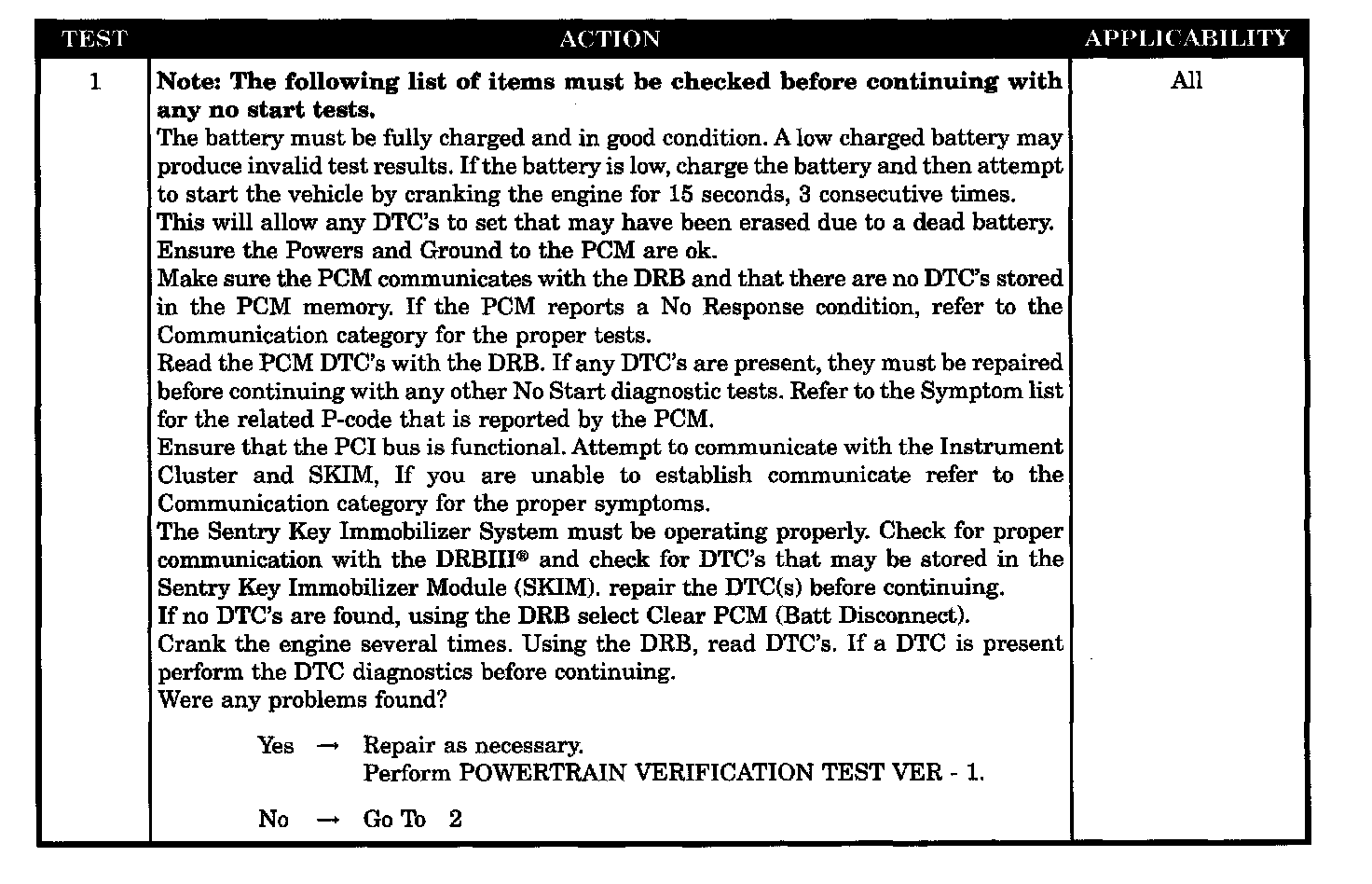

Test 1:

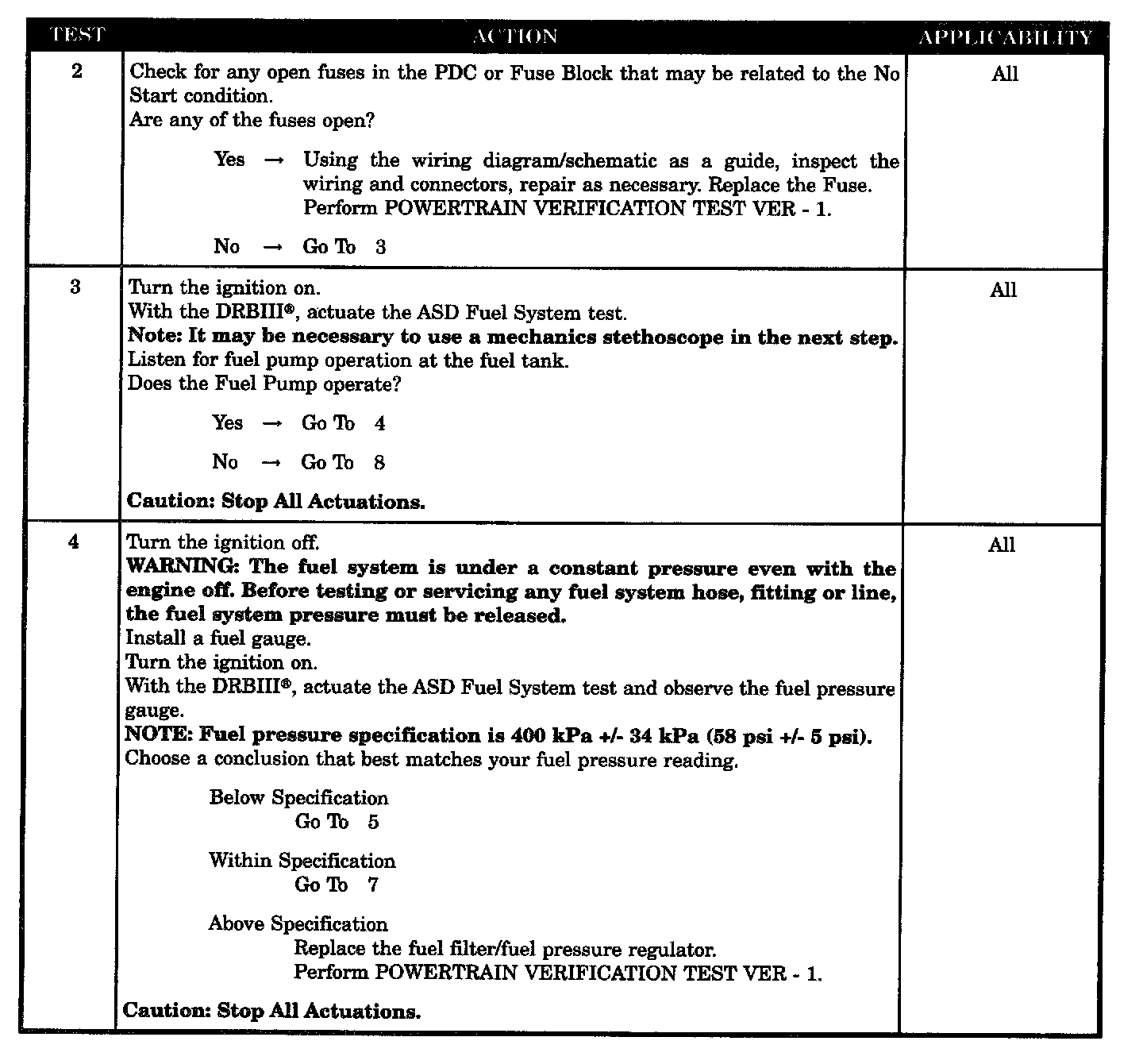

Test 2 - 4:

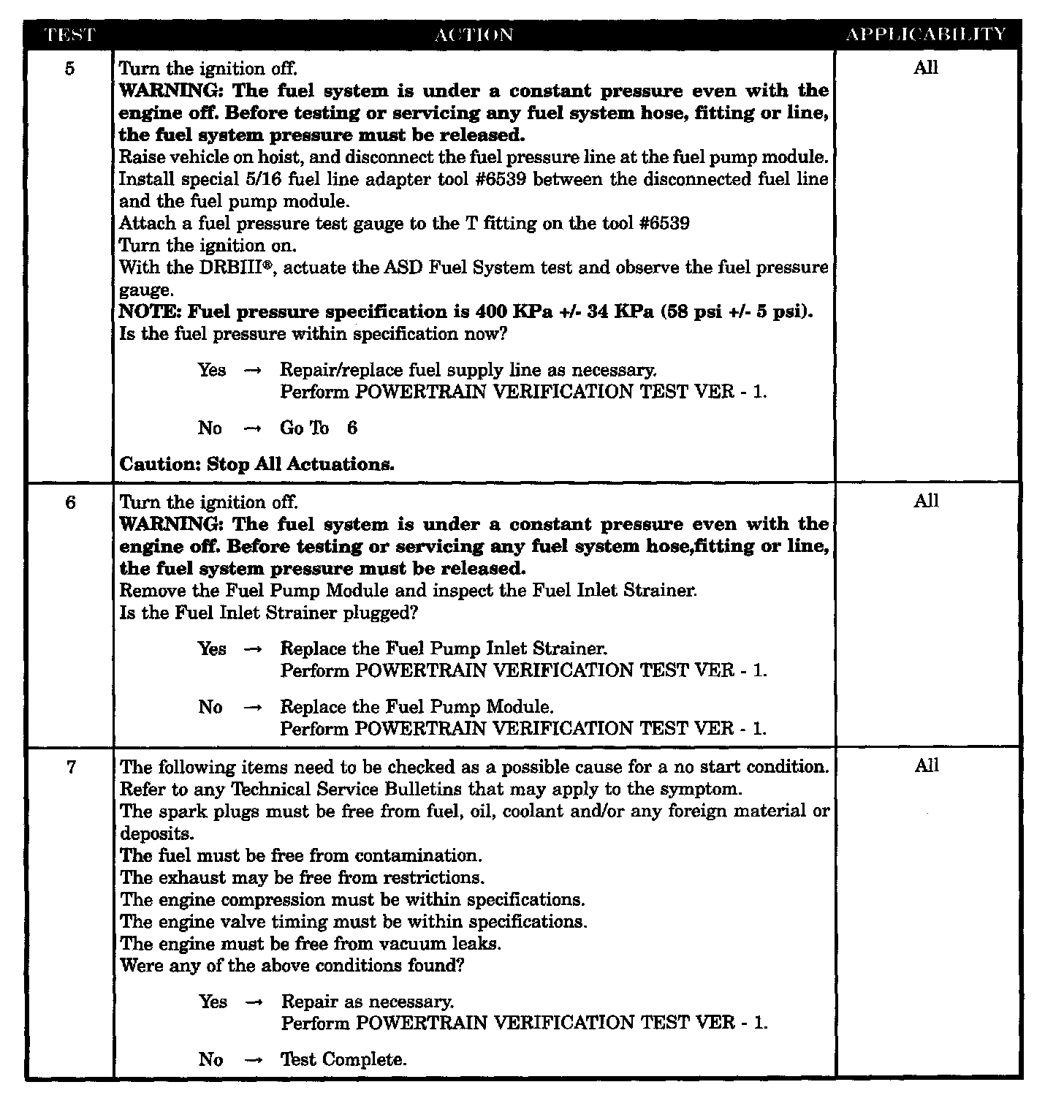

Test 5 - 7:

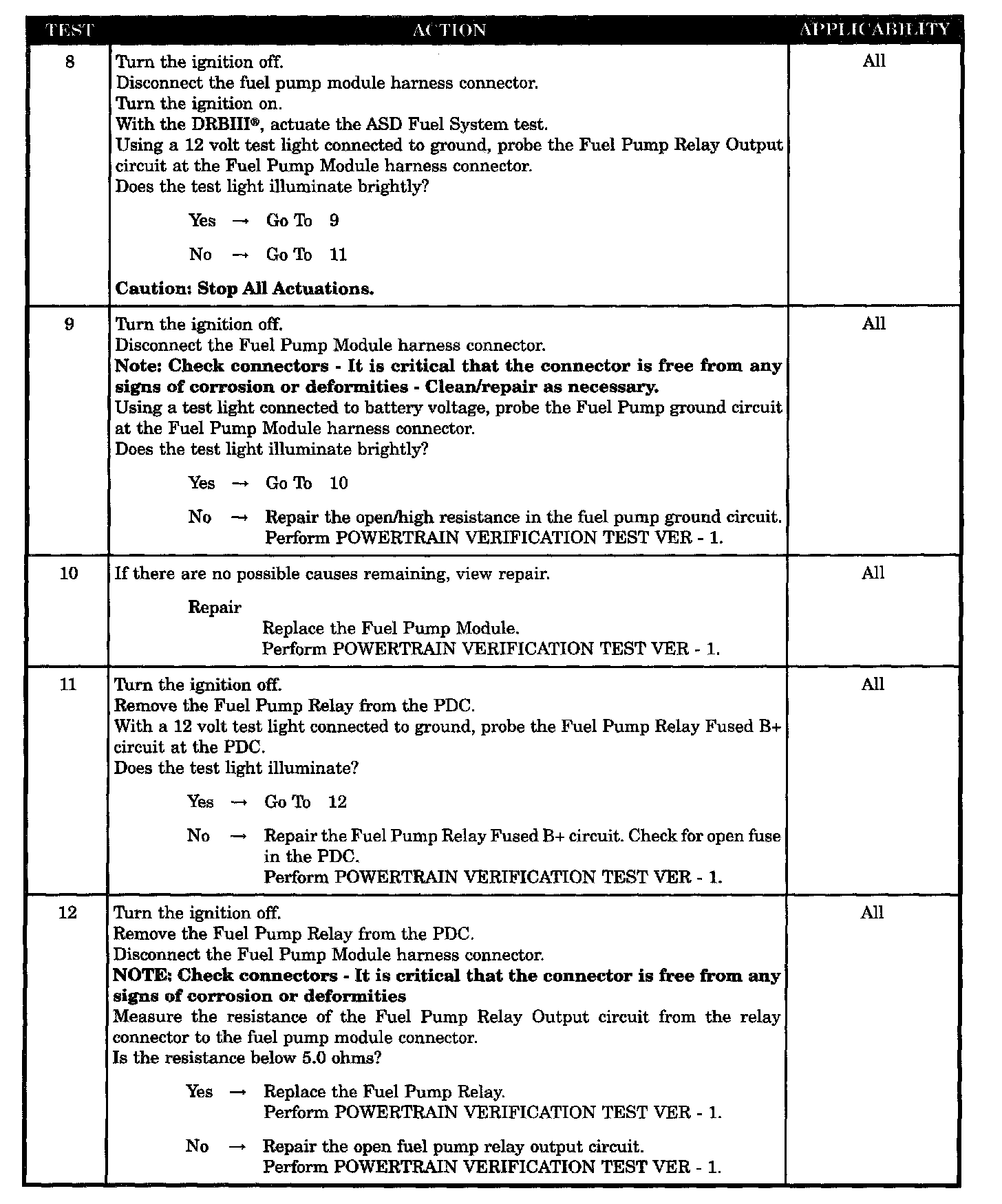

Test 8 - 12:

SYMPTOM
ENGINE CRANKS DOES NOT START

POSSIBLE CAUSES
- Fuel pump relay
- No start pre-test
- Other Possible causes for no start
- Powertrain fuses open
- Fuel pressure out of specs
- Restricted fuel supply line
- Fuel pump inlet strainer plugged
- Fuel pump module
- Fuel pump relay fused B+ circuit
- Fuel pump relay output circuit open
- Fuel pump ground circuit open/high resistance
- Fuel pump module
