Key In Ignition/Driver's Door Open Chime Not Operating Properly

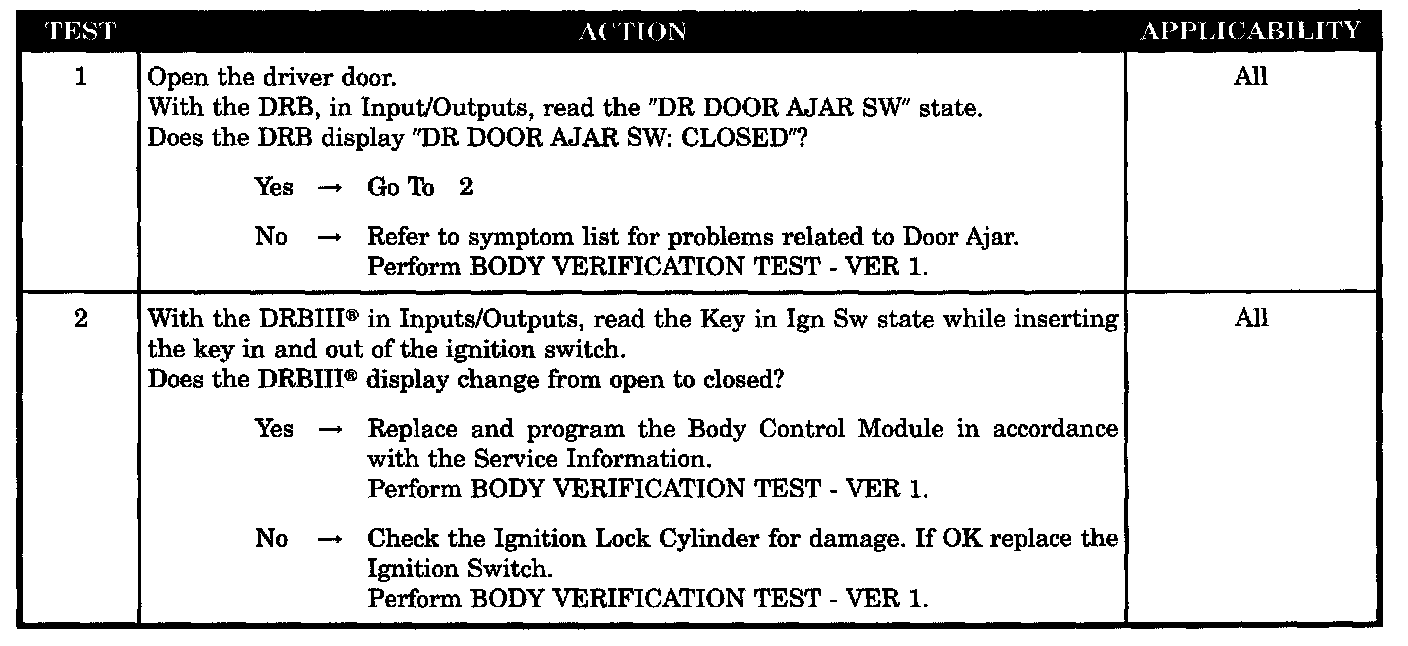

Tests 1 - 2:





SYMPTOM
KEY IN IGNITION AND DRIVER'S DOOR OPEN CHIME NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Driver door ajar status
- Ignition switch
- Body control module
