Power Seat Control Module

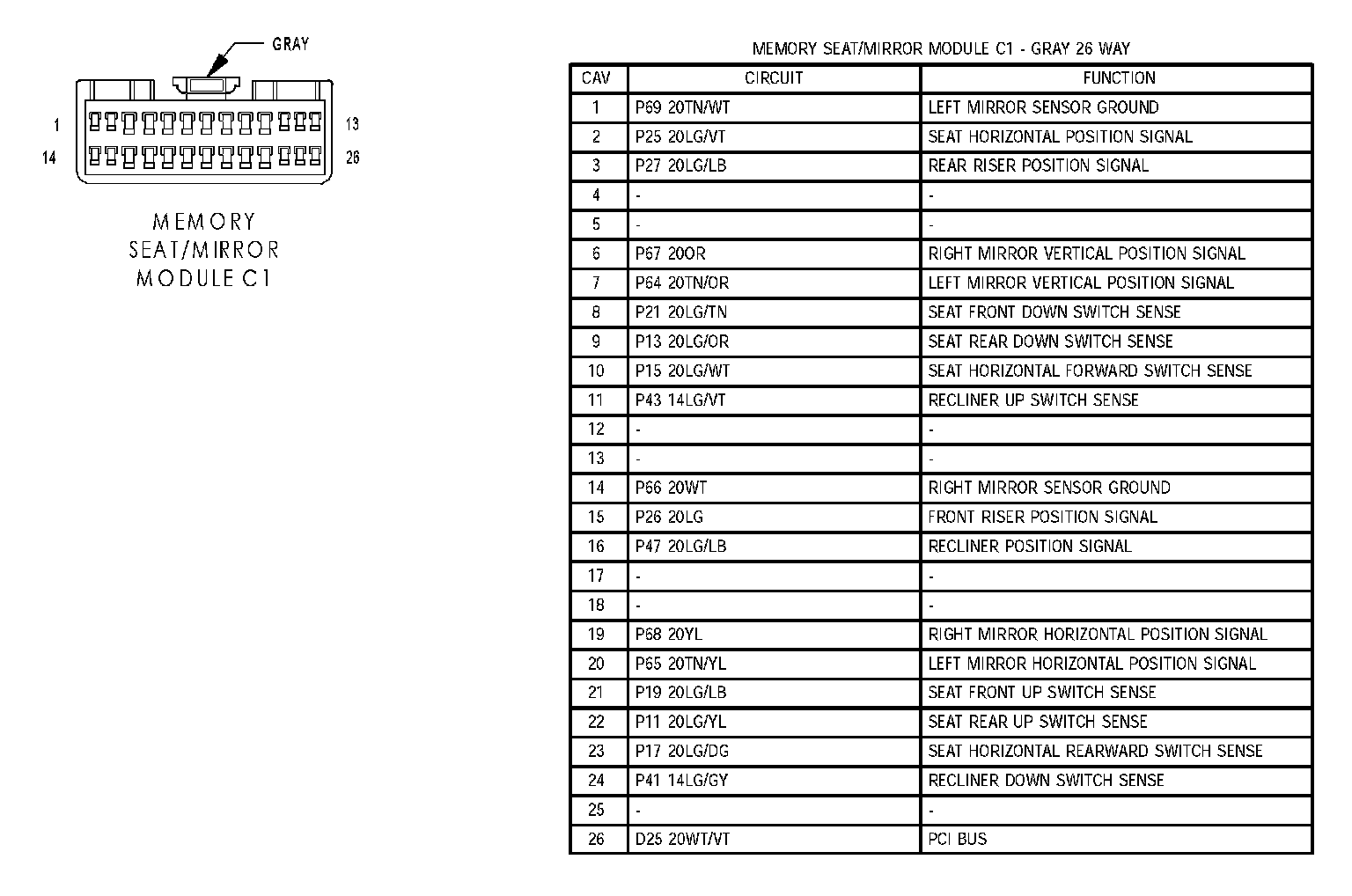

Memory Seat/Mirror Module C1:




Memory Seat/Mirror Module C2:




Memory Seat/Mirror Module C3:




Memory Seat/Mirror Module C4:
