Power Distribution Module

Integrated Power Module (Front View):

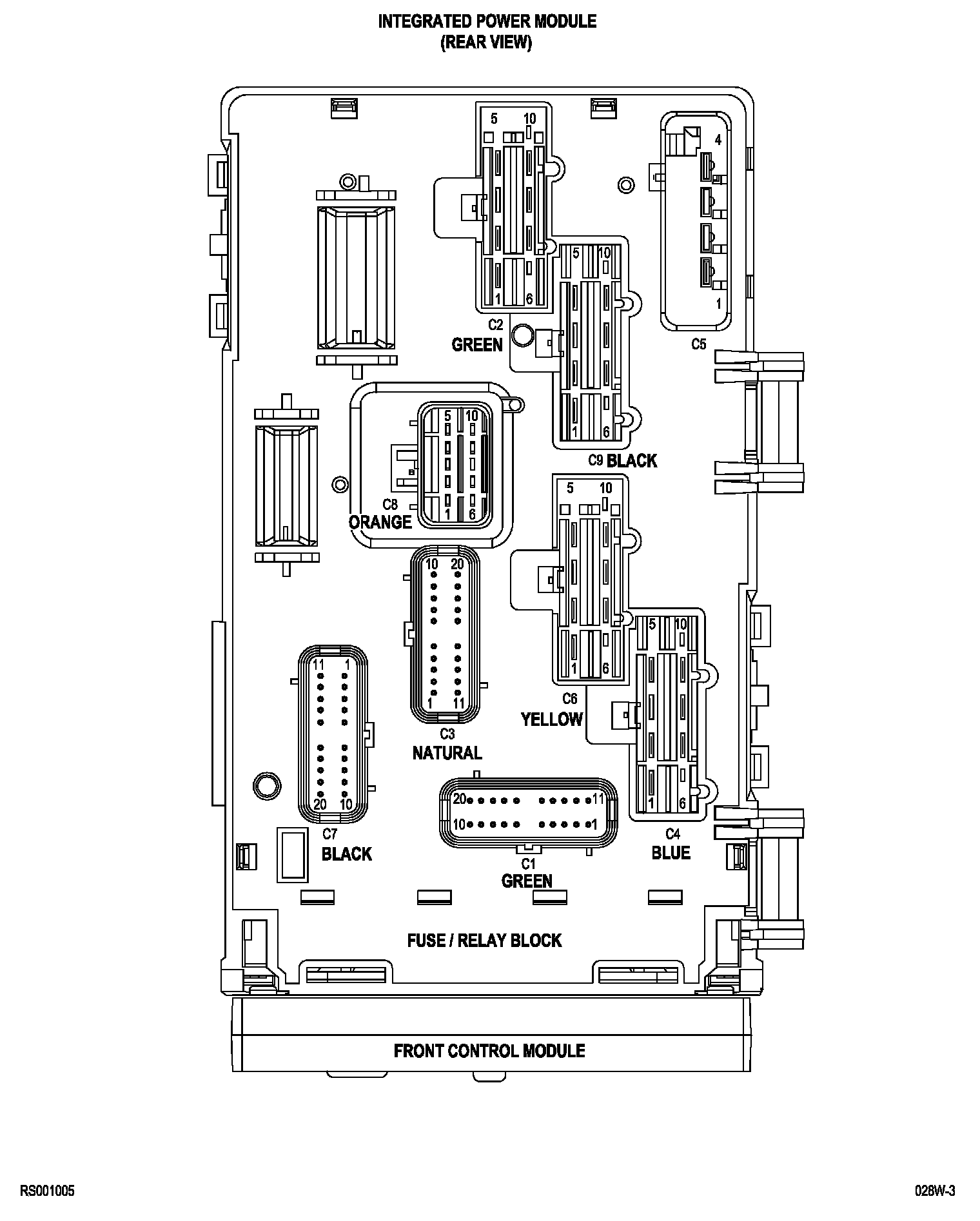

Integrated Power Module (Rear View):

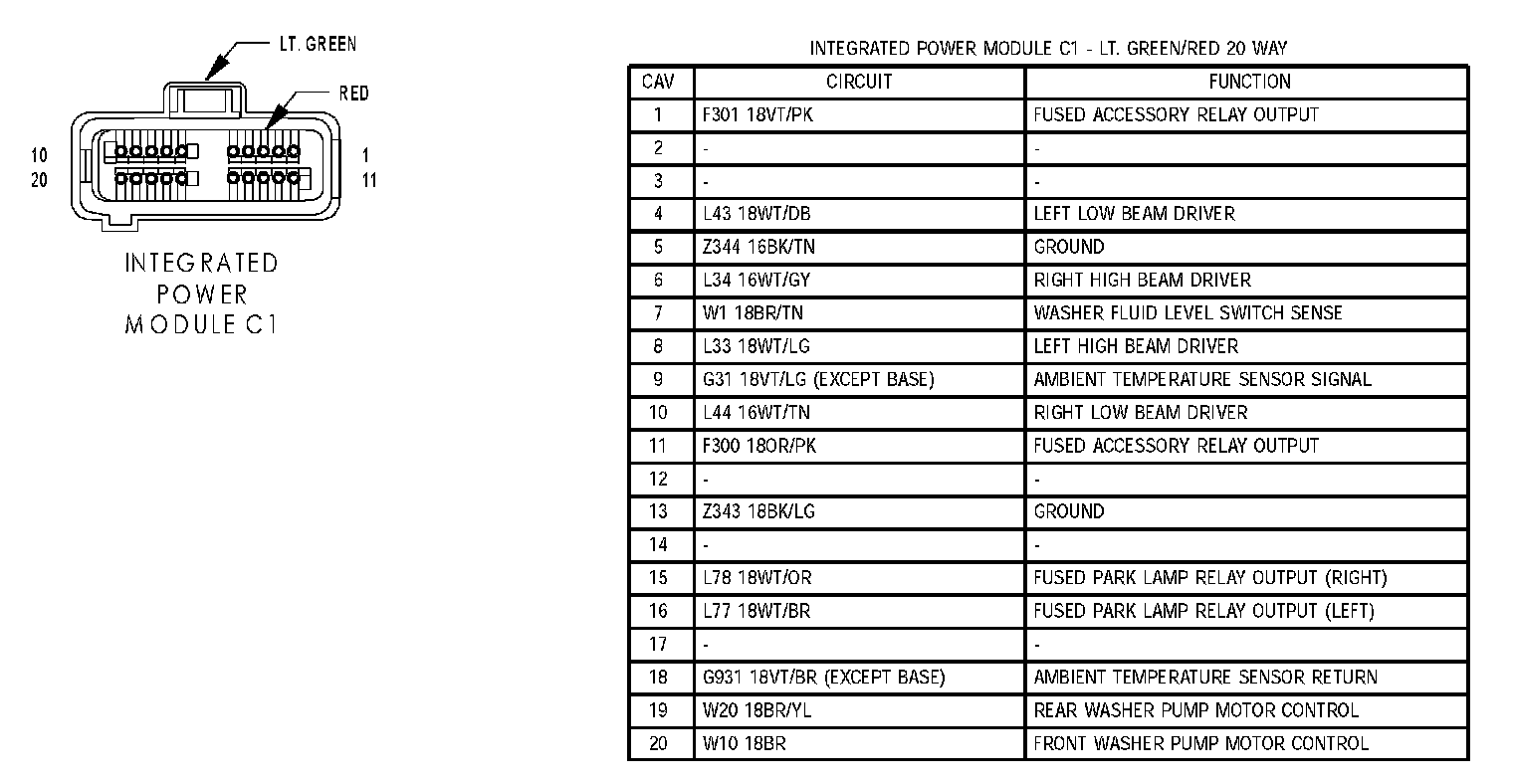

Integrated Power Module C1:

Integrated Power Module C2:

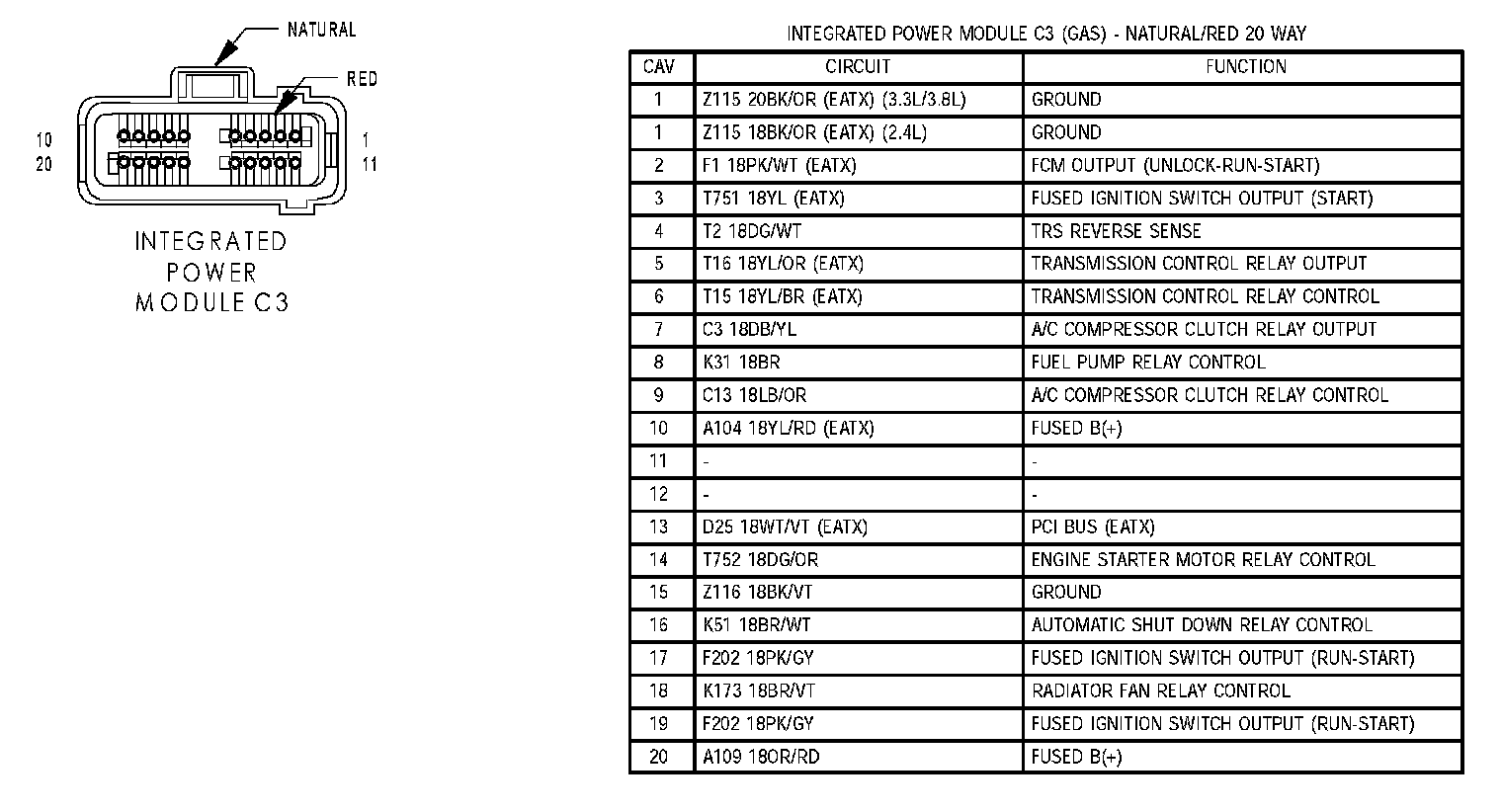

Integrated Power Module C3:

Integrated Power Module C4:

Integrated Power Module C5:

Integrated Power Module C6:

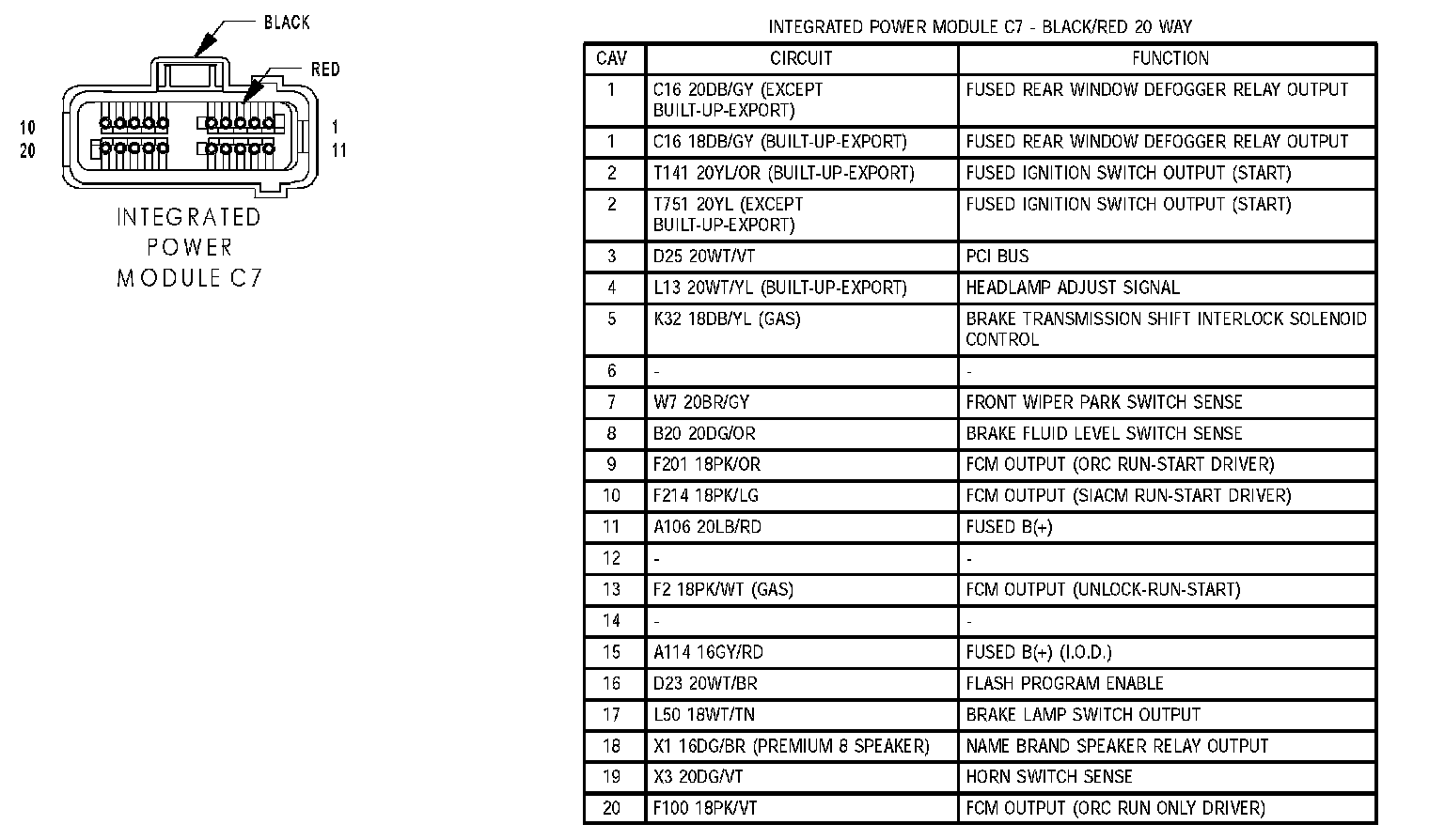

Integrated Power Module C7:

Integrated Power Module C8:

Integrated Power Module C9:
