Torque Arm: Installation

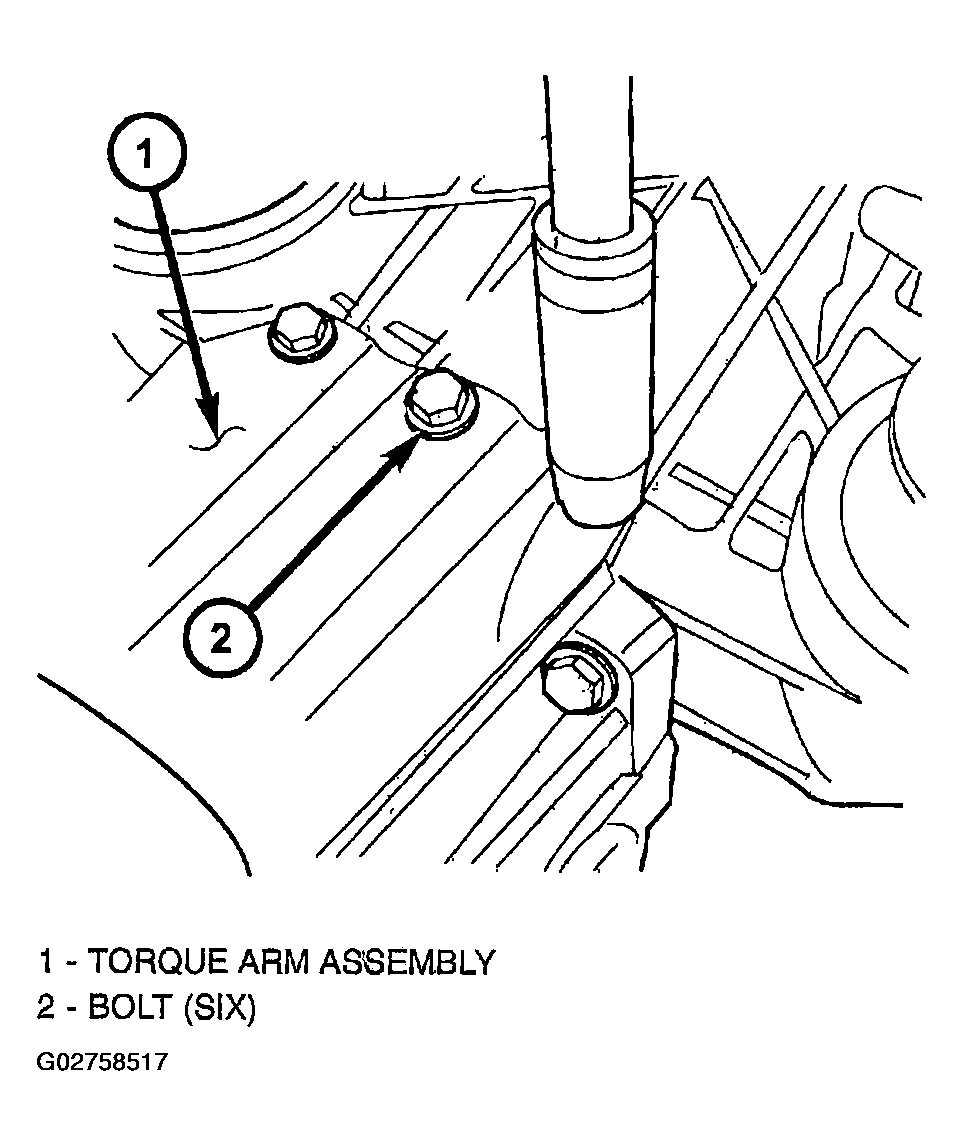

  1. Install six torque arm-to-differential assembly bolts (Figure ) and torque to 60 N.m (44 ft. lbs.).
  2. Install rear driveline module assembly. (Refer to REAR DRIVELINE MODULE - INSTALLATION  ).
  3. Lower vehicle.
