Disassembly - ICU

Remove the ICU from the vehicle. (Refer to REMOVAL ).
Disconnect the pump/motor wiring harness from the CAB (Fig 1 ).

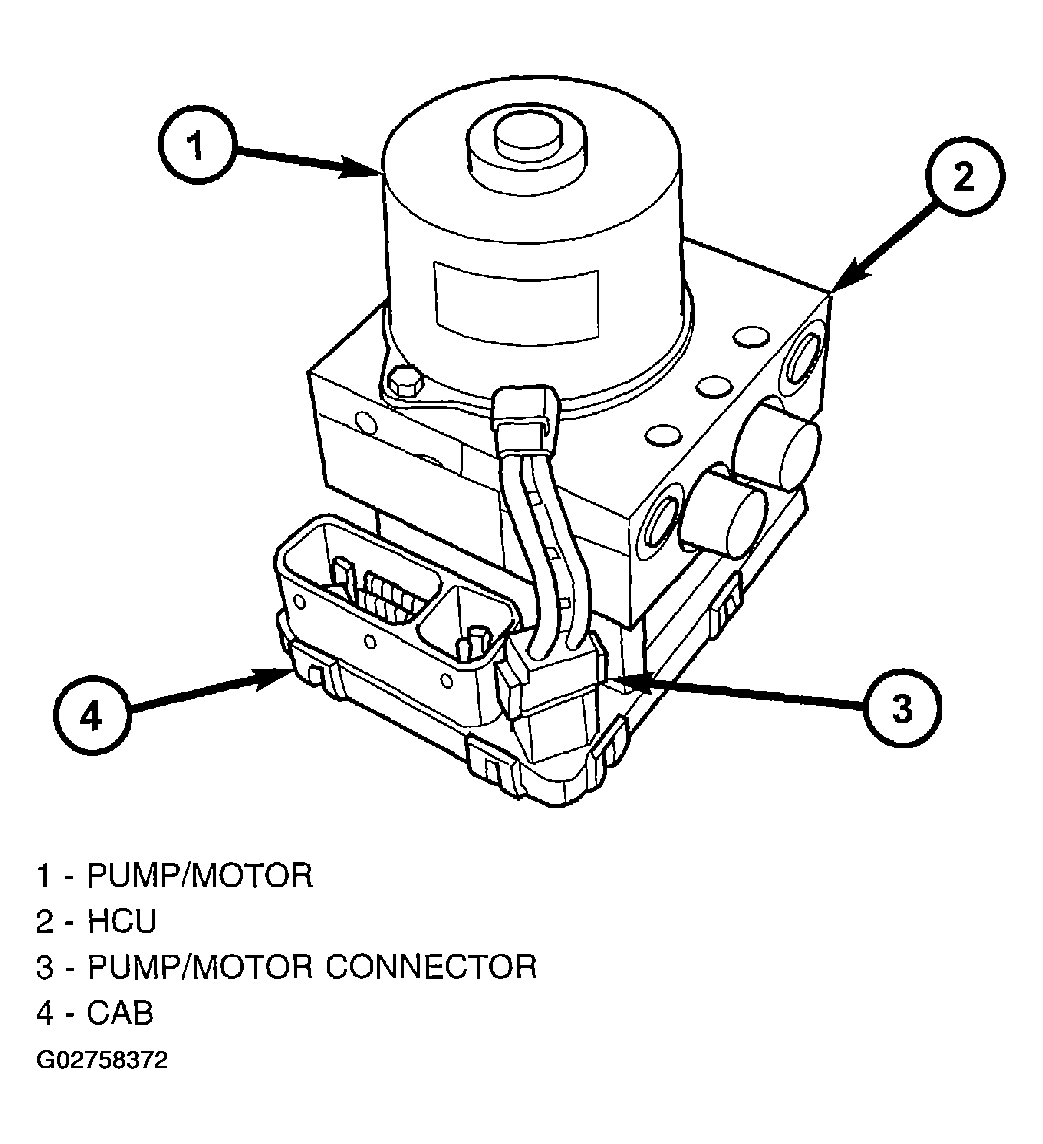

Fig 1: Identifying Integrated Control Unit (ICU) Components
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 4 bolts (Fig 2 ) attaching the CAB to the HCU.

Fig 2: Locating CAB Attaching Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the CAB from the HCU (Fig 3 ).

Fig 3: Removing/Installing CAB
Courtesy of DAIMLERCHRYSLER CORP.
