Power Window Regulator: Removal
- Disconnect negative battery cable. Remove door trim panel. See DOOR TRIM PANEL .
- Remove watershield.
- Remove door glass retaining clips and secure the window in the up position using masking tape or equivalent.
- Disconnect wire connector from power window motor.
- Loosen screws attaching front and rear window guide rails to inner door panel.
- Remove screw heads on guide rails from key hole slots in inner door panel.
- Loosen screws attaching regulator to inner door panel.
- Remove regulator from inner door panel.

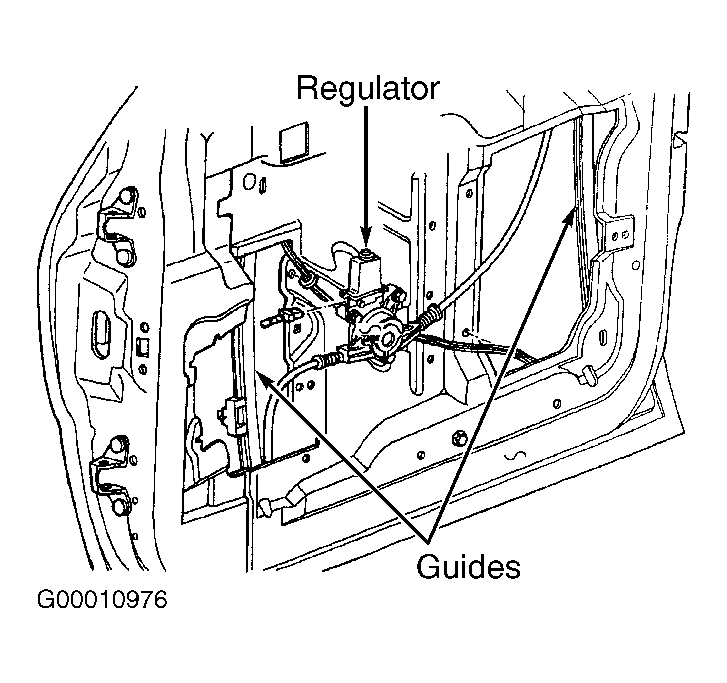

- Extract rear guide rail through inner door panel rear access hole. See Fig 1 .
- Extract front guide rail through front access hole.
