Fuel Gauge Not Operating Properly

For testing procedures, see Fig 1 .

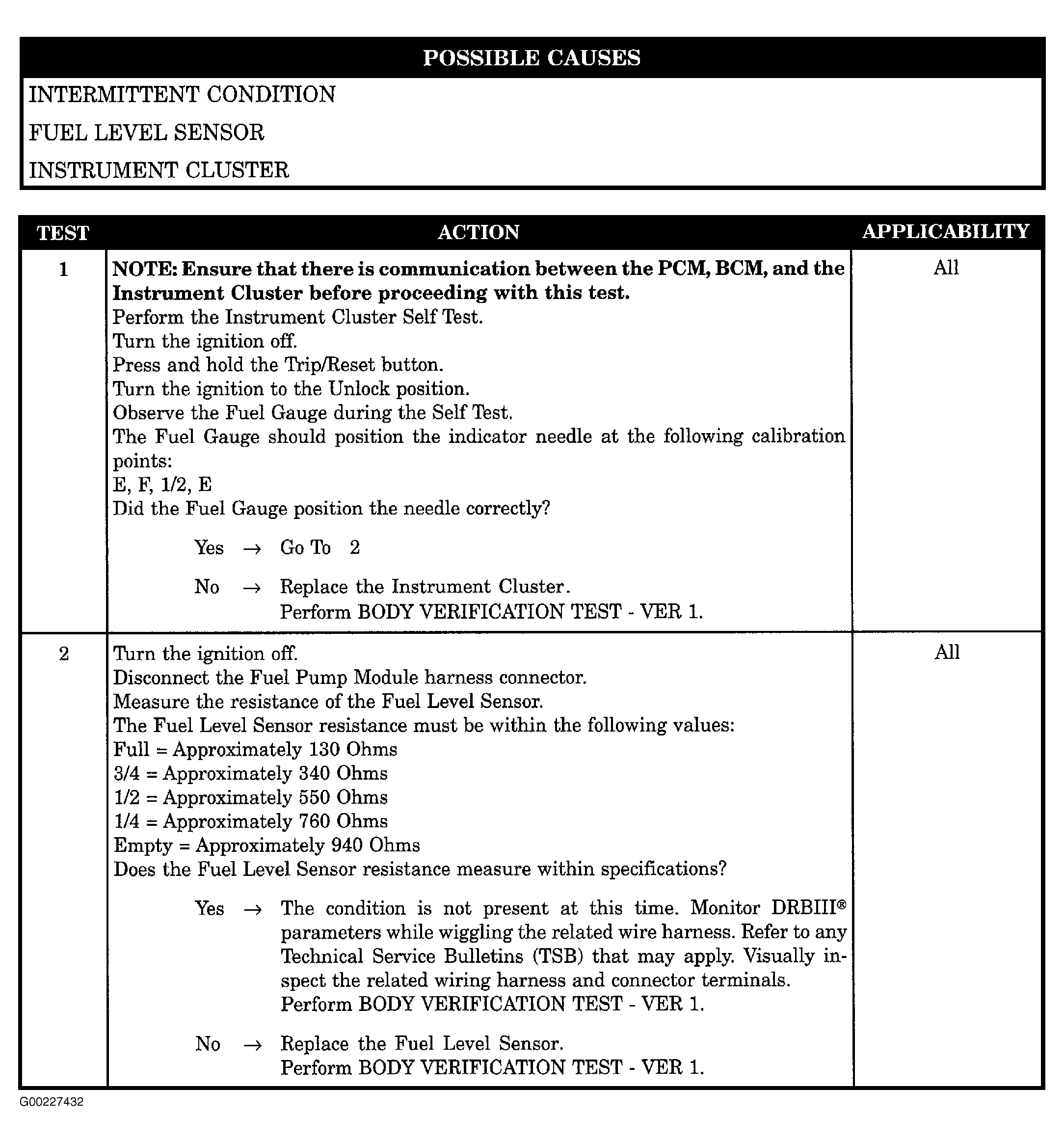

Fig 1: Fuel Gauge Not Operating Properly
G00227432Courtesy of CHRYSLER CORP.
