Data List Reference

CAUTION: Driving tests always require two persons: one driver and one observer.
NOTE: In a new vehicle driven approximately 311 miles (500 km) or less, the step of the stepper motor is sometimes 30 steps greater than the standard value, the injector drive time is sometimes 10% longer than the standard time and the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.

Data list items consist of MUT-II items and General Scan Tool (GST) items. When data list is selected using scan tool, data values can be observed. Compare data to normal conditions. See Fig 1 -Fig 10 .

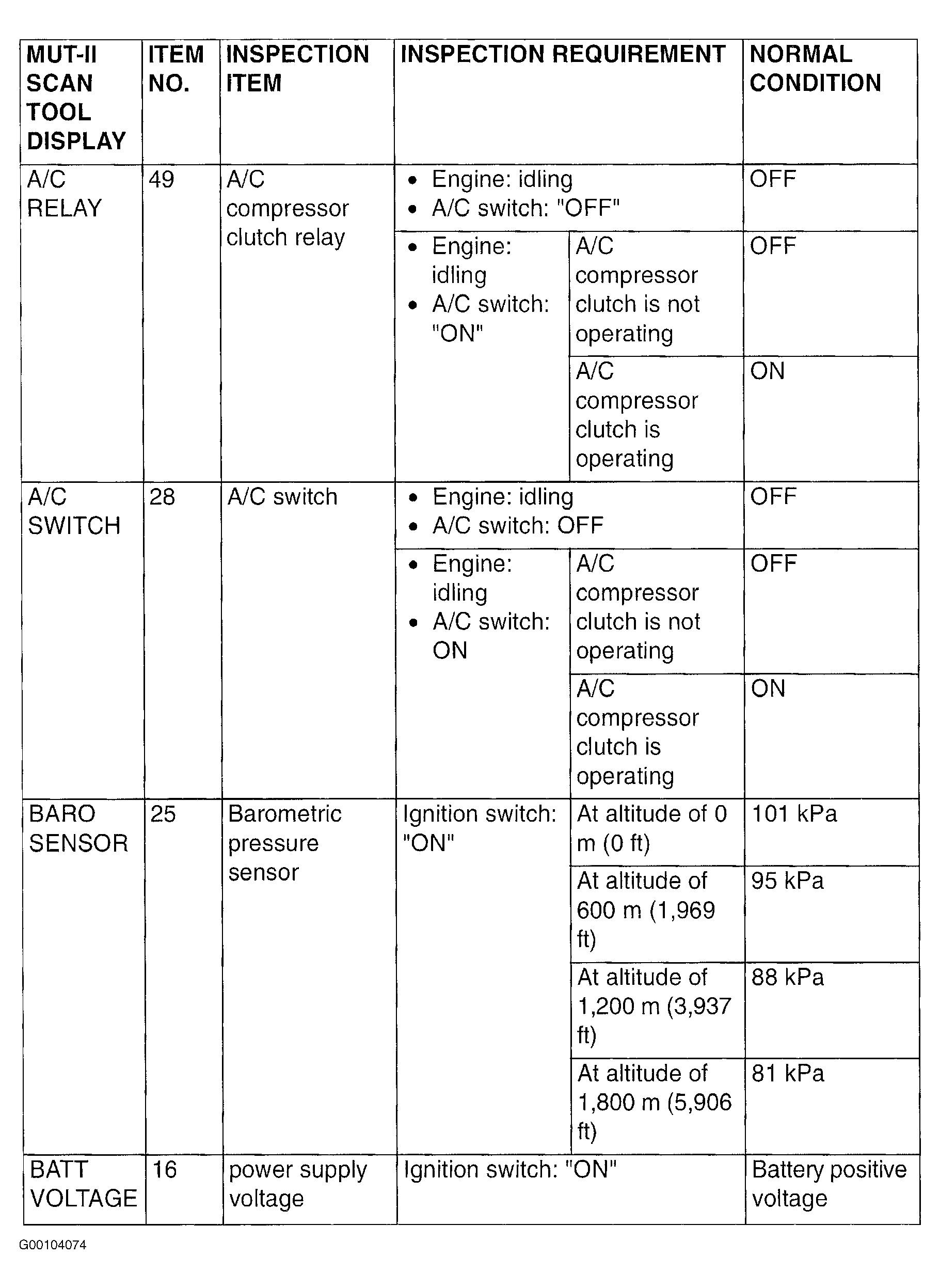

Fig 1: Data List Table - 1 Of 10
G00104074Courtesy of CHRYSLER CORP.

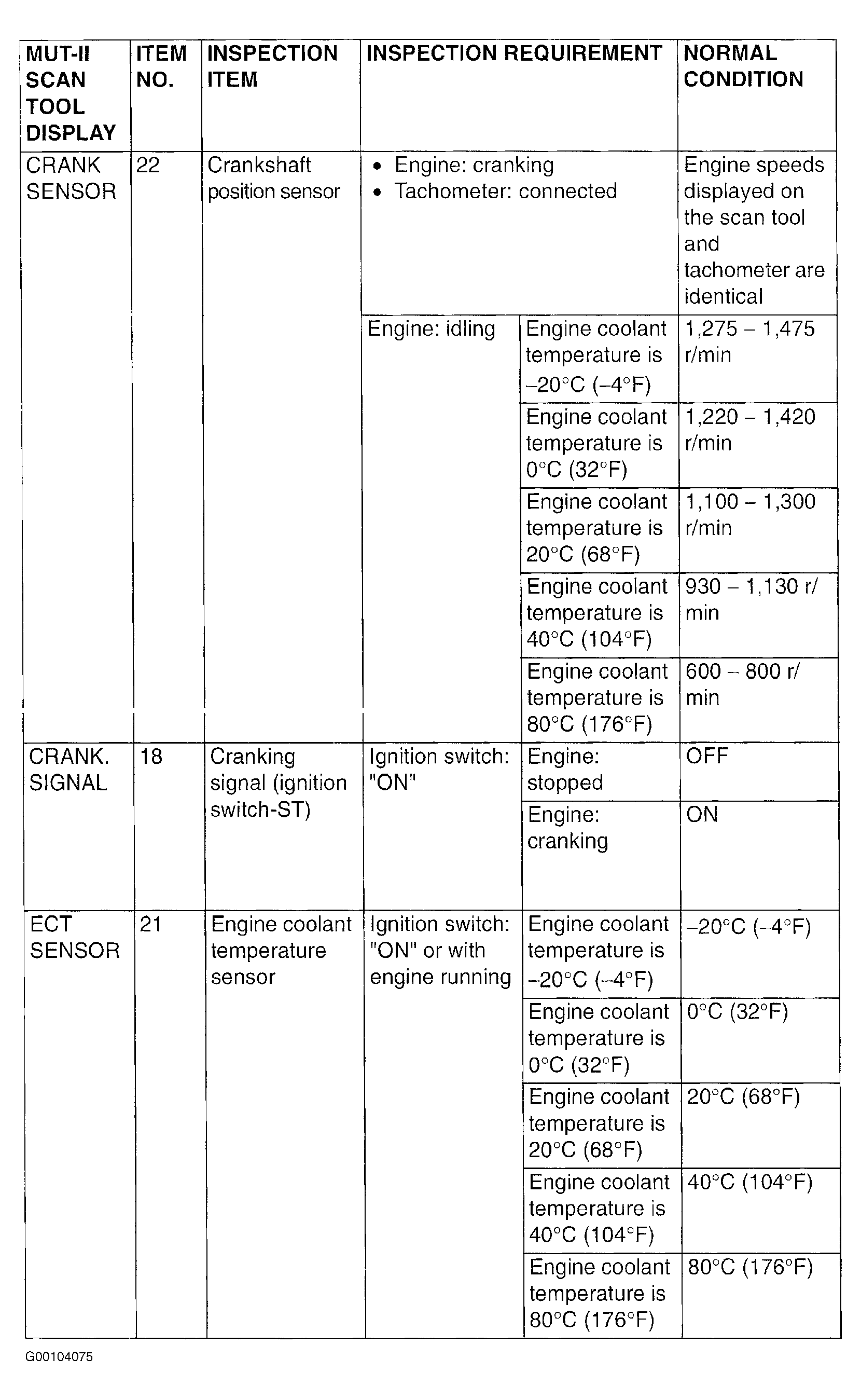

Fig 2: Data List Table - 2 Of 10
G00104075Courtesy of CHRYSLER CORP.

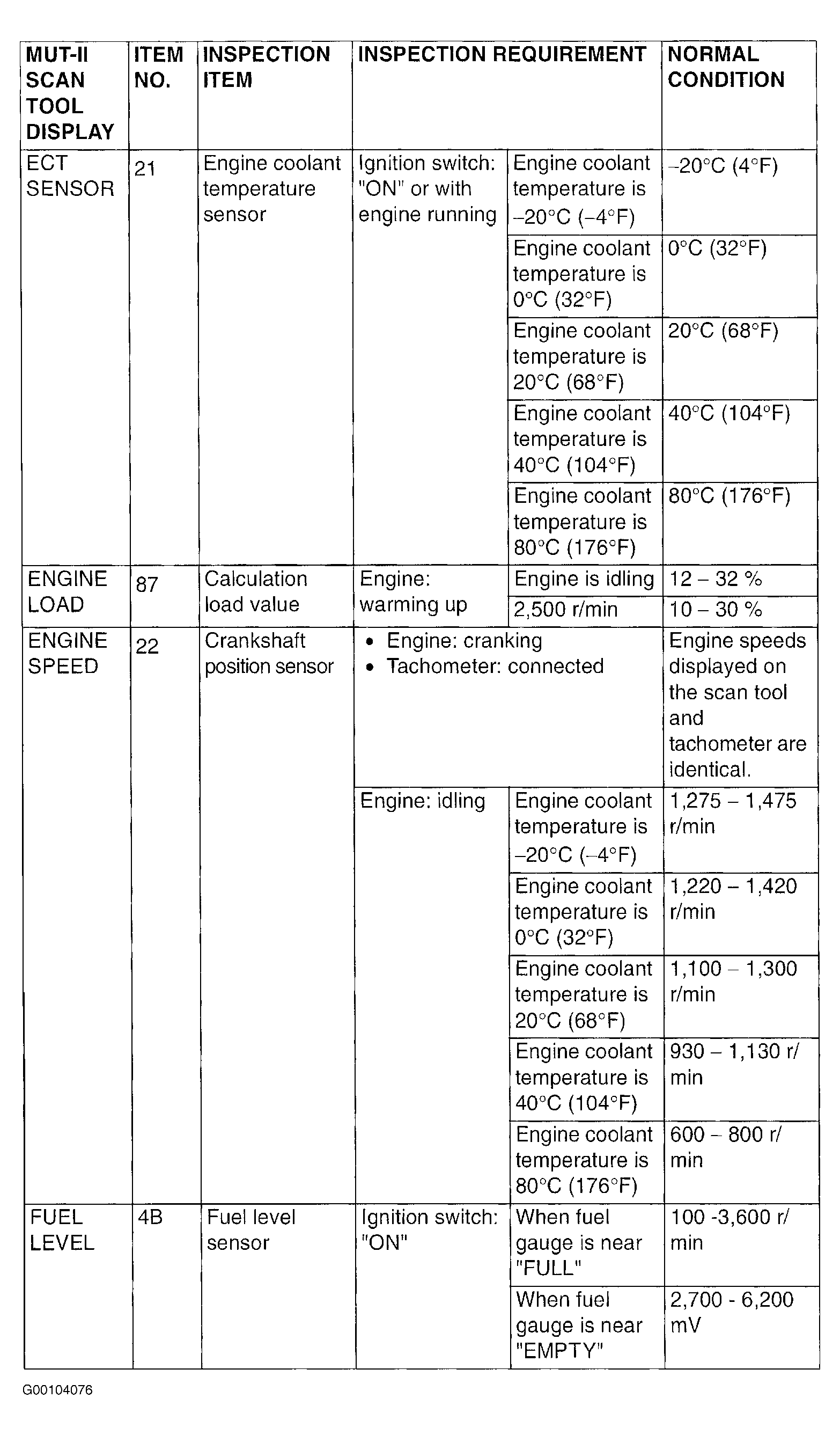

Fig 3: Data List Table - 3 Of 10
G00104076Courtesy of CHRYSLER CORP.

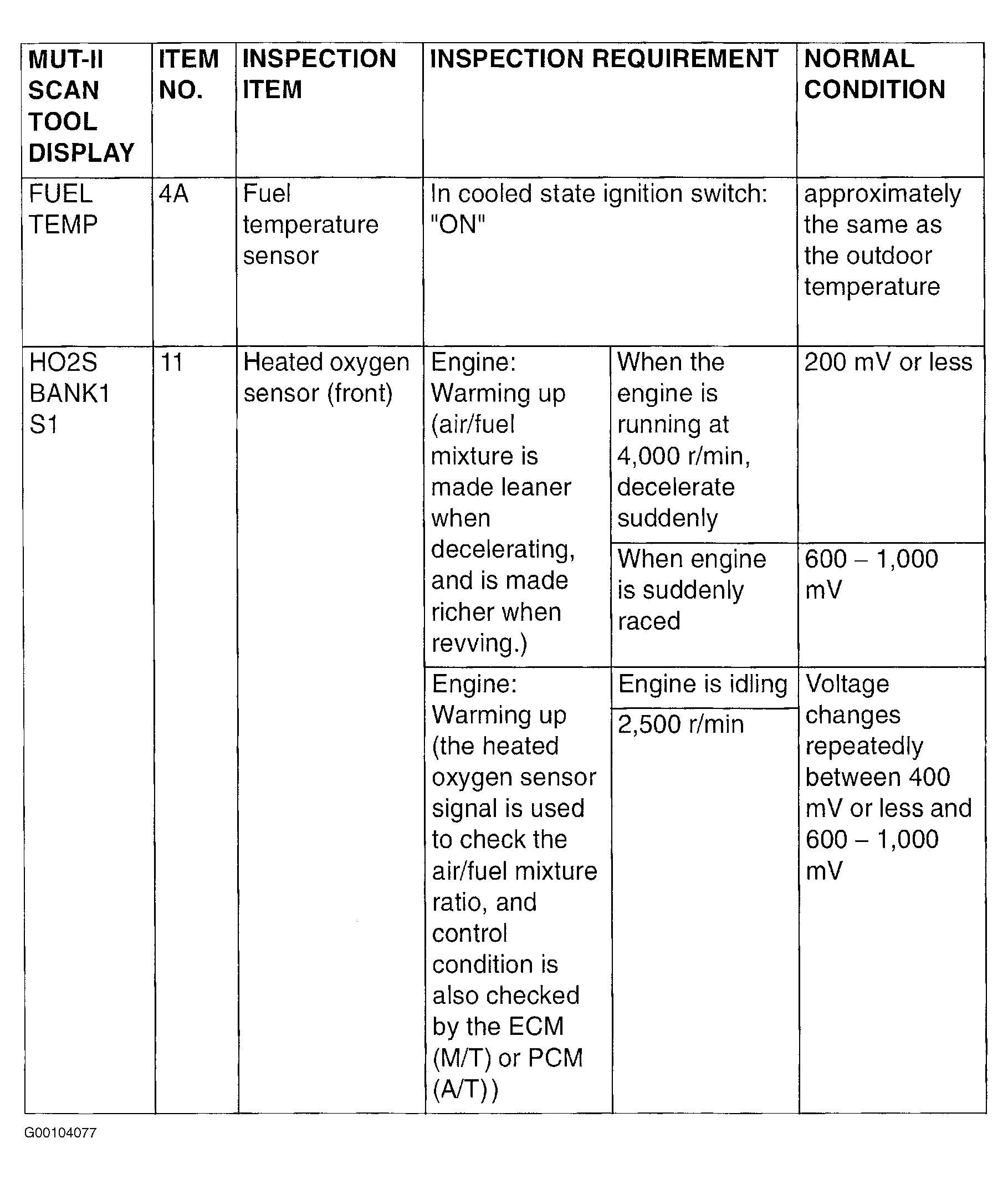

Fig 4: Data List Table - 4 Of 10
G00104077Courtesy of CHRYSLER CORP.

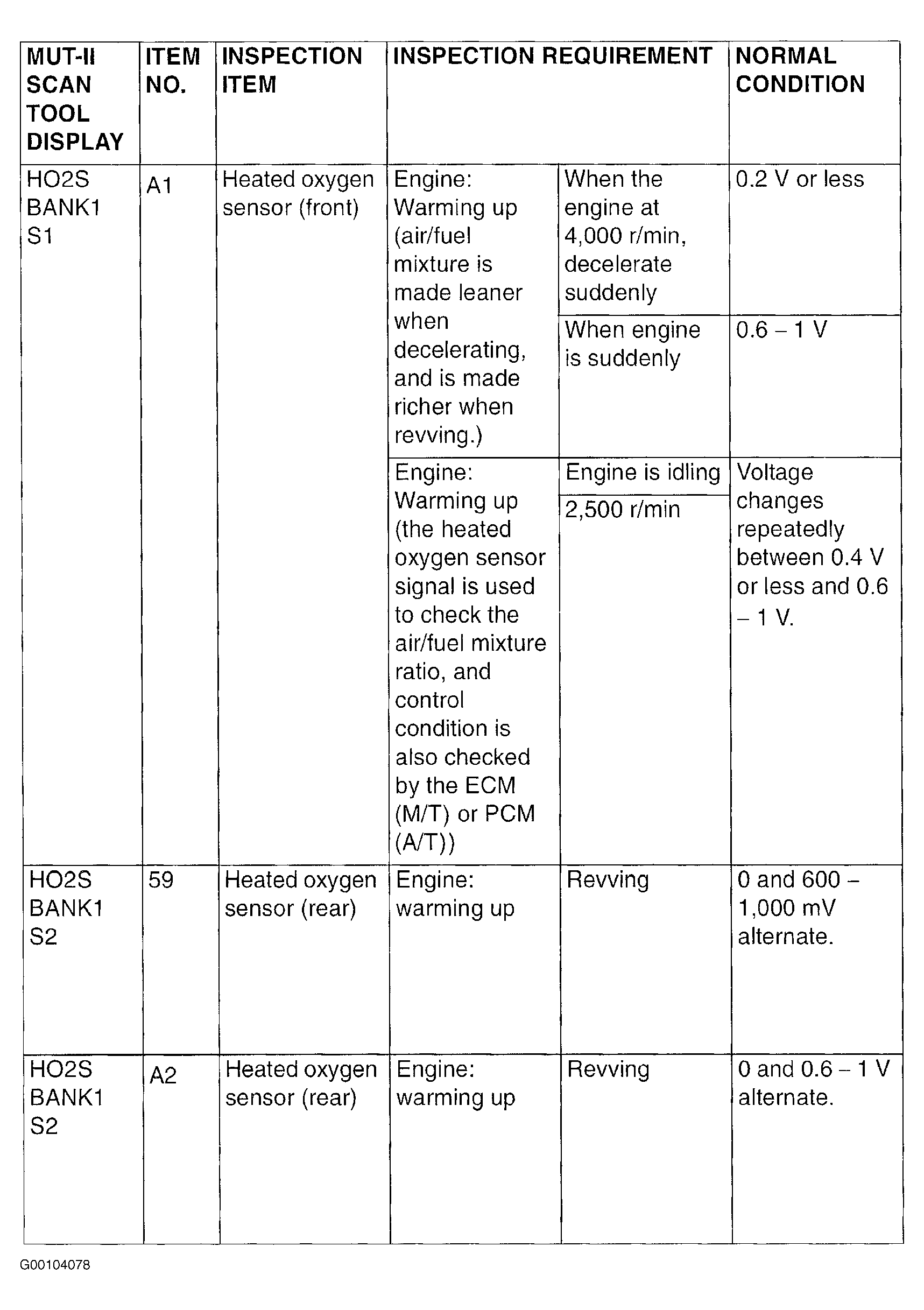

Fig 5: Data List Table - 5 Of 10
G00104078Courtesy of CHRYSLER CORP.

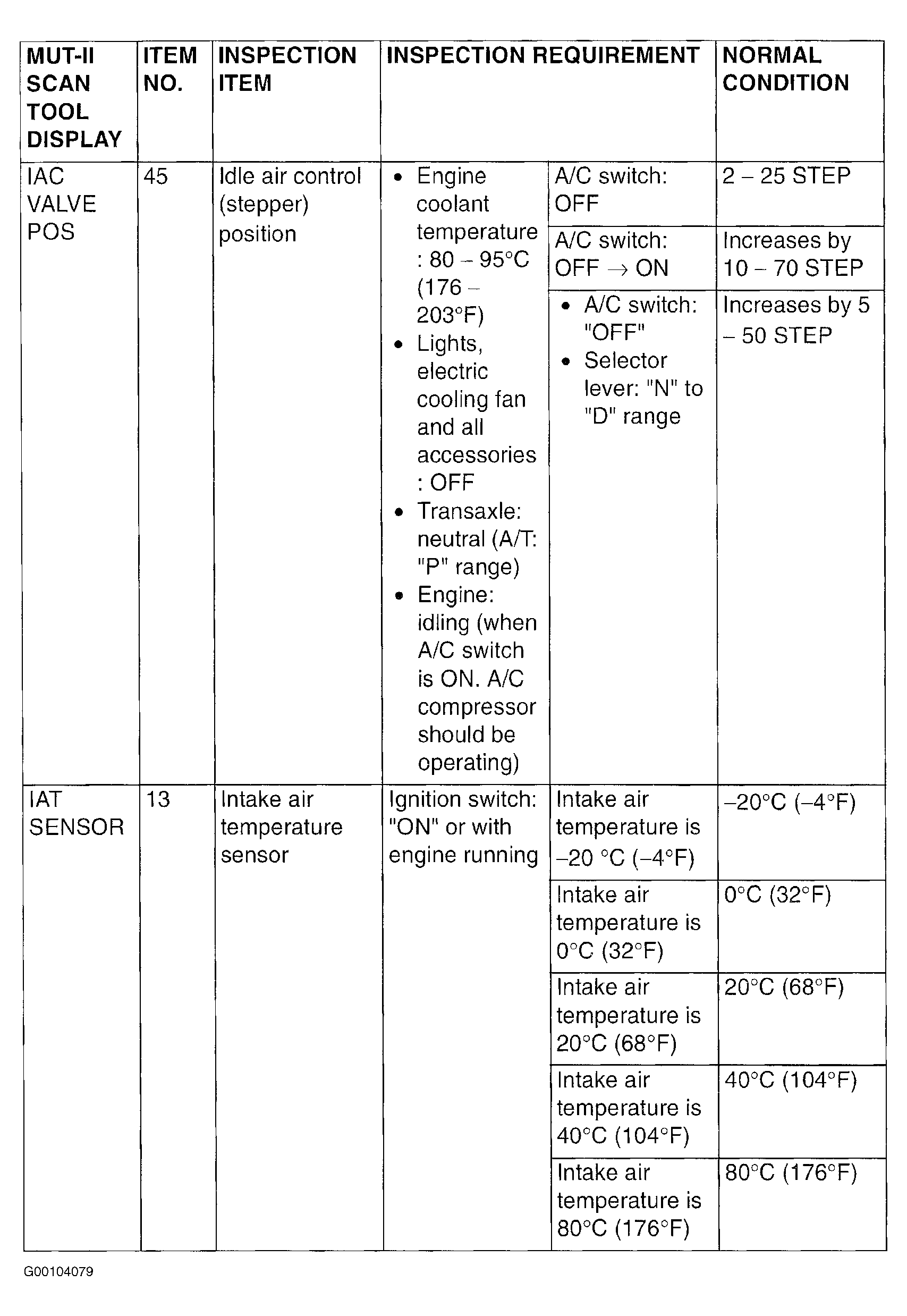

Fig 6: Data List Table - 6 Of 10
G00104079Courtesy of CHRYSLER CORP.

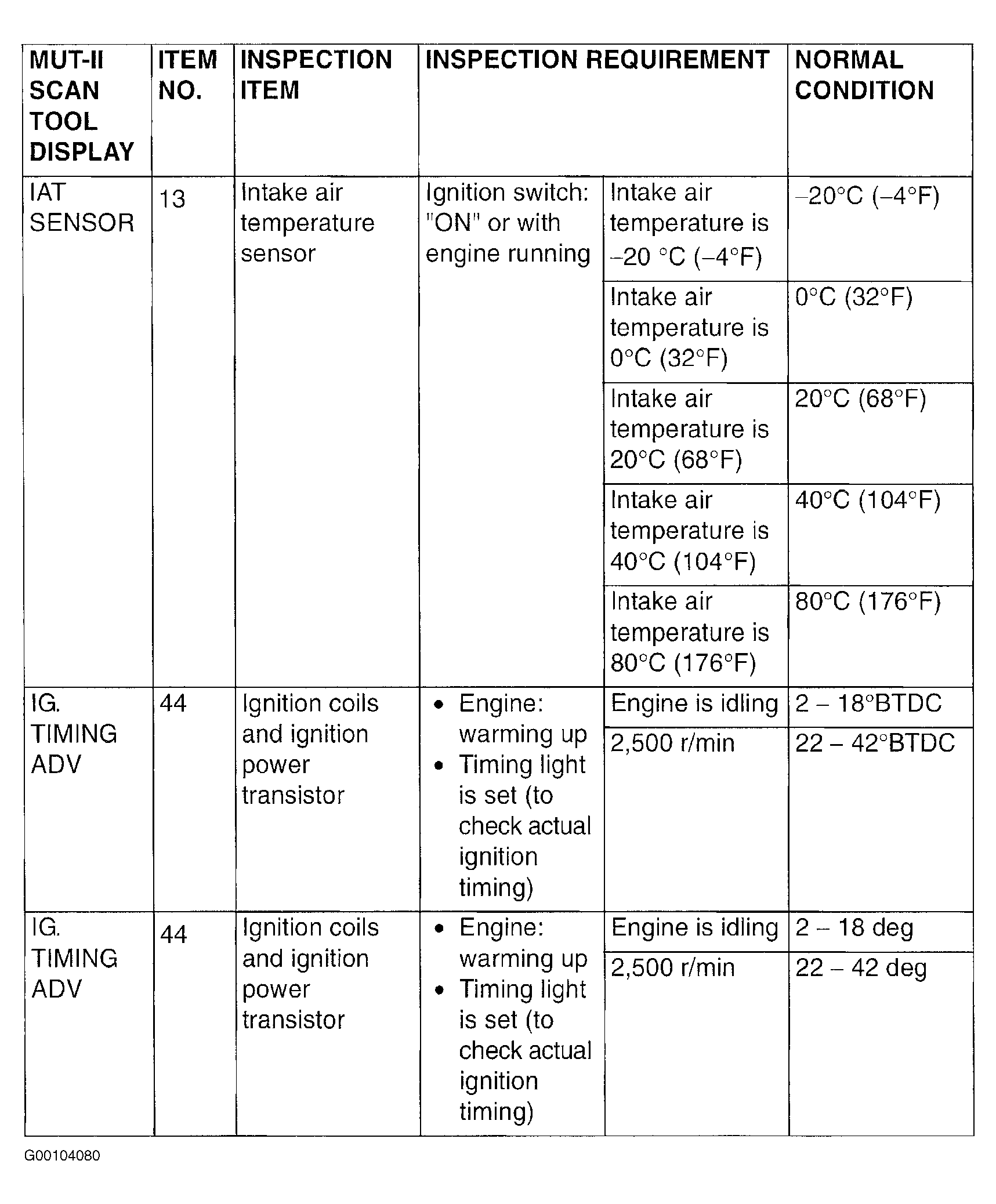

Fig 7: Data List Table - 7 Of 10
G00104080Courtesy of CHRYSLER CORP.

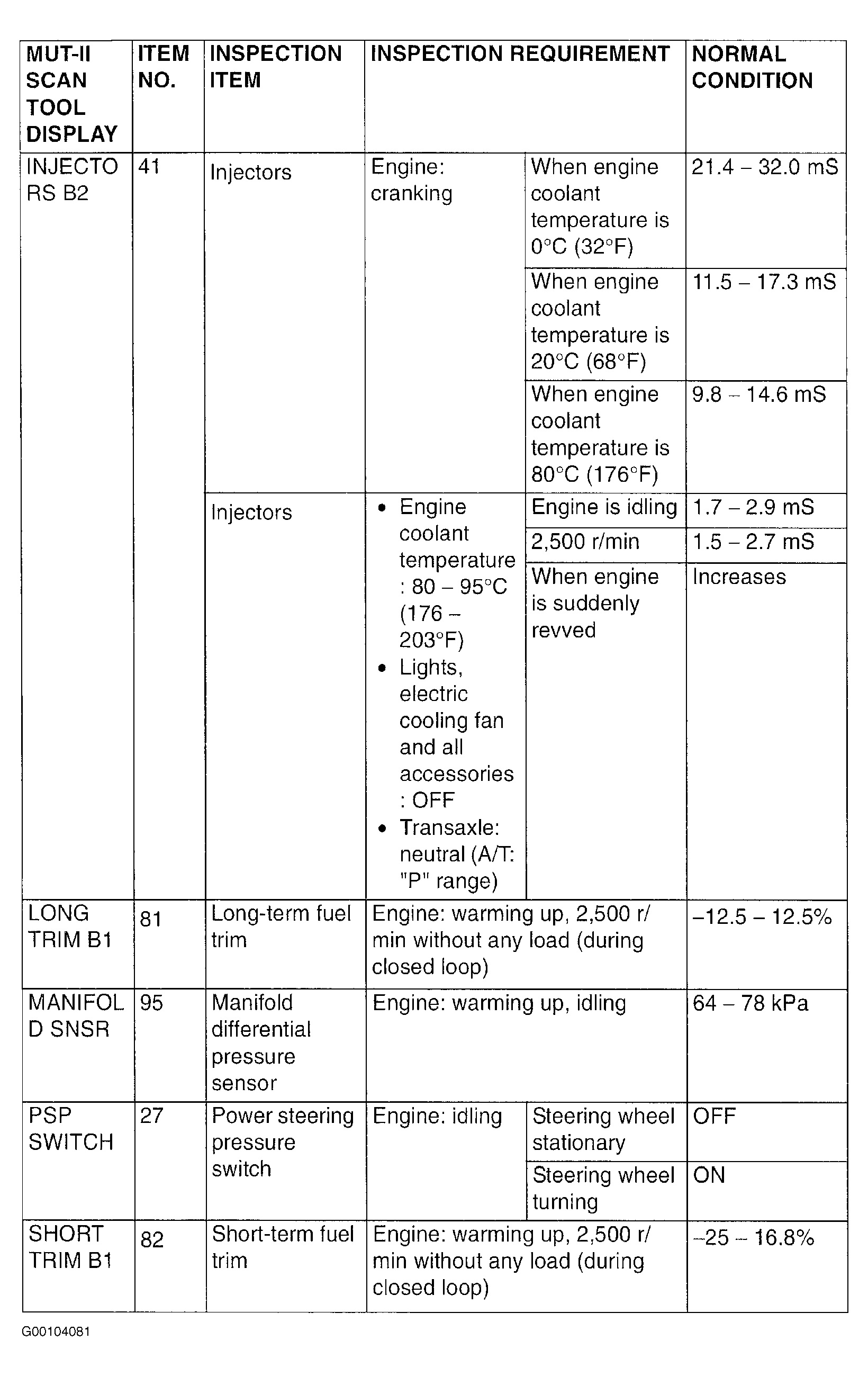

Fig 8: Data List Table - 8 Of 10
G00104081Courtesy of CHRYSLER CORP.

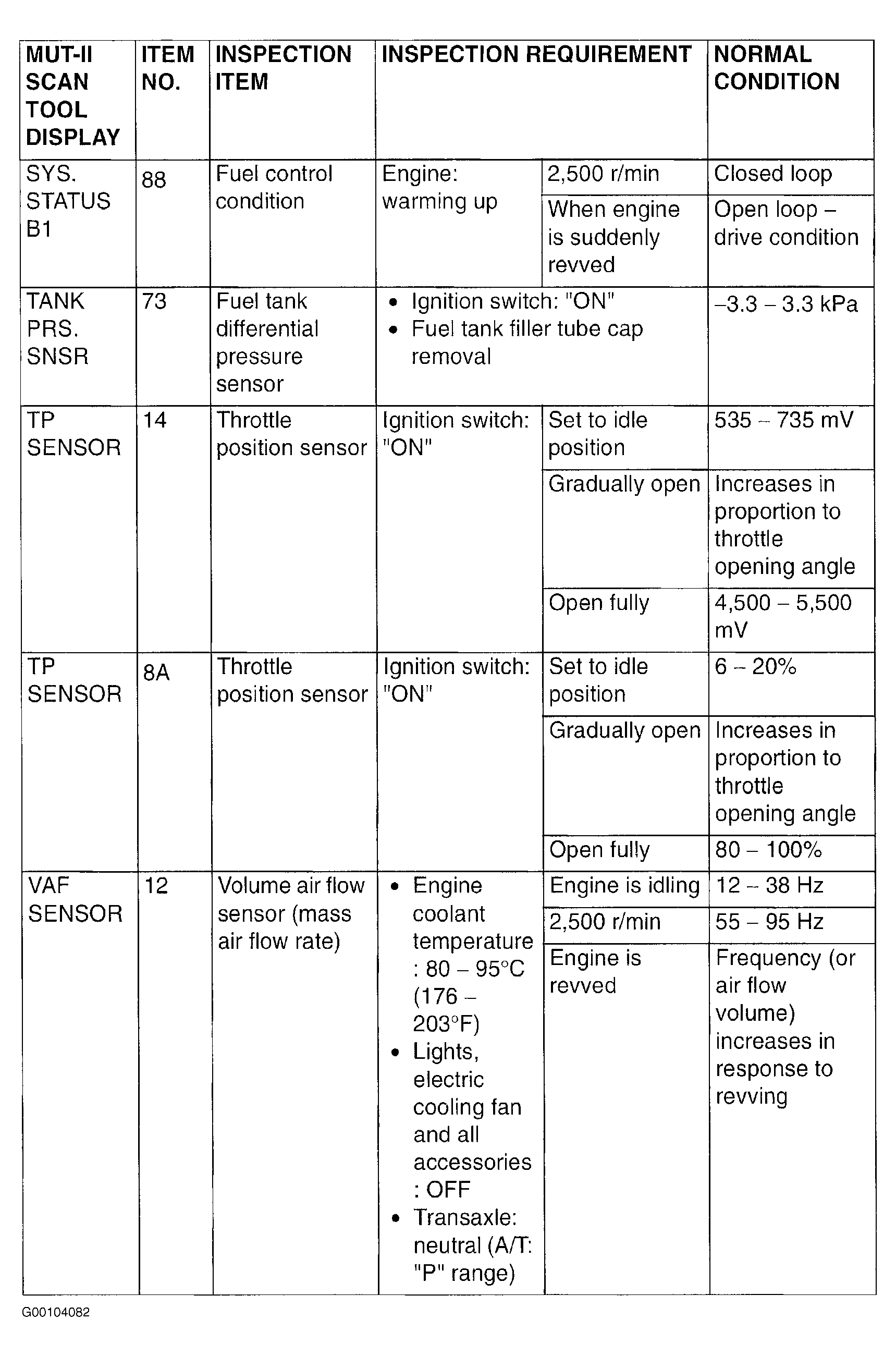

Fig 9: Data List Table - 9 Of 10
G00104082Courtesy of CHRYSLER CORP.

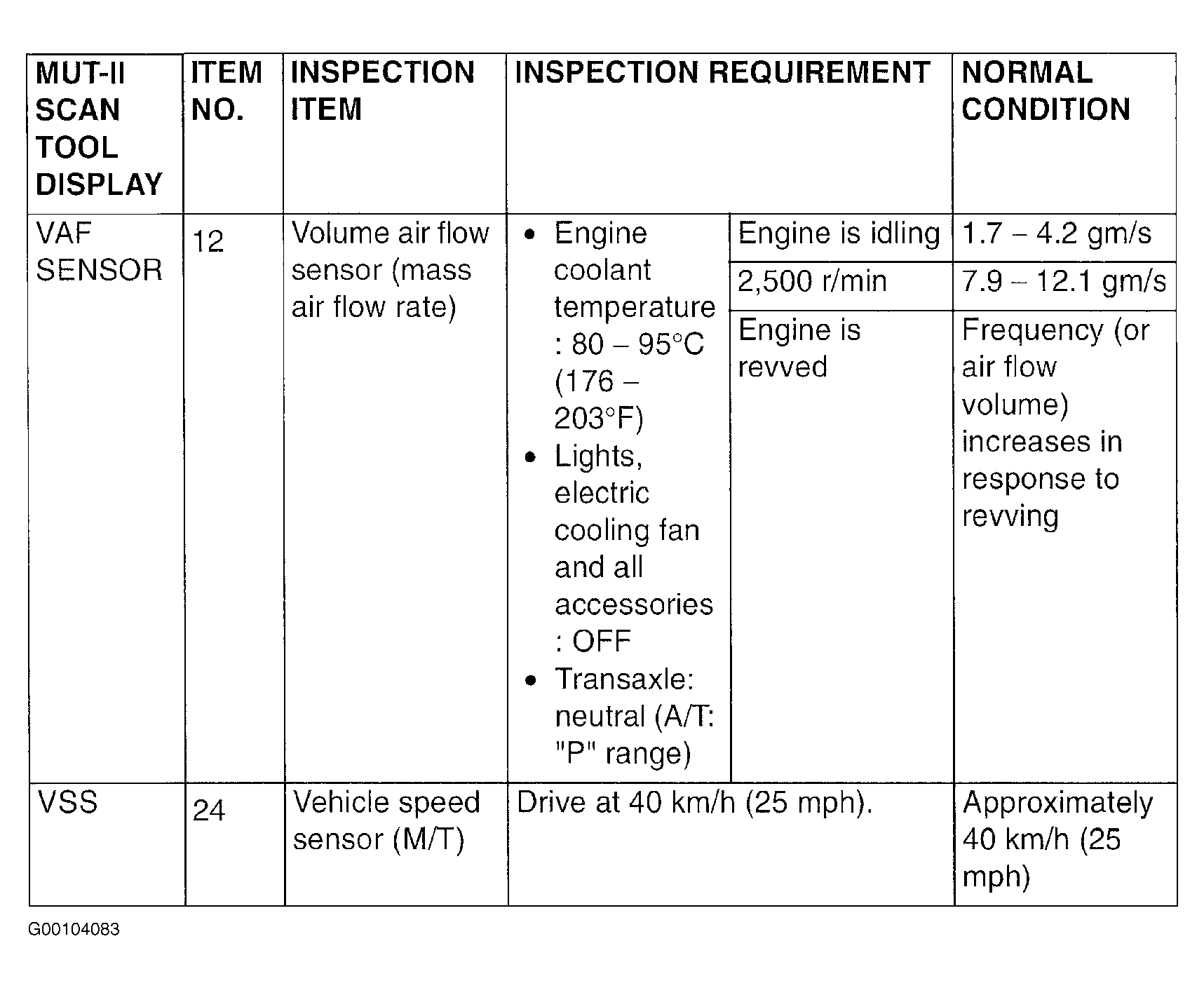

Fig 10: Data List Table - 10 Of 10
G00104083Courtesy of CHRYSLER CORP.
