Checking Radiator Fan Relay Output

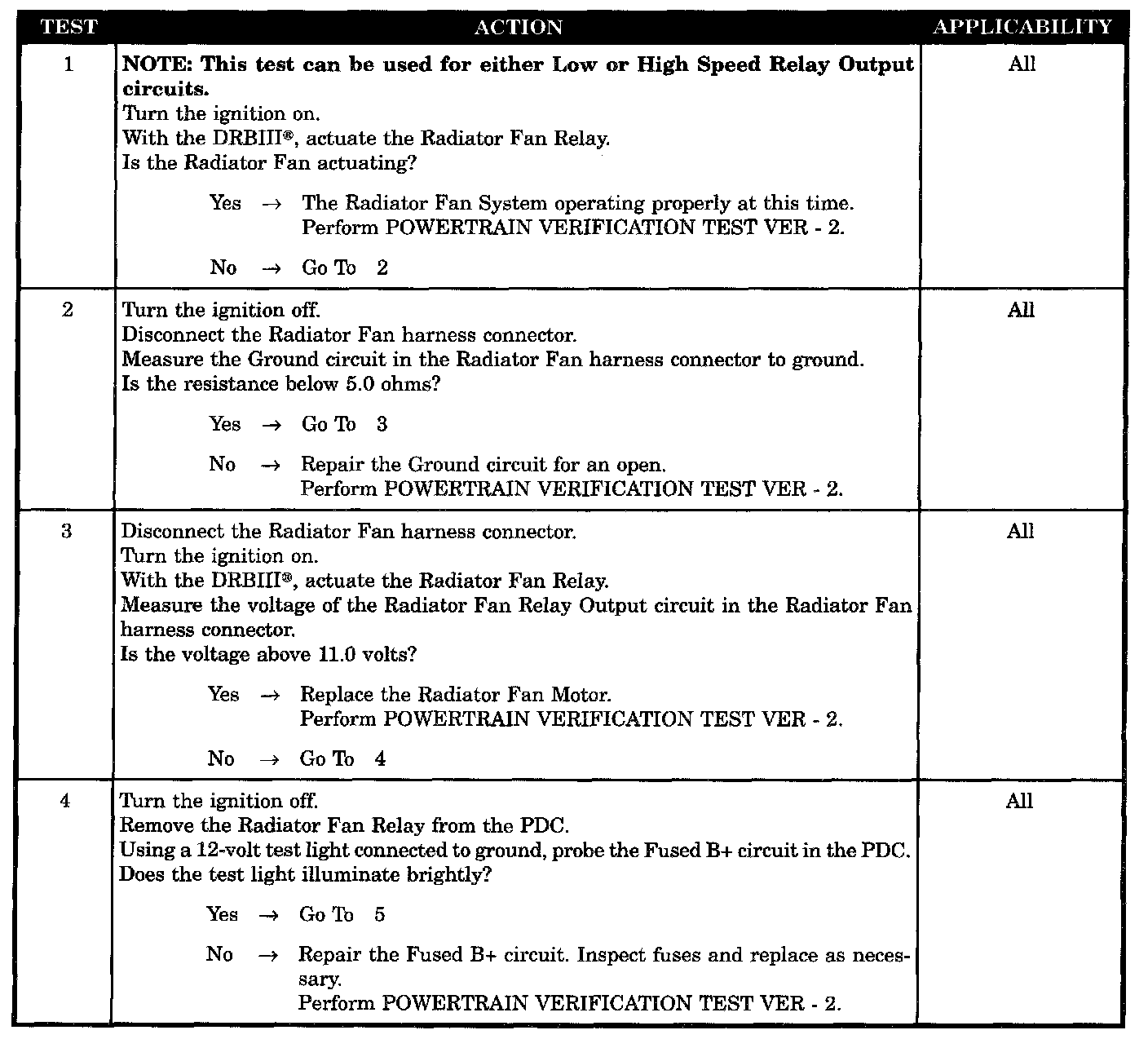

Tests 1 - 4:




Test 5:




SYMPTOM
CHECKING RADIATOR FAN RELAY OUTPUT

POSSIBLE CAUSES
- Radiator Fan Relay Operation
- Ground Circuit Open
- Radiator Fan Motor
- Fused B+ Circuit
- Radiator Fan Relay Output Circuit
- Radiator Fan Relay
