Home >> Chrysler >> 2002 >> Sebring LX Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Power Distribution Center
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

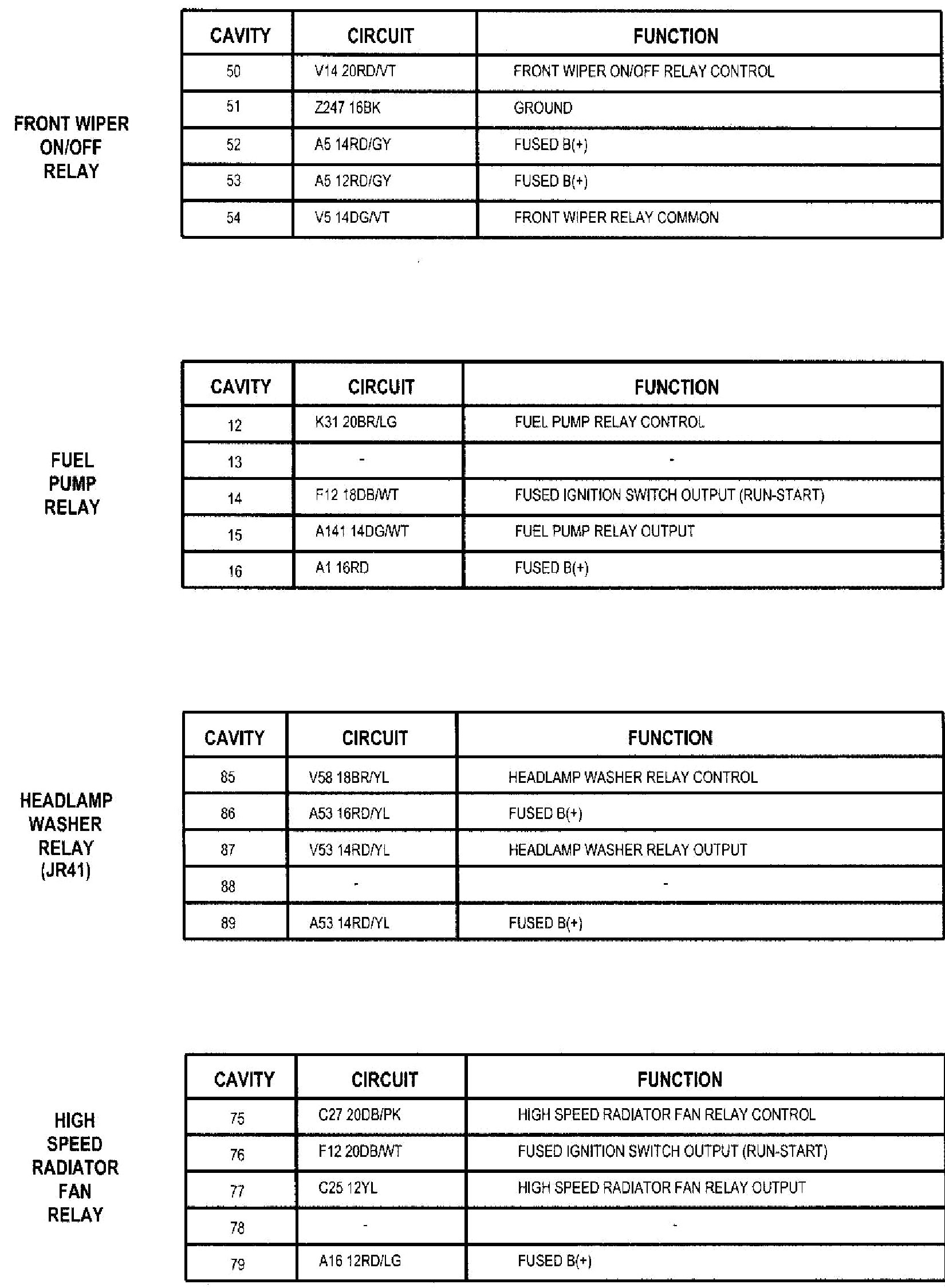

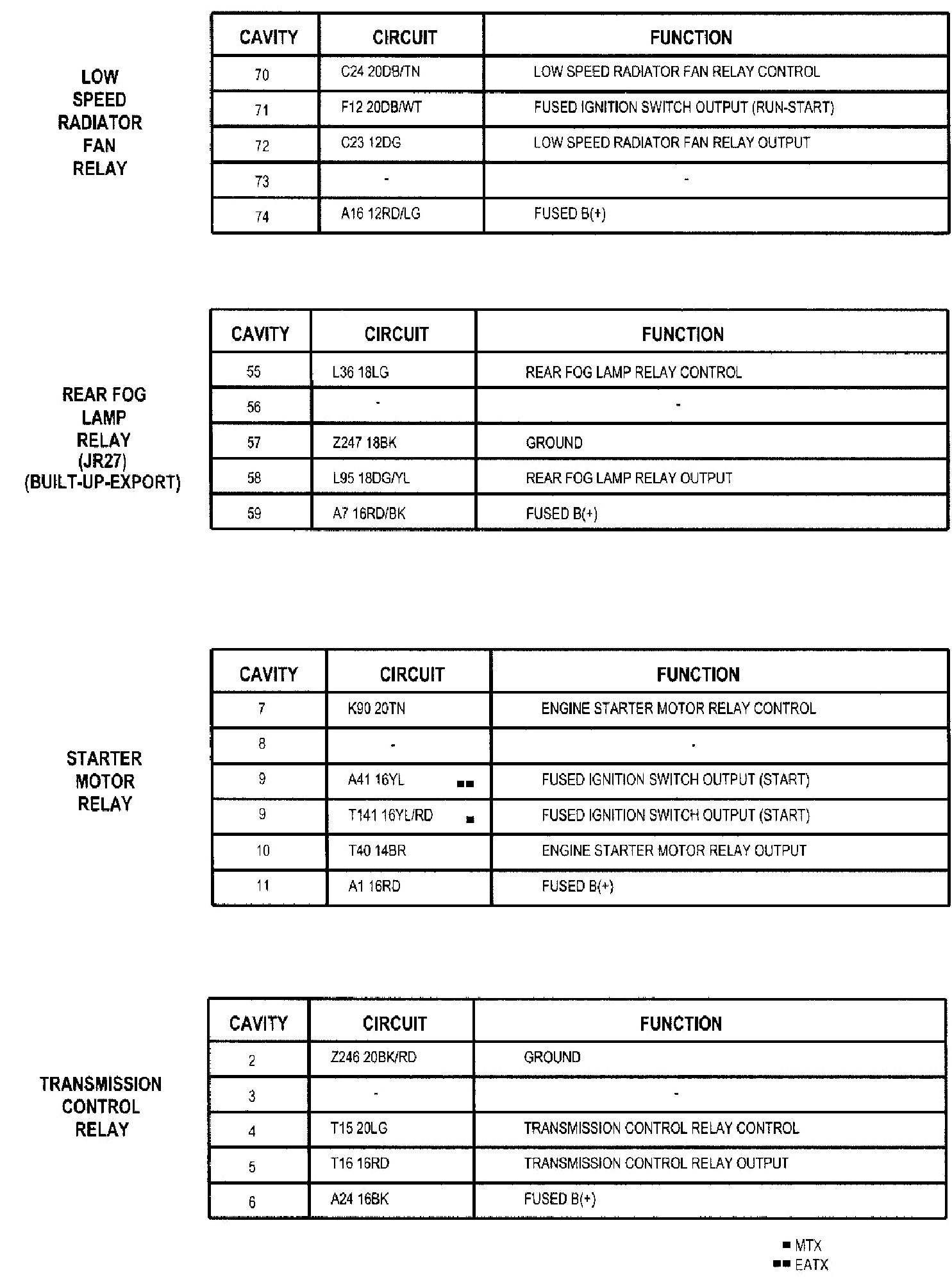

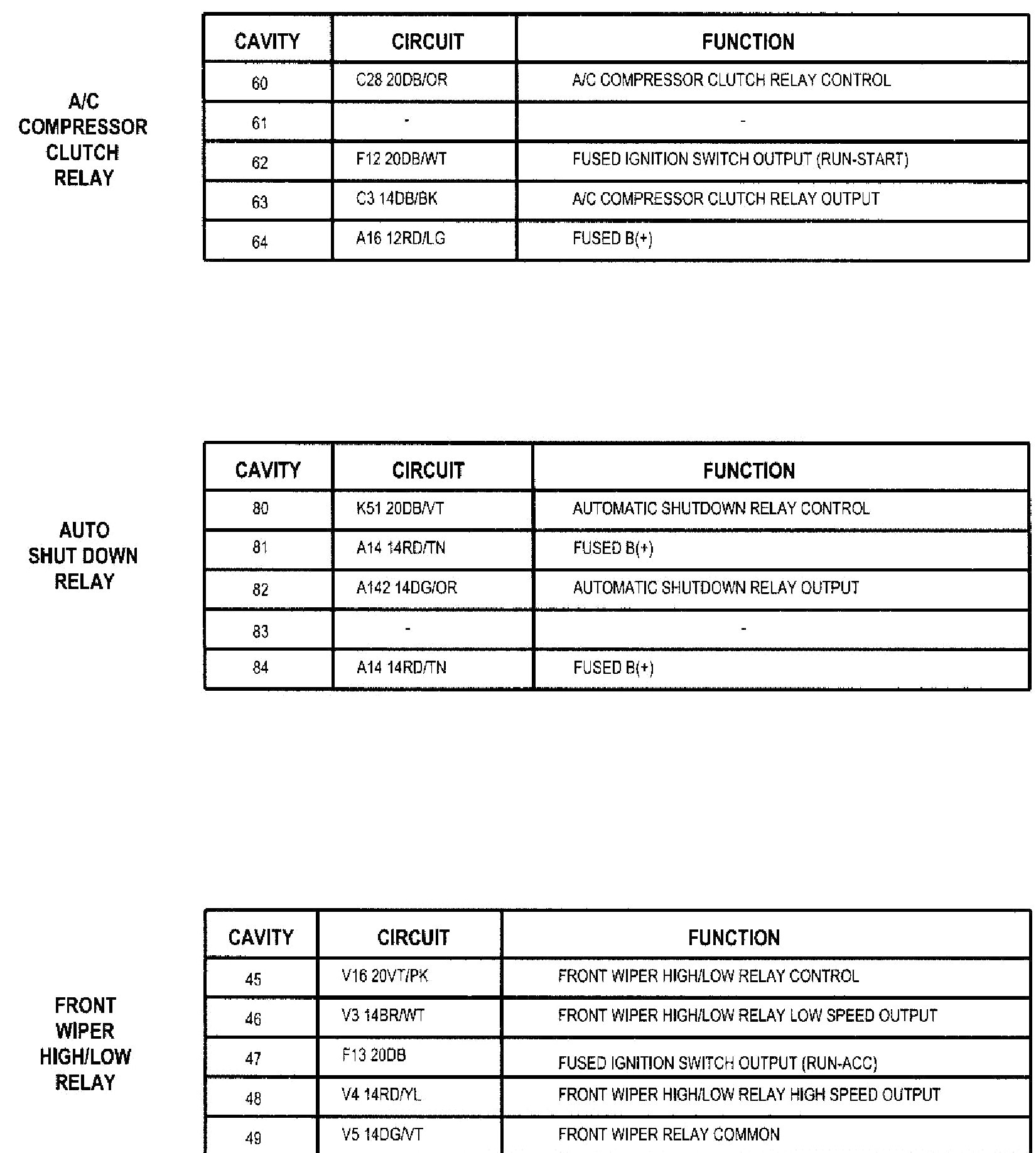

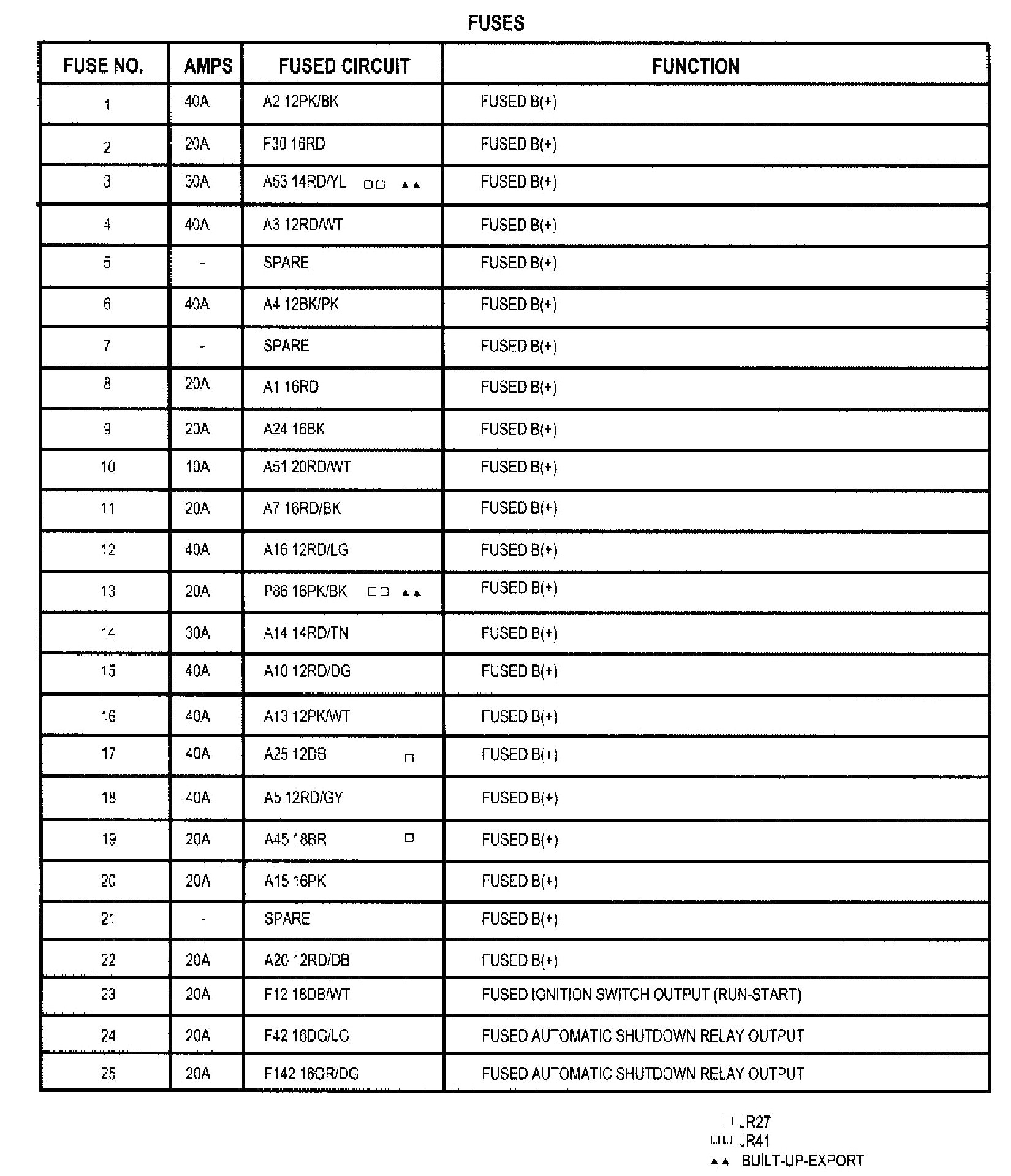

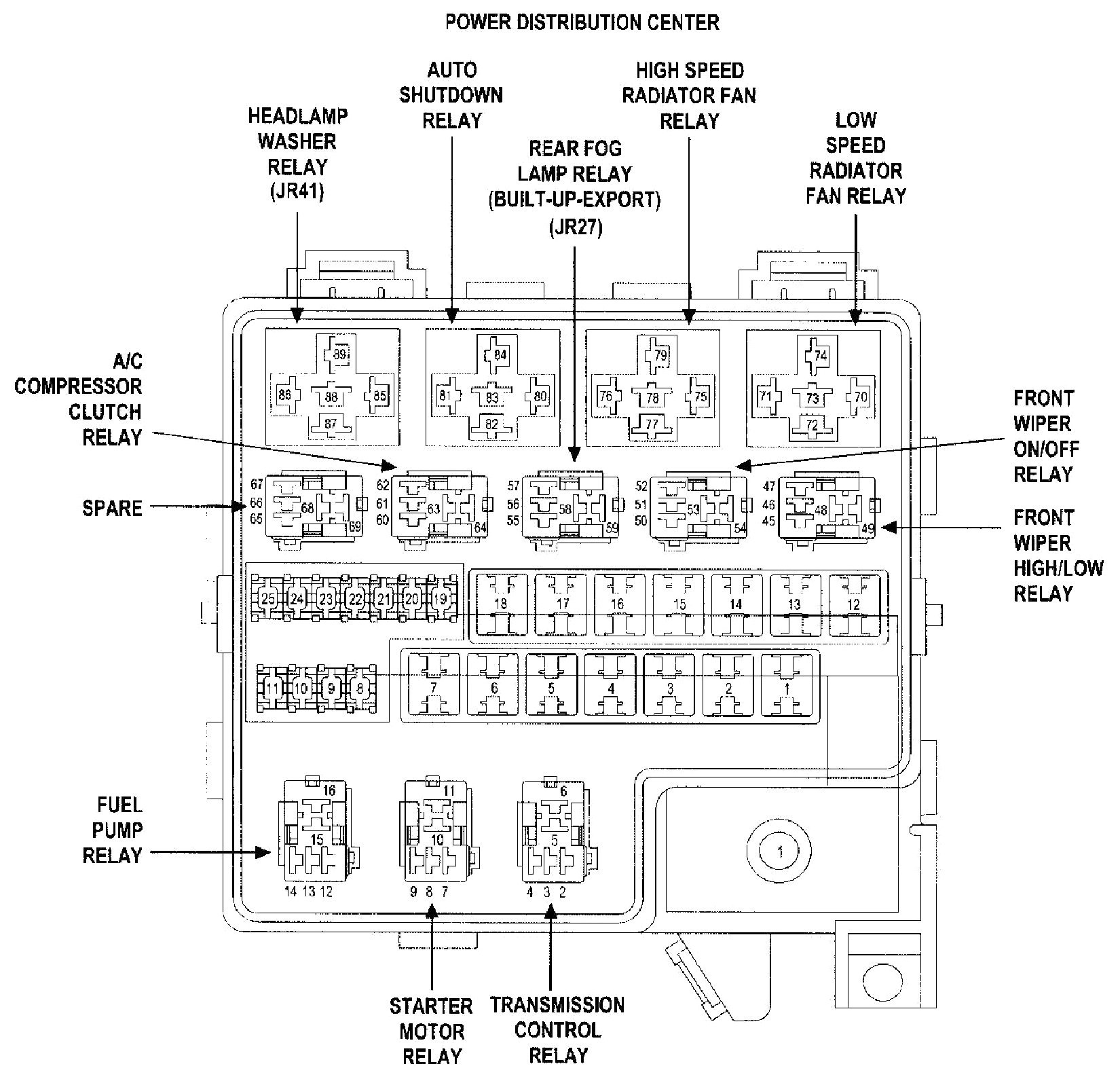

Power Distribution Center
