Wiper Park Switch Shorted To Ground
For testing procedures, see
Fig 1
.

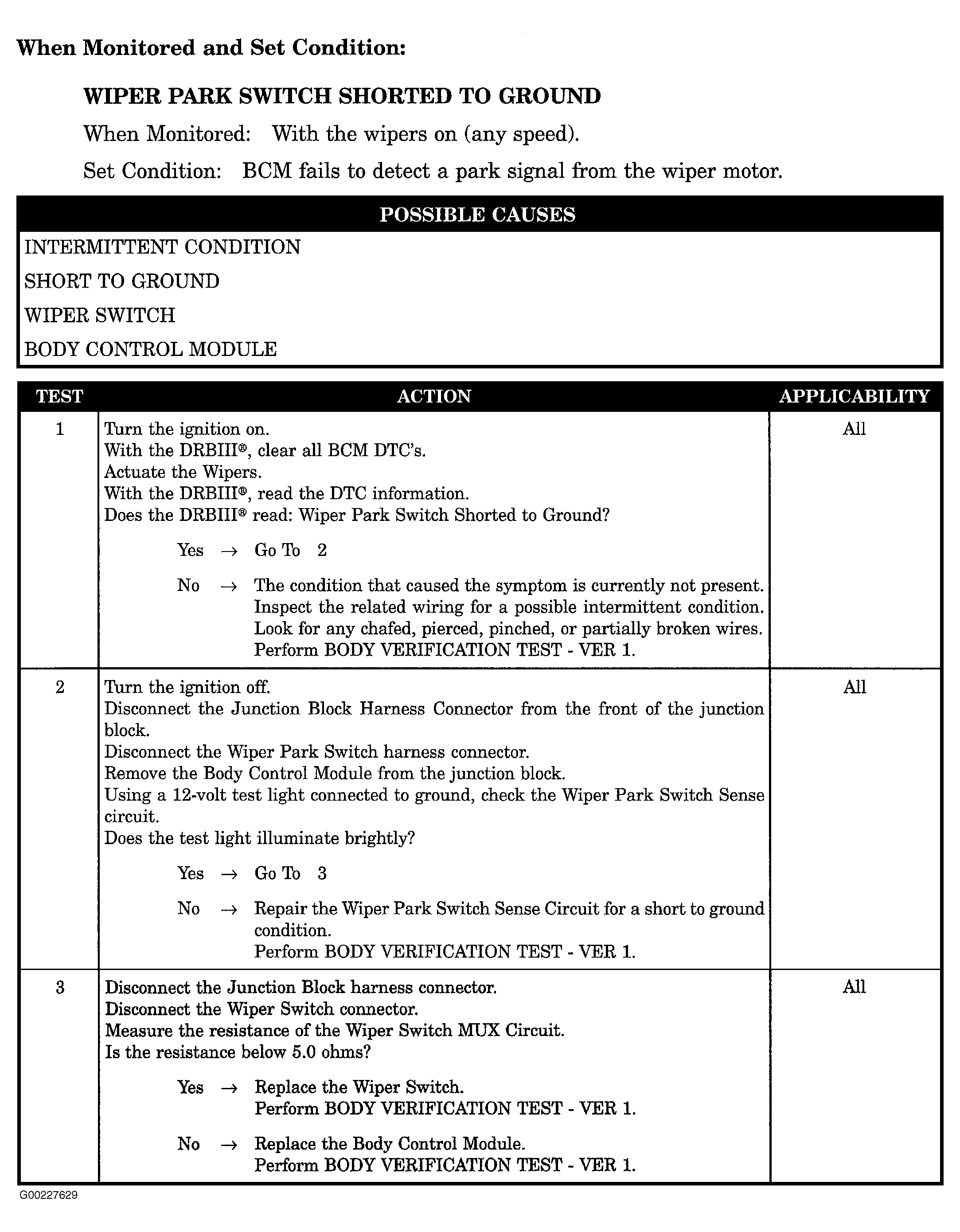

Fig 1: Wiper Park Switch Shorted To Ground
Courtesy of CHRYSLER CORP.
