Panel Dimming Output Short

For testing procedures, see Fig 1 .

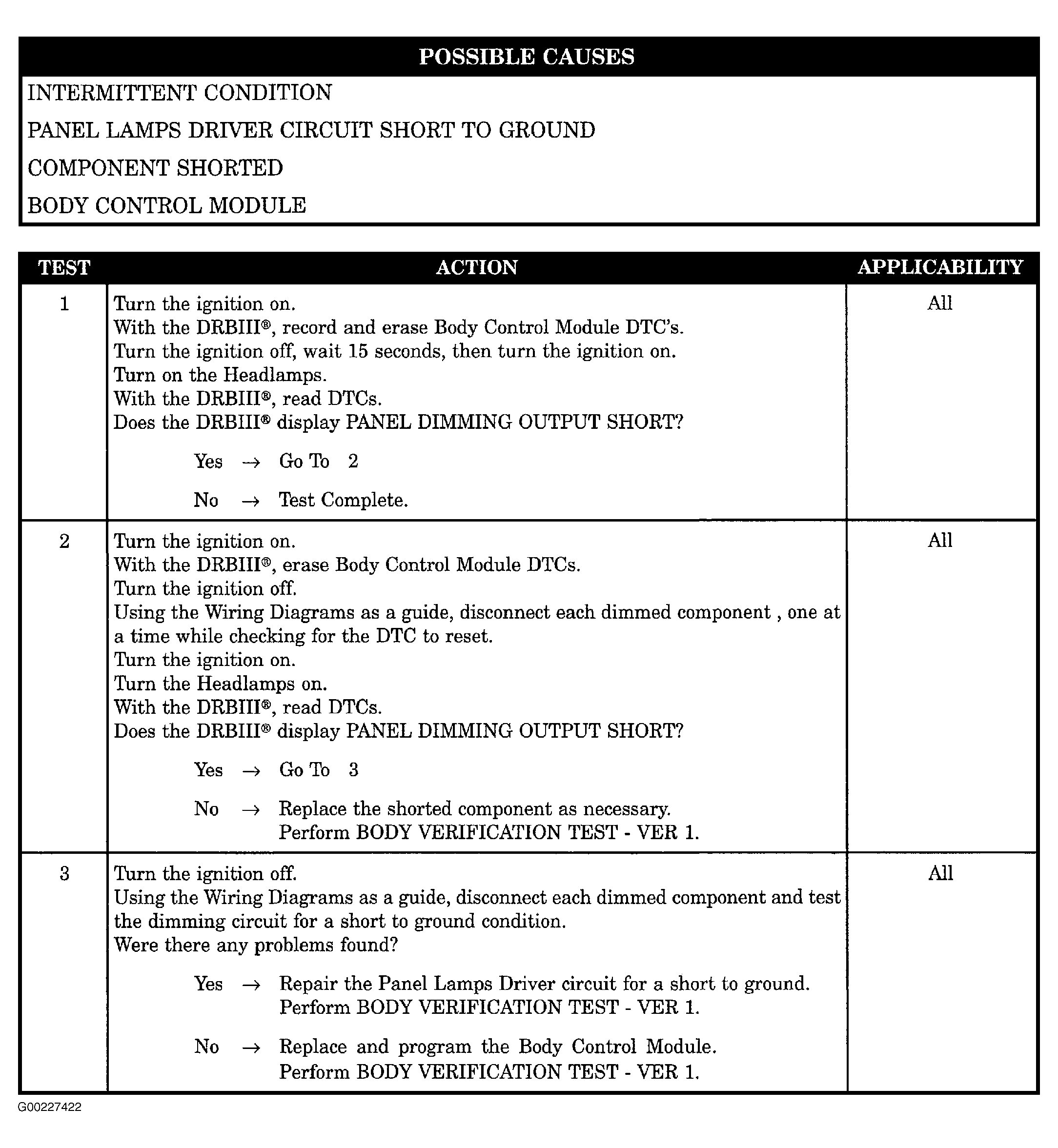

Fig 1: Panel Dimming Output Short
G00227422Courtesy of CHRYSLER CORP.
