Mode Door Output Shorted To Ground

For testing procedures, see Fig 1 and Fig 2 .

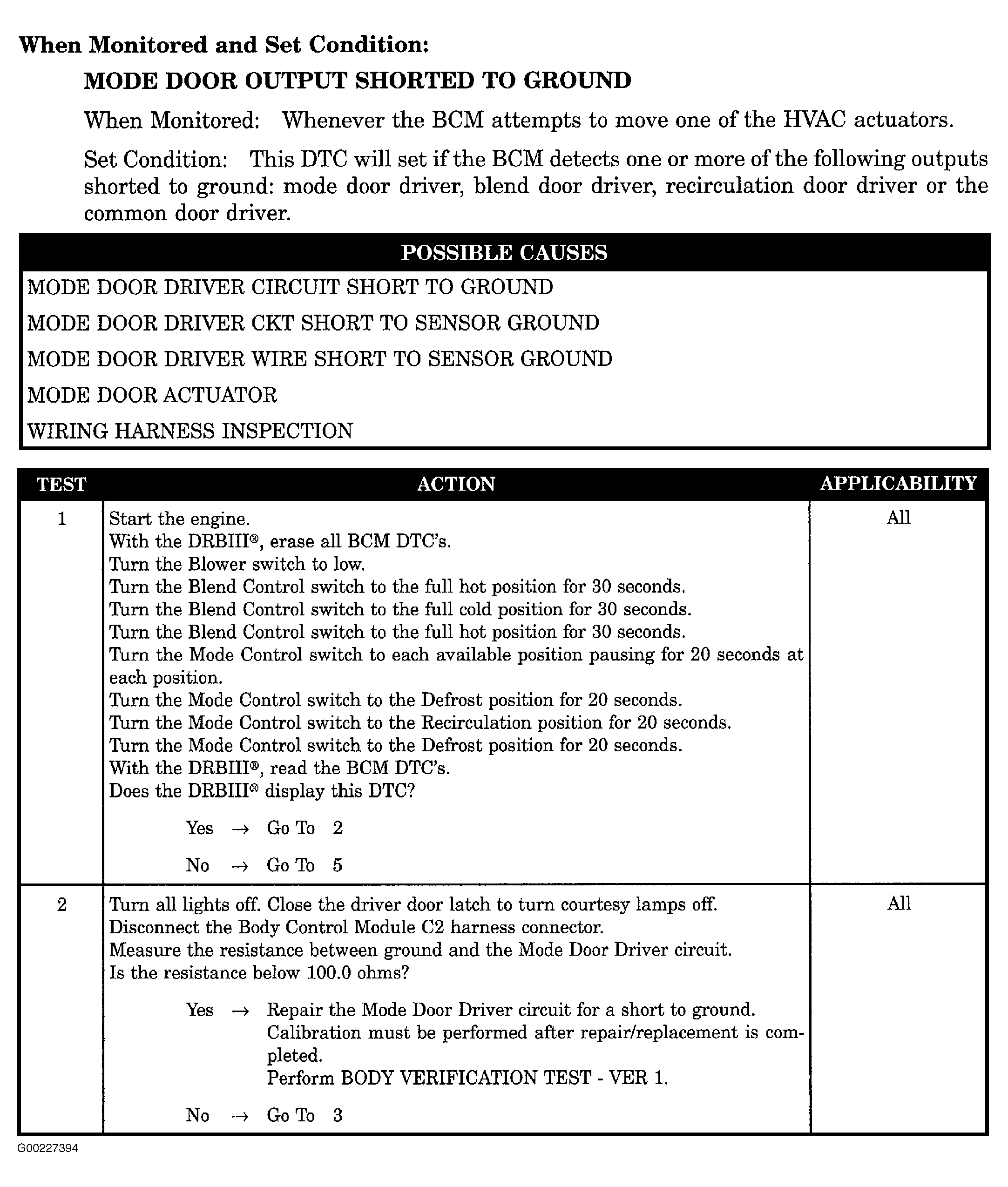

Fig 1: Mode Door Output Shorted To Ground - Steps 1 & 2 (1 Of 2)

Courtesy of CHRYSLER CORP.

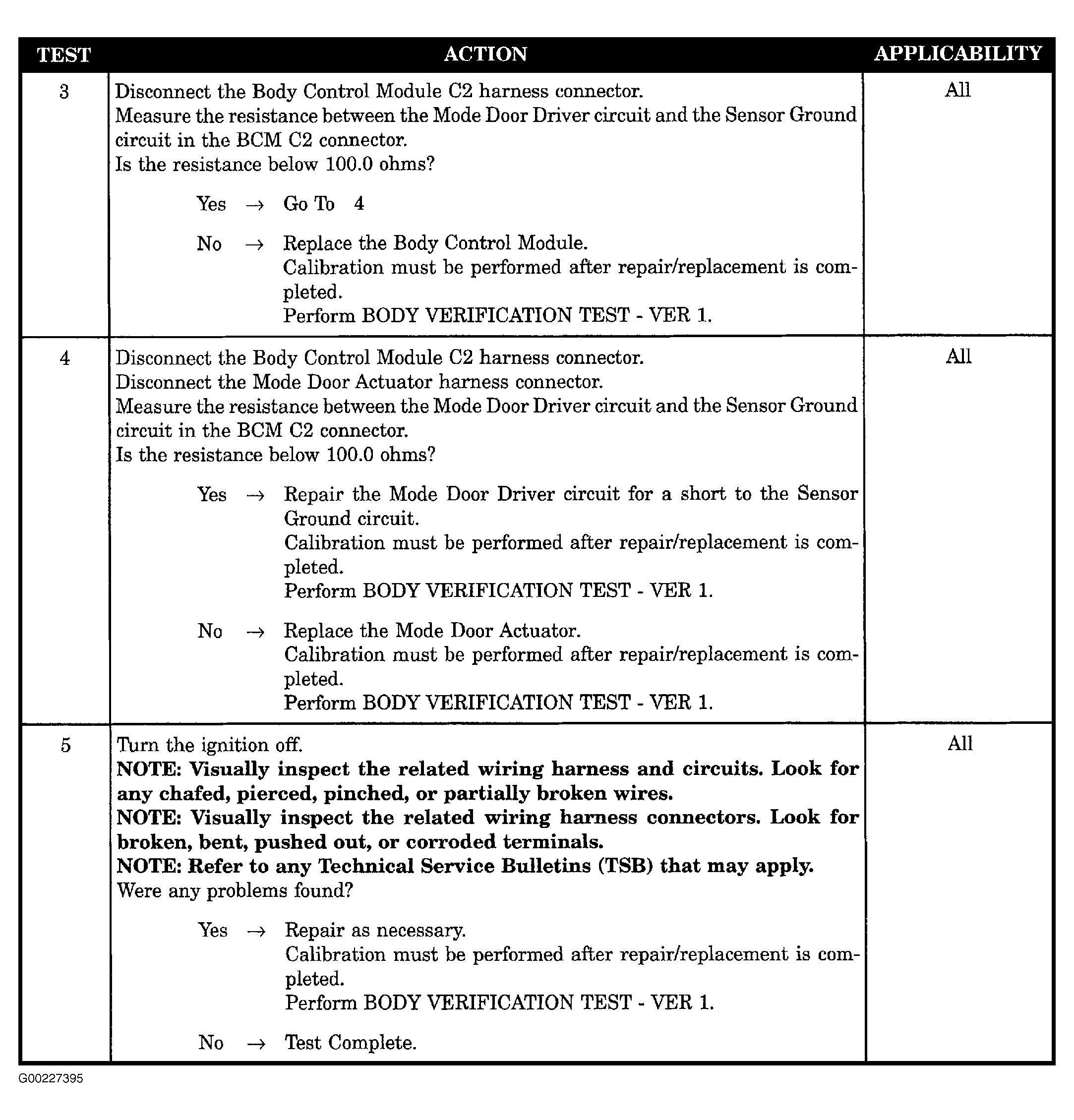

Fig 2: Mode Door Output Shorted To Ground - Steps 3-5 (2 Of 2)

Courtesy of CHRYSLER CORP.
