Blend Door Feedback Failure

For testing procedures, see Fig 1 -Fig 8 .

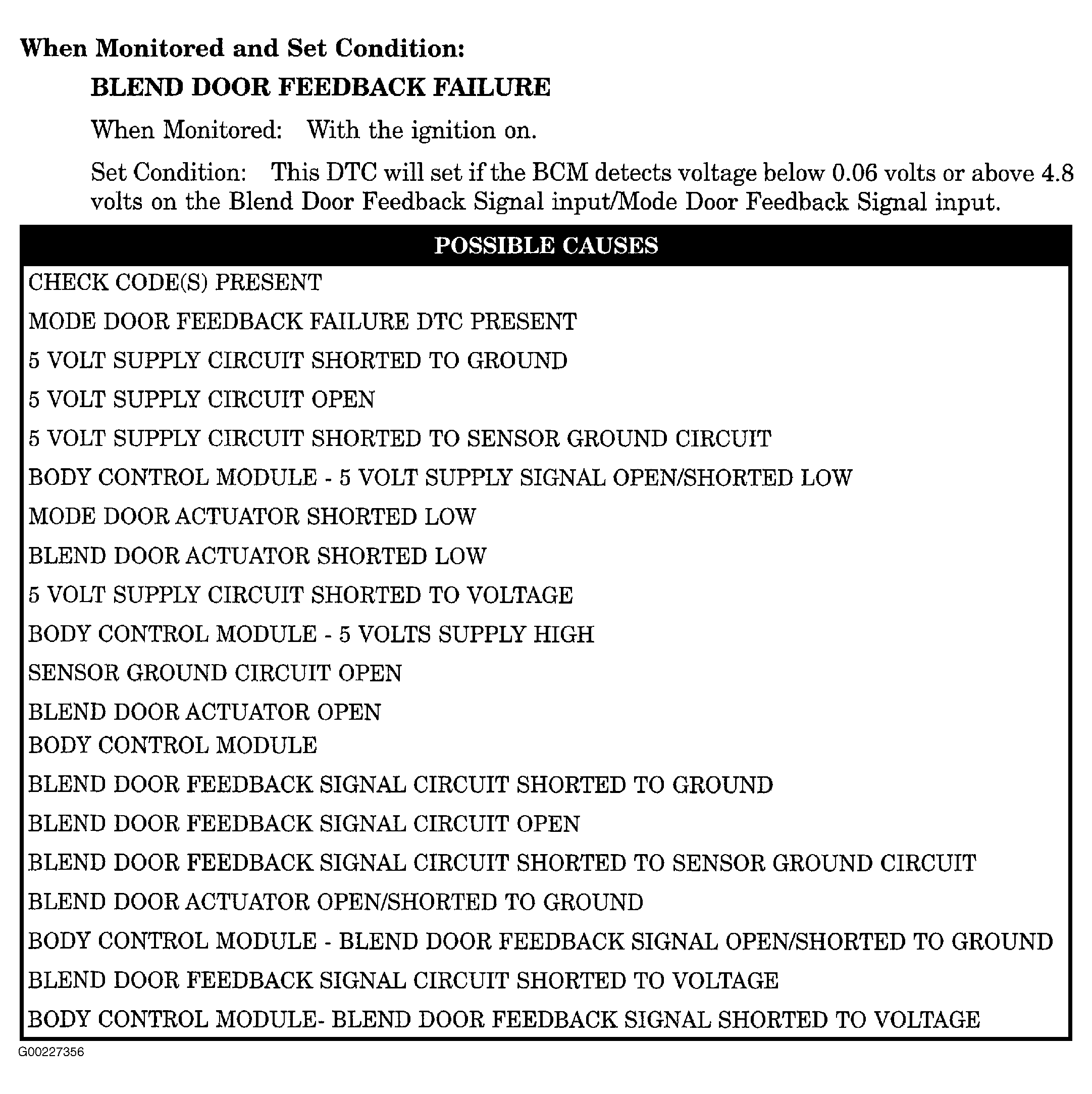

Fig 1: Blend Door Feedback Failure (1 Of 8)

Courtesy of CHRYSLER CORP.

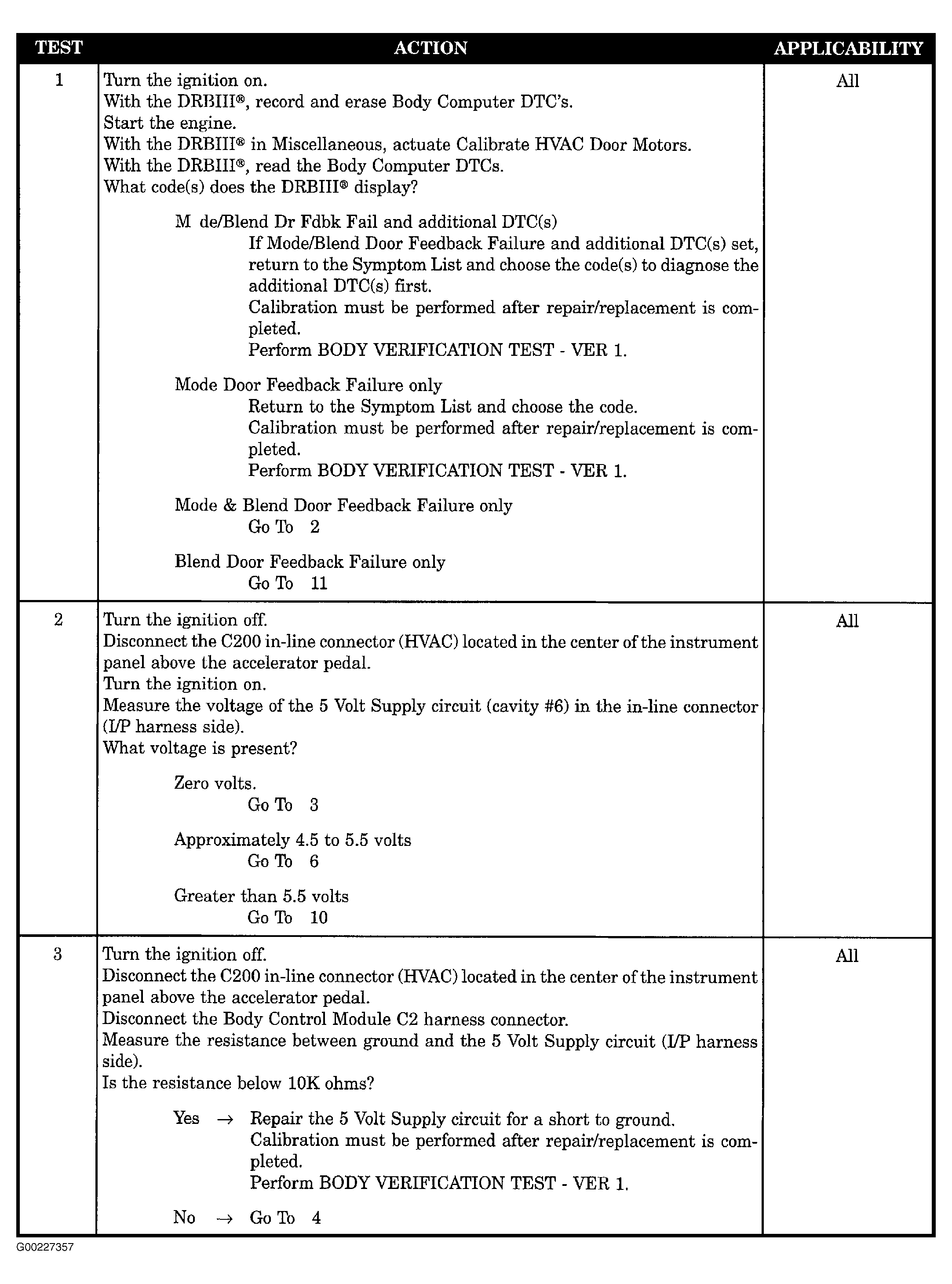

Fig 2: Blend Door Feedback Failure - Steps 1-3 (2 Of 8)

Courtesy of CHRYSLER CORP.

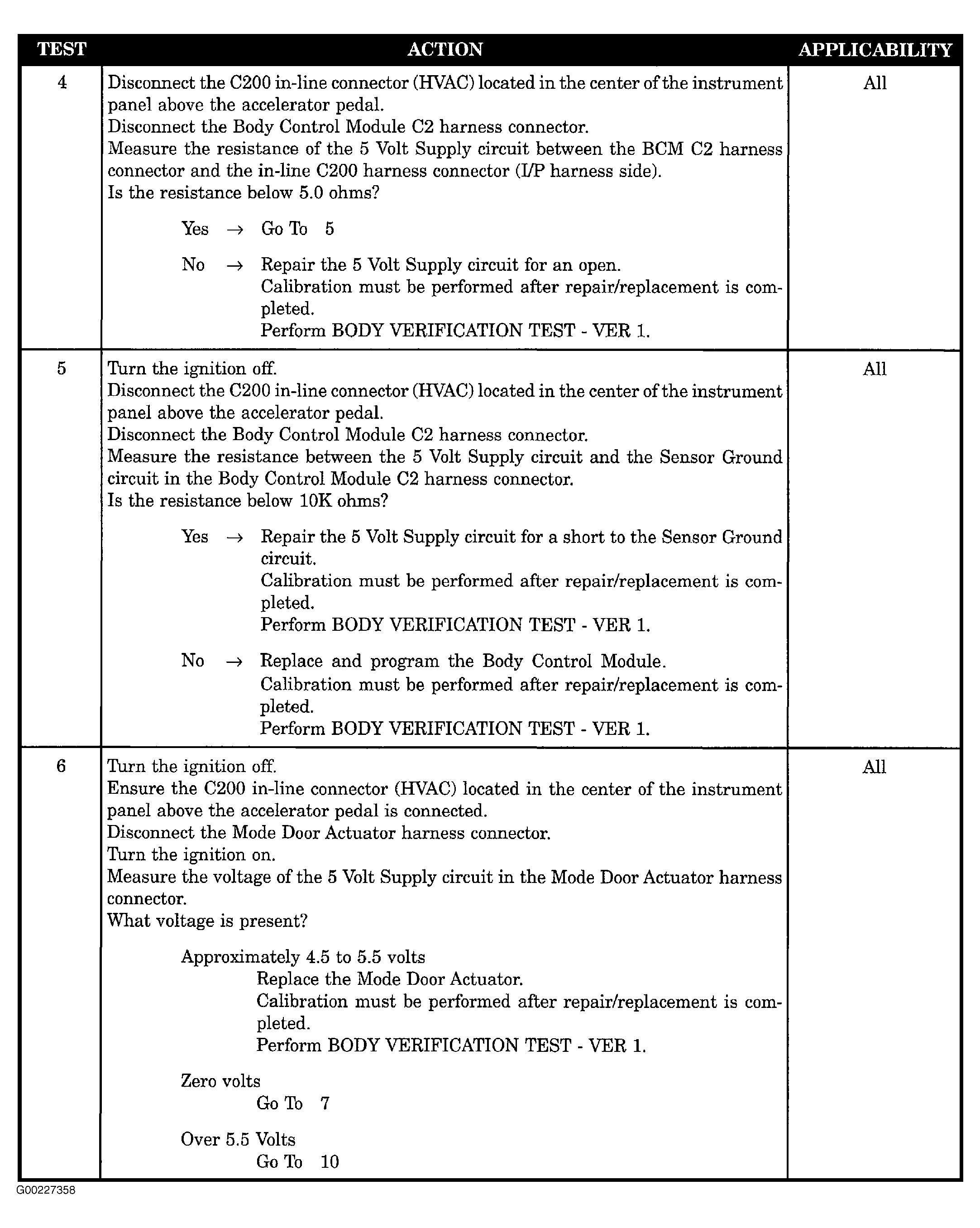

Fig 3: Blend Door Feedback Failure - Steps 4-6 (3 Of 8)

Courtesy of CHRYSLER CORP.

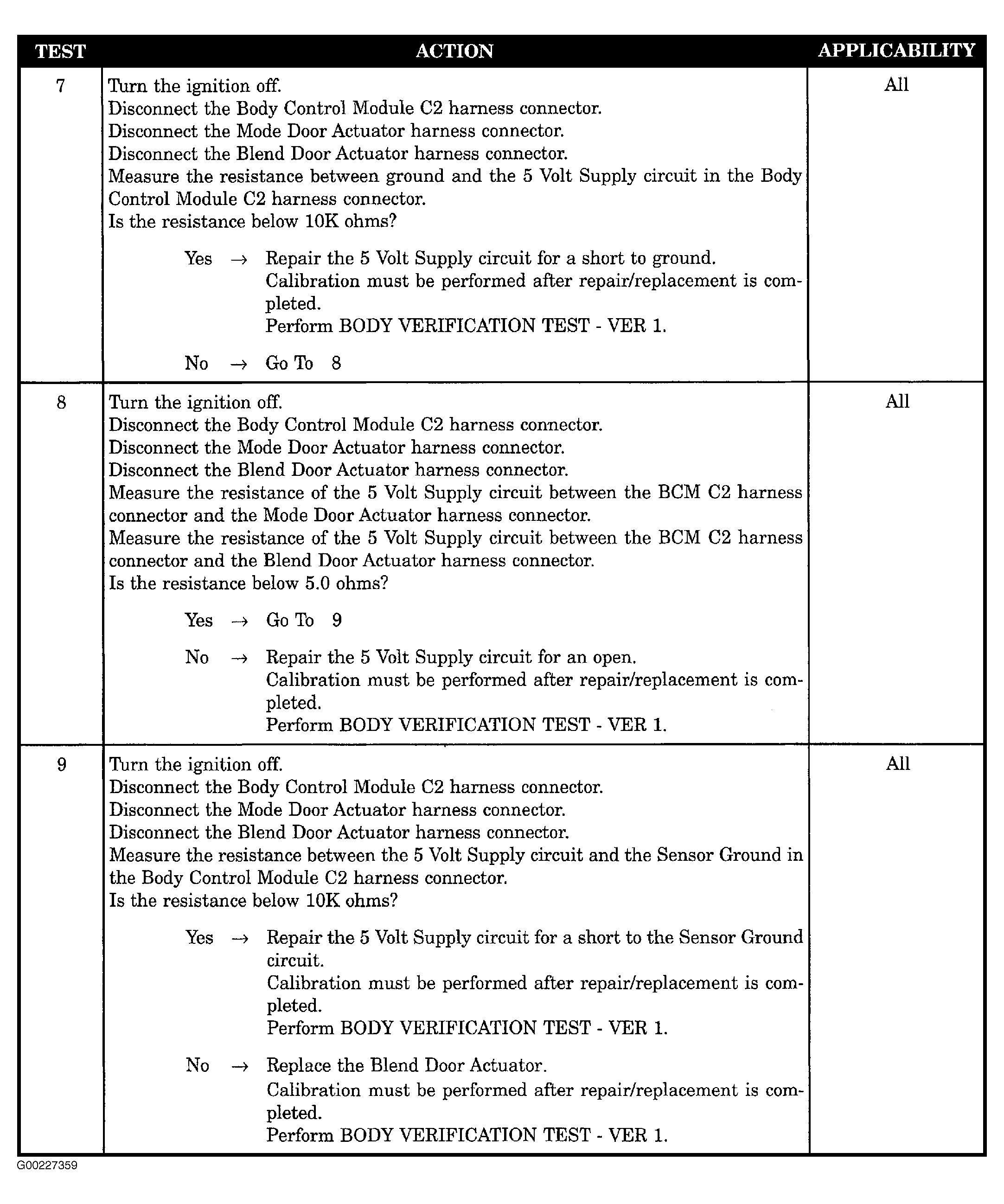

Fig 4: Blend Door Feedback Failure - Steps 7-9 (4 Of 8)

Courtesy of CHRYSLER CORP.

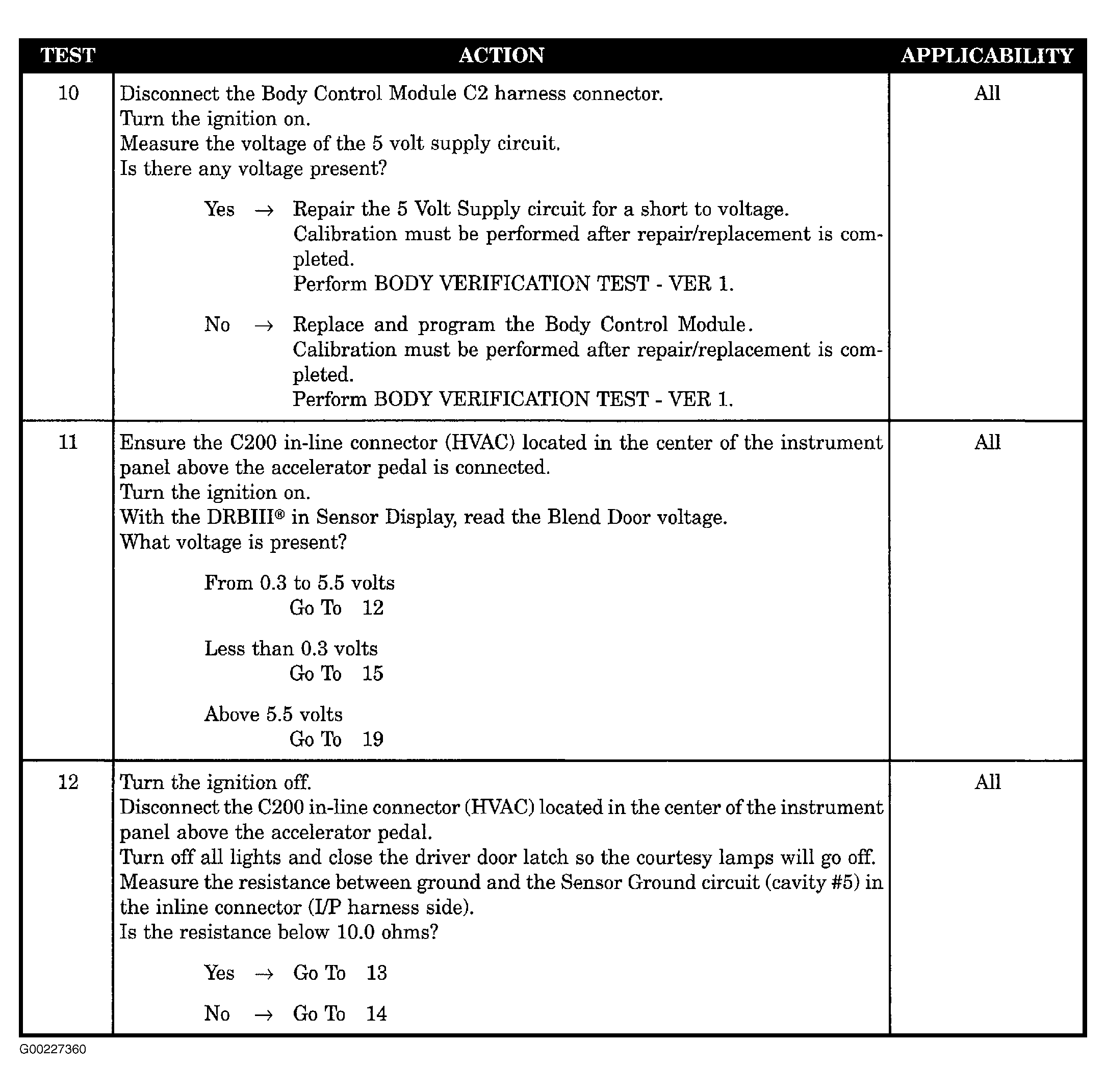

Fig 5: Blend Door Feedback Failure - Steps 10-12 (5 Of 8)

Courtesy of CHRYSLER CORP.

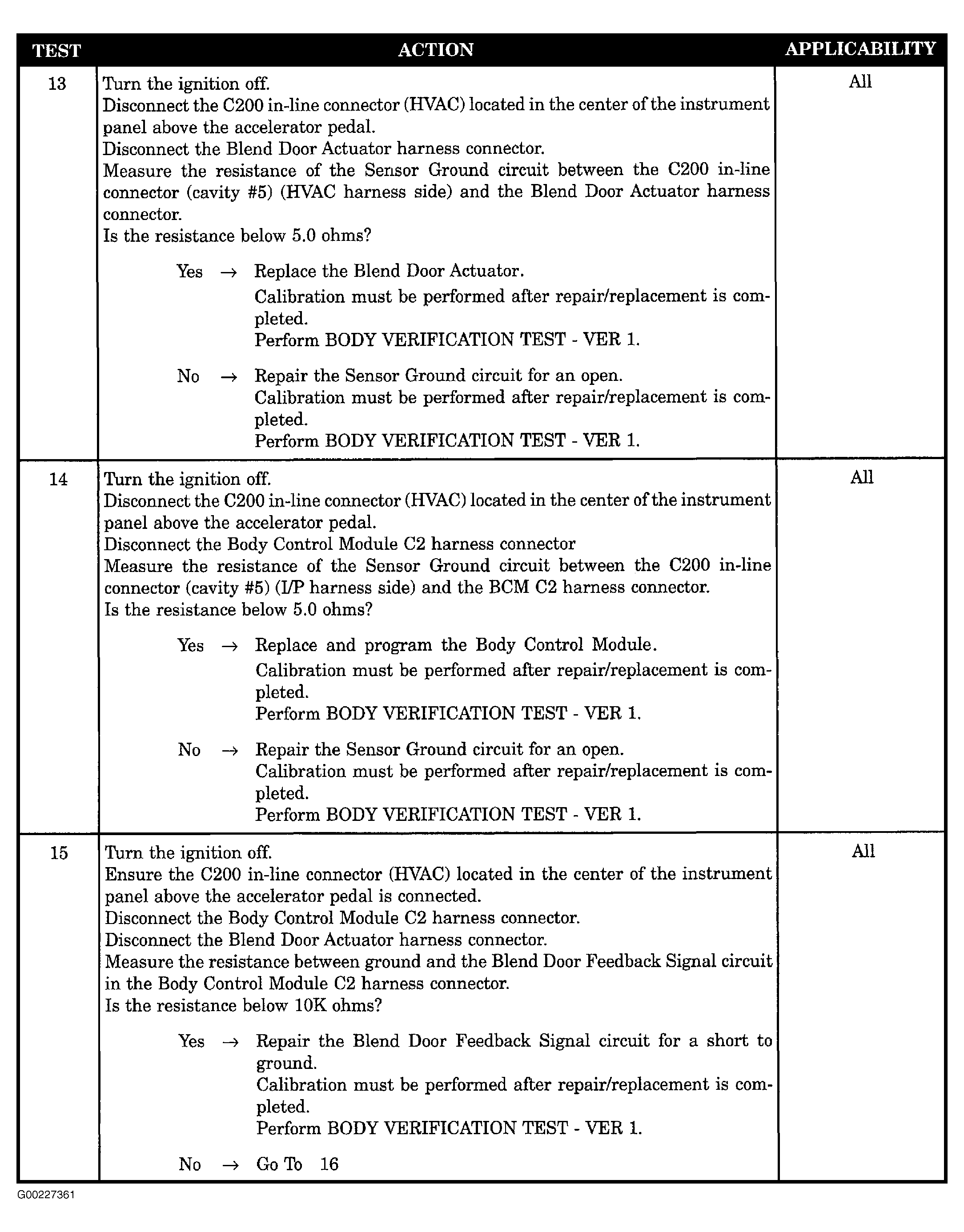

Fig 6: Blend Door Feedback Failure - Steps 13-15 (6 Of 8)

Courtesy of CHRYSLER CORP.

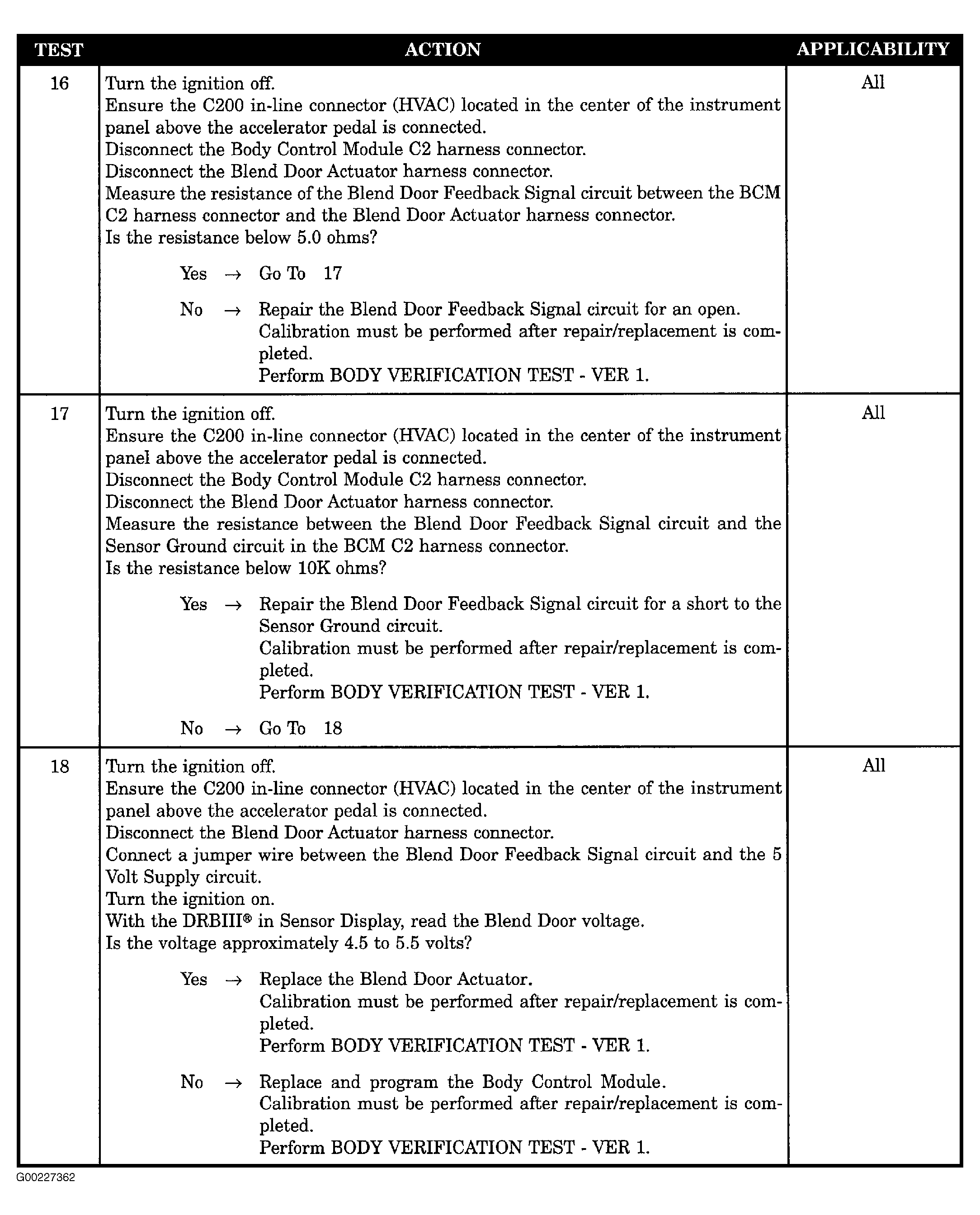

Fig 7: Blend Door Feedback Failure - Steps 16-18 (7 Of 8)

Courtesy of CHRYSLER CORP.

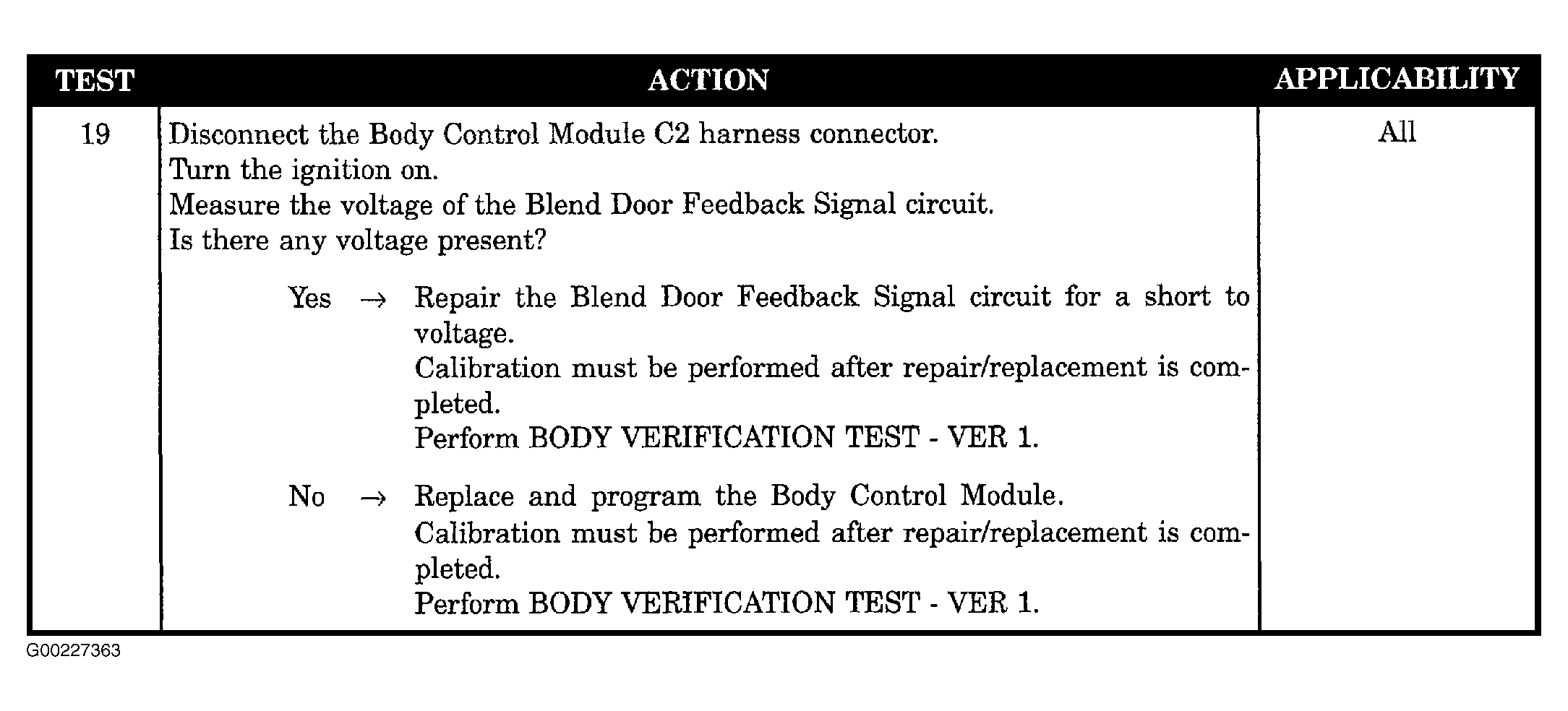

Fig 8: Blend Door Feedback Failure - Step 19 (8 Of 8)

Courtesy of CHRYSLER CORP.
