Right Rear Speaker Connector End View

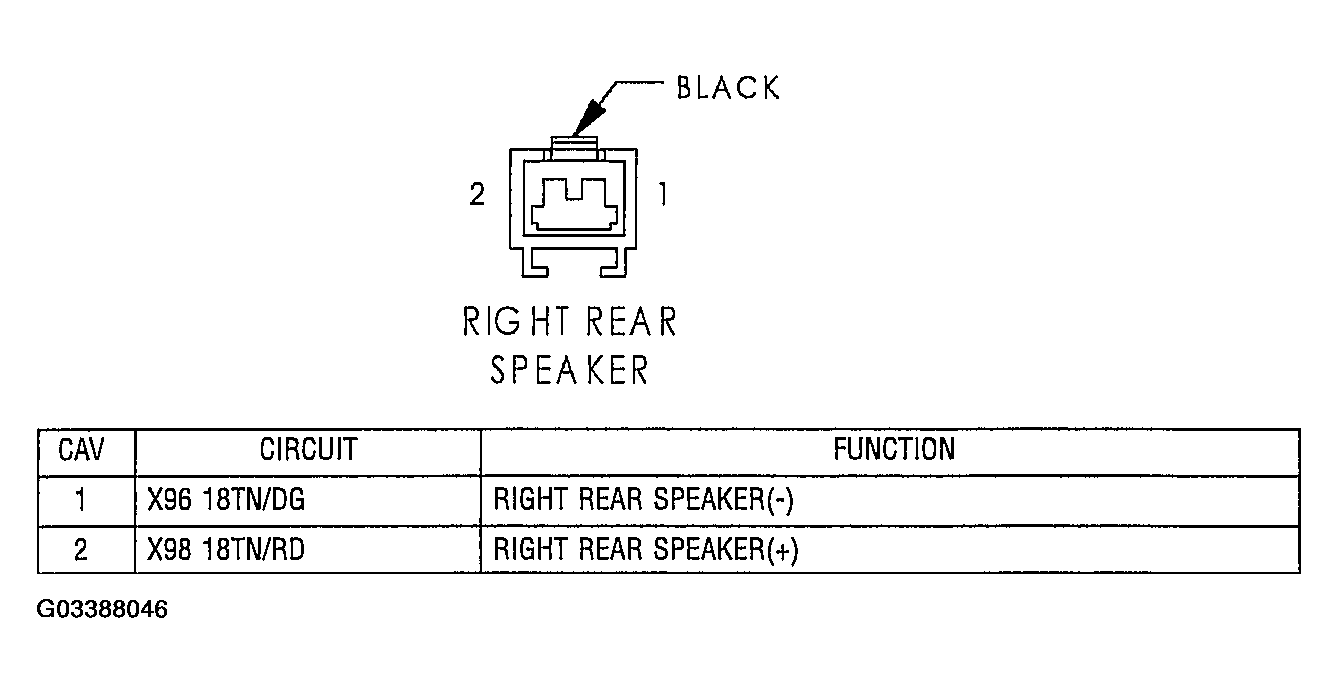

Fig 1: Right Rear Speaker Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
