Right Power Mirror Motor Connector End View Pin-Out

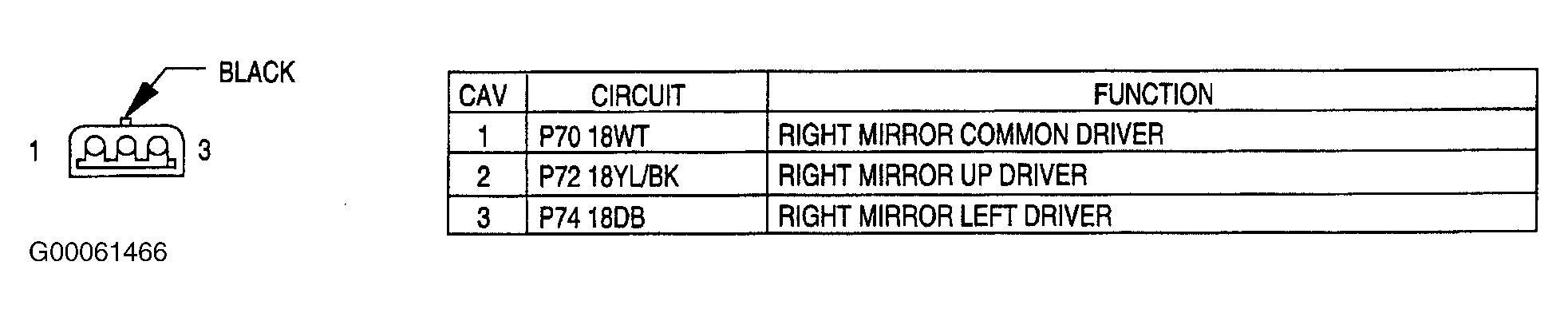

Fig 1: Right Power Mirror Motor Connector End View Pin-Out
Courtesy of CHRYSLER GROUP, LLC
