Power Distribution Center

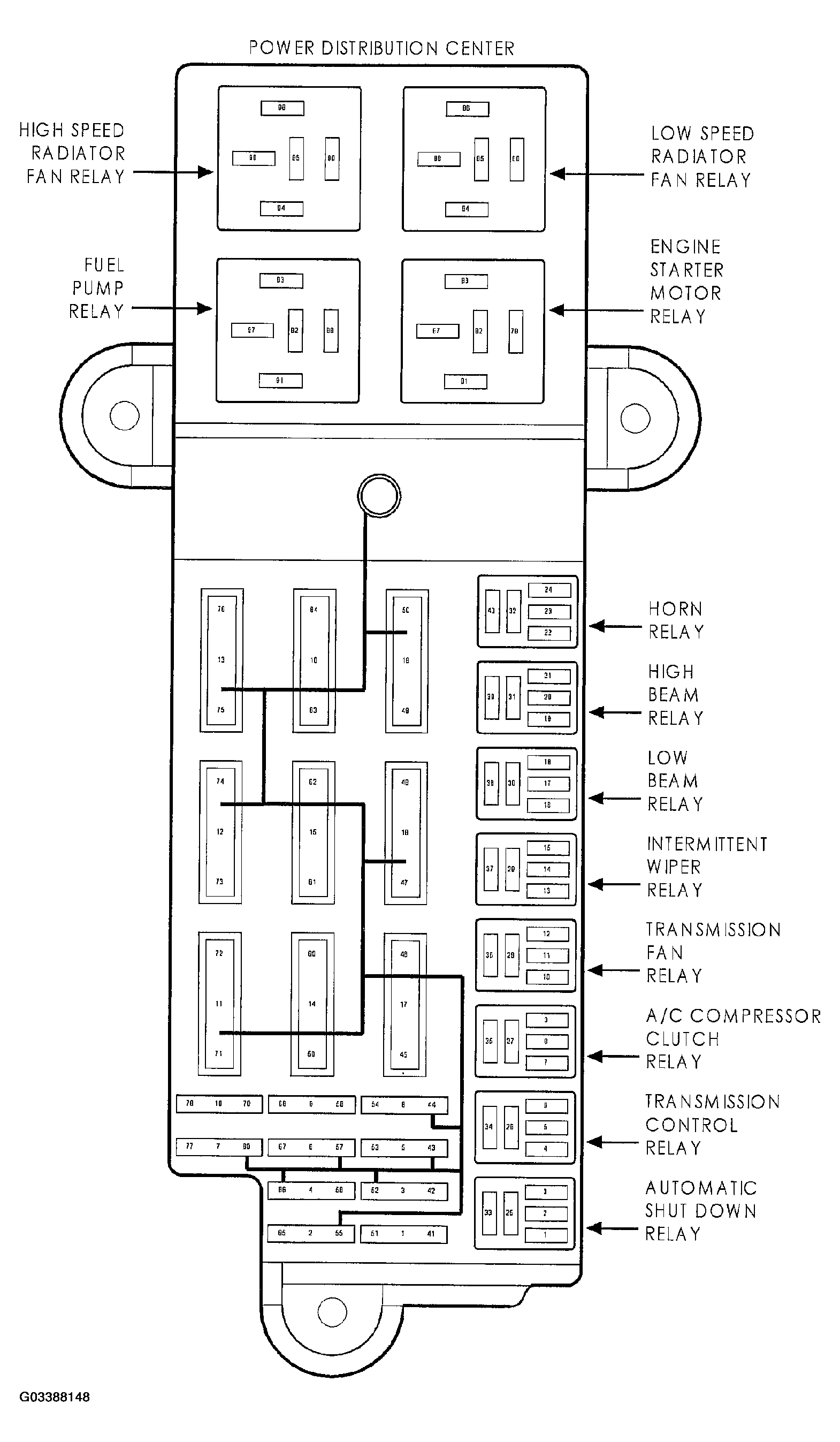

Fig 1: Identifying Power Distribution Center Relay Locations
G03388148Courtesy of DAIMLERCHRYSLER CORP.
