Ignition Control: Specifications: Torque

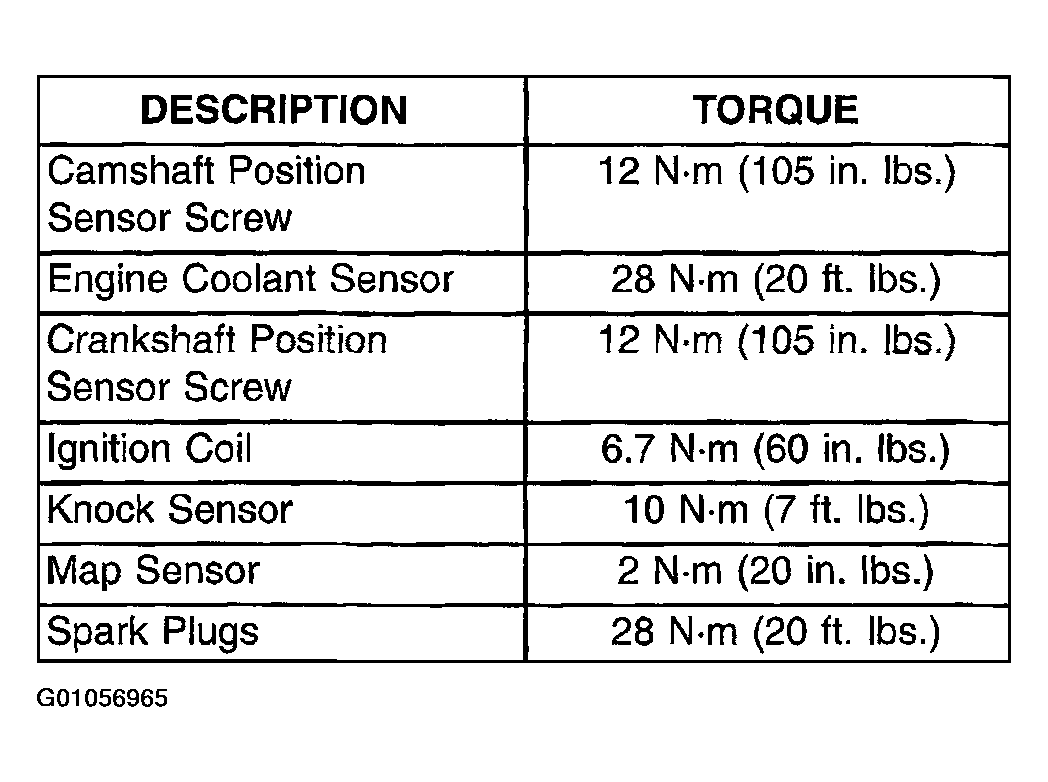

Fig 1: Ignition System Torque Specifications

G01056965

Courtesy of DAIMLERCHRYSLER CORP.
