Ignition Coil Capacitor: Description

There is a coil capacitor added to each bank of cylinders (Fig 1 ) or ( Fig 2 ).

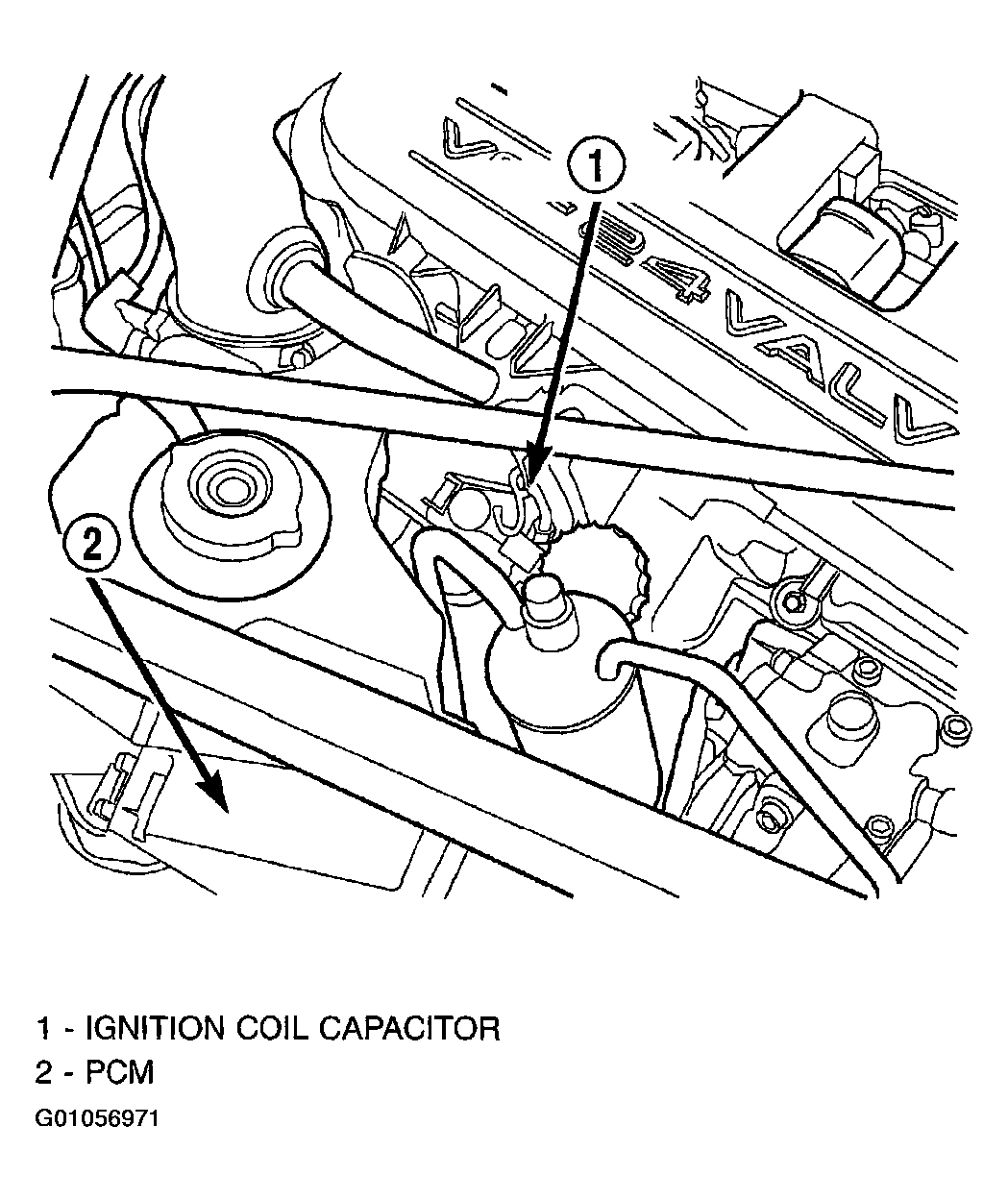

Fig 1: Identifying Coil Capacitor (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

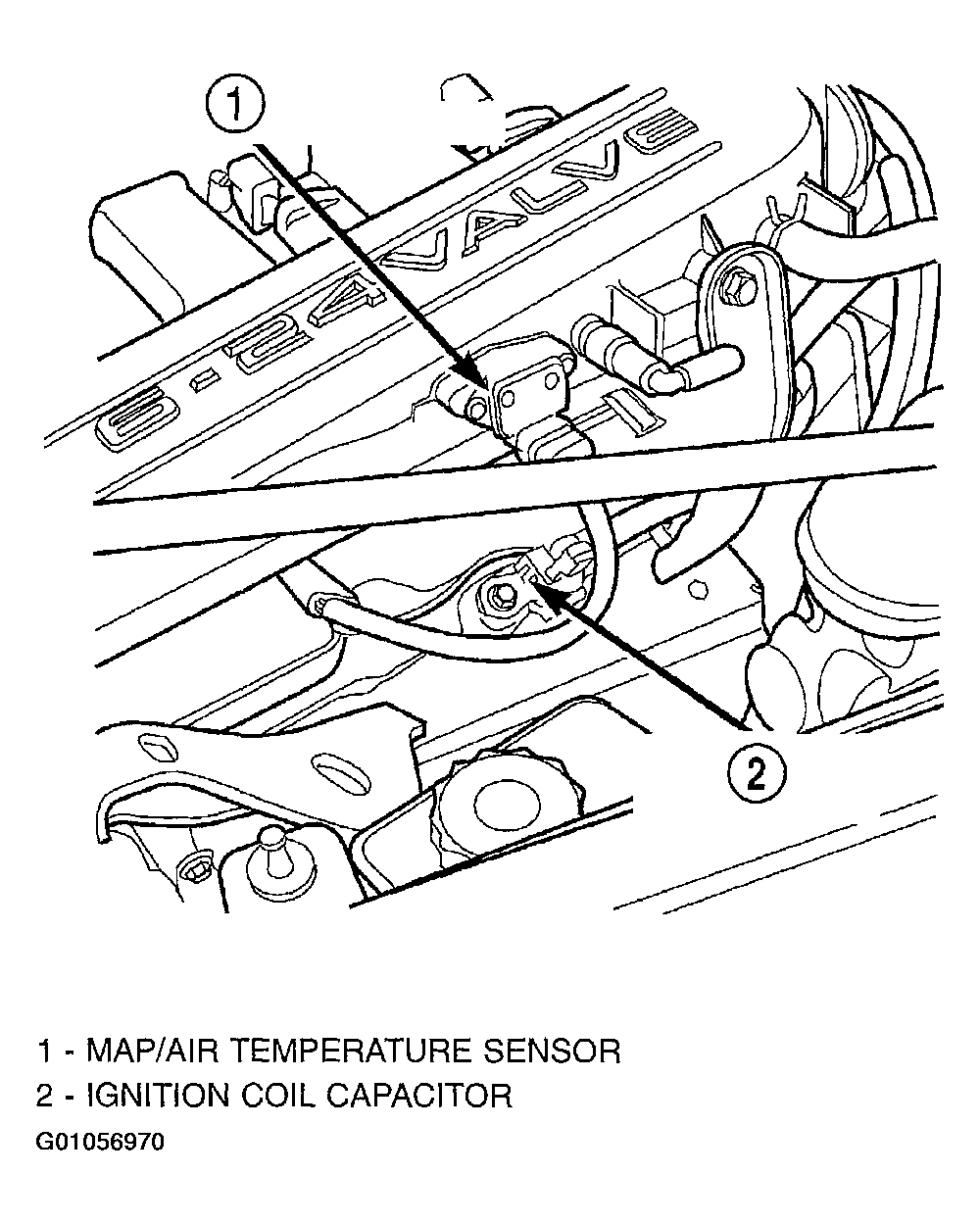

Fig 2: Identifying Coil Capacitor (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
