Fuel Tank Filler Tube: Removal

Disconnect negative cable from battery.
Drain fuel tank.
Remove 3 screws from filler neck to quarter panel (Fig 1).

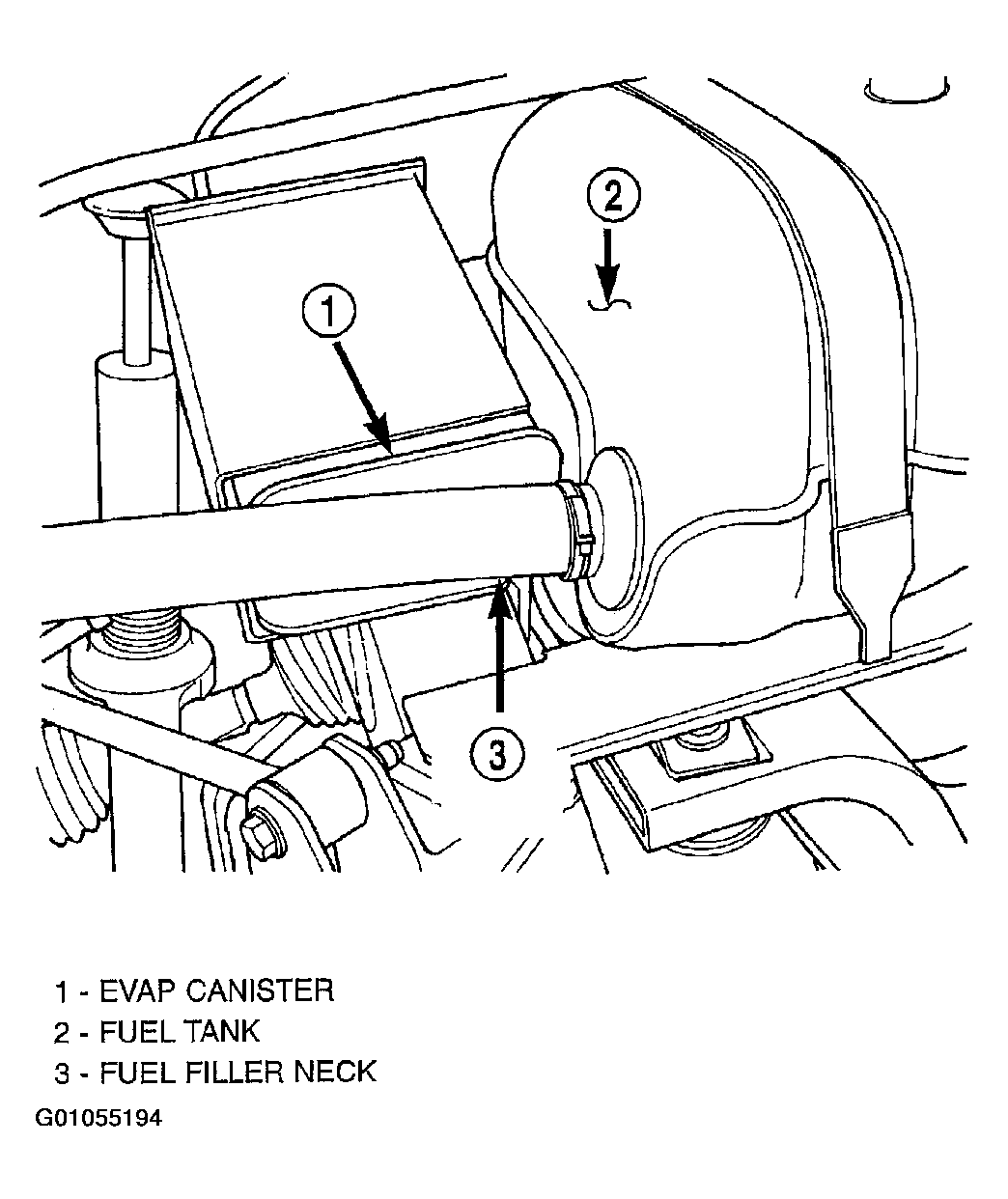

Fig 1: Identifying Fuel Filler Tube
Courtesy of DAIMLERCHRYSLER CORP.
Raise and support vehicle on host.
Loosen clamps at filler neck and vent tube (Fig 2).

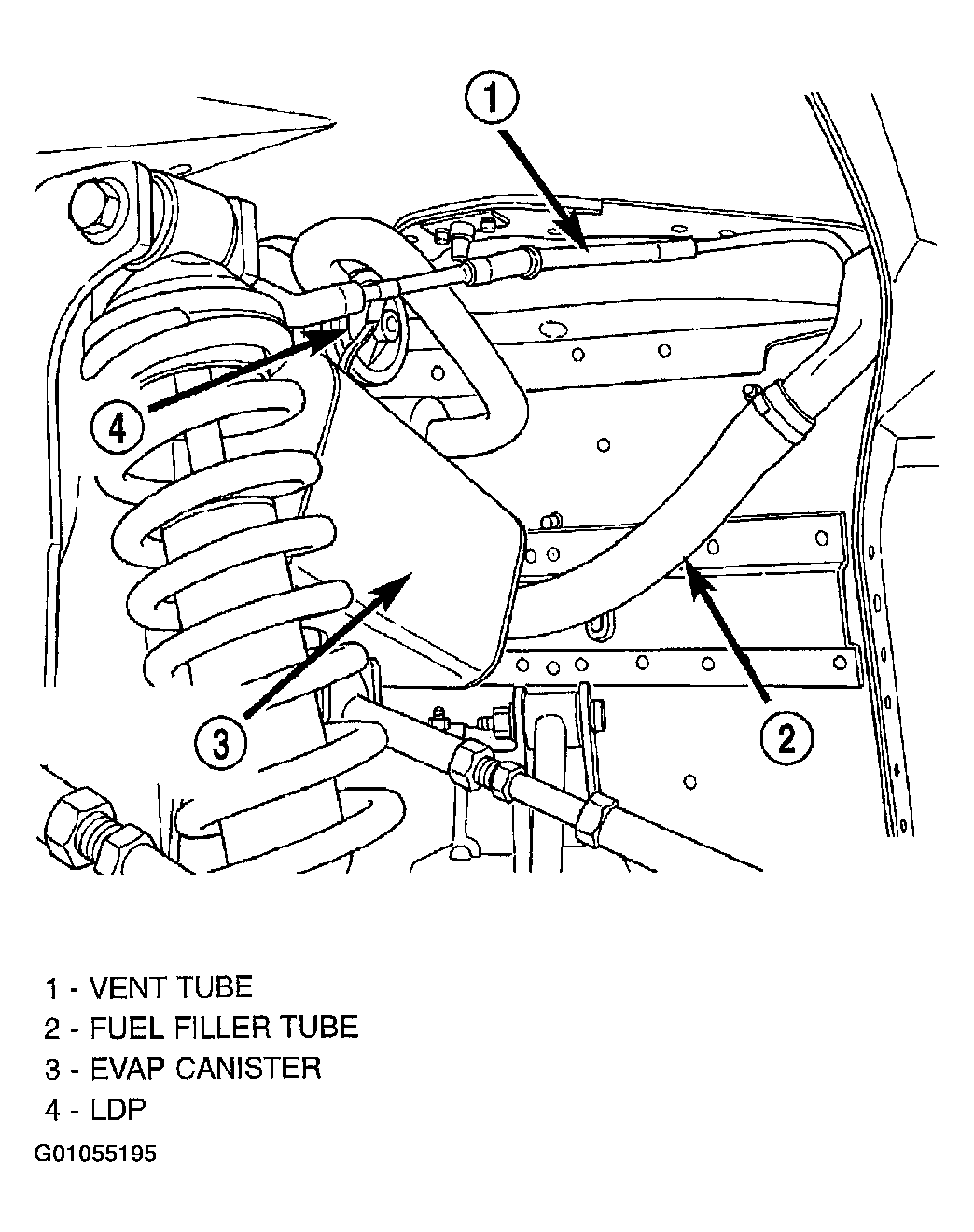

Fig 2: Locating Fuel Filler Tube and Vent Line
Courtesy of DAIMLERCHRYSLER CORP.
Remove the ground wire.
Remove filler neck.
