Windshield Wiper System

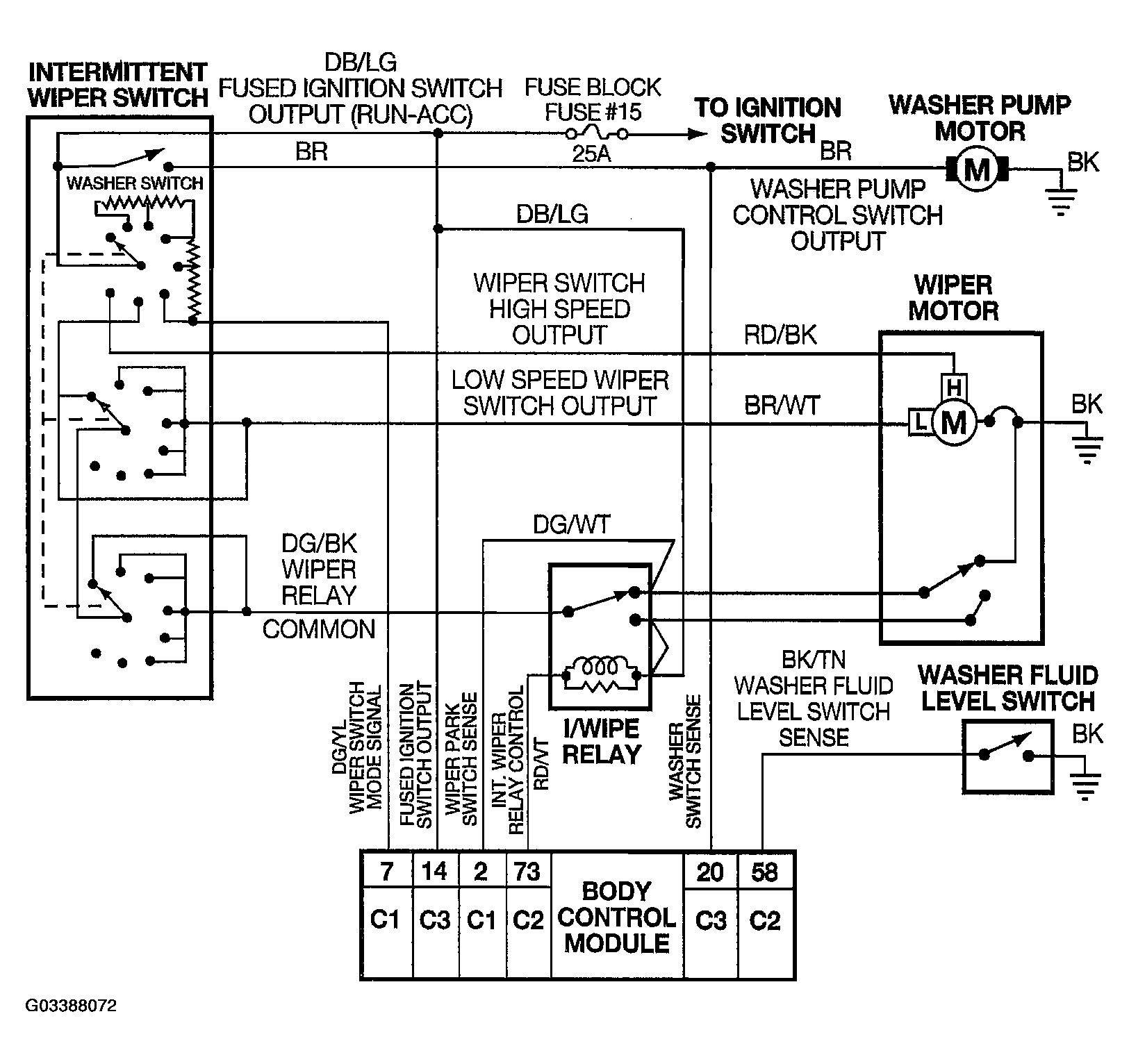

Fig 1: Windshield Wiper System Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
