Interior Lighting

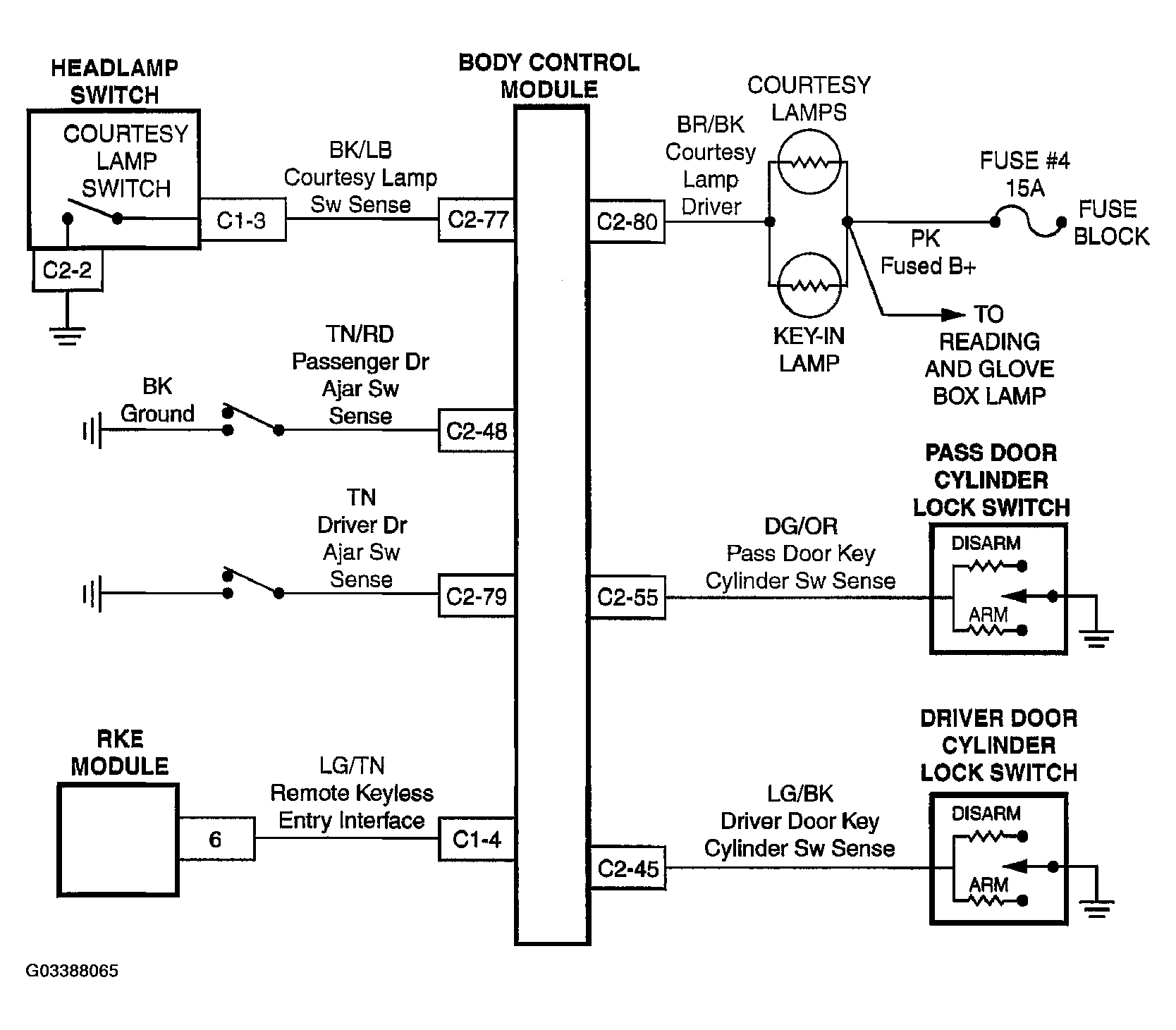

Fig 1: Interior Lighting Schematic Diagram
G03388065Courtesy of DAIMLERCHRYSLER CORP.
