Chime Inoperative With Low Oil Pressure

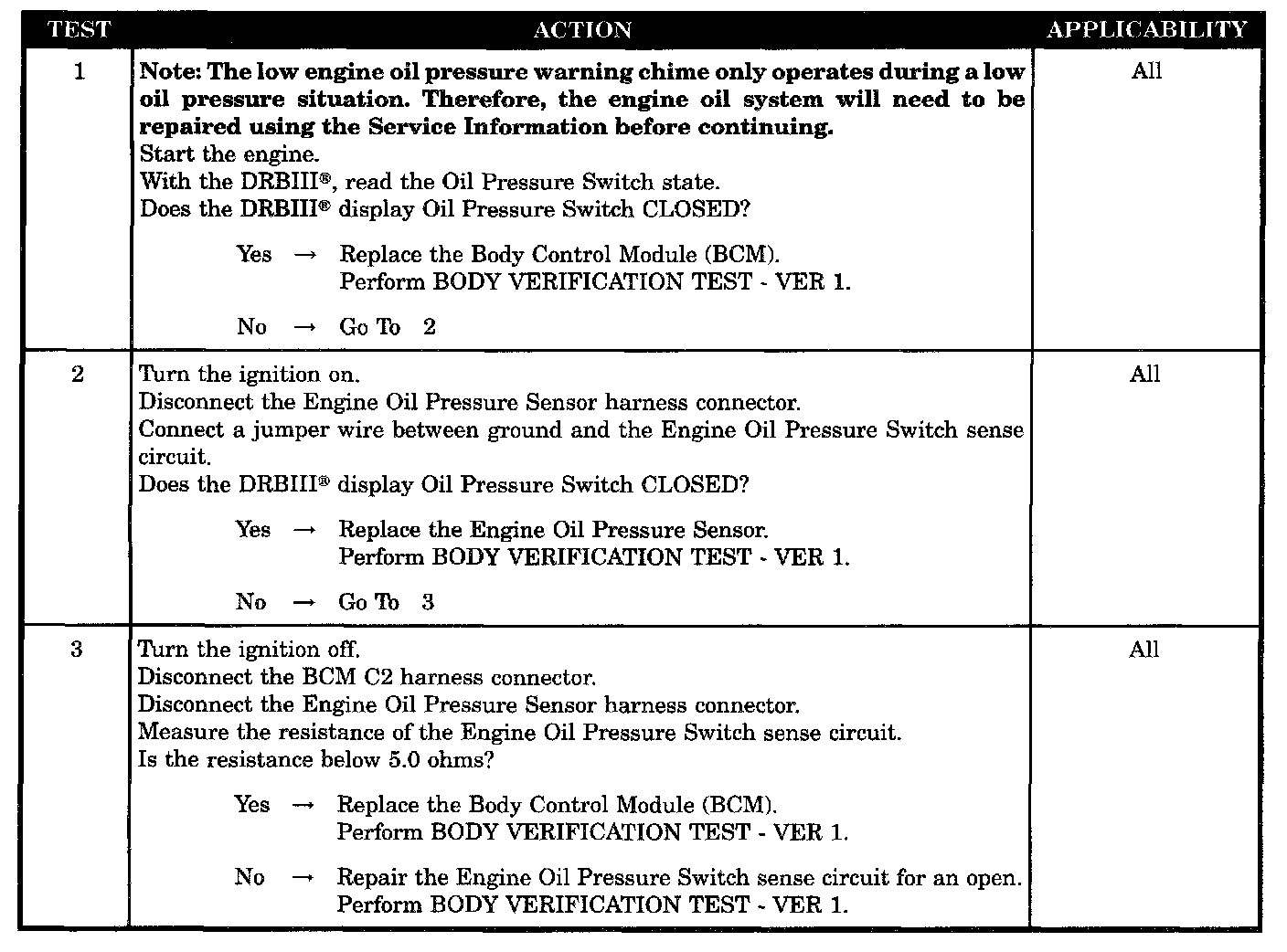

Tests 1 - 3:





SYMPTOM
CHIME INOPERATIVE WITH LOW OIL PRESSURE

POSSIBLE CAUSES
- Read oil pressure switch state with the DRB
- Engine oil pressure switch open
- Engine oil pressure switch sense circuit open
- Body control module
